  • TVL 1000 II MK2
Code 1236300079

TVL 1000 II MK2

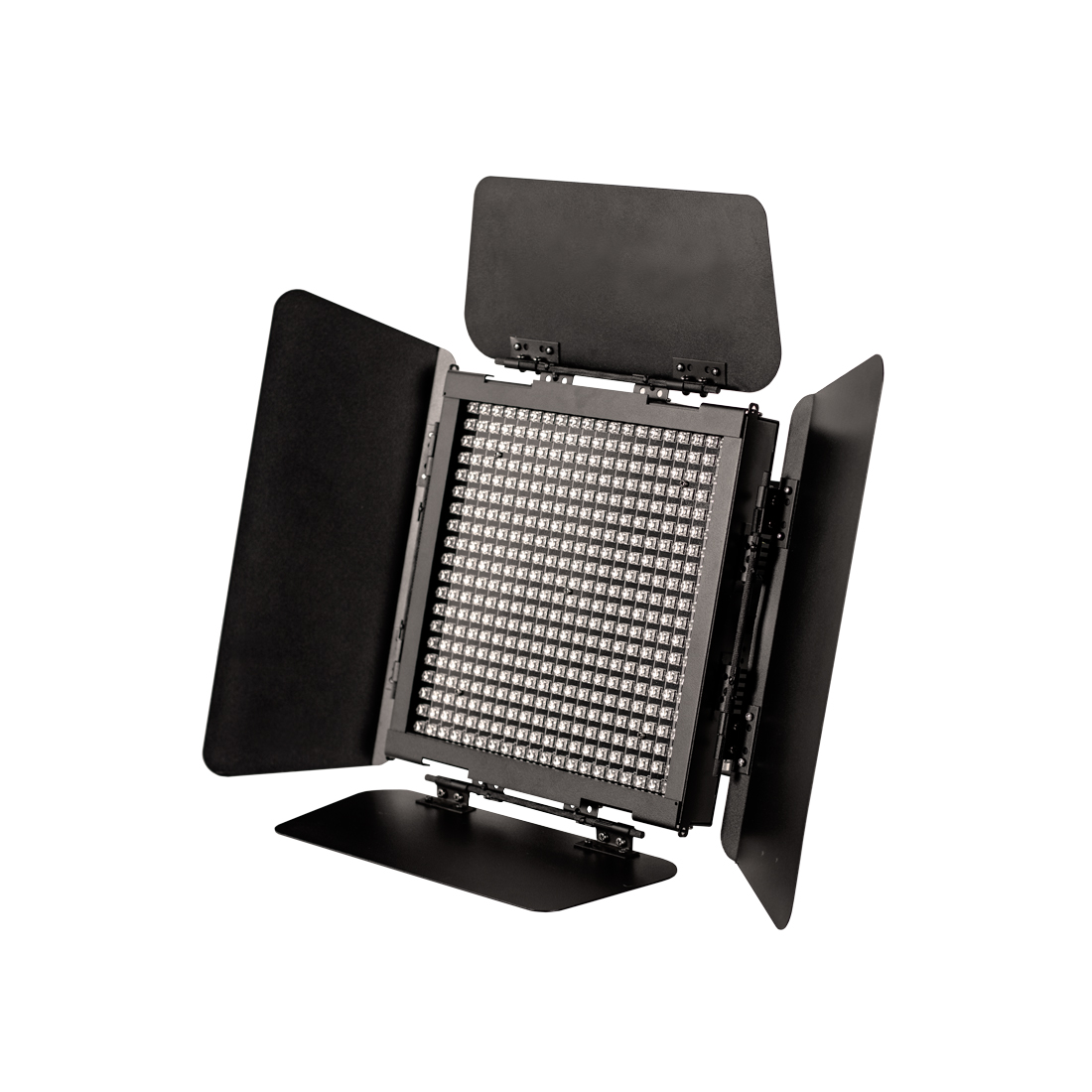

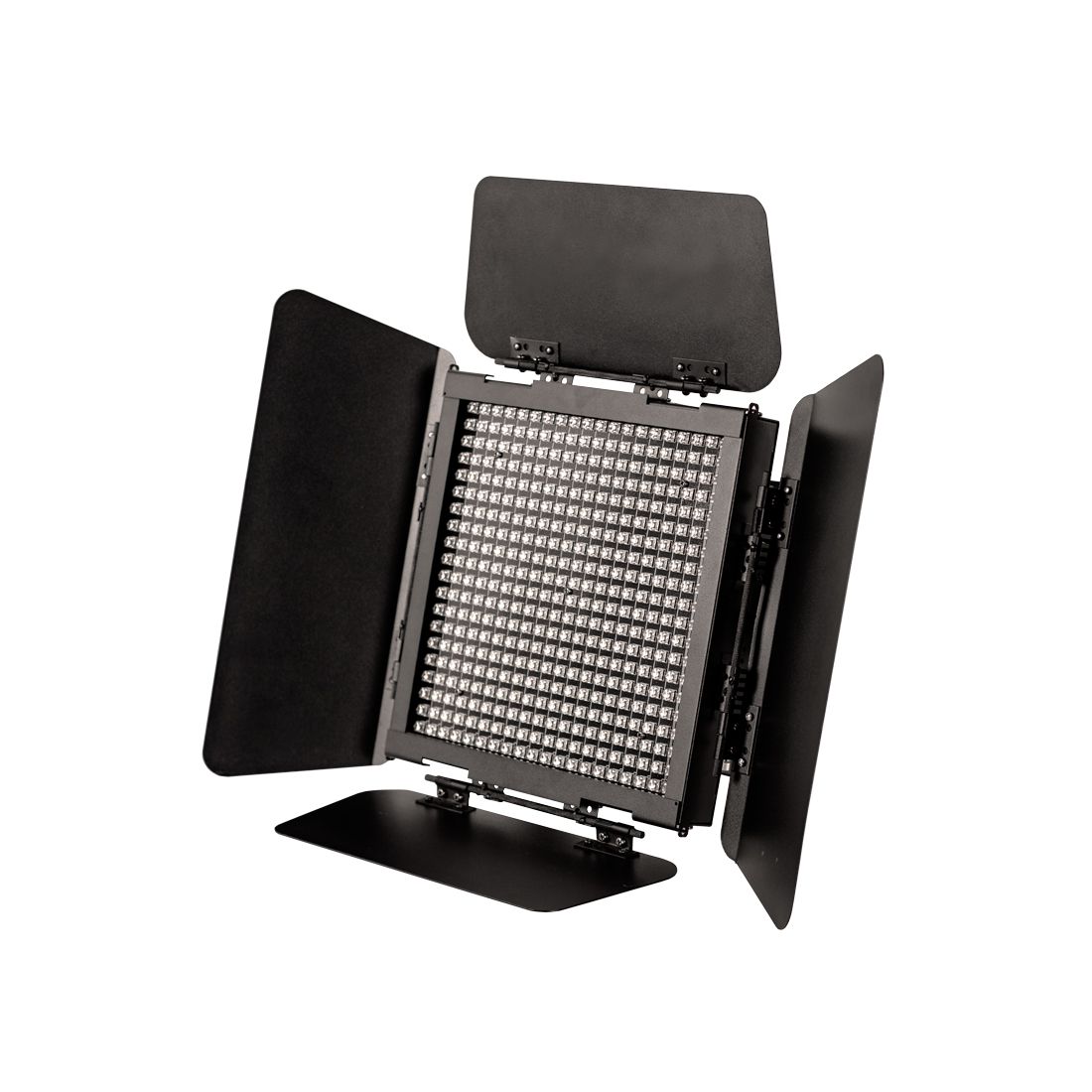

The improved TVL series™ feature a low heat, >90CRI, dynamic LED array panel consisting of warm white and cool white LEDs, 30° beam angle, variable manual and DMX-controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, magnetic gel/diffuser holder, 3pin and 5pin DMX in/out and linkable power in/out connections, flicker free operation for TV and Film, an LCD menu display with 4 button 2 dial control panel and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Low Heat, Dynamic LED Array Panel
High CRI >90
30° Beam Angle
Variable Color Temperature Settings (3,200K - 6,500K)
No Fans - Silent Operation (Only TVL1000 MKII and TVL4000 MKII)

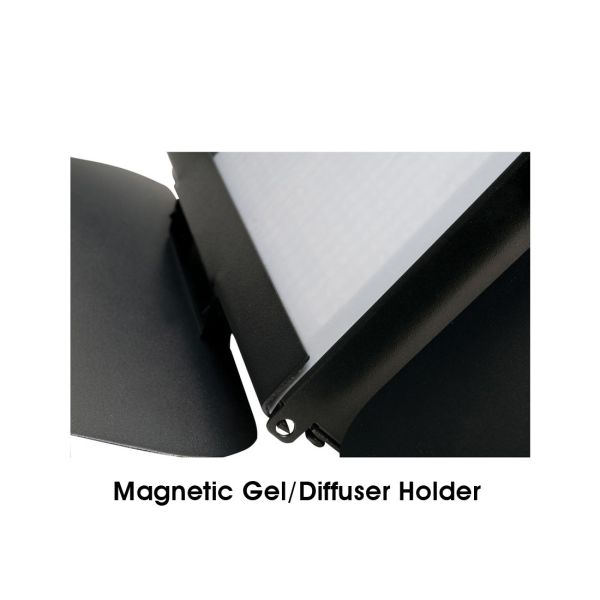

Magnetic Gel/Diffuser Holder
Manual and DMX Controlled Color Temp and Dimming
Adjustable Barn doors
Multiple Unit Power Linking
Flicker Free Operation for TV and Film


SOURCE

(200) Warm White + (200) Cool White LEDs
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

600 LUX @6.6’ (2m)


EFFECTS

Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming 0% - 100%


CONTROL / CONNECTIONS

(3) DMX Channel Modes (2 / 2 / 3)
Manual and DMX Color Temperature and Dimming

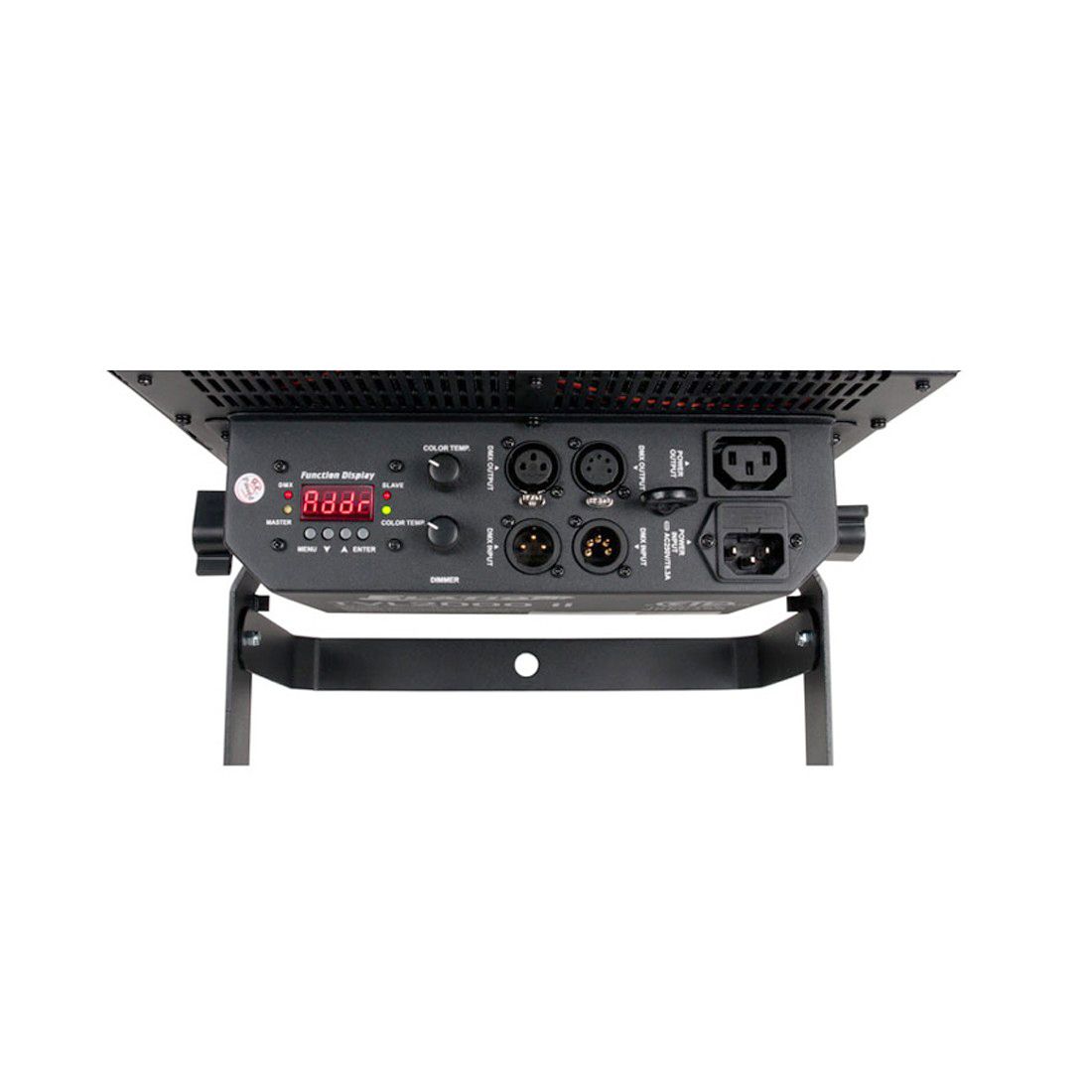

(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin & 5pin DMX In/Out
Power In/Out


SIZE / WEIGHT

Length: 15.9” (406mm)
Width: 13.7” (350mm)
Vertical Height: 4.4” (113mm)
Weight: 13.6 lbs. (6.2 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
68W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


OPTIONAL ACCESSORIES

1226100230 LSF 10°
1226100228 LSF 20°
1226100227 LSF 30°
1226100229 LSF 60x1°
1322000058 A-Loader HH


Specifications and documentation subject to change without notice
