Code
1215200030
FEATURES
2.5° Laser Sharp Beam
Improved High-Speed X / Y / Z Mirror System with Focus
Bidirectional Animation
3-Facet, 8-Facet, and Linear Rotating Prisms
Liquid Sky, Laser Wave, and Cone Effects
Internal Pattern and Control Macros
SOURCE
Philips MSD Platinum 14R™ 280W Lamp
2,000 Hour Average Lamp Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
84,330 LUX 7,834 FC @16.4’ (5m)
23,200 LUX 2,155 FC @32.8’ (10m)
10,270 LUX 954 FC @49.2’ (15m)
5,800 LUX 539 FC @65.6’ (20m)
3,700 LUX 344 FC @82.0’ (25m)
Bidirectional Animation
3-Facet, 8-Facet, and Linear Rotating Prisms
Liquid Sky, Laser Wave, and Cone Effects
Pattern and Control Macros
(12) Dichroic Colors + White and Split Colors
CMY Color Mixing
(20) Static-Stamped Gobos
(2) DMX Channel Modes (25 / 27)
4 Button Control Panel
LCD Menu Display
3/5pin DMX In/Out
Twist Lock Power In/Out
Power Linking Multiple Units
Length: 16.1” (408mm)
Width: 13.9” (353mm)
Vertical Height: 13.8” (351mm)
Weight: 29.0 lbs. (13.2kg)
AC 100-240V - 50/60Hz
460W Max Power Consumption
Max Ambient Temperature 104°F (40°C)
Rigging: Integrated Yoke
Working Position: Any (360°)
Improved High-Speed X / Y / Z Mirror System with Focus
Bidirectional Animation
3-Facet, 8-Facet, and Linear Rotating Prisms
Liquid Sky, Laser Wave, and Cone Effects
Internal Pattern and Control Macros
SOURCE
Philips MSD Platinum 14R™ 280W Lamp 2,000 Hour Average Lamp Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
84,330 LUX 7,834 FC @16.4’ (5m) 23,200 LUX 2,155 FC @32.8’ (10m)
10,270 LUX 954 FC @49.2’ (15m)
5,800 LUX 539 FC @65.6’ (20m)
3,700 LUX 344 FC @82.0’ (25m)
EFFECTS
Bidirectional Animation 3-Facet, 8-Facet, and Linear Rotating Prisms
Liquid Sky, Laser Wave, and Cone Effects
Pattern and Control Macros
COLOR
(12) Dichroic Colors + White and Split Colors CMY Color Mixing
GOBOS
(20) Static-Stamped Gobos

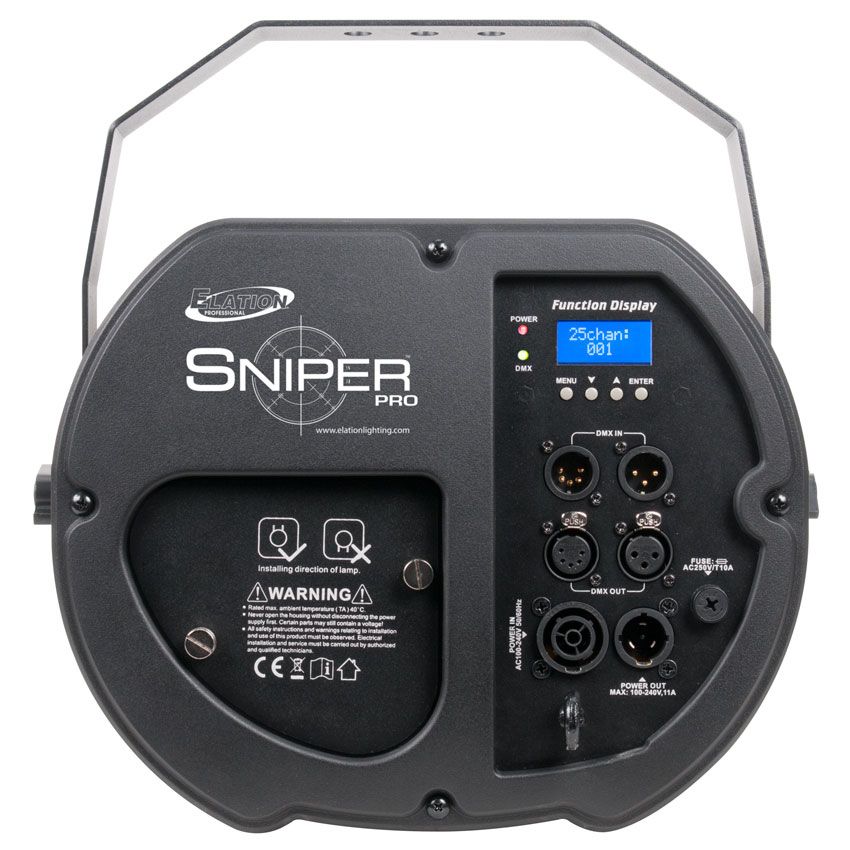

CONTROL / CONNECTIONS
(2) DMX Channel Modes (25 / 27) 4 Button Control Panel
LCD Menu Display
3/5pin DMX In/Out
Twist Lock Power In/Out
Power Linking Multiple Units
SIZE / WEIGHT
Length: 16.1” (408mm) Width: 13.9” (353mm)
Vertical Height: 13.8” (351mm)
Weight: 29.0 lbs. (13.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz 460W Max Power Consumption
Max Ambient Temperature 104°F (40°C)
INSTALLATION

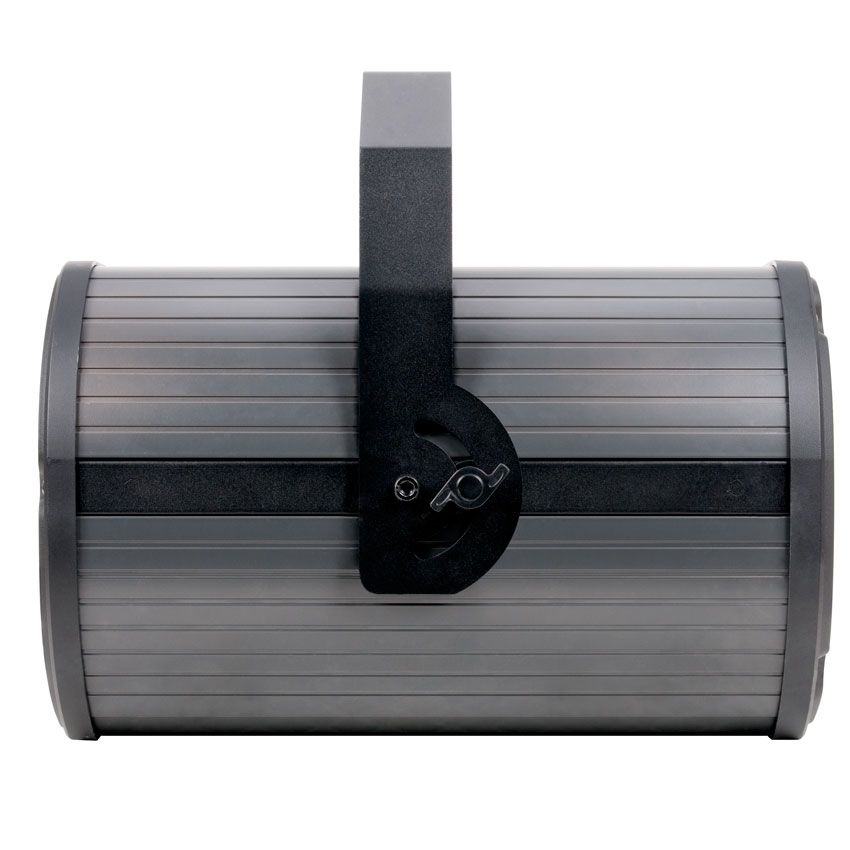

Rigging: Integrated Yoke Working Position: Any (360°)
Specifications and documentation subject to change without notice
