SDC12

SDC12Archive

Code 1323000023

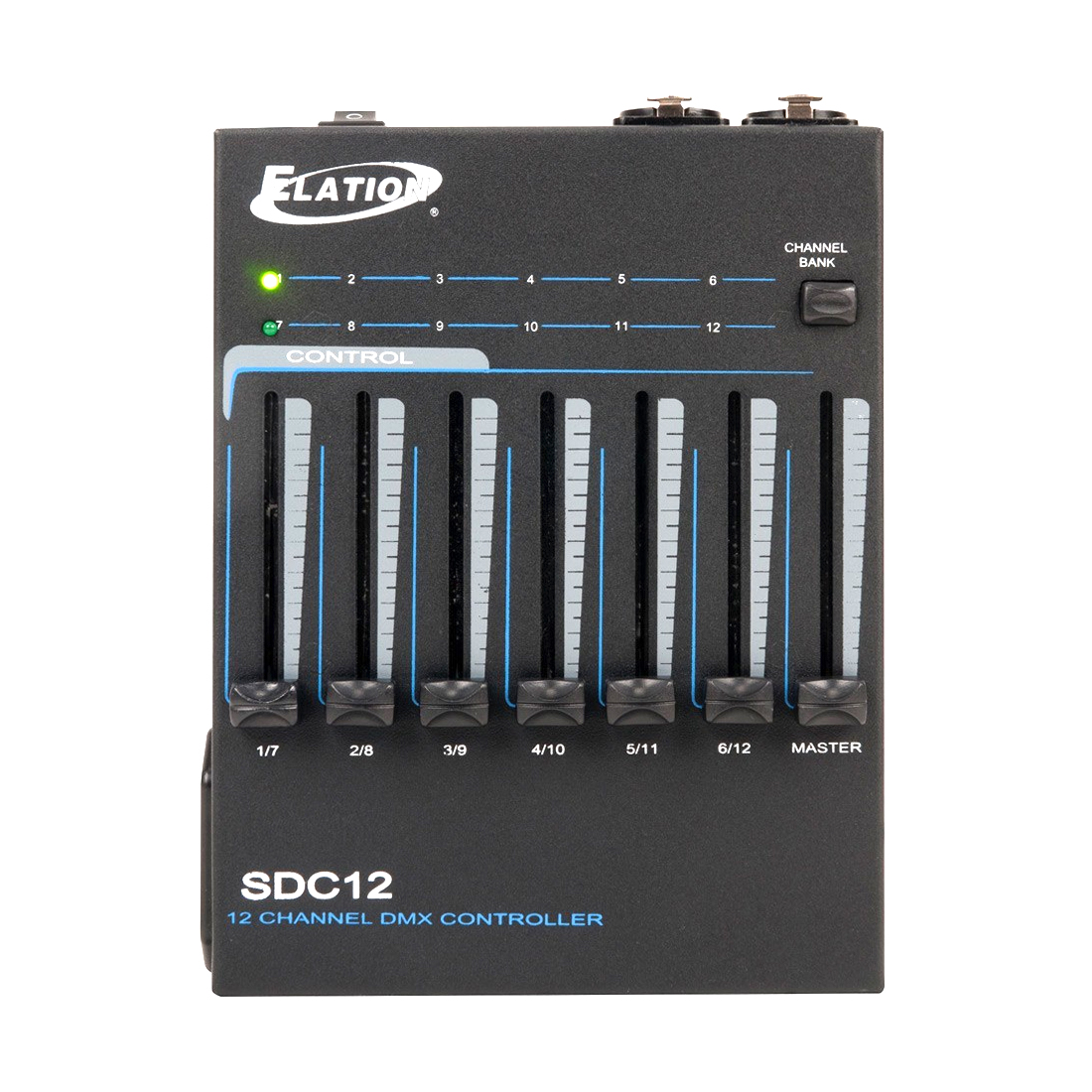

The SDC12™ features 12 DMX channels, DIP switches to set a starting DMX channel, a master dimmer fader, on/off switch, locking 3/5pin XLR Connector outputs, and operates via an external 12VDC power supply (included) or a 9VDC battery (not included). Great handheld device for product demos or manual control of LED or conventional fixtures. Can be wall mounted for permanent installations.

Code 1323000023

SDC12

The SDC12™ features 12 DMX channels, DIP switches to set a starting DMX channel, a master dimmer fader, on/off switch, locking 3/5pin XLR Connector outputs, and operates via an external 12VDC power supply (included) or a 9VDC battery (not included).

Great handheld device for product demos or manual control of LED or conventional fixtures. Can be wall mounted for permanent installations.

Technical Data

FEATURES

12 DMX Channels Faders

Master Dimmer Fader

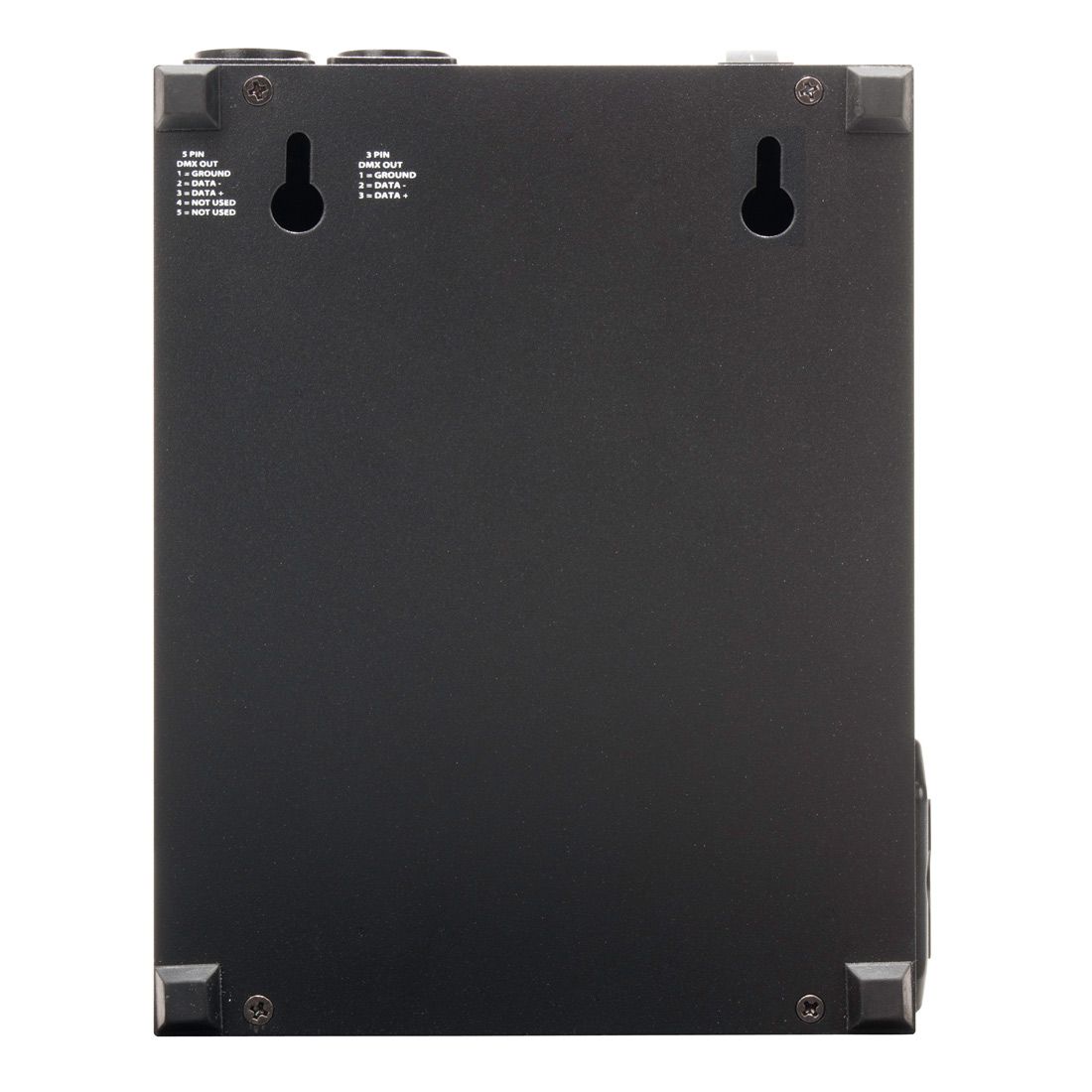

Portable Handheld Or Wall Mountable

Operates via 12VDC Power Supply (Included) Or

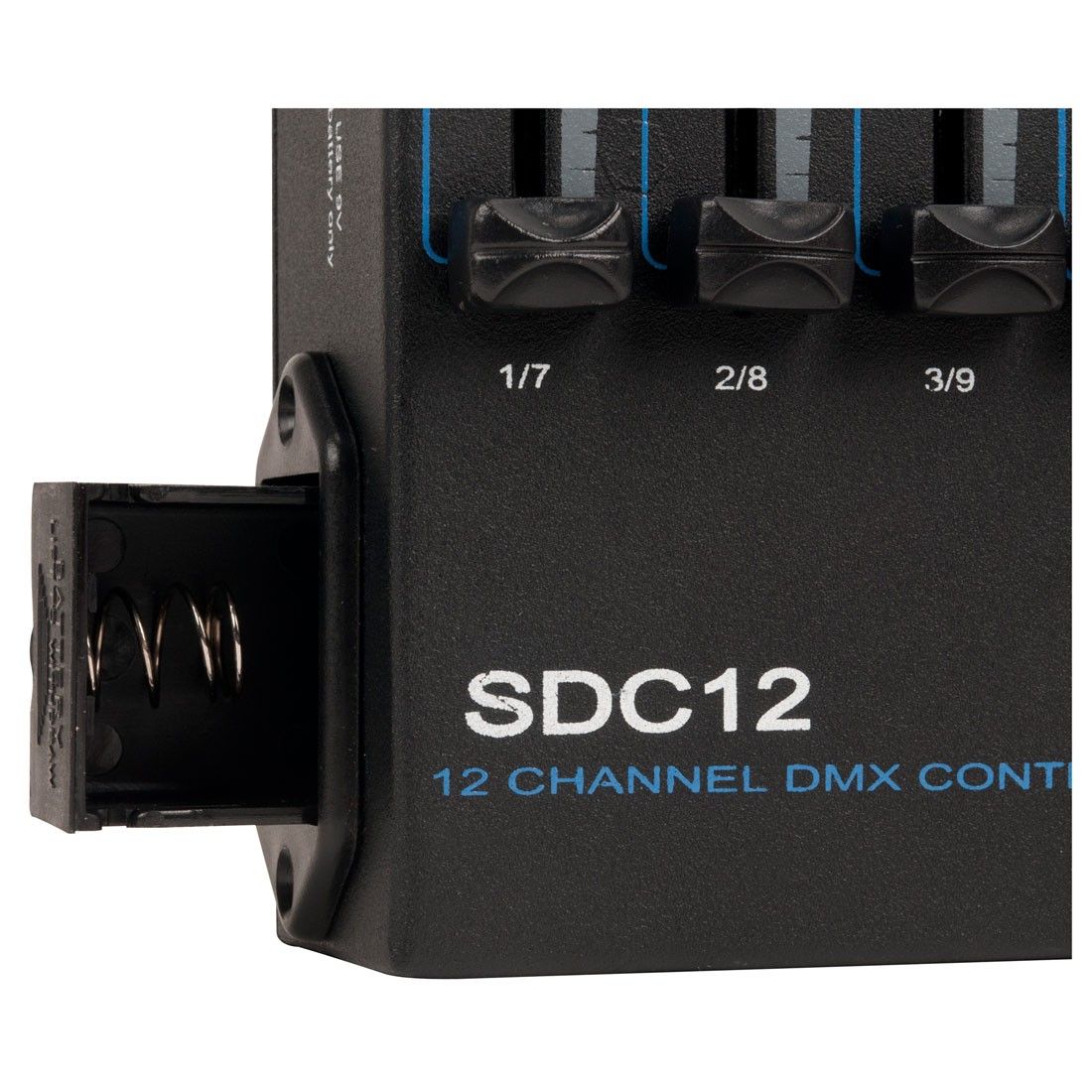

9VDC Battery (Not Included)

CONTROL / CONNECTIONS

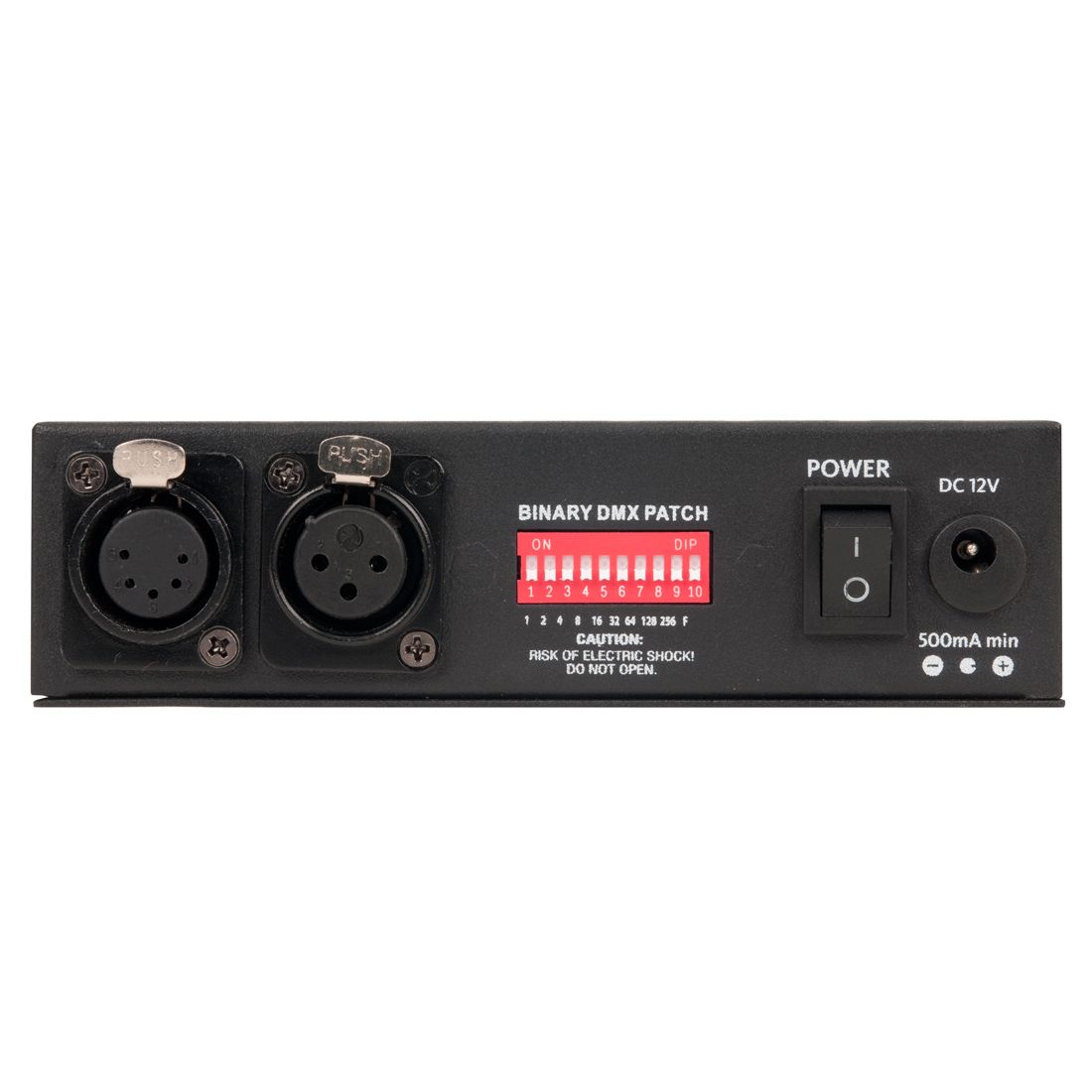

DIP Switches To Set Starting DMX Channel

Locking 3/5pin XLR Connector Outputs

On/Off Switch

LED Channel Bank Indicator

DC 12V Power Supply Input

SIZE / WEIGHT

Length: 7.5” (191mm)

Width: 5.9” (149mm)

Height: 1.6” (41mm)

Weight: 2.0 lbs. (0.9kg)

ELECTRICAL

DC 12V 500mA min OR 9V Battery (Not Included)

INCLUDED ACCESSORIES

12V Power Supply

Specifications and documentation subject to change without notice
