SDC-6 Faderdesk V2 black

SDC-6 Faderdesk V2 blackArchive

Code 1236100095

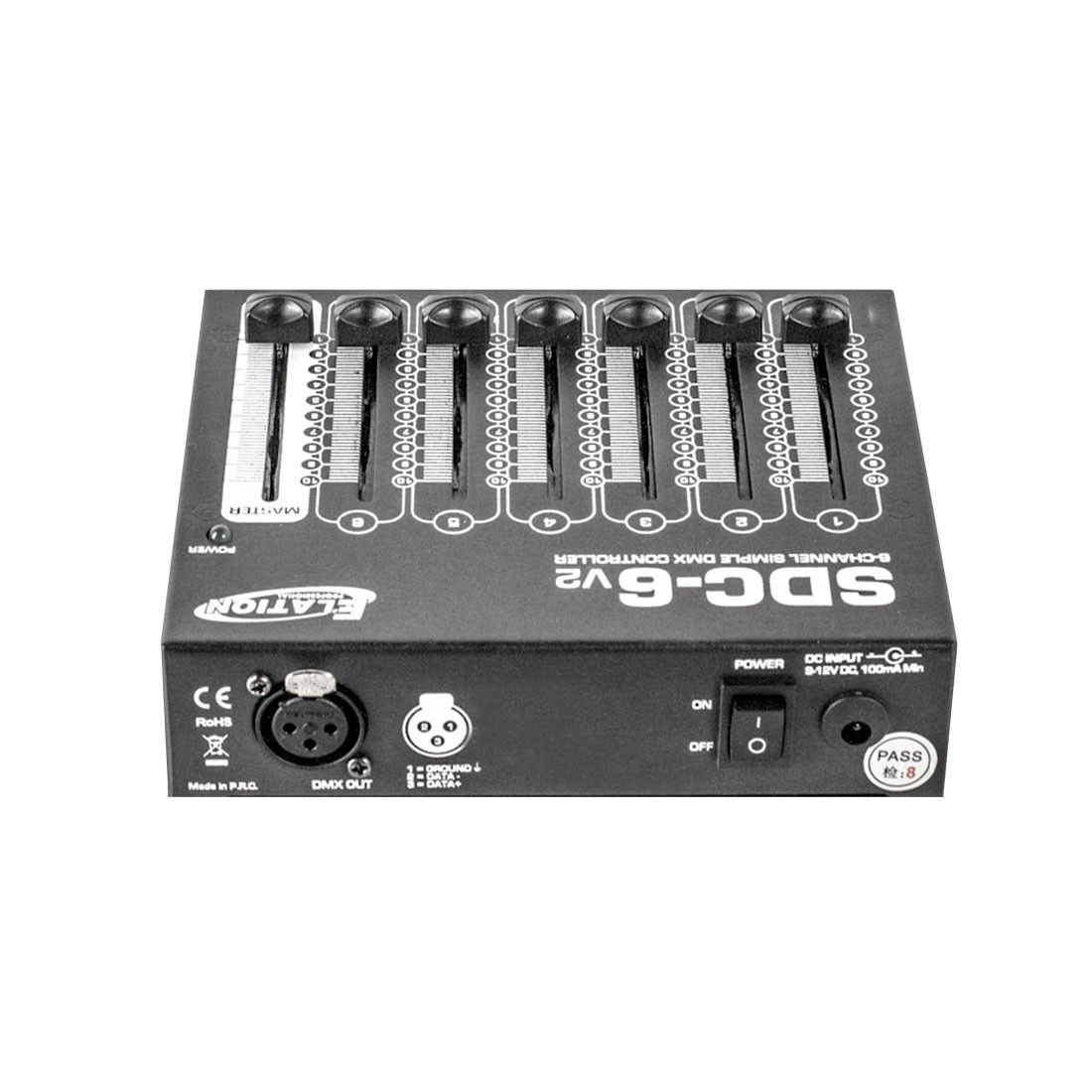

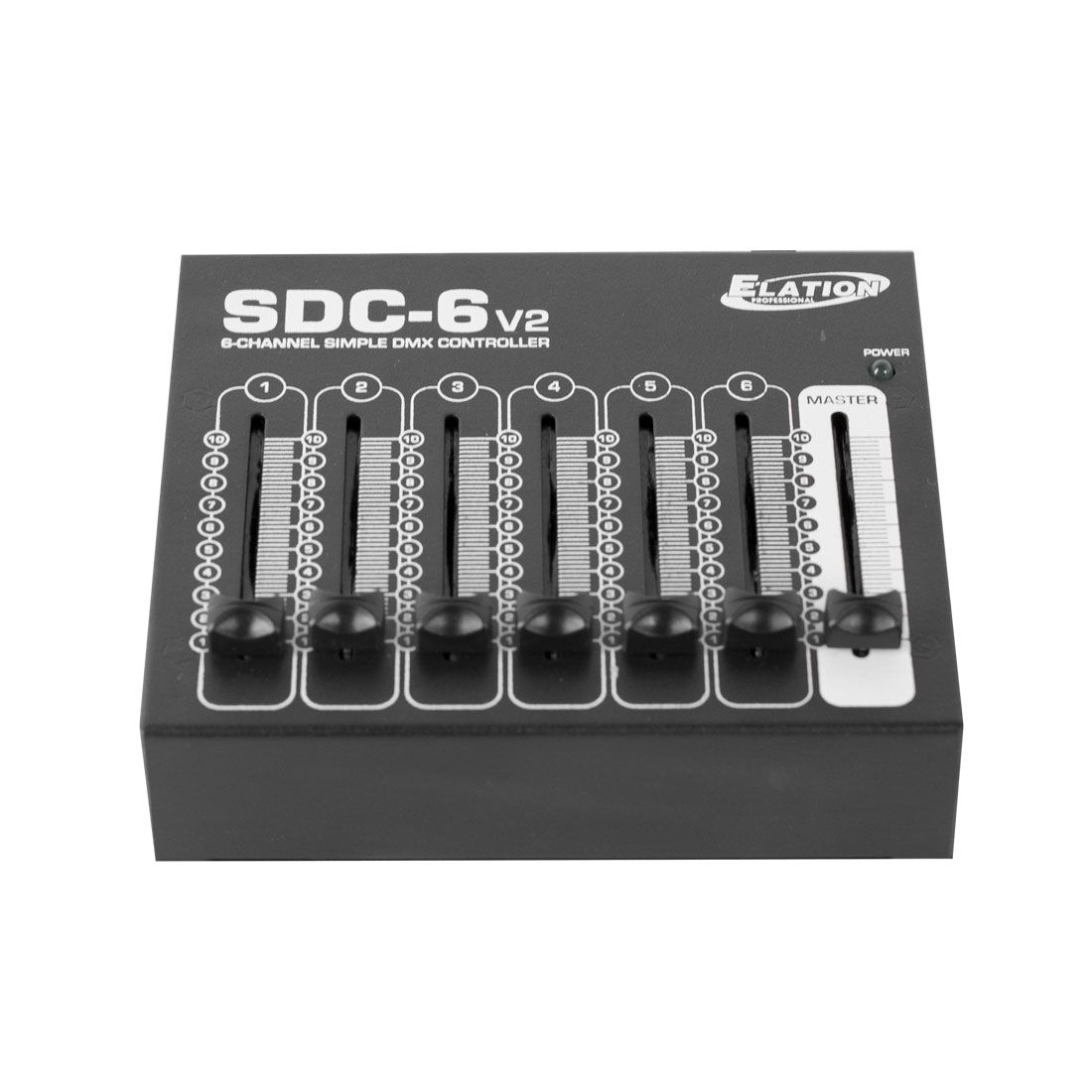

The SDC6 V2™ features 6 DMX channels, a master dimmer fader, on/off switch, locking 3pin XLR output, and operates via an external 12VDC power supply (included). Great handheld device for product demos or manual control of LED or conventional fixtures. Can be wall mounted for permanant installations.

Code 1236100095

SDC-6 Faderdesk V2 black

The SDC6 V2™ features 6 DMX channels, a master dimmer fader, on/off switch, locking 3pin XLR output, and operates via an external 12VDC power supply (included).

Great handheld device for product demos or manual control of LED or conventional fixtures. Can be wall mounted for permanant installations.

Technical Data

FEATURES

6 DMX Channels Faders

Master Dimmer Fader

Portable Handheld Or Wall Mountable

Operates via 12VDC Power Supply (Included)

CONTROL / CONNECTIONS

Locking 3pin XLR Connector Outputs

On/Off Switch

DC 12V Power Supply Input

SIZE / WEIGHT

Length: 7.5” (191mm)

Width: 5.9” (149mm)

Height: 1.6” (41mm)

Weight: 2.0 lbs. (0.9kg)

ELECTRICAL

DC 12V 100mA min

INCLUDED ACCESSORIES

12V Power Supply

Specifications and documentation subject to change without notice
