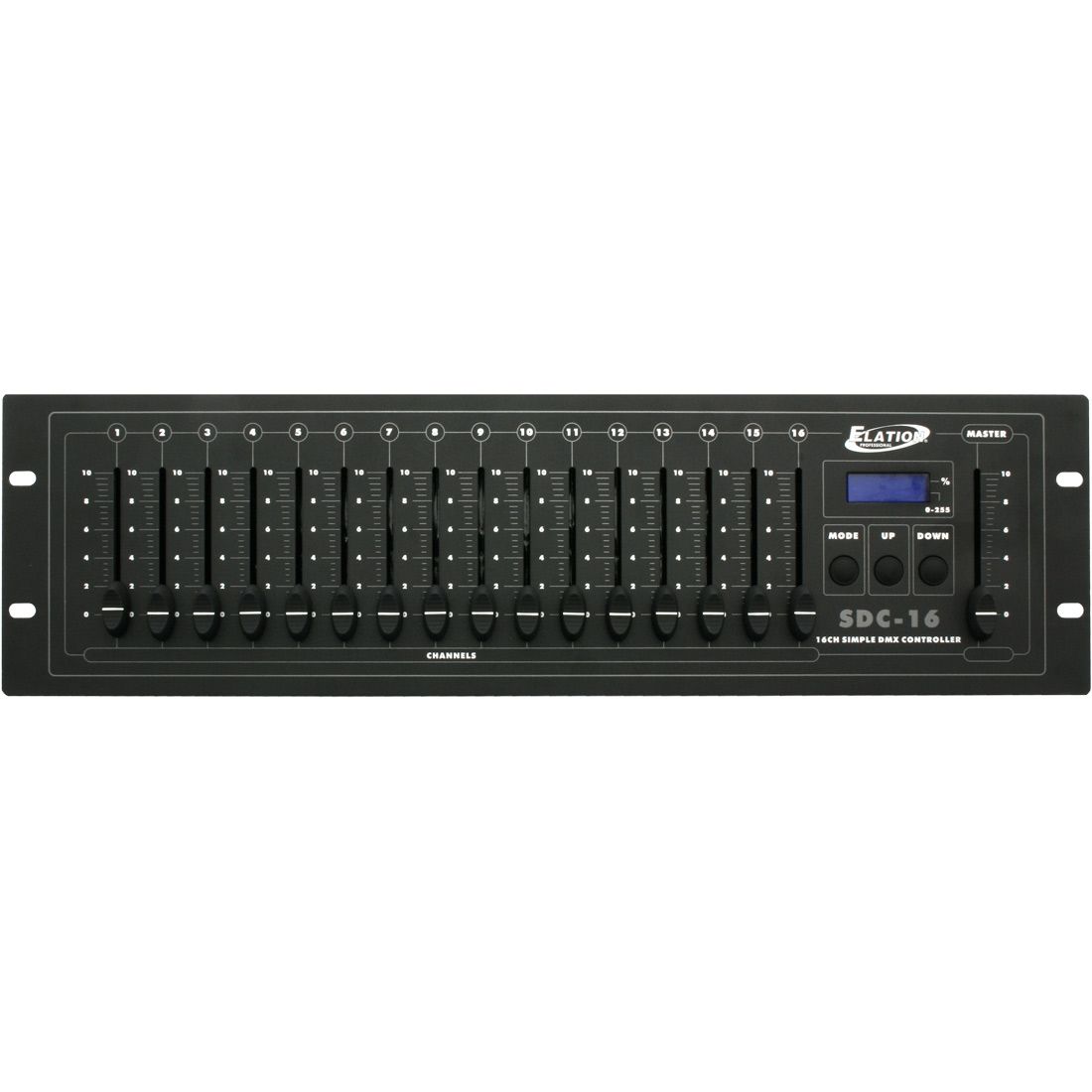

SDC-16 Faderdesk

The easiest way to control various DMX fixtures, which do not
need to be programmed. Ideal for the classical stagelighting and
LED lights. The SDC 16 can control up to 16 channels. You can
choose between displaying the real DMX-value (0-255) or the
relative-value (0- 100%). Addressing begins at channel 1 (Preset)
and can be changed. Easy to use - no programming needed.

Technical Data

- Easy and direct DMX access
- DMX start address configurable
- 16 direct channel access faders
- One master fader
- Display for channel readout
- Powersupply included
- Compact 19” design

- 16 channel faders and 1 master fader
- Display for channel readout and setup
- Real DMX value or percentile (0-100%)
- DMX Start Address configurable
- 3pol. XLR out
- Incl. external power supply
- Dimensions (LxWxH): 483x123x80mm (19", 3U)
- Weight: 2.3 Kg

Specifications and documentation subject to change without notice
