RP2

The NETRON RP2 is an intelligent 2-way DMX Power Relay that is an ideal tool to increase efficiency by reducing power consumption, protecting sensitive equipment and prolonging the longevity of lighting systems. The device is configurable via the integrated OLED display and encoder with real time status and power consumption feedback.
RP2 features optional smart power sequencing and DMX traffic detection to allow complete automation of fixture power based on DMX status. Simply turn the console on or off, and the system will follow along.
An internal clock allows standalone use of the RP2 or automating the power outputs to specific days and times. For example, a system could be turned off every day at midnight to prevent excessive power on time of devices.
Two independent power outputs are controlled by high current dual pole relays, ensuring complete removal of power from the circuit.
Current sensing per output allows to monitor power consumption on the display, and the RP2 keeps track of peak power consumption of the ports. The power information can be accessed on the display or remotely monitored over the RDM protocol. Additionally, actual, highest and lowest voltage received are available for diagnostics.

Technical Data

FEATURES

Two independent DMX Relay Circuits
RDM support
High Current Dual Pole Relays
Support for 208V and Delta Power Systems
Voltage and Power Status and Logging on display or via RDM
24h / 7 Day Event Scheduler
DMX Signal Sensing for automated relay control
Auto Power Sequencing with adjustable time delay
1.3” OLED Display with rotary encoder
Powder-coated compact metal housing
Surface, Truss, DIN-Rail and Standalone mounting
For all technical details and documentation for NETRON devices please visit
https://obsidiancontrol.com/netron

MOUNTING

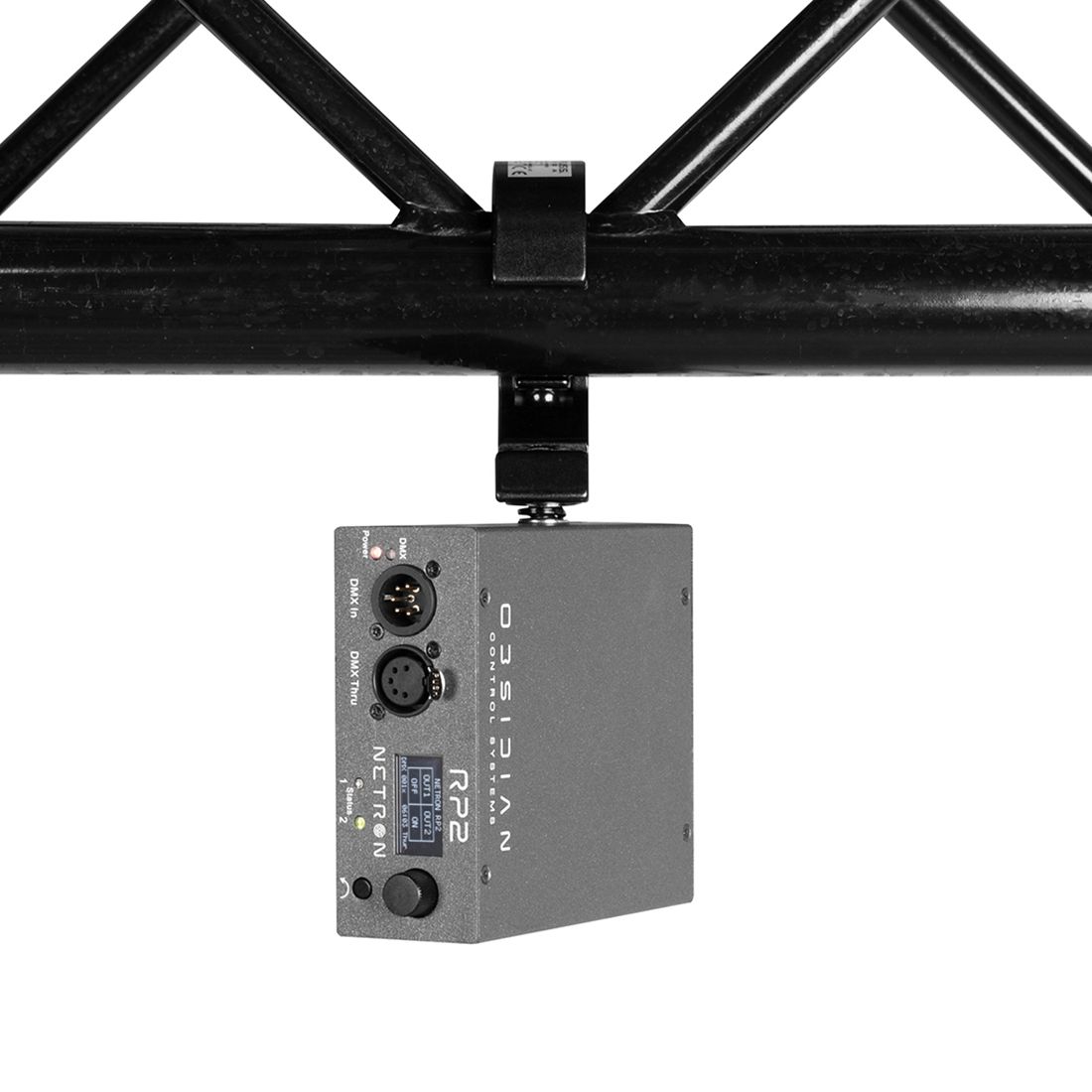

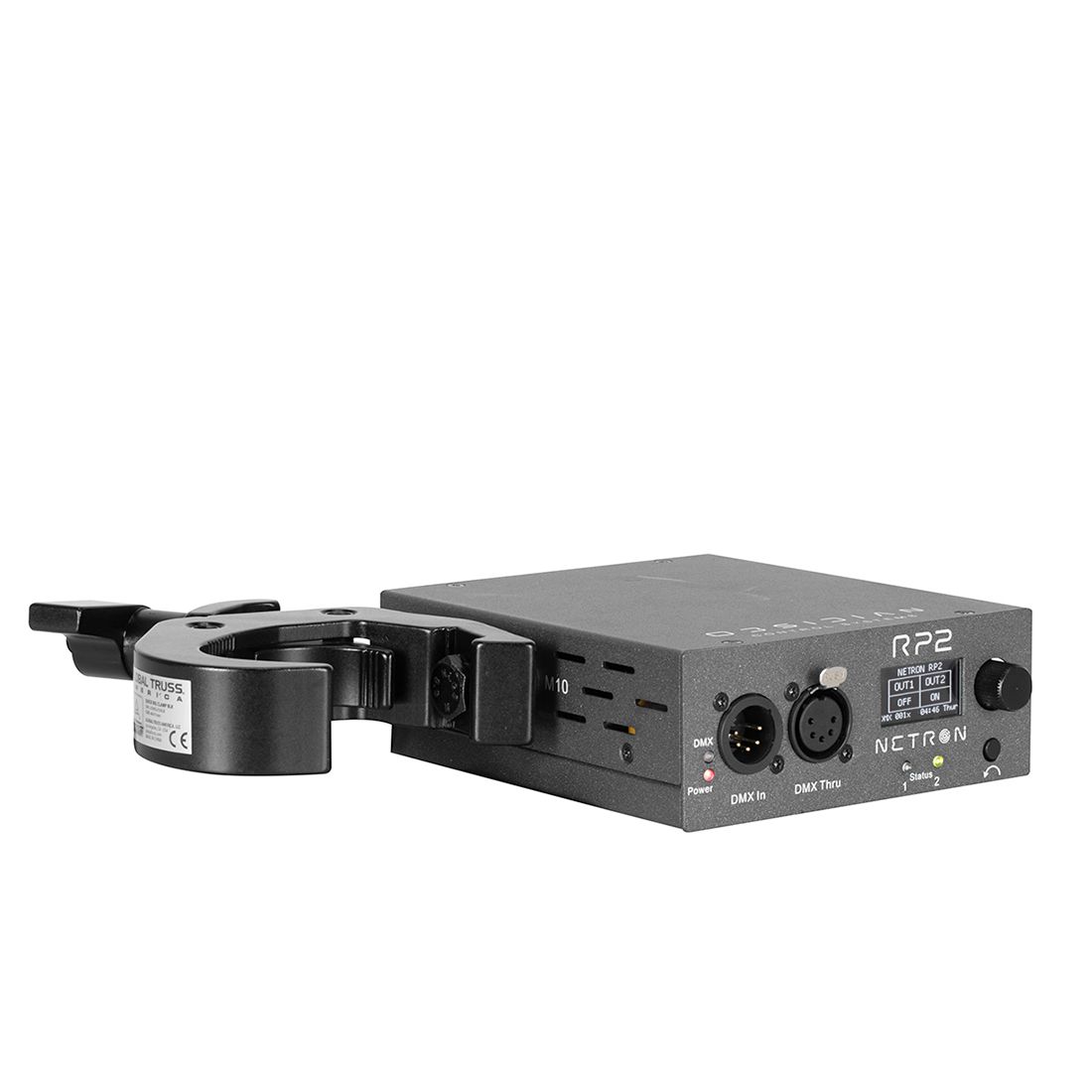

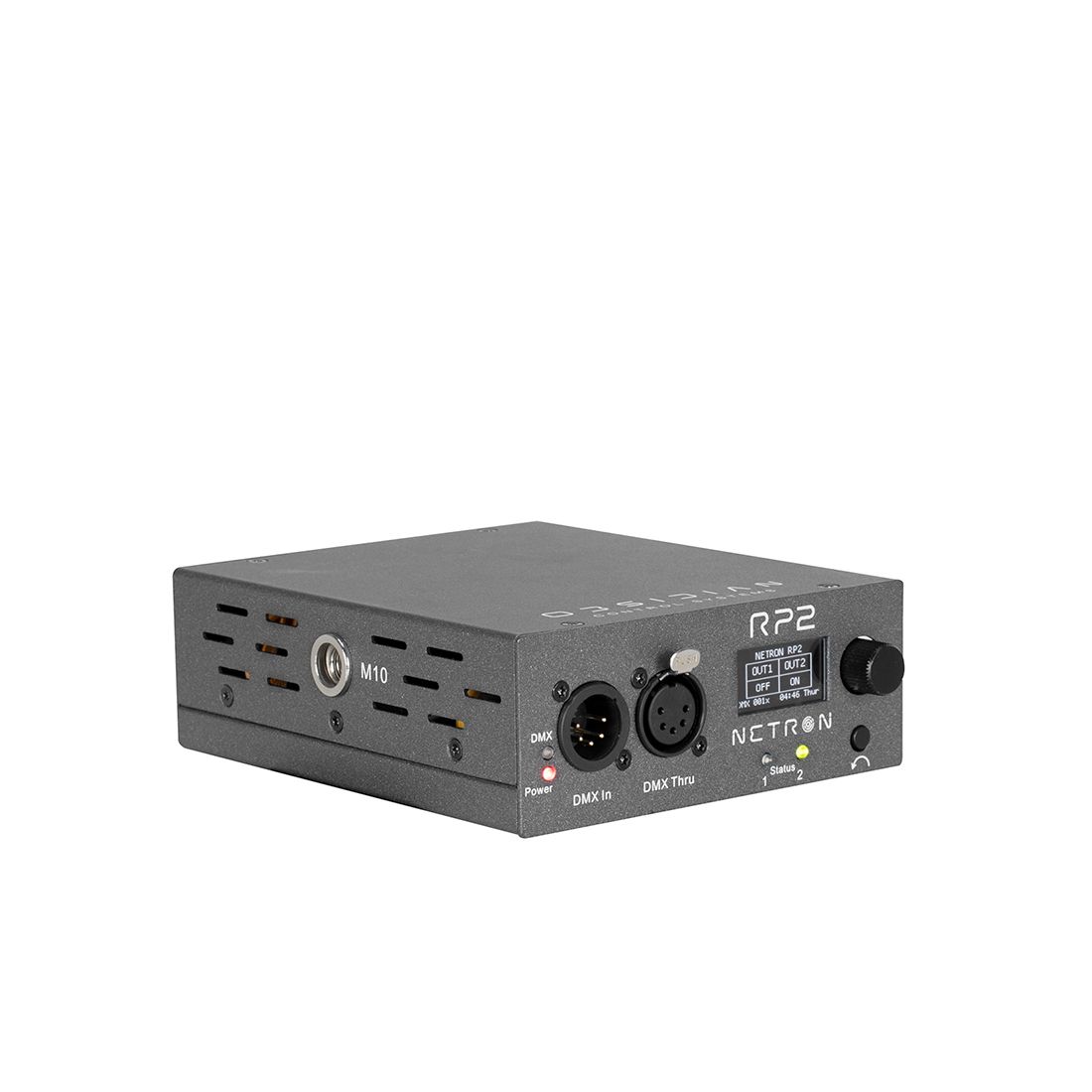

Standalone Truss-mount (M10 + M12 mounting hole)

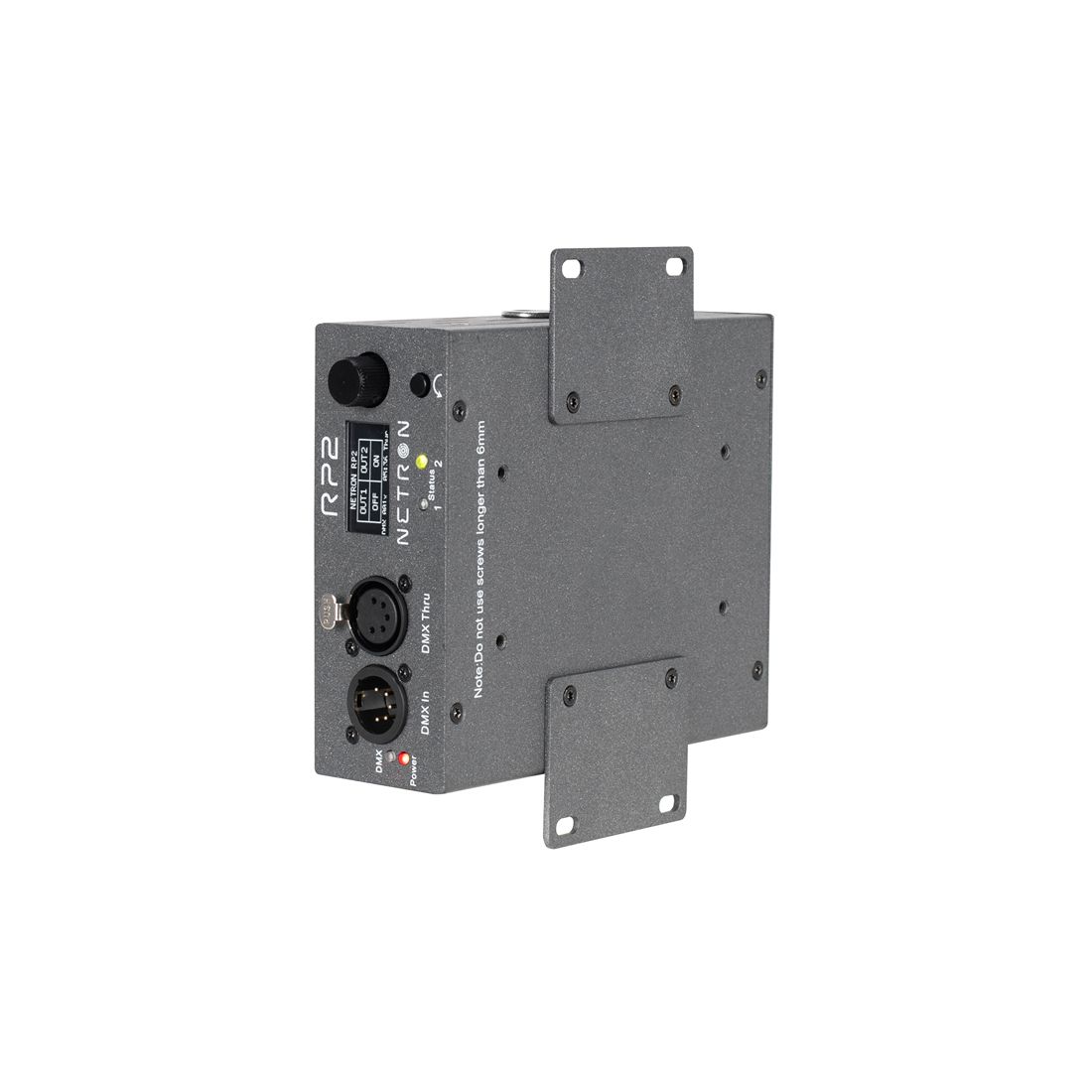

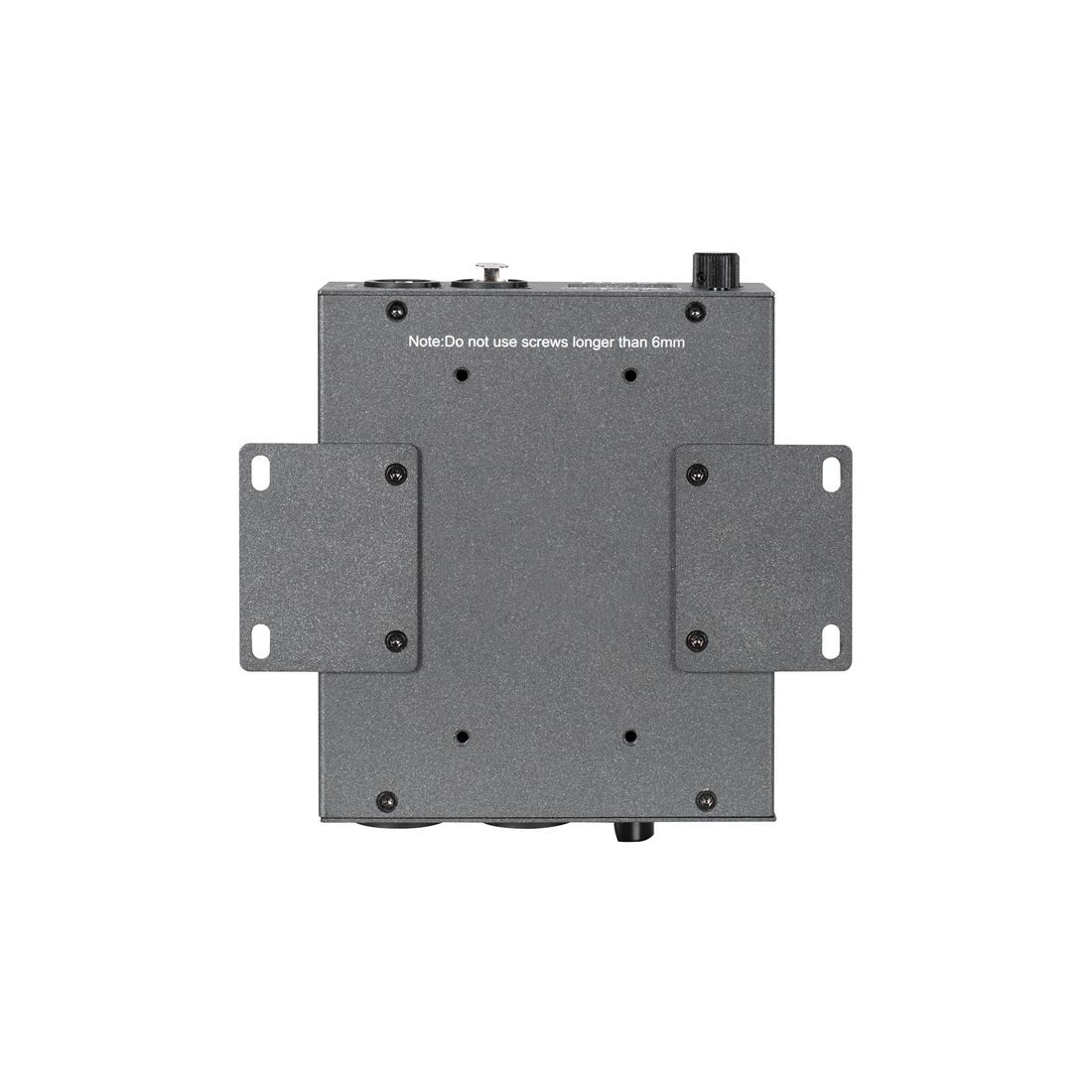

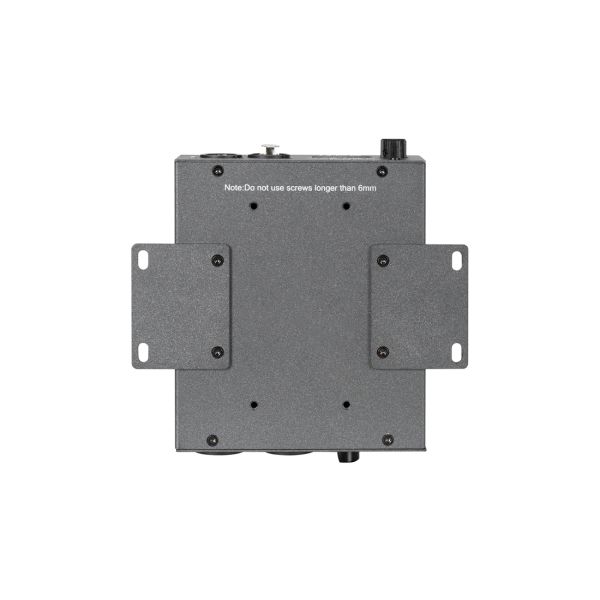

Wall-mount horizontal or vertical (included)

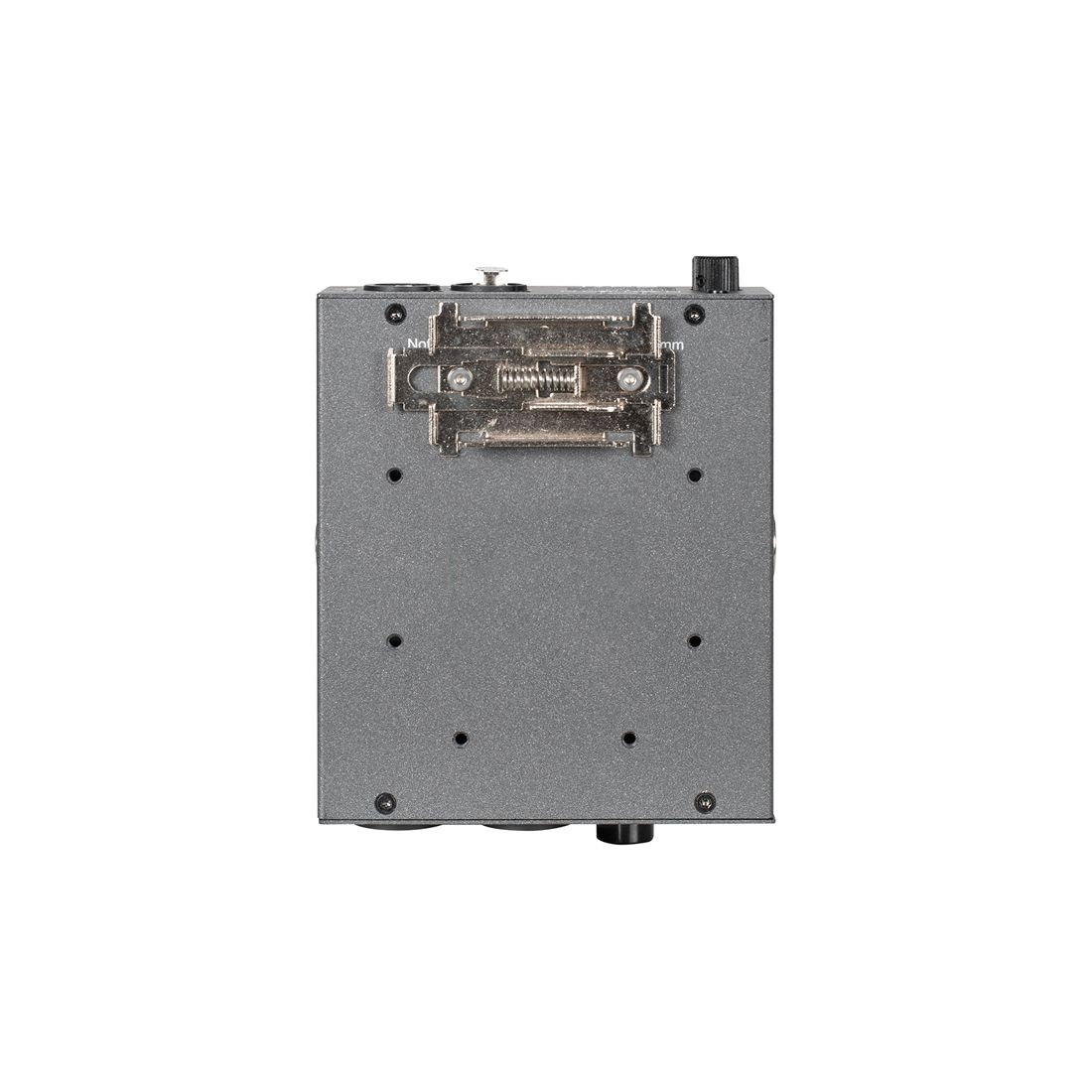

Din Rail horizontal or vertical (included)

CONNECTIONS

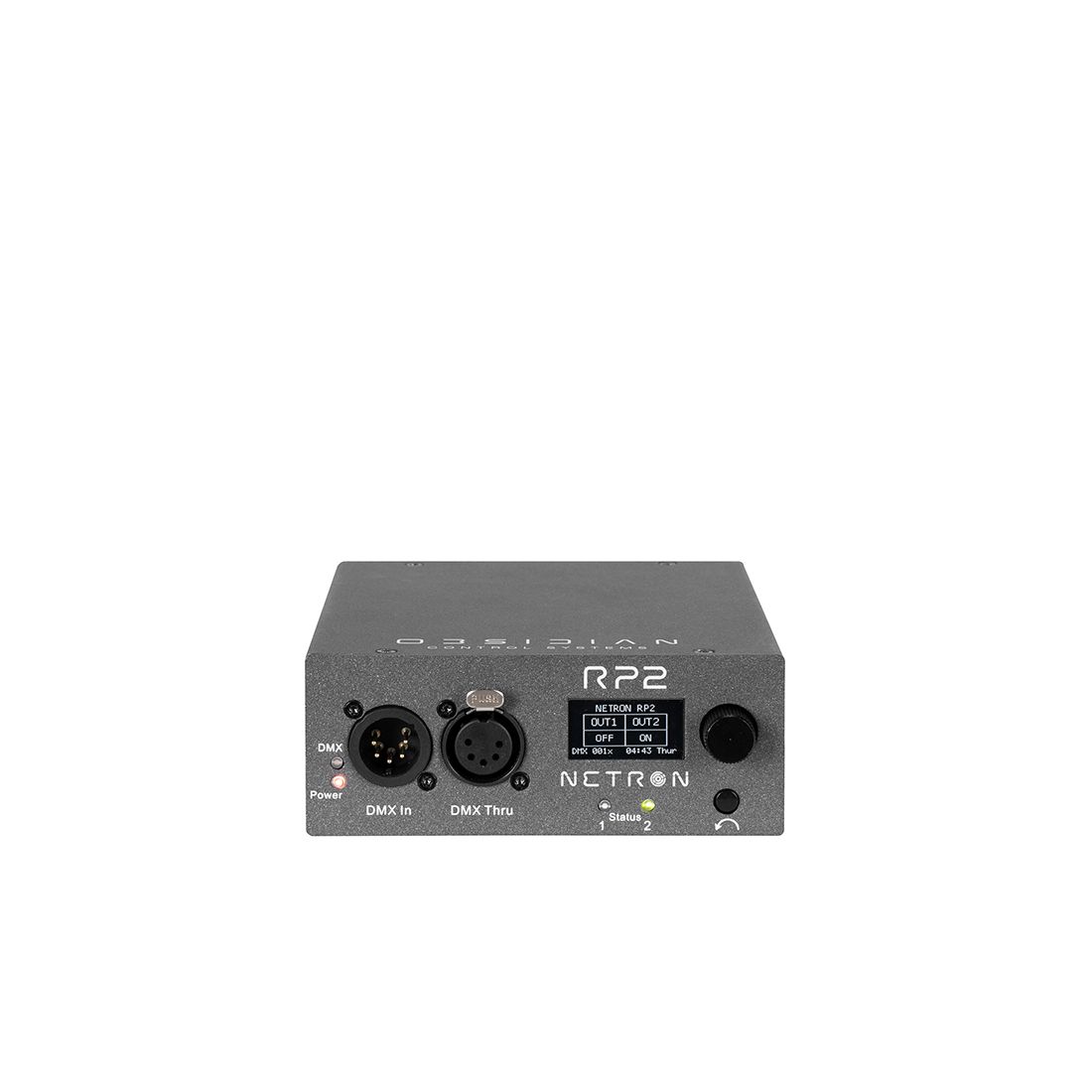

Front


5pin DMX/RDM In and Thru

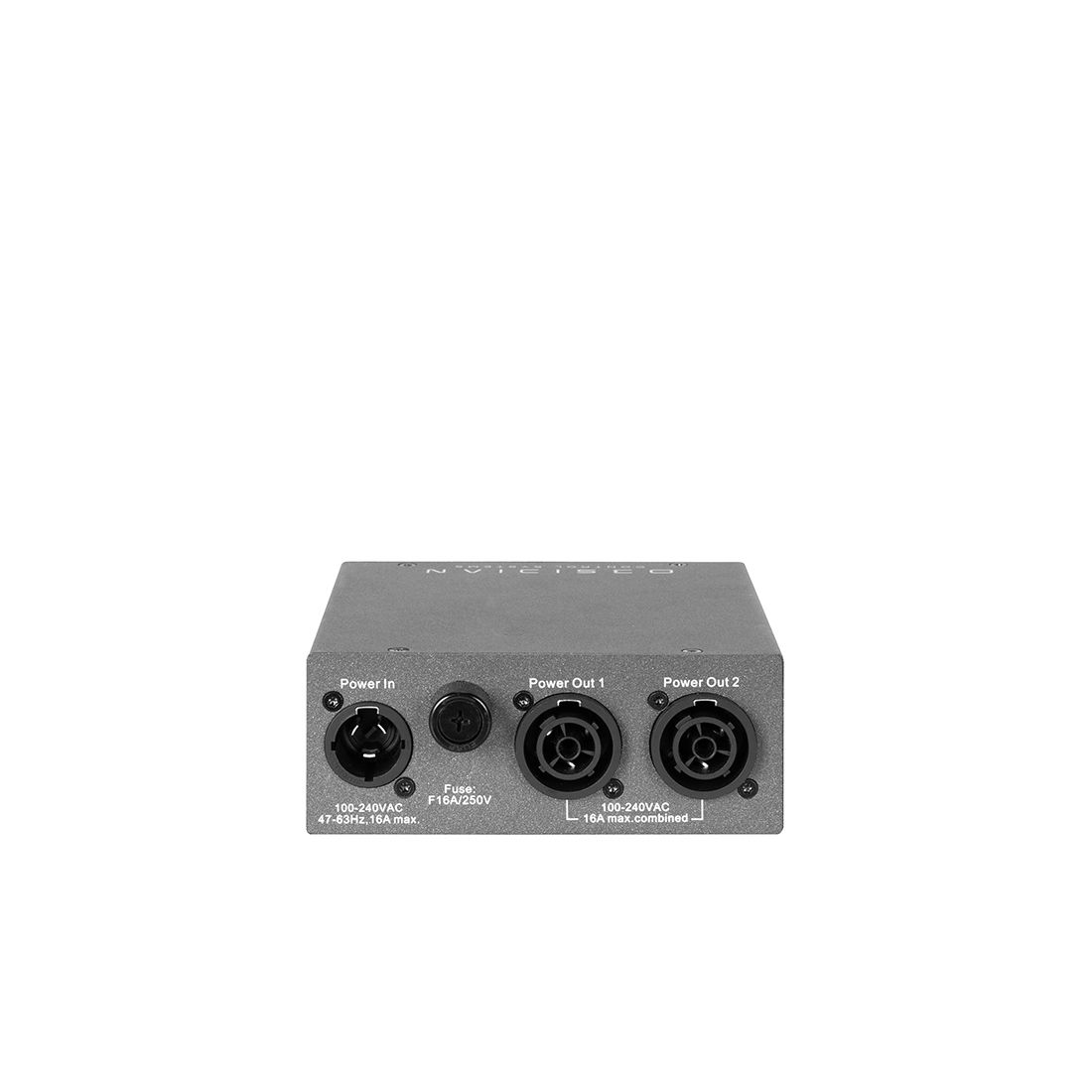

Back

1x IP65 Locking Power In
2x IP65 Switched Locking Power Out

PHYSICAL

Length: 173.5mm (6.83 in.)
Width: 132.6mm (5.22in.)
Height: 50mm (1.97 in.)
Weight: 0.6kg (1.32lbs.)

ELECTRICAL

100-240 V nominal, 50/60 Hz
16A (USA) 16A (EU)

Included Items

Locking power cable
2x Wall Mount Plates
1x DIN Rail Adapter

FIRMWARE UPDATES


Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
