RMD 1220Archive

Code 1330000009

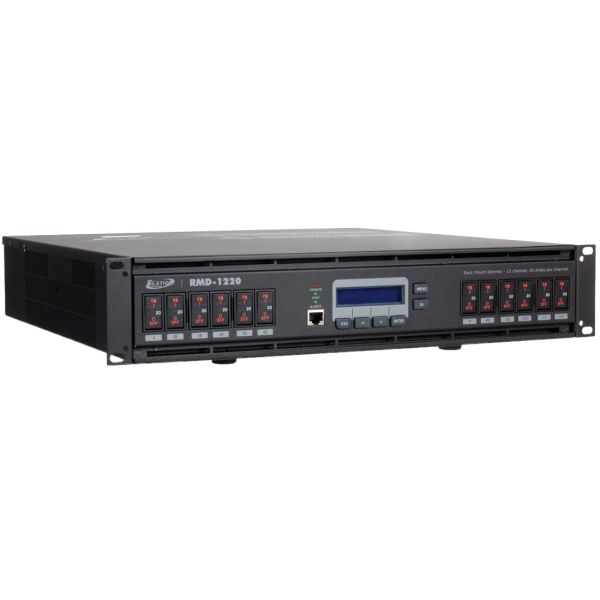

RMD 1220

Technical Data

- 12 channels on 2 rack units

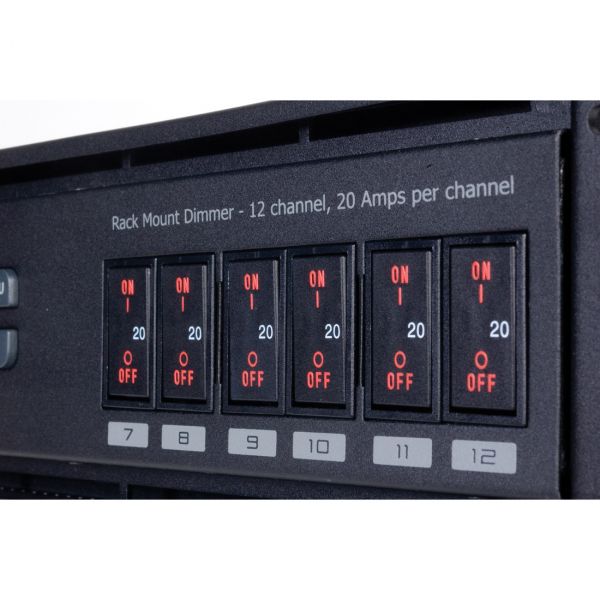

- 20 A per channel
- Dual SCR Thyristor per channel
- ArtNET controllable
- DMX controllable
- Real time zero crossing detection
- Individual dimmer curves

Specifications

- 12 Channel ArtNET digital dimmer pack
- 20A per channel (4800 watts)
- USITT DMX-512A

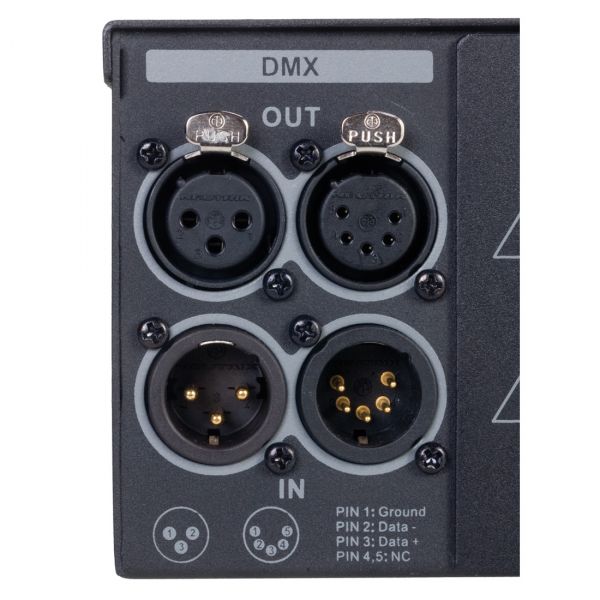

- 3 & 5 pin input & output
- 2U, 19” rack mount
- High Speed micro processor
- Real time zero crossing detection

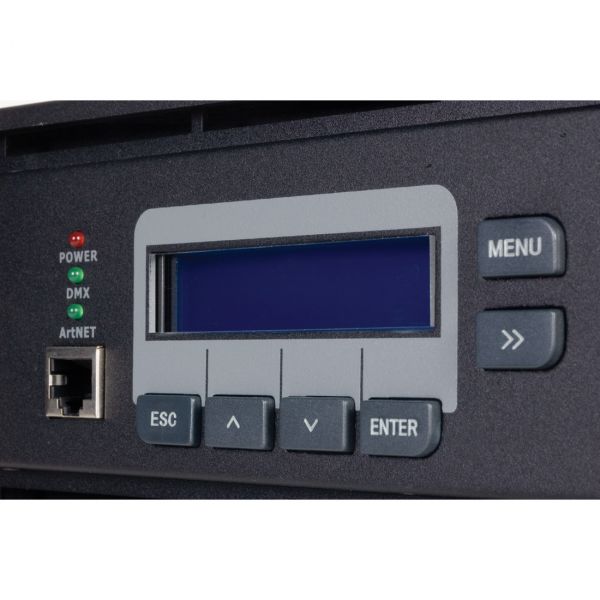

- 16 digit, 2 line, blue LCD display
- Individual & block channel patching
- Dual cooling fans (Selectable speeds; Normal, Full On and Silent)

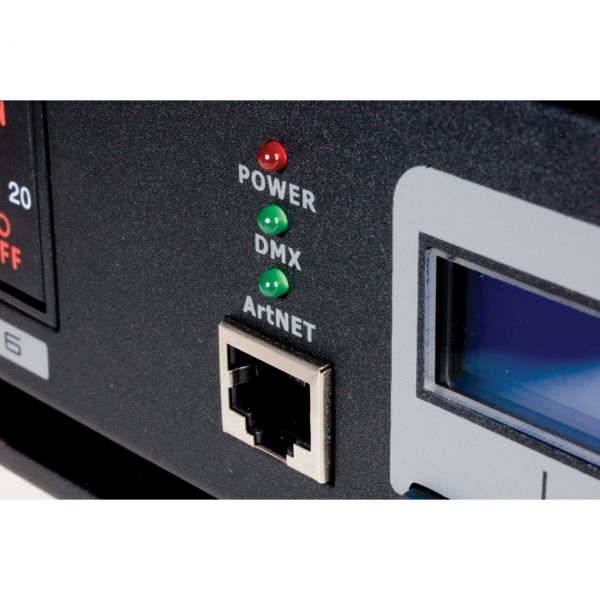

- Dual SCR thyristor per channel ArtNET (Ethernet protocol)
- Local on-board intensity control
- Internal scene memory (99 scenes)
- Selectable curve (Linear, Square and Non-Dim)
- DMX Fail backup feature- (Off, Hold, Off after 1 min. and Scene from internal memory)
- Temperature display

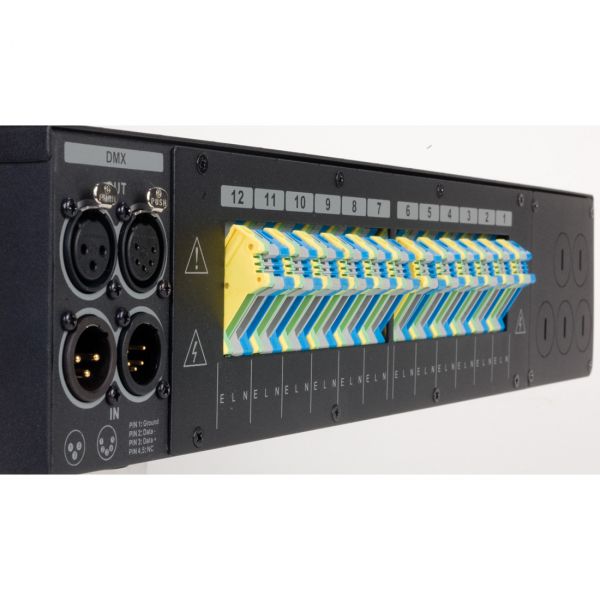

- 3-conductor terminal for every output channel
- 3-or 1-phase input
- 240V ~ 50 Hz
- Dimensions: (L)482x(W)501x(H)89mm
- Weight: 21,5 kg

Specifications and documentation subject to change without notice
