Code
1321000059

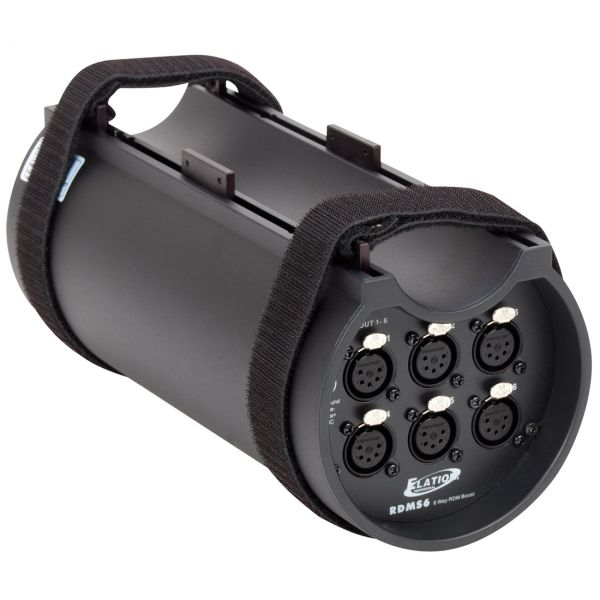

- 6-Way RDM / DMX Truss Mount Data
Splitter
- Opto and electrical isolation between
input and outputs
- Meets RDM E1.20-2006 & USITT
DMX-512 (1990) protocol standards
- Each output features an independent
driver to boost signal

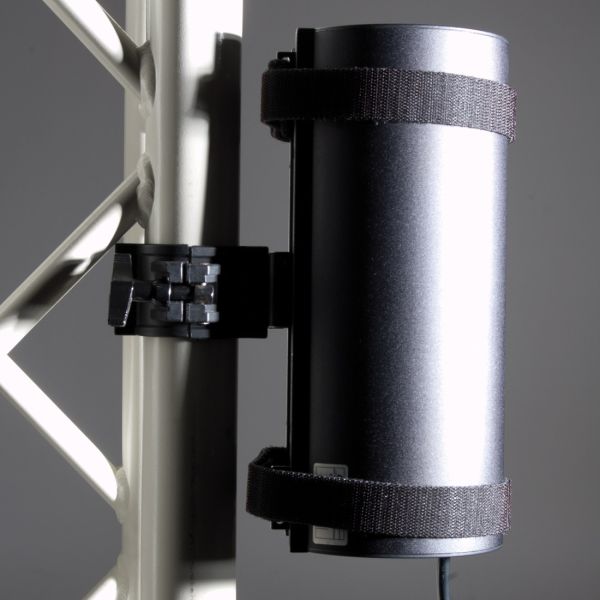

- Includes 2 x Velcro straps and bracket
for truss mount

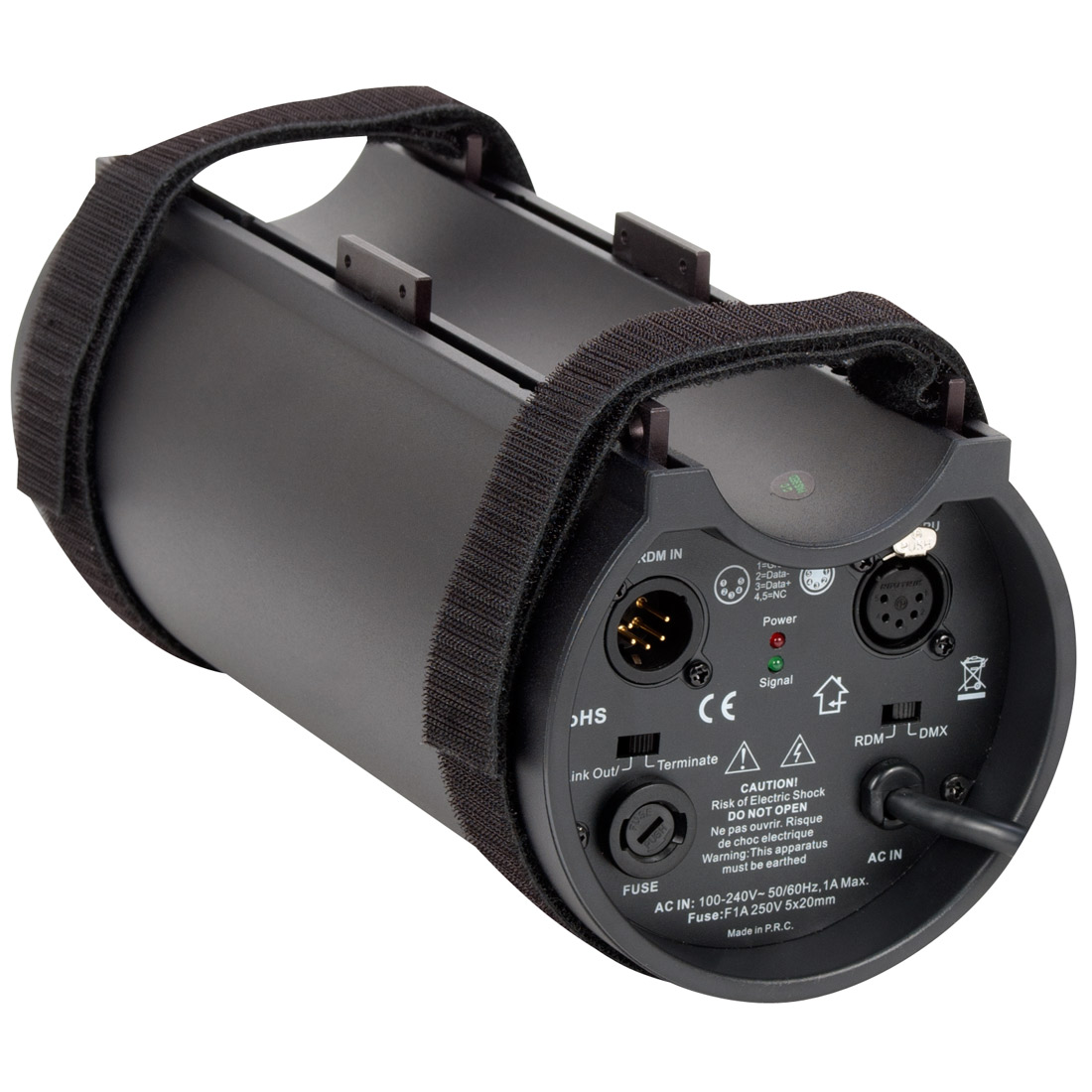

- RDM/DMX switch and linkout/
terminate switch for easy operation
- Rugged qualified aluminum body
Specifications
-Power Input: 100-240VAC, 50/60Hz-Fuse: F1A, 250V, 5x20mm
-Output: 5-pin XLR female socket x 6pcs.
-Data In & Thru: 5-pinXLR connectors
-Housing: Extruded aluminum
-IP Rating: IP 20
-Control Standard: RDM E1.20-2006 & DMX-512 protocols
-Operating Temperature: -10°C to +50°C
-Storage temperature: -20°C to +70°C
-Dimensions: 264mm x 120mm x 113mm
-Weight: 0.57kg
Specifications and documentation subject to change without notice
