Pulse Panel

Merge explosive strobe power and visual creativity with the PULSE PANEL! Yet another offering in the innovative Pulse line of strobe lights, the PULSE PANEL adds a burst of dynamism and inspiration to any show!

Designers have asked for effect lights that are more than a one-trick pony and the PULSE PANEL delivers with multi-functionality as a powerful strobe, bright blinder, high-output wash light or creative eye candy effect all in one.

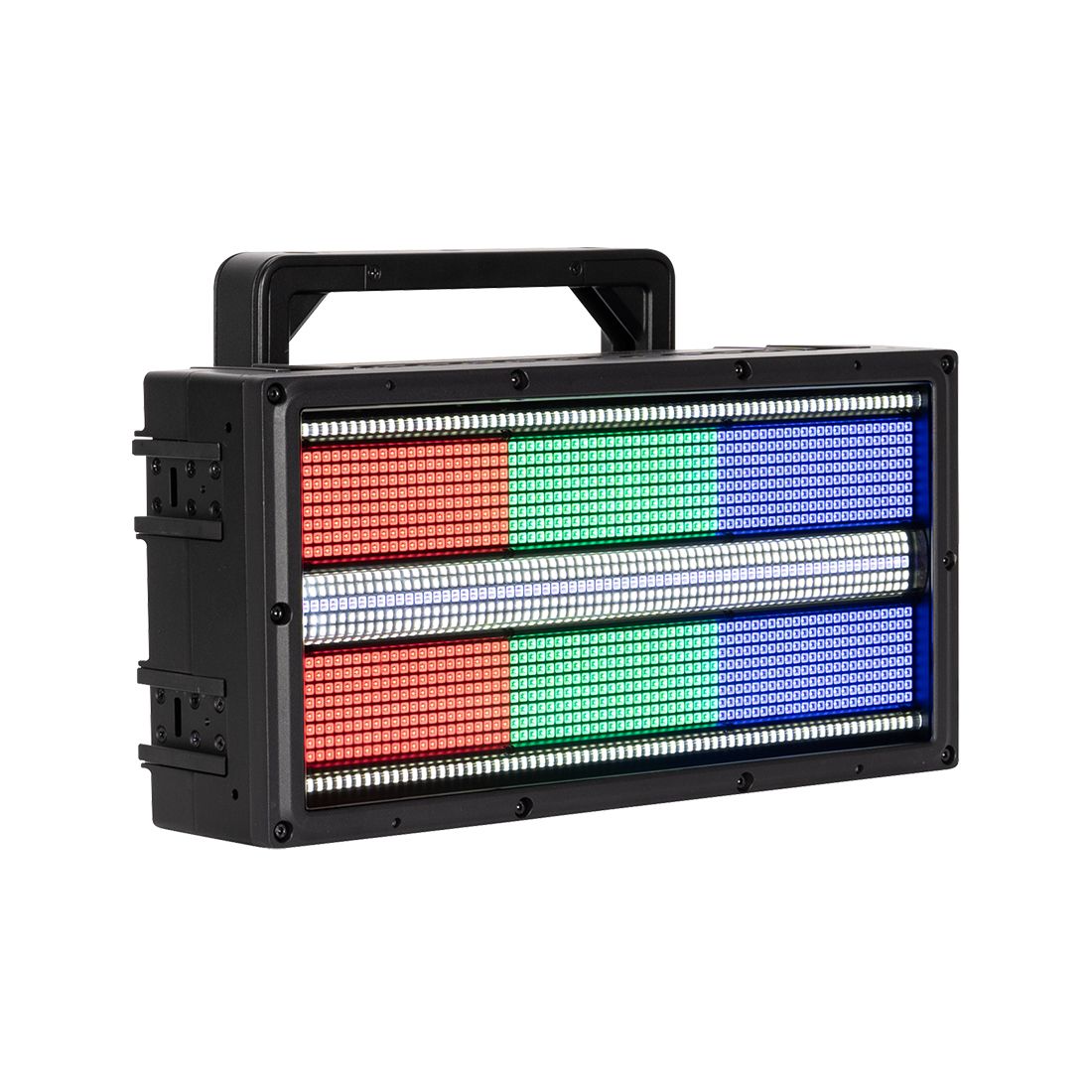

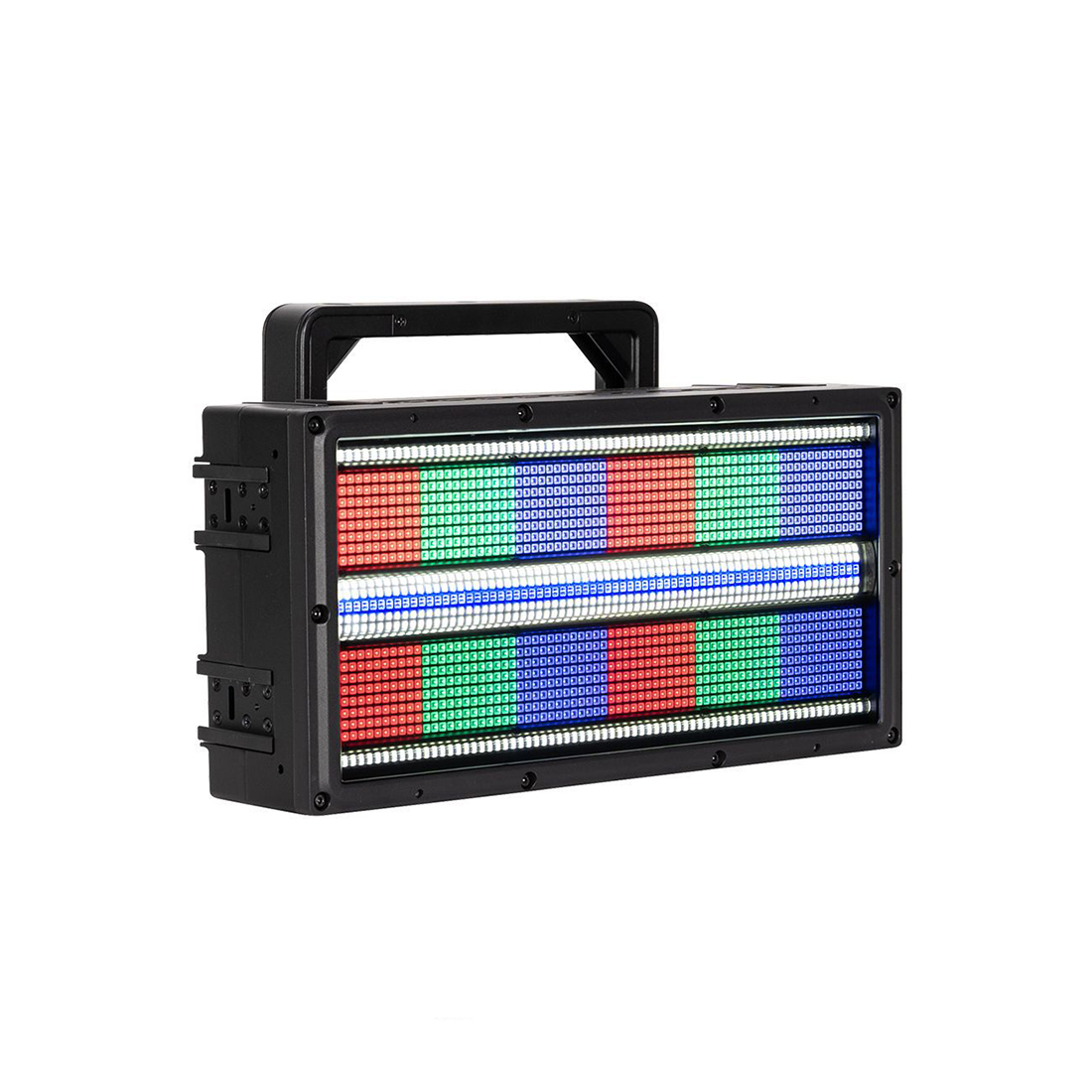

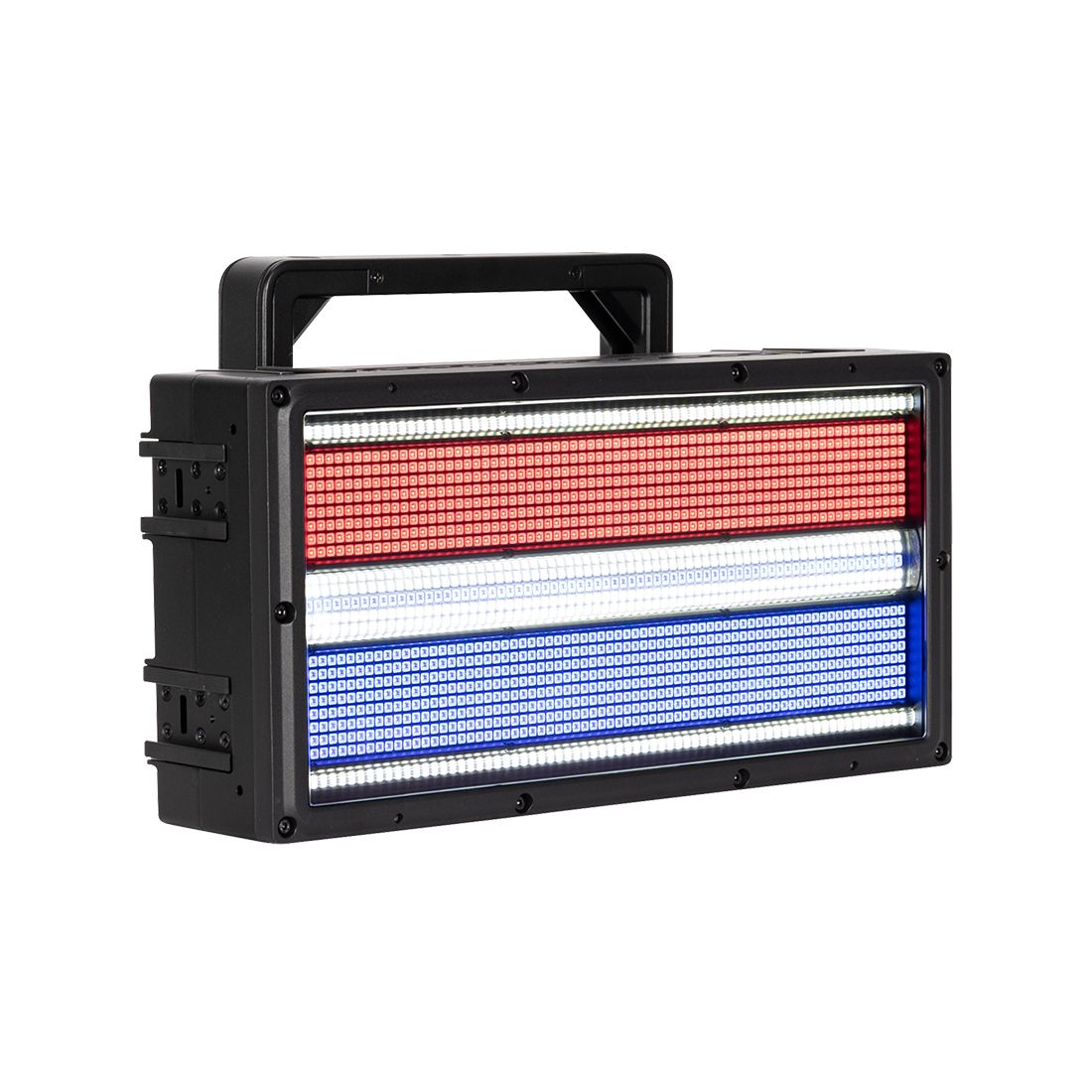

The PULSE PANEL features the same LED layout found on the Pulse Panel FX. 1,152 1.5W RGB LEDs spread across 24 zones around its perimeter, arranged in a grid of 6 zones wide and 4 zones tall. In addition to this, it includes a central strobe line comprising 288 5W cool-white LEDs organized into 24 zones, with 12 zones across and 2 zones tall. These are separated by a line of 96 1.5W RGB LEDs divided into 12 zones. Furthermore, there are 144 additional 5W cool-white LEDs divided into 24 zones, with 12 zones at the top and 12 at the bottom of the fixture's face. These outer LEDs utilize a linear prismatic lens similar to those used in our Rayzor Blade fixtures. When combined, these components deliver an astonishing output exceeding 100,000 total lumens.
PULSE PANEL also includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming. The PULSE PANEL offers the ability to mirror control of the external strobe lines and center RGB strobe line via DMX control channel, or the menu to make cloning easier.

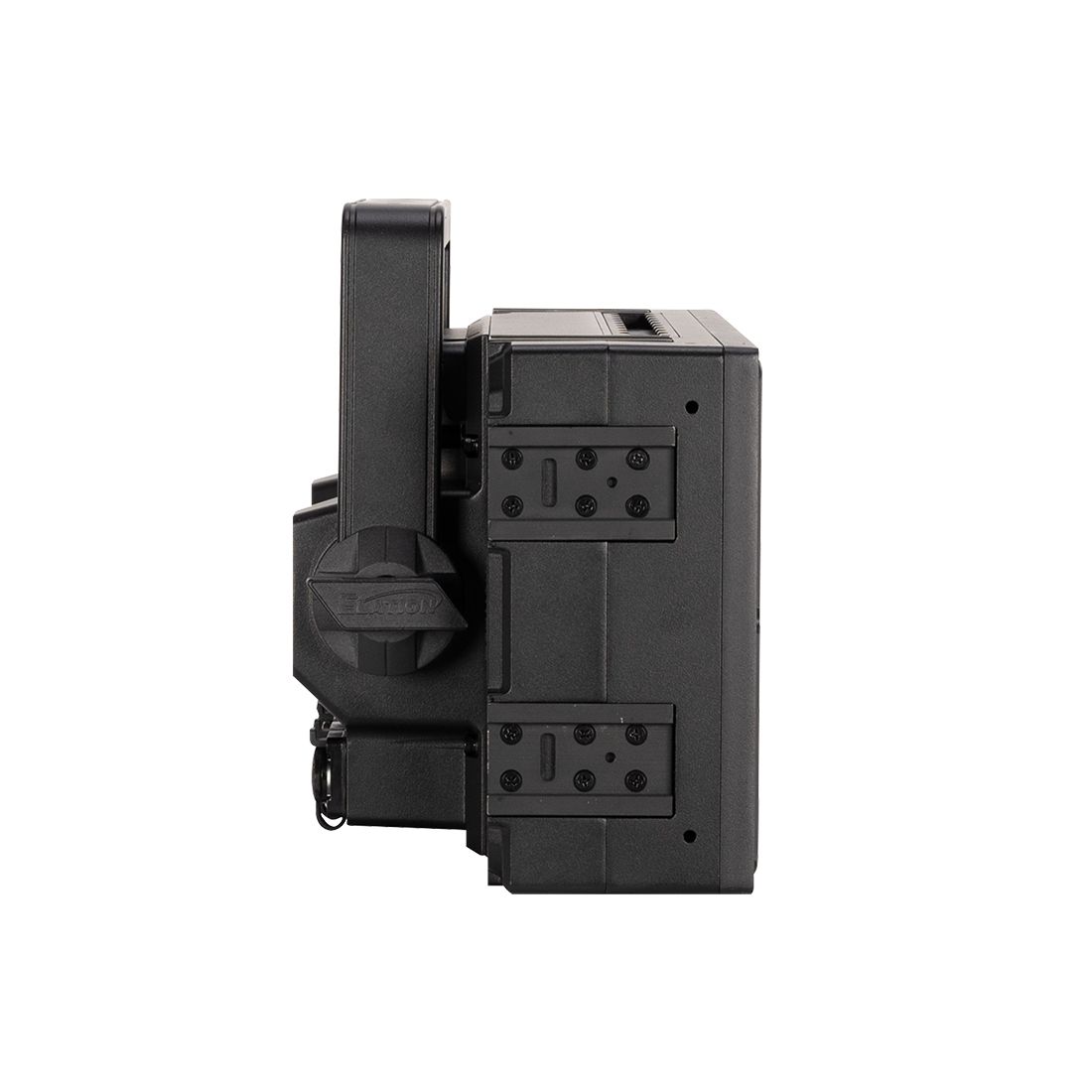

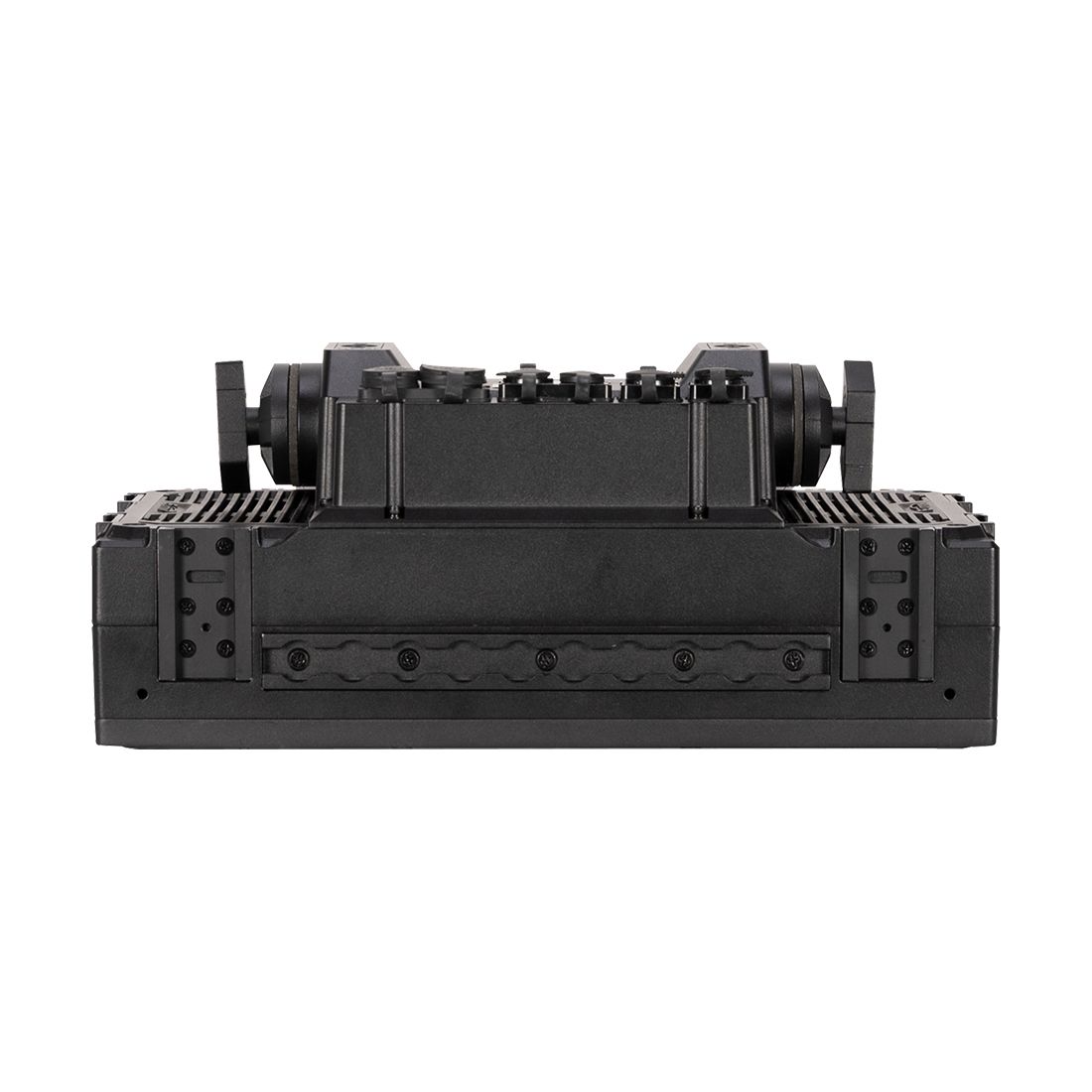

The PULSE PANEL is encased in a durable, fully IP65-rated housing, making it suitable for any environment, indoors or outdoors. The housing can accept optional diffusion filters, ND filters and other optics.
Controlled via DMX, RDM, Art-Net, sACN, and KlingNet protocols. It also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.


Technical Data

FEATURES

(1152) 1.5W RGB LED's in 24 Zones
(432) 5W CW Strobe LED's in 48 Zones
(96) 1.5W RGB StrobeLine LED's in 12 Zones
Art-Net, sACN and KlingNet Support
IP65 Rated

SOURCE

(1248) 1.5W RGB LEDs
(432) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

Total Lumen Output:
Integrating Sphere
    All LED: 77,919 Lumens
    CW LED:110,709 Lumens
    RGB LED: 49,868 Lumens
CRI: >70
Beam Angle: 68°
Field Angle: 112°



EFFECTS

24 Zones of RGB Plate LEDs (6 x 4)
48 Zones of CW Strobe LEDs (12 x 4)
12 Zones of RGB StrobeLine LED's (12 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves

COLOR

RGB Color Array

CONTROL / CONNECTIONS

9 DMX Channel Modes (3ch, 12ch, 22ch, 45ch, 60ch, 170ch, 88ch, 178ch, 156ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

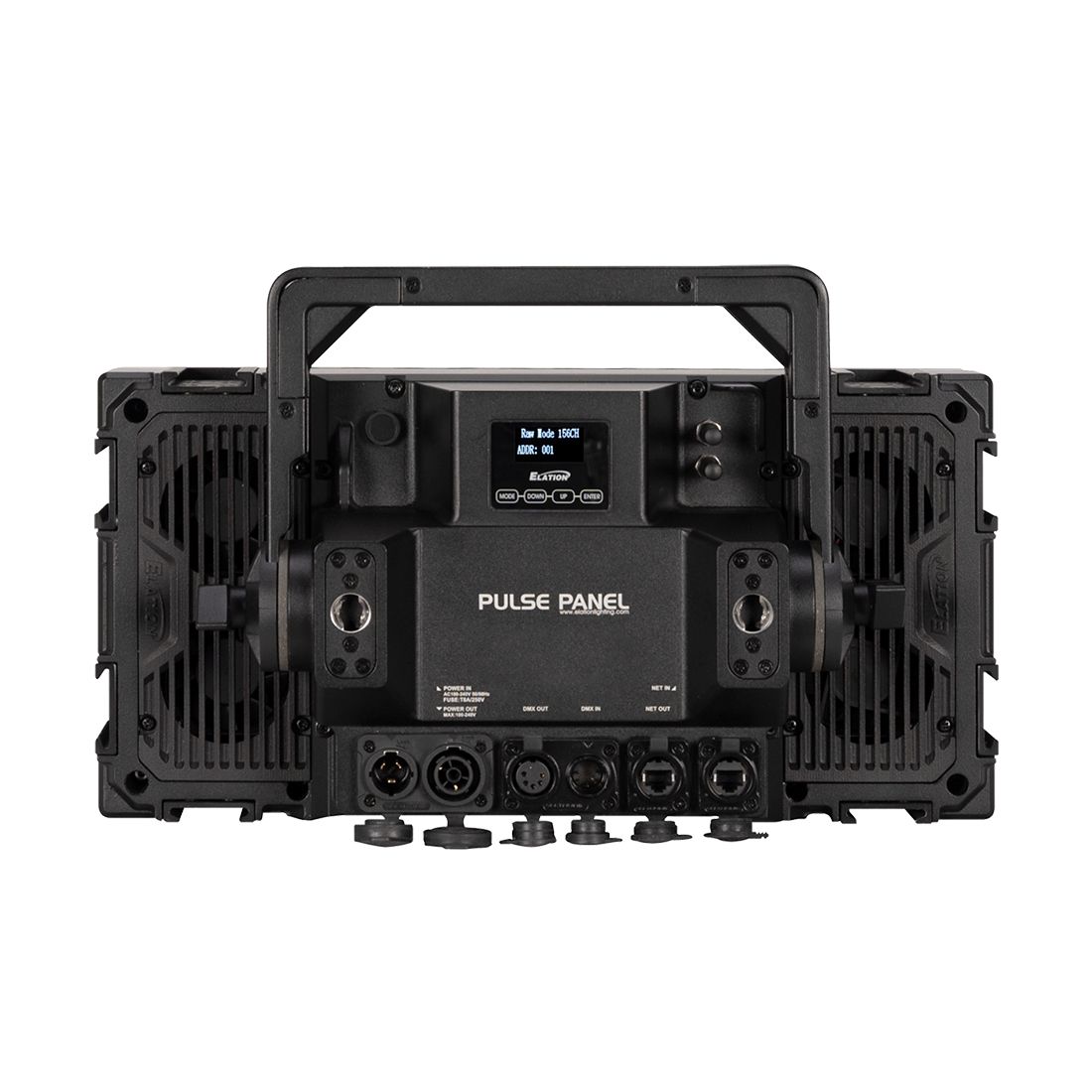

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
IP65 Locking Power Cable In


SIZE / WEIGHT

Length:420 mm (16.5”)
Width: 299 mm (11.7”)
Height: 210 mm (8.26”)
Weight: 13.4kg (39.5 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
Max Power Consumption 1400W
-20°C to 45°C (-4°F to 113°F)
BTU/hr (+/- 10%) 4774

INCLUDED ITEMS

Safety Cable
IP65 Locking Power Cable
Interconnect Key

OPTIONAL ITEMS

1236300112 SŌL/PULSE HD Yoke (SPHDY)
1236300110 Fixture Interconnect Splice Package (FISP06)
1236300115 Interconnect Clamp Adapter (FICA01)
1744000021 L Track A1
1744000022 L Track A2
1744000023 L Track CA1
1744000025 L Track CA2

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
