1375

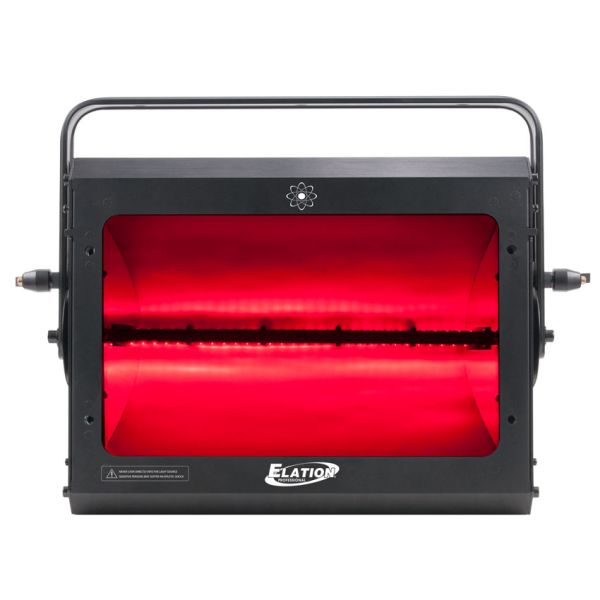

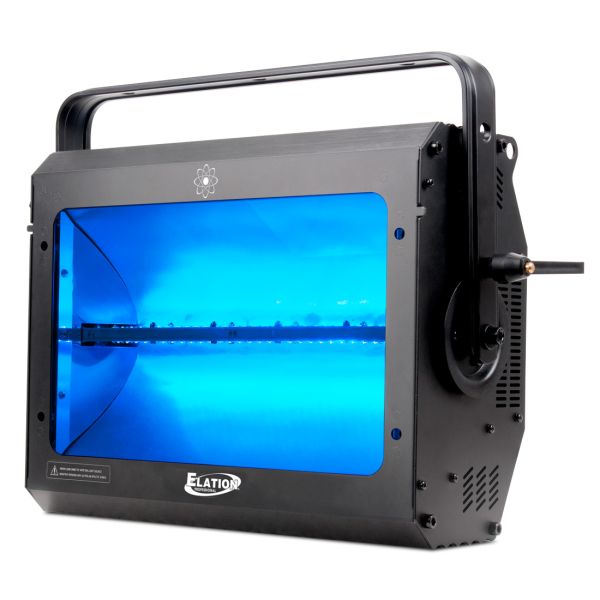

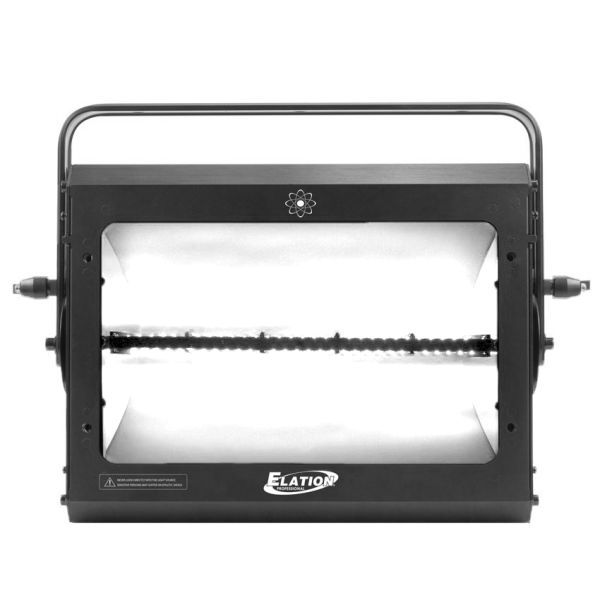

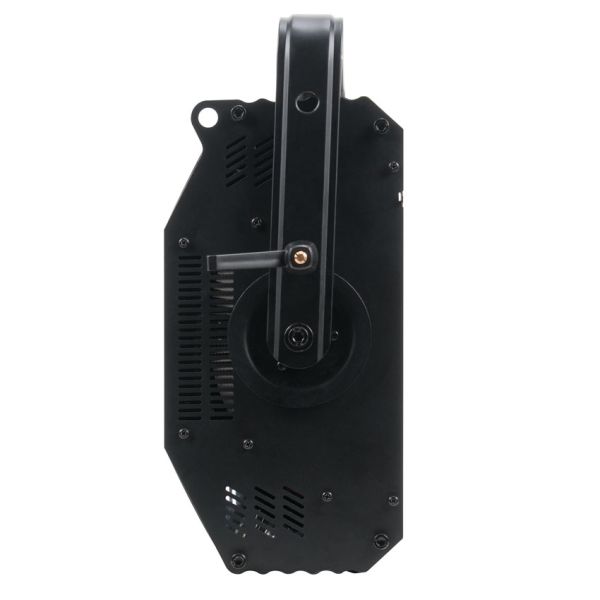

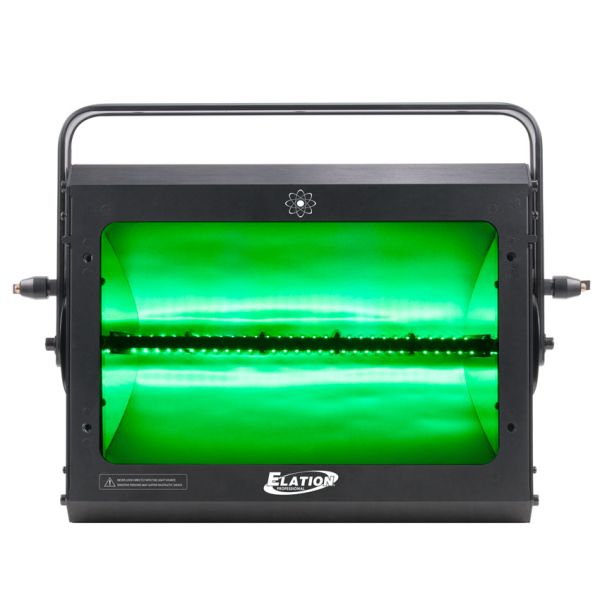

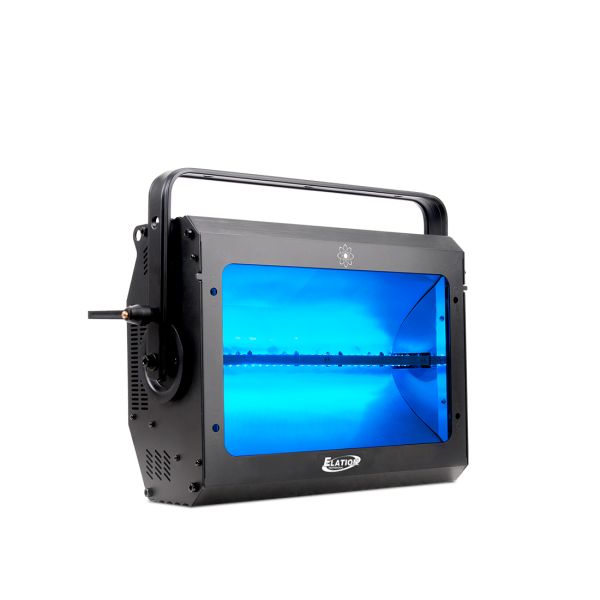

PROTRON 3K COLOR

The Protron 3K Color™ is a new high powered LED strobe featuring (240) CREE™ XLamp™ 3W RGBW LEDs, 40,000 total peak lumens, 63° beam angle, (2) power modes (HIGH or LOW), strobe effect macros including burst, pulse, lightning, and full ON*, (2) silent cooling fans, electronic dimming, 3/5pin DMX and Locking Power Cable in/out connections, (4) button OLED control menu display, an integrated rigging yoke, 800W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

63° Beam Angle
(2) Power Modes (HIGH and LOW)
Electronic Dimming
(2) Silent Cooling Fans
Burst, Pulse, Lightning, and Full ON* Effects
*Thermally regulated output at full max 10 seconds.

SOURCE

(240) CREE™ XLamp 3W LEDs (60 each color-RGBW)
50,000 Hour Average LED Life**
**May vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

40,000 Total Lumens* (*Peak)
12,210 LUX 1,134 FC @3.3’ (1m) (63° Full ON)

COLOR

RGBW

EFFECTS

Electronic Dimming
Burst, Pulse, Lightning, Full ON*
*Thermally regulated output at full max 10 seconds.

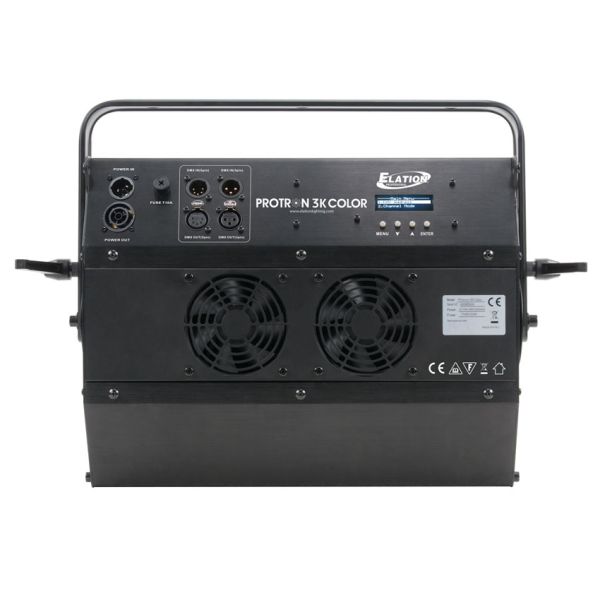

CONTROL / CONNECTIONS

(4) DMX Channel Modes (3 / 5 / 7 / 8)
4 Button Control Panel
OLED Menu Display
3/5pin XLR DMX In/Out
Locking Power Cable In/Out

SIZE / WEIGHT

Length: 19.9” (506mm)
Width: 5.9” (150mm)
Vertical Height: 14.1” (357mm)
Weight: 24.3 lbs. (11.0kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
800W Max Power Consumption
Max Ambient Temperature 104°F (40°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
