PM-DMX1

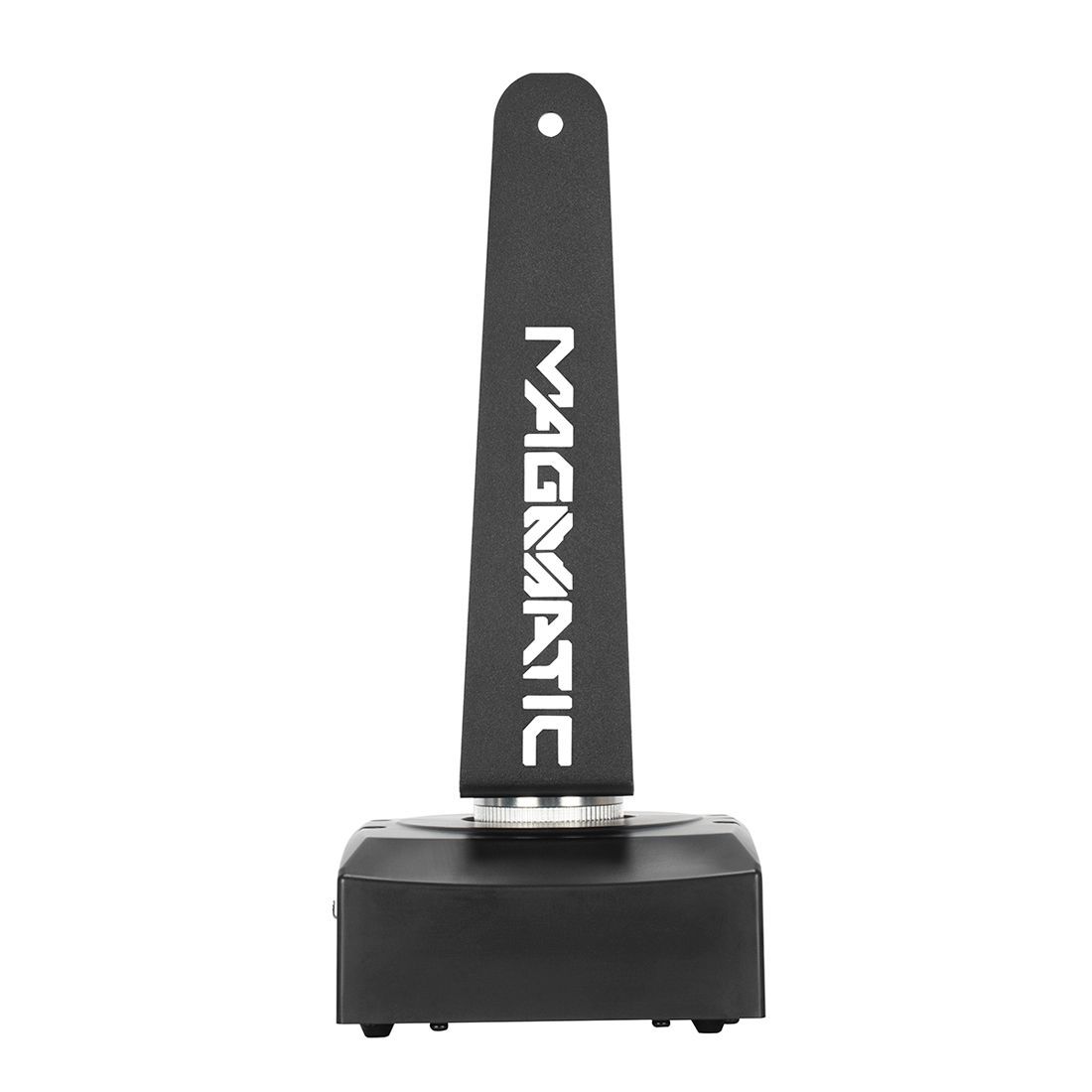

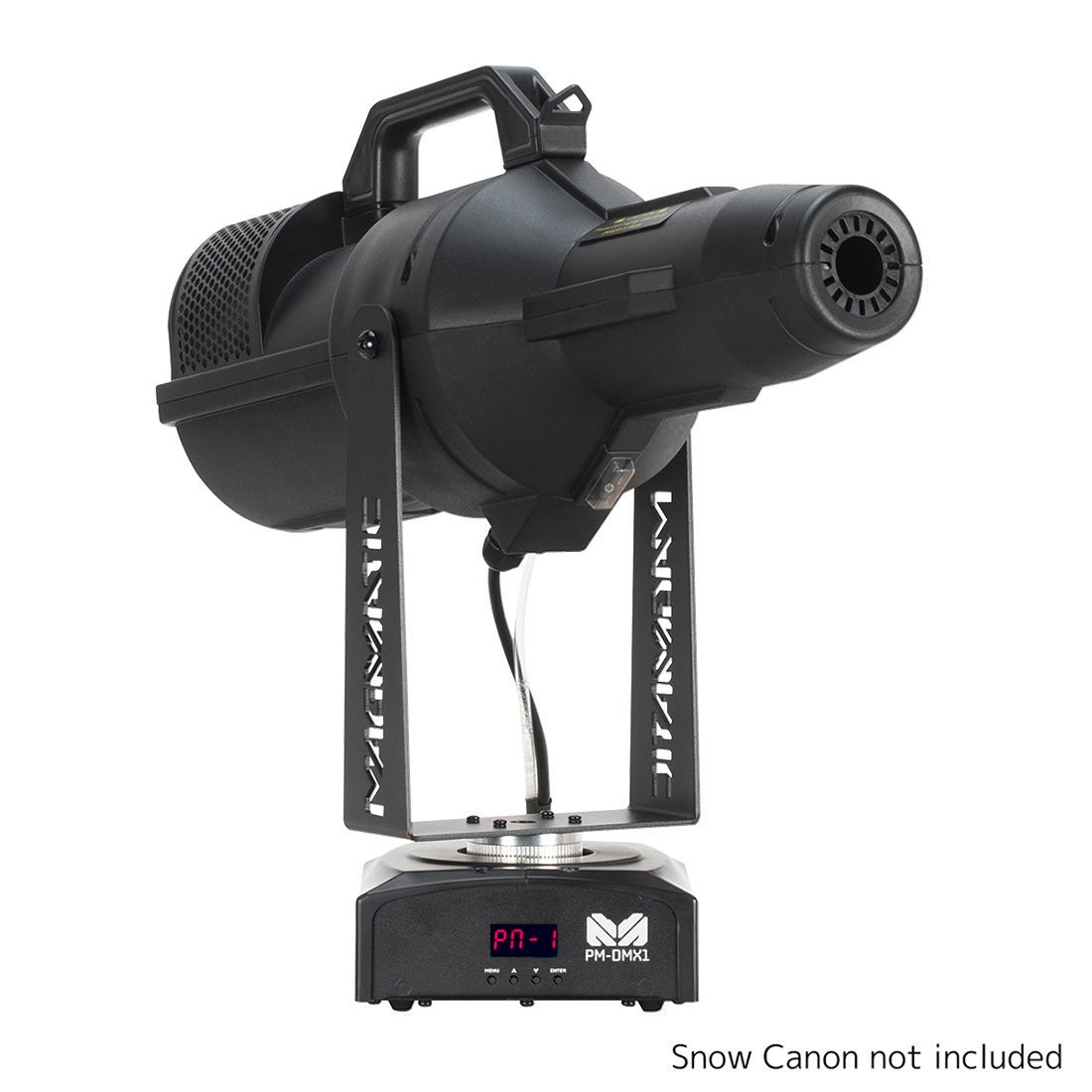

Magmatic PM-DMX1™ is an optional pan motor accessory for the Magmatic Crisp Max™ Snow Machine. Install the output nozzle of the Crisp Max, using the included mounting bracket, onto the PM-DMX1 to precisely control 120 degrees of pan movement via DMX-512 or manually using the 4-button LED control panel menu display on the unit.

The PM-DMX1 features 2 DMX channel modes, 0-120 degree position index movement and 3 different degree internal auto-pan programs (60°, 90°, 120°) each having 5 speed settings, a pan inversion mode which inverts the pan movement, primary / secondary modes, 5pin DMX in/out for easy control connection and linking multiple units, an included mounting bracket that better balances weight distribution of the Crisp Max nozzle unit, mini-omega bracket so PM-DMX1 can be clamped and /truss mounted, and a 100-240V auto switching power supply.

Technical Data

FEATURES


120 Degrees of Pan Movement
Manual and DMX-512 Control
2 DMX Channel Modes
Primary/Secondary Modes
60°, 90°, 120° Auto-Pan Programs
5 Auto-Pan Program Speeds
Pan Inversion Mode
Holds up to 35lbs.
Includes Mounting Bracket for Crisp Max Nozzle

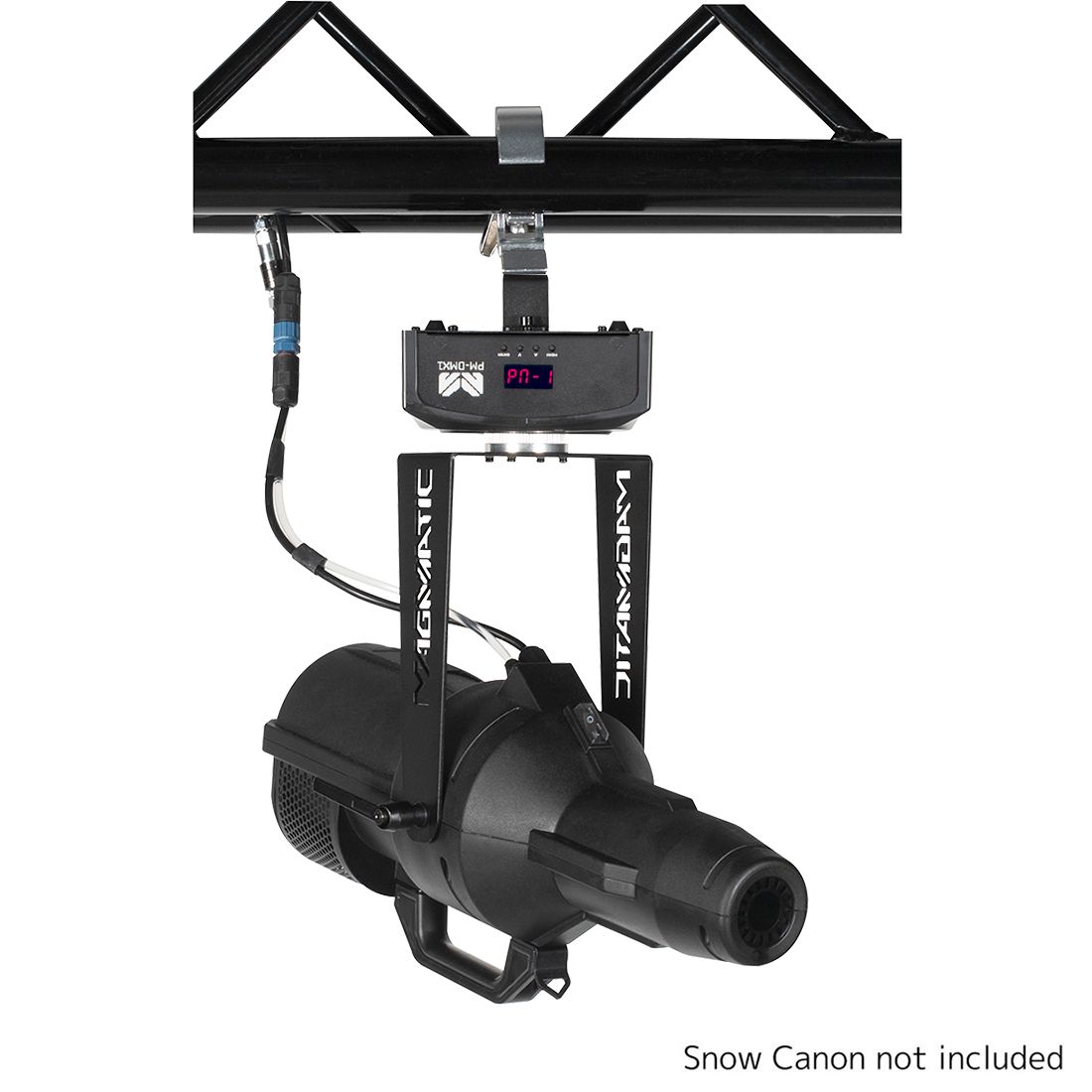

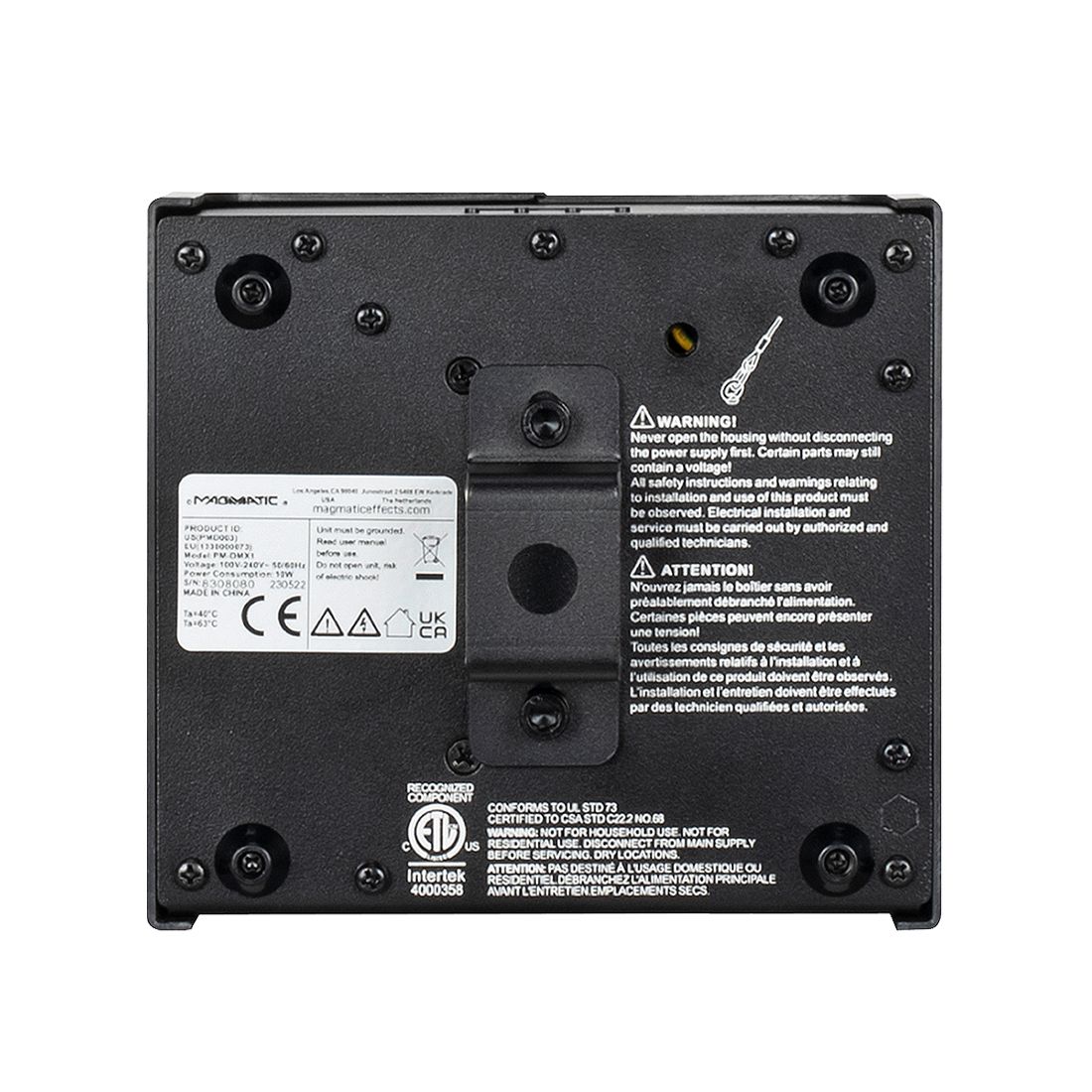

Includes Omega Bracket for clamp / truss mounting

SPECIFICATIONS

CONTROL / CONNECTIONS


Manual and DMX-512 (2 channel modes)
0-120° Pan Movement
Pan Inversion Mode
Primary/Secondary Mode
Auto-Pan Programs and Varying Speeds

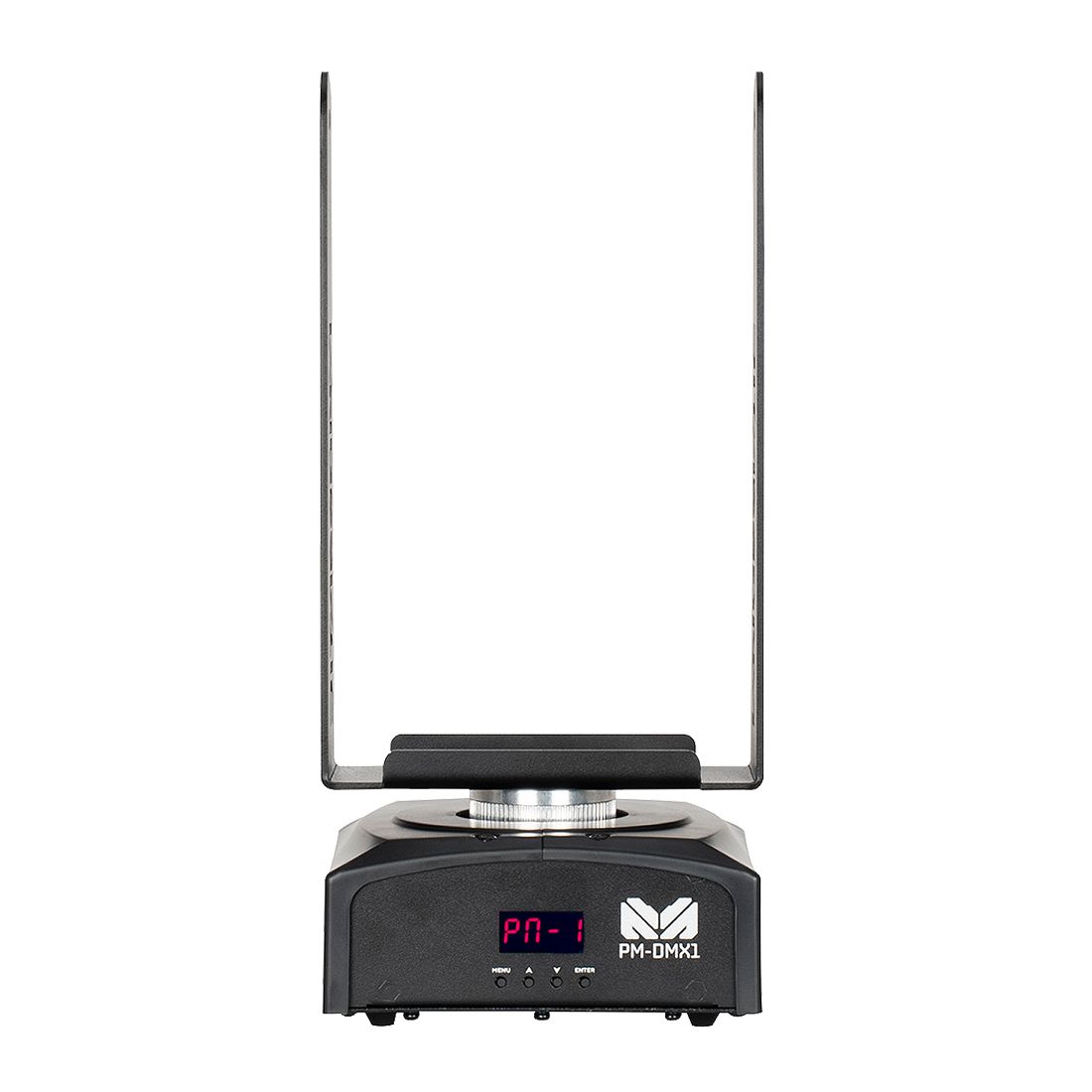

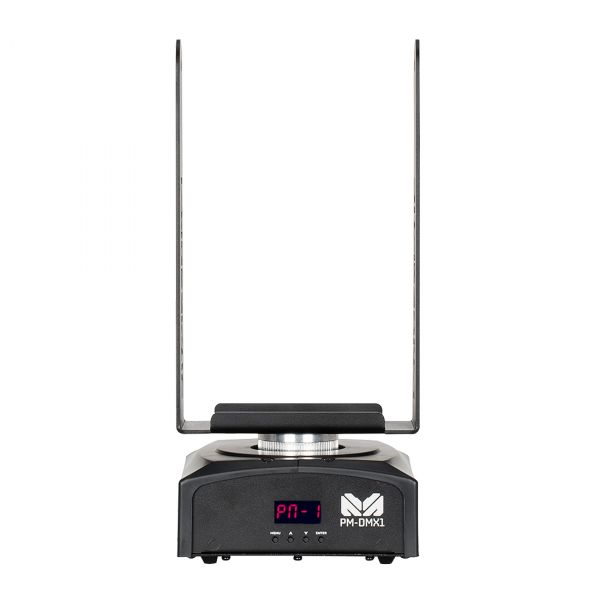

4-Button Control Panel
LED System Menu Display

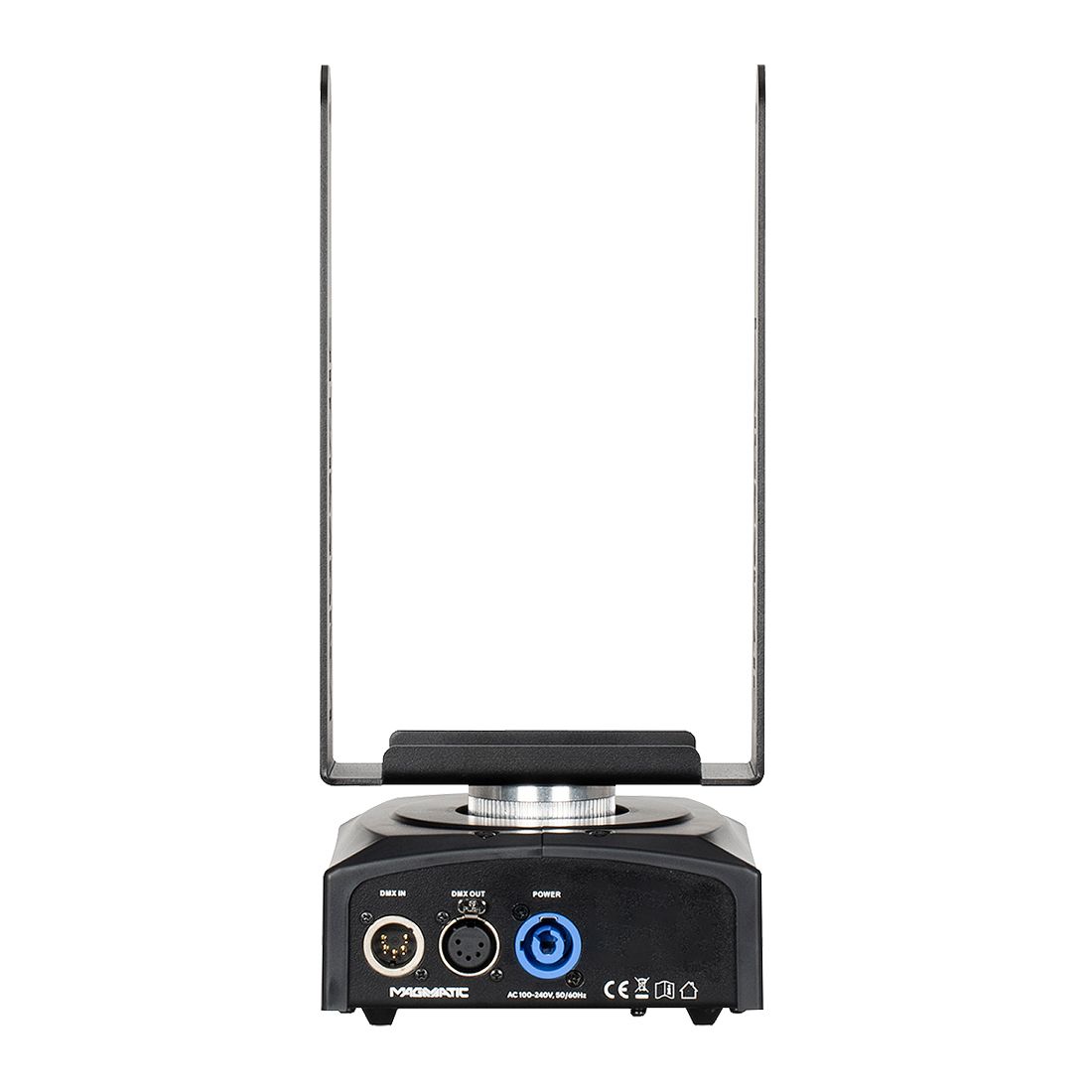

5pin DMX In/Out
AC Power Plug

SIZE / WEIGHT


Length: 6.3” (159.0mm)
Width: 5.8” (147.0mm)
Vertical Height w/ Bracket: 13.0” (330.5mm)
Weight w/ Bracket: 5.0 lbs. (2.28kg)

ELECTRICAL


AC 100-240V 50/60Hz
11W Max Power Consumption


Specifications and documentation subject to change without notice
