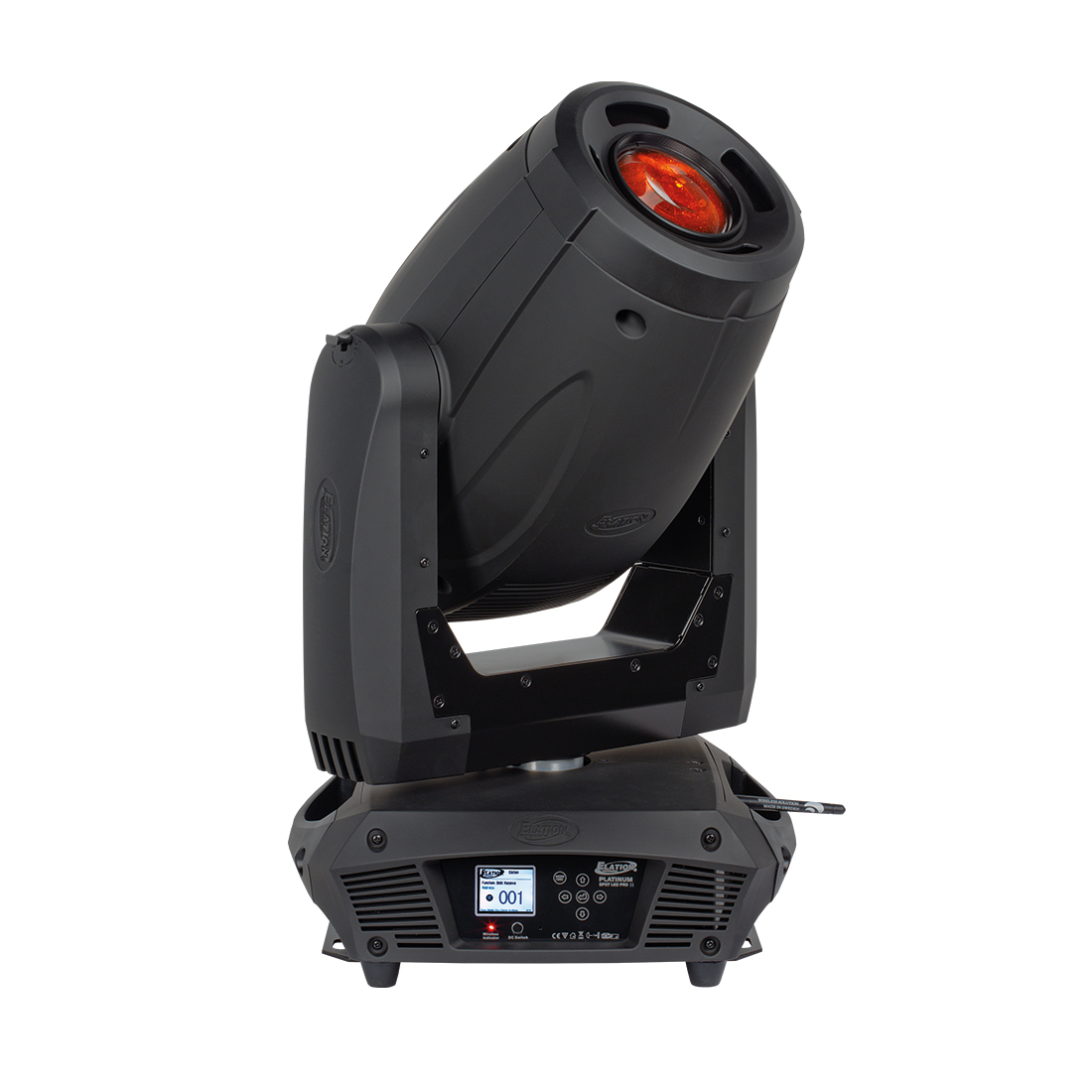

Platinum Spot LED Pro II

The Platinum Spot LED PRO II™ features an extremely bright 170W Cool White LED engine, 15° to 33° motorized zoom, 7 dichroic colors plus white, 7 rotating, interchangeable, glass and 7 static metal gobos, frost filter hybrid wash effect, 3-facet rotating prism with 16 prism macros, motorized iris, focus, and dimming, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, internal wireless DMX receiver, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for TV and FILM.

Technical Data

FEATURES

Extremely Bright Cool White LED Spot Illuminare
Low Heat, Quiet Operation, and Hibernation Mode
15° - 33° Motorized Zoom
Frost Filter Hybrid Wash Effect
Internal EWDMX Wireless DMX Receiver
Flicker Free Operation For Broadcast TV and FILM


SOURCE

170W Cool White LED Engine
60,000 Hour Average LED Life


PHOTOMETRIC DATA

6,500K, >85CRI
12,200 LUX @ 2.5m (15°Min Zoom Full ON)
3,110 LUX @ 2.5m (33° Max Full ON)


EFFECTS

Frost Filter Hybrid Wash Effect
3-Facet Rotating Prism and Prism Macros
Motorized Focus and Dimming 0% - 100%
Iris: 5% - 100%
Strobe: 1-18fps


COLOR

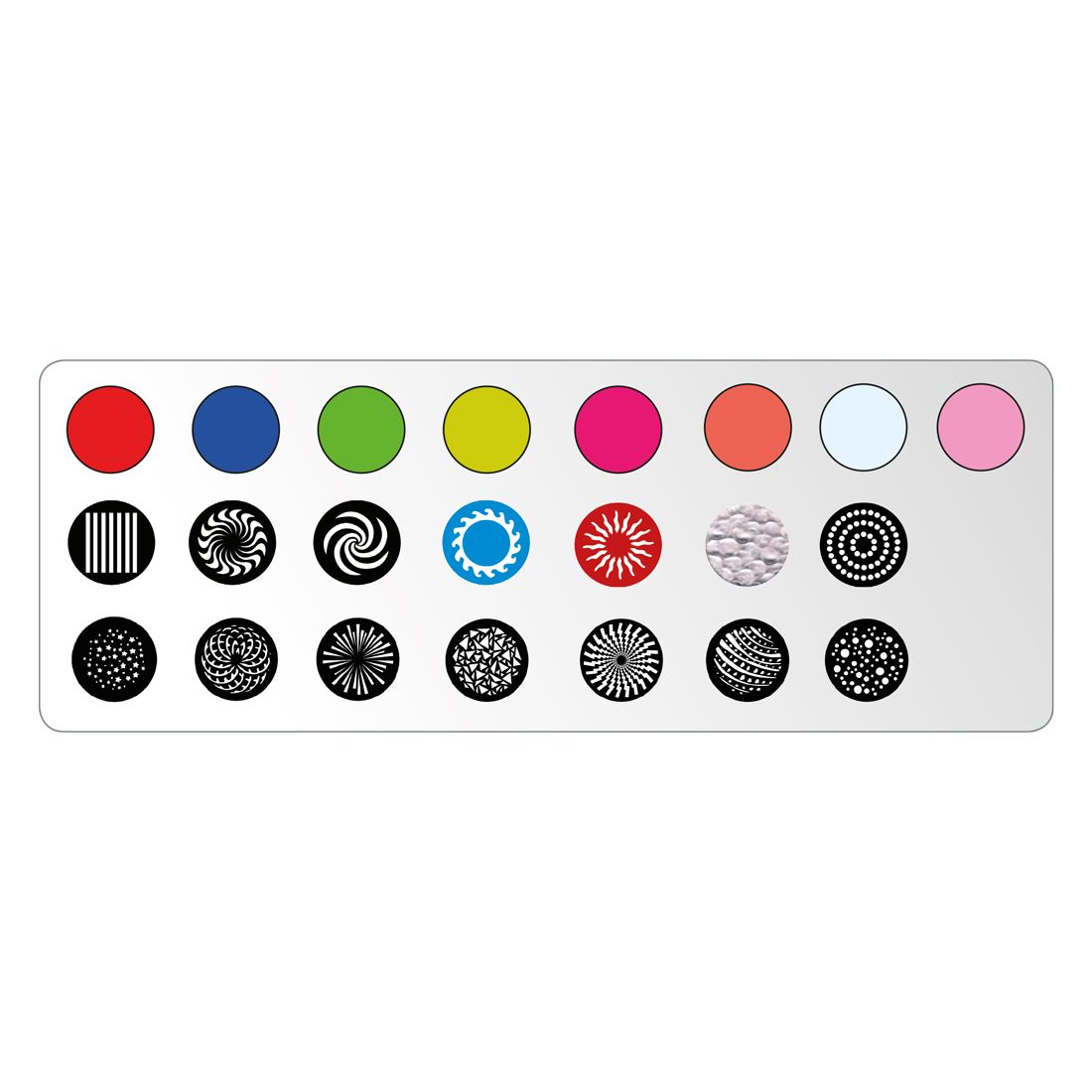

7 Dichroic Colors + White (Open)


GOBOS

7 Interchangeable / Rotating / Indexing Gobos
Gobo Size: OD 1.06” (27mm) / ID 0.86” (22mm)
7 Static / Indexing Gobos


CONTROL / CONNECTIONS

(3) DMX Channel Modes (17 / 15 / 22)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Internal EWDMX Wireless DMX Receiver
Locking 3/5pin DMX In/Out
Locking power connector In


SIZE / WEIGHT

Length: 384mm
Width: 375mm
Vertical Height: 601mm
Weight: 21 kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
290W Max Power Consumption
-25°C to 45°C

Specifications and documentation subject to change without notice
