Code
1237000029
FEATURES
540°/630° Pan
265° Tilt
8 / 16 Bit Resolution Adjustable Movement
1/3 Smaller @ Output of 575 Watt Fixture
Motorized Focus
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary
LAMP
Philips 189-Watt MSD PLATINUM 5R
7,950 Lumen, 8,000k, >75 CRI, 2000 Hour Average Life
PHOTOMETRICS
Max 15,290 LUX @2,5M 16°
EFFECTS
Frost Filter
Motorized Iris: 5% - 100%
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
3 Facet Rotating Prisms

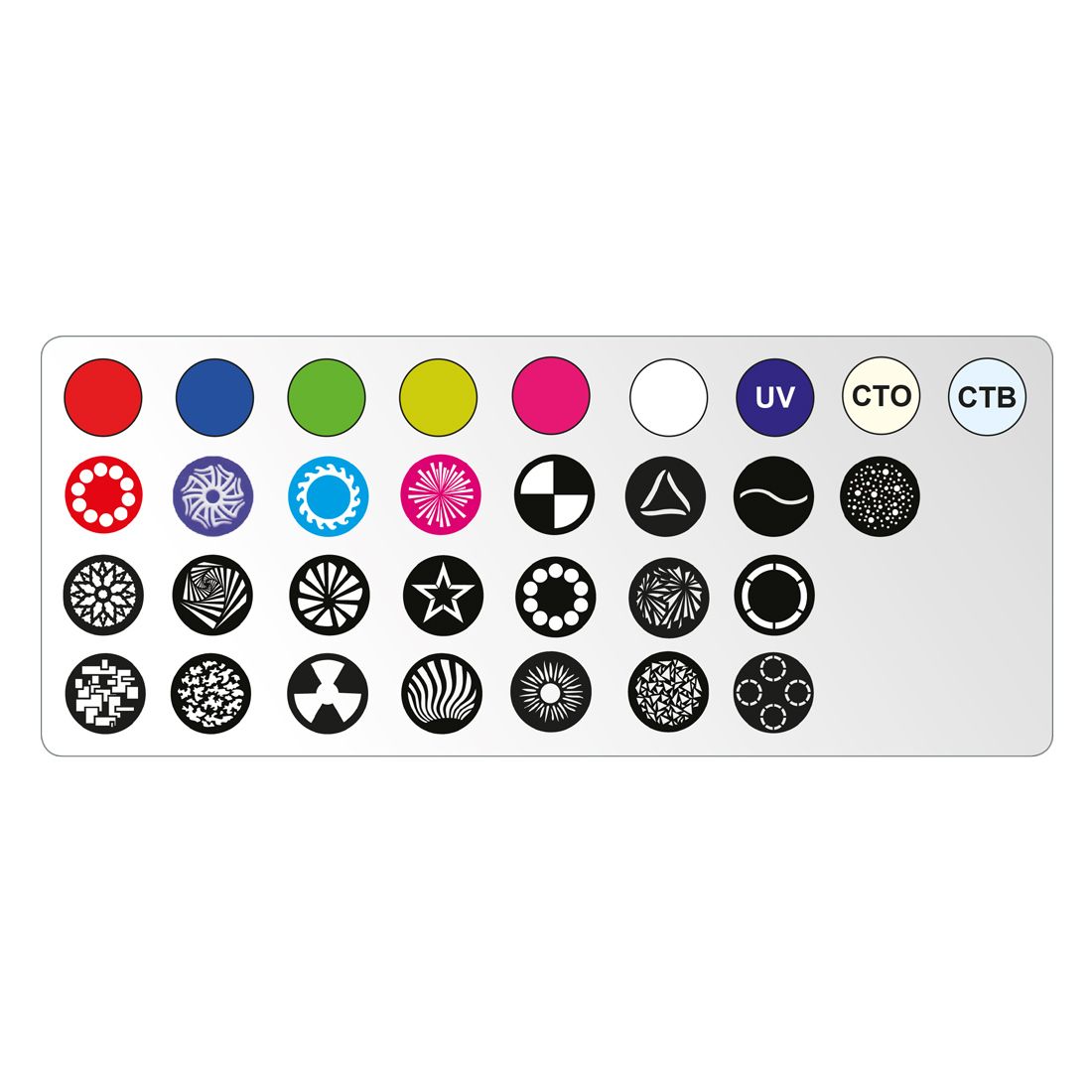

COLOR
8 Static Dichroic Colors Including UV + CTB + White (Open)
GOBOS
2 Gobo Wheels with 8 Interchangeable Glass Rotating / Indexing Gobos
Plus 14 Static Interchangeable Gobos plus Open
Size: OD 14mm / ID 7mm
CONTROL / CONNECTIONS
3 DMX Channel Modes (15 / 17 / 24)
3pin & 5pin DMX In/Out
SIZE / WEIGHT
Length: 360mm
Width: 337mm
Vertical Height: 450mm
Weight: 12,9kg
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
342W Max Power Consumption
-25°C to 45°C
Specifications and documentation subject to change without notice
