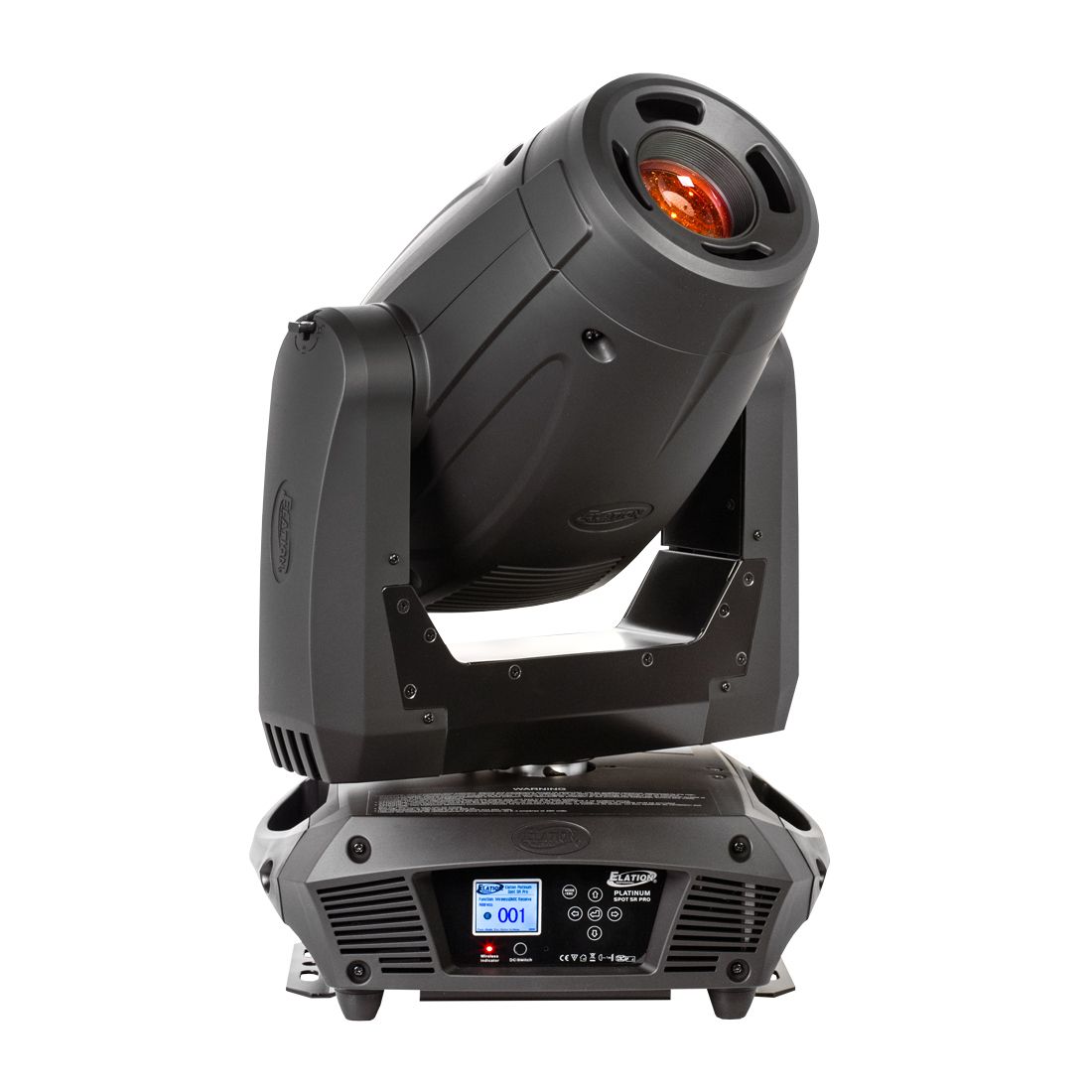

Platinum Spot 5R Pro

The Platinum Spot 5R PRO features the MSD Platinum 5R, 189-watt lamp from Phillips™, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 8 interchangeable, rotating, and indexing glass gobos, 14 fixed indexing gobos, variable CMY color mixing, a static color wheel with 8 dichroic colors including UV and CTB, 3 facet rotating / indexing prism, frost filter, motorized focus / zoom system with an 11° to 42° beam angle, pan/tilt lock, built-in EWDMX wireless DMX receiver, locking 3/5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

540°/630° Pan
265° Tilt
Pan/Tilt Lock
8 / 16 Bit Resolution Adjustable Movement
1/3 Smaller @ Output of 575 Watt Fixture
Motorized Focus
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
EWDMX Wireless DMX Receiver
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary


LAMP

Philips 189-Watt MSD PLATINUM 5R
7,950 Lumen, 8,000k, >75 CRI, 3,000 Hour Average Life*


PHOTOMETRICS

Max 26,500 LUX @2,5M 11°
Zoomrange: 11° to 42° Beam Angle


EFFECTS

Frost Filter
Motorized Iris: 5% - 100%
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
3 Facet Rotating Prisms


COLOR

Variable CMY
8 Static Dichroic Colors Including UV + CTB + White (Open)

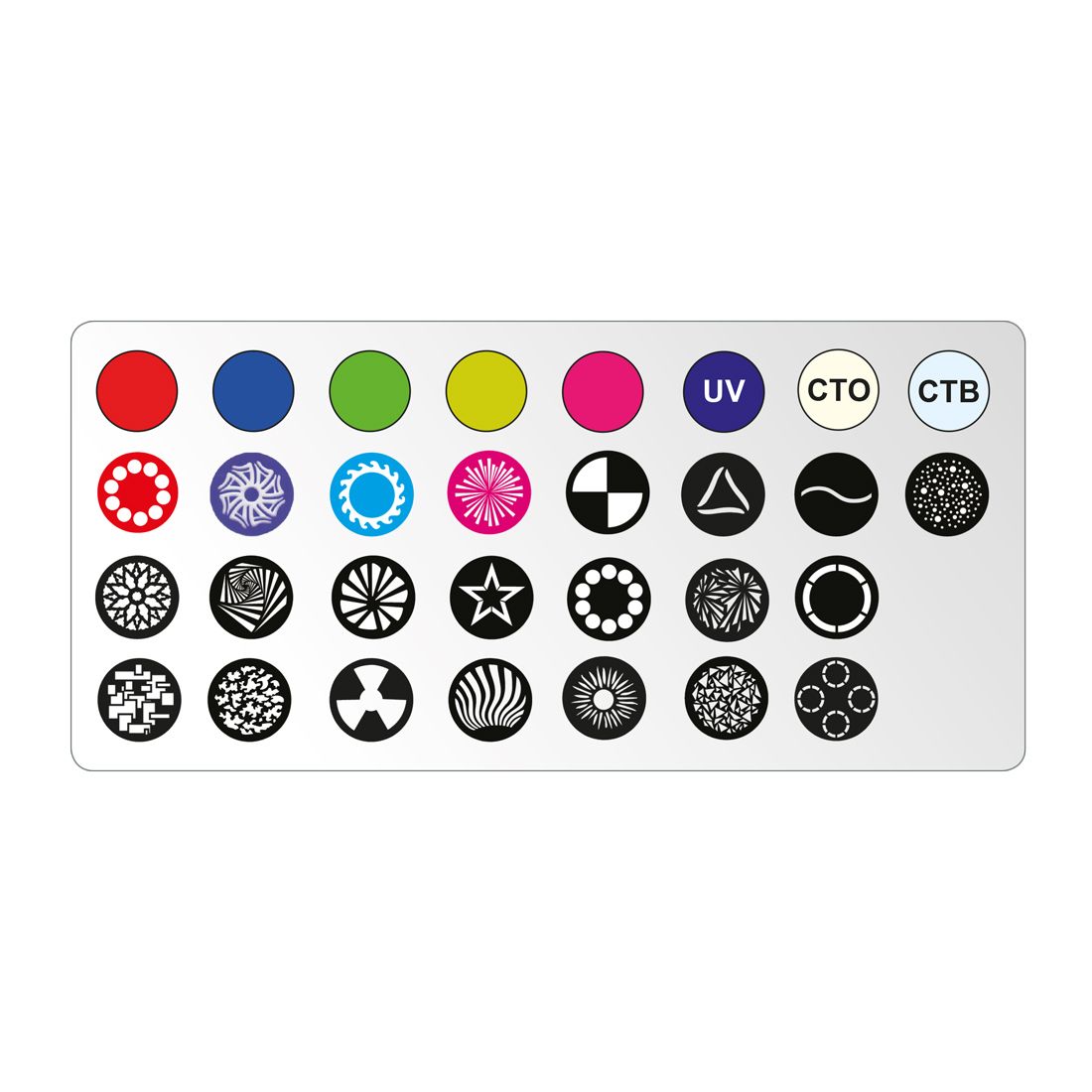

GOBOS

2 Gobo Wheels With 8 Interchangeable Glass Rotating / Indexing Gobos
Plus 14 Static Interchangable Gobos Plus Open
Size:  OD 14mm / ID 7mm


CONTROL / CONNECTIONS

3 DMX Channel Modes (21 / 23 / 34)
Locking 3/5pin DMX In/Out
Locking power connector In


SIZE / WEIGHT

Length: 370mm
Width: 368mm
Vertical Height: 467mm
Weight: 19kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
350W Max Power Consumption
-25°C to 45°C

*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Specifications and documentation subject to change without notice
