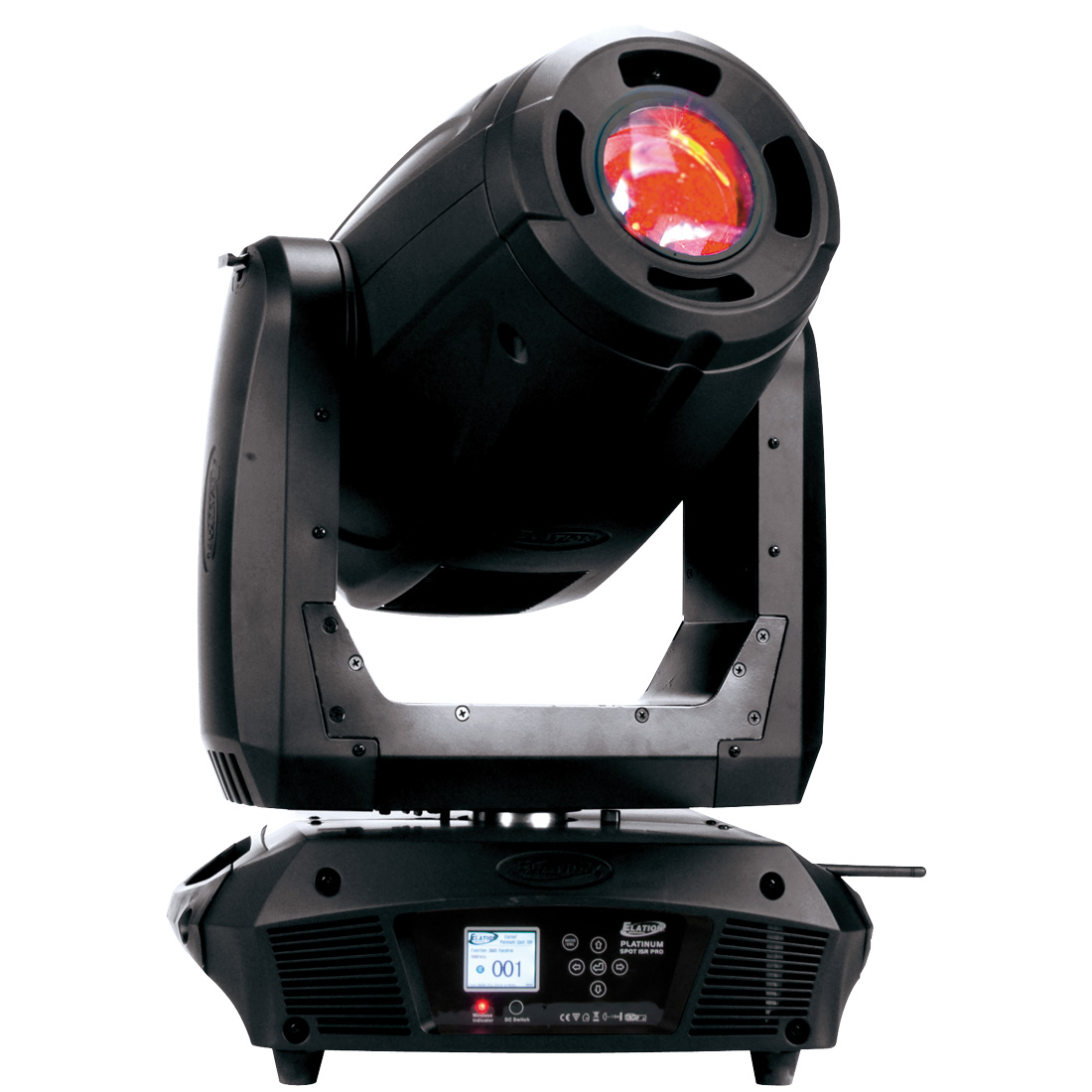

Platinum Spot 15R Pro

The Platinum Spot 15R PRO features the MSD Platinum 15R, 300-watt lamp from Phillips™, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 8 interchangeable, rotating, and indexing glass gobos, 14 fixed indexing gobos, variable CMY color mixing, a static color wheel with 6 dichroic colors including UV and CTB, 3 facet rotating / indexing prism, frost filter, motorized focus / zoom system with an 9° to 27° beam angle, pan/tilt lock, built-in EWDMX wireless DMX receiver, locking 3/5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data


540°/630° Pan
265° Tilt
Pan/Tilt Lock
8 / 16 Bit Resolution Adjustable Movement
1/3 Smaller @ Output of 700/1200 Watt Fixture
Motorized Focus
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
EWDMX Wireless DMX Receiver
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary / Secondary Function
Software Upload via Optional External DMX Accessary


Philips 300-Watt MSD PLATINUM 15R
13,500 Lumen, 8,000k, >75 CRI, 1500 Hour Average Life


Max 84,200 LUX @2,5M 9°
Zoomrange: 9° to 27° Beam Angle


Frost Filter
Motorized Iris: 5% - 100%
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
3 Facet Rotating Prisms


Variable CMY
8 Static Dichroic Colors Including UV + CTB + White (Open)

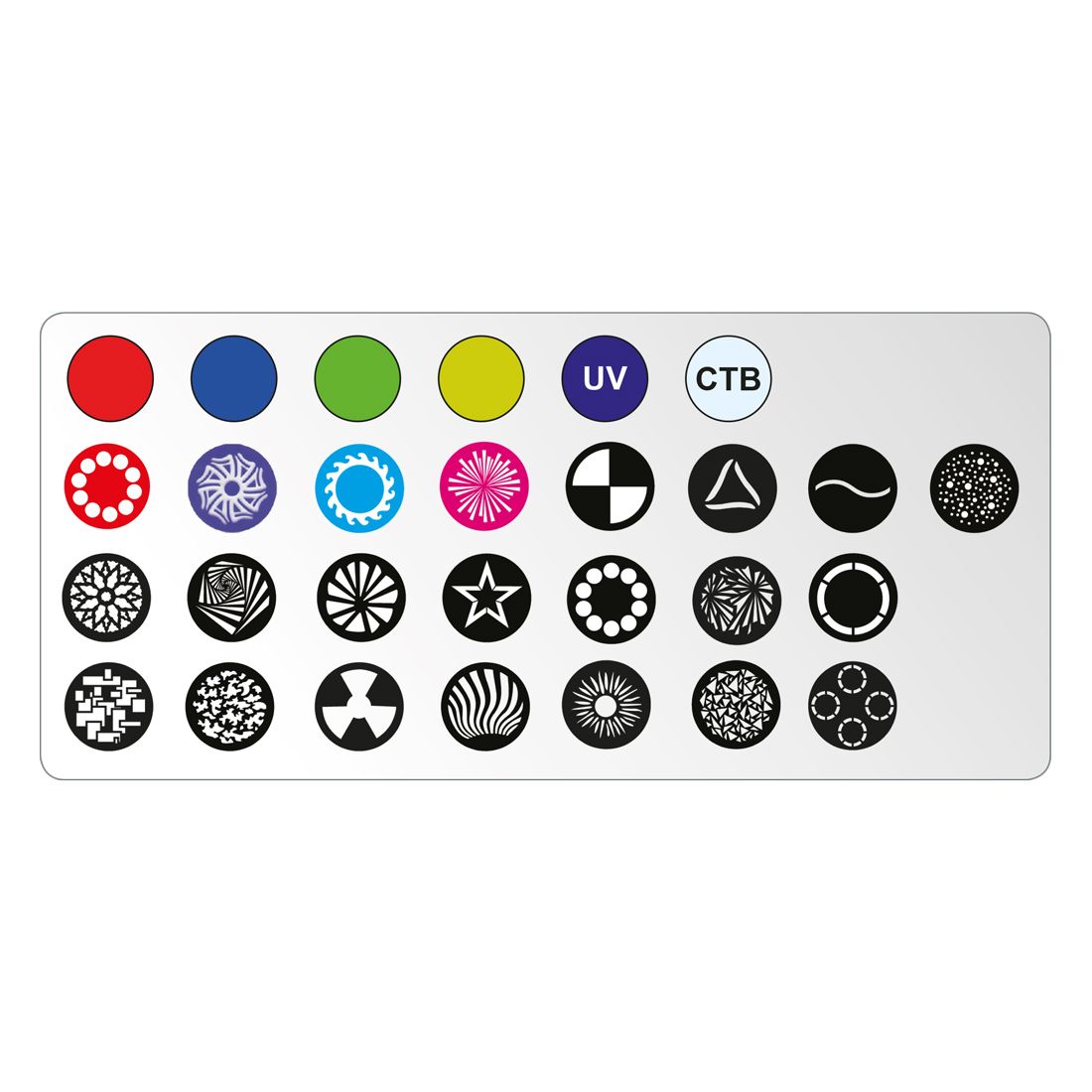

2 Gobo Wheels With 8 Interchangeable Glass Rotating / Indexing Gobos
Plus 14 Static Interchangable Gobos Plus Open
Size: Glass Gobo: OD 16.3mm / ID 10mm
Metal Gobo: OD 16.3mm / ID 11mm


3 DMX Channel Modes (21 / 23 / 34)
Locking 3/5pin XLR DMX In/Out
Locking power In


Length: 409mm
Width: 419mm
Vertical Height: 541mm
Weight: 22,2kg


AC 100-240V - 50/60Hz
420W Max Power Consumption
-25°C to 45°C

Specifications and documentation subject to change without notice
