Code
1237000052
FEATURES
540°/630° Pan
265° Tilt
8 / 16 Bit Resolution Adjustable Movement
1/3 Smaller @ Output of 700-1200 Watt Fixture
Motorized Focus
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary
LAMP
Philips 300-Watt MSD PLATINUM 15R
13,500 Lumen, 8,000k, >75 CRI, 1500 Hour Average Life
PHOTOMETRICS
Max 59,836 LUX @2,5M 20°
EFFECTS
Frost Filter
Motorized Iris: 5% - 100%
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
3 Facet Rotating Prisms
COLOR

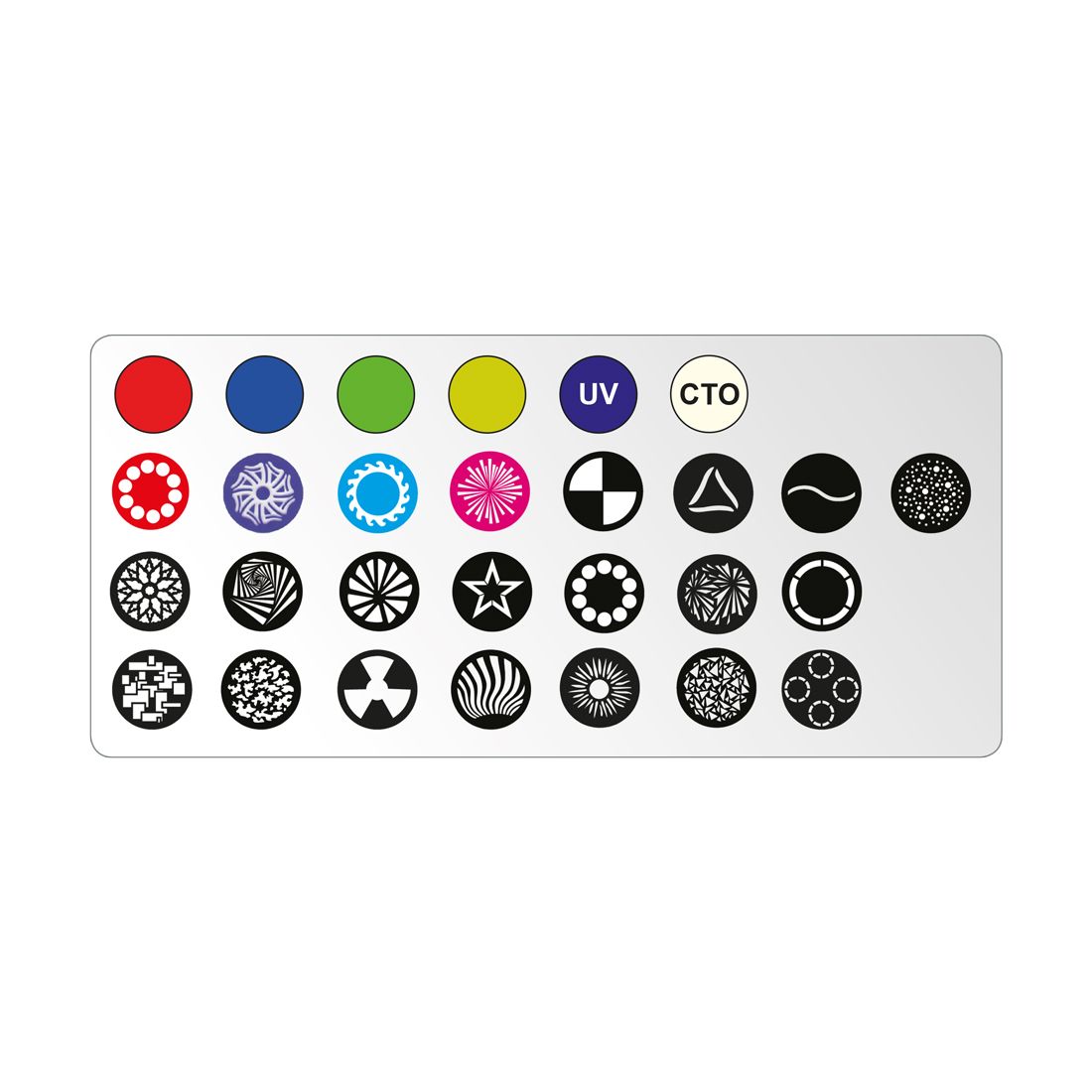

8 Static Dichroic Colors Including UV + White (Open)
GOBOS
2 Gobo Wheels With 8 Interchangeable Glass Rotating / Indexing Gobos
Plus 14 Static Interchangable Gobos Plus Open
Size: Glass Gobo OD 16.3mm / ID 10mm
Metal Gobo: OD 16.3mm / ID 11mm
CONTROL / CONNECTIONS
3 DMX Channel Modes (14 / 16 / 23)
Locking 3/5pin DMX In/Out
Locking power connector In
SIZE / WEIGHT
Length: 350mm
Width: 380mm
Vertical Height: 490mm
Weight: 20kg
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
420W Max Power Consumption
-25°C to 45°C
Specifications and documentation subject to change without notice
