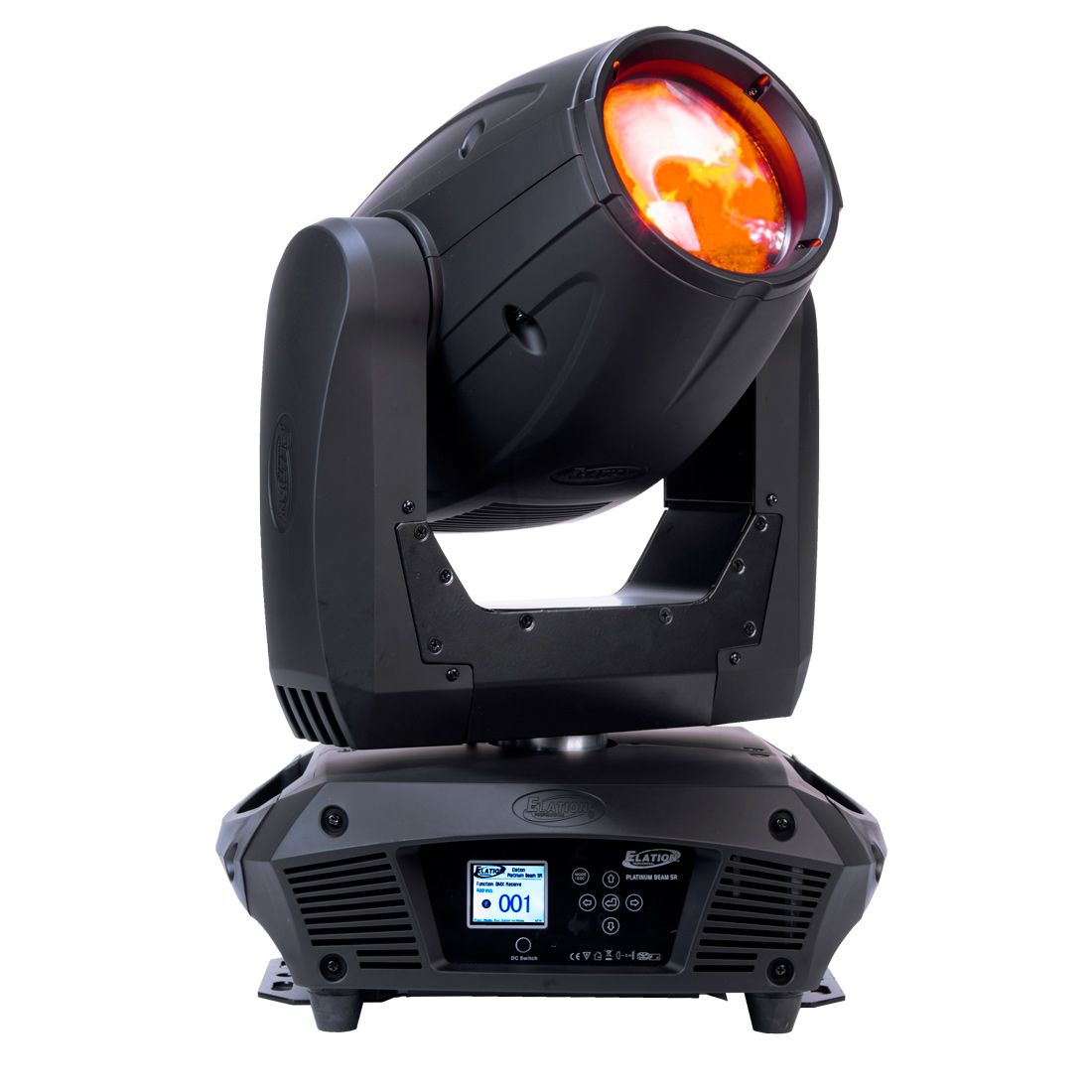

Platinum Beam 5R

The Platinum Beam 5R is the next evolution in extreme ACL / Beam moving heads. Featuring the new Platinum 5R 189 Watt Lamp from Philips, offering extreme output with a new specialized optical system offering sharp gobo projections and a extreme beam “ACL / Searchlight” type effect. Featuring 12 dichroic colors, 8 rotating indexing gobos, rotating 8 facet prism, frost filter for wash effect and lighting fast 3 phase motors for all effects.

Technical Data


540°/630° Pan
265° Tilt
8 / 16 Bit Resolution Adjustable Movement
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary


Philips 189-Watt MSD PLATINUM 5R
7,950 Lumen, 8,000k, >75 CRI, 3,000 Hour Average Life*


Max 56,230 LUX @15M 2,5°


Frost Filter
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
8 Facet Rotating Prisms

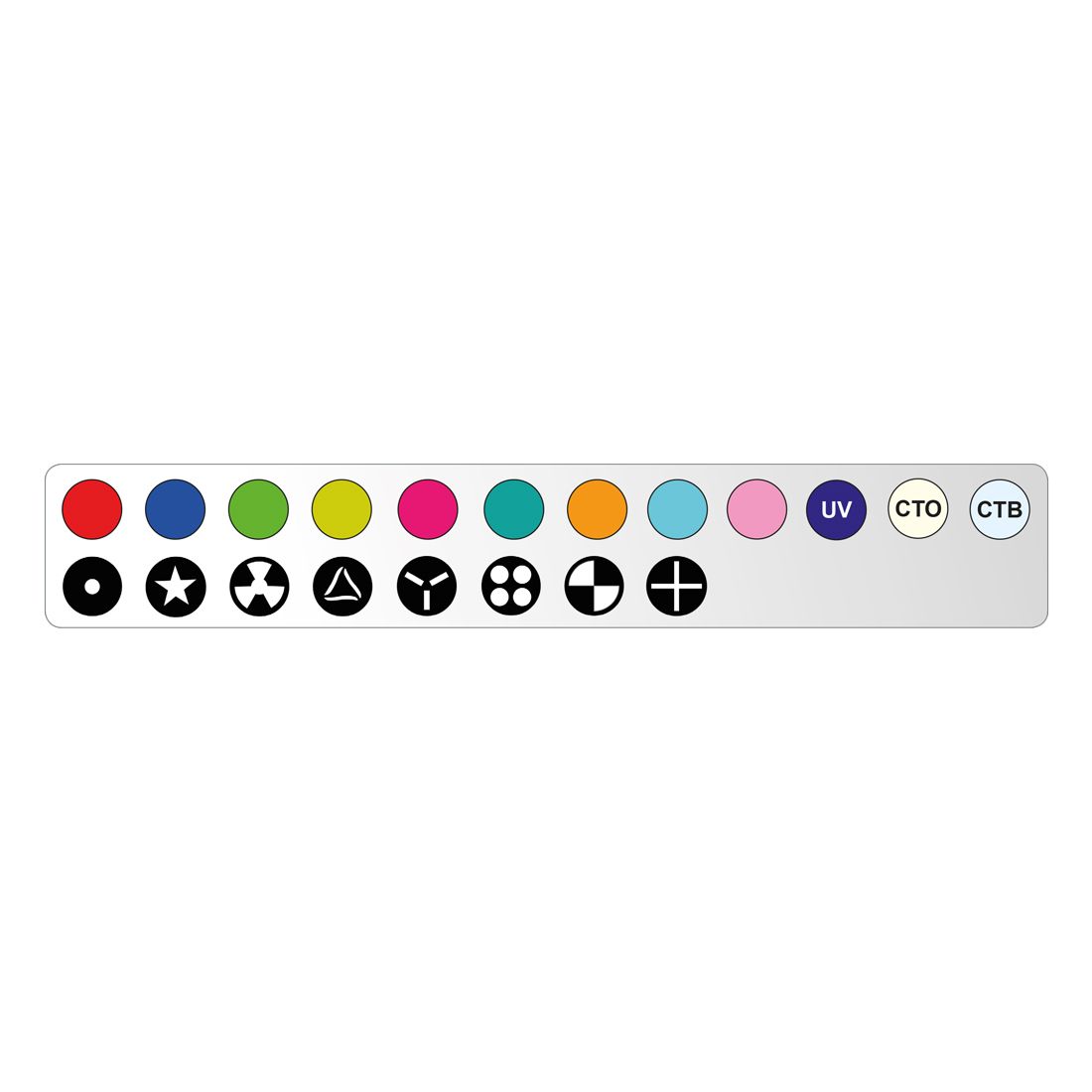

12 Static Dichroic Colors Including + White (Open)


1 Gobo Wheel With 8 Interchangeable Rotating Gobos + Open
Size:  OD 14mm / ID 6mm


3 DMX Channel Modes (11 / 13 / 16)
3pin & 5pin DMX In/Out


Length: 360mm
Width: 330mm
Vertical Height: 470mm
Weight: 14,5kg


AC 100-240V - 50/60Hz
338W Max Power Consumption
-25°C to 45°C
*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Specifications and documentation subject to change without notice
