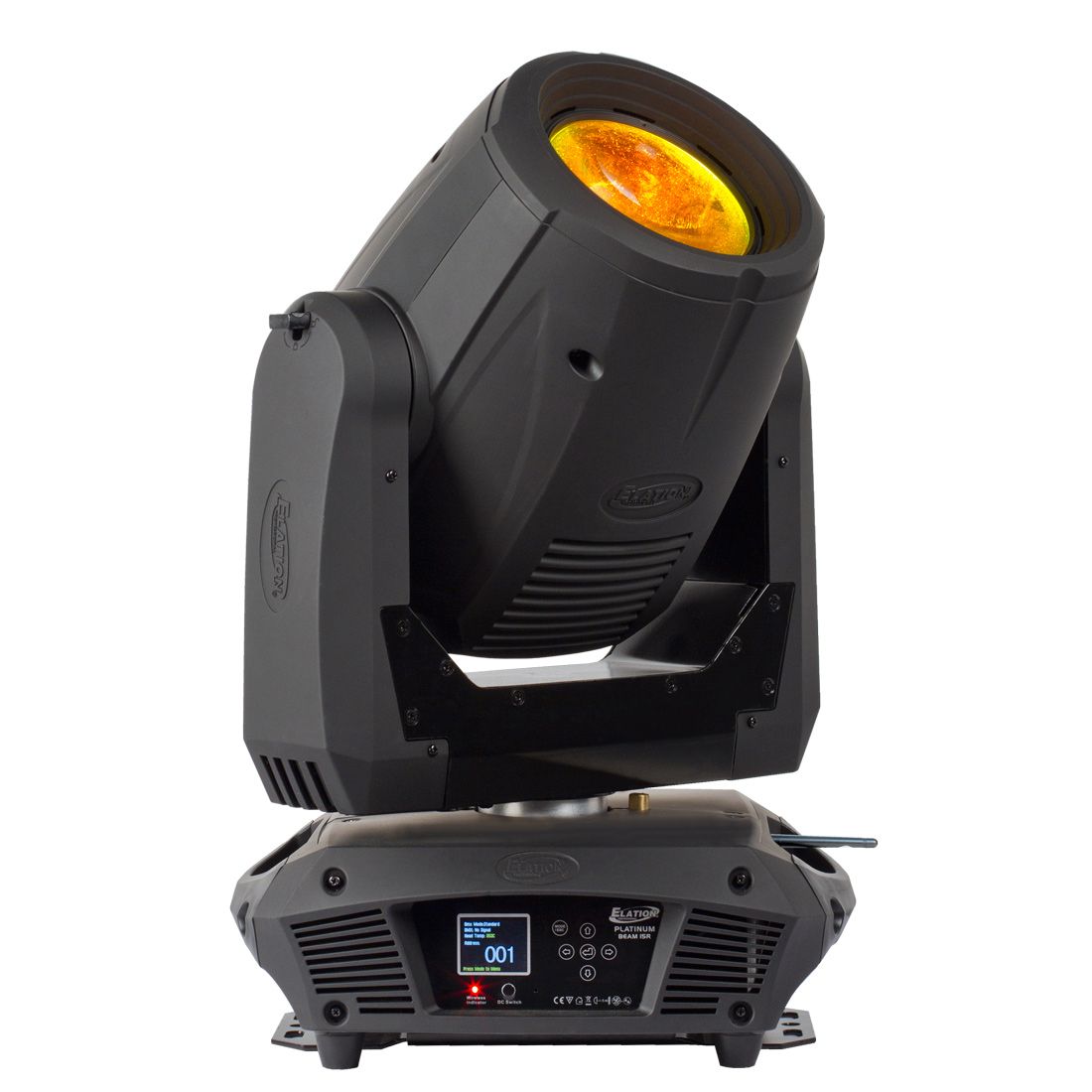

Platinum Beam 15R PRO

The Platinum Beam 15R PRO is the next evolution in extreme ACL / Beam moving heads. Featuring the Platinum 15R 300 watt Lamp from Philips, offering comparable output to 1200w fixtures with a new specialized optical system offering sharp gobo projections and a extreme beam “ACL / Searchlight” type effect. Featuring 8 dichroic colors, 8 rotating indexing gobos, 13 static gobos, rotating 8 facet prism, frost filter for wash effect and lighting fast 3 phase motors for all effects.

Technical Data

FEATURES

540°/630° Pan
265° Tilt
Pan/Tilt Lock
8 / 16 Bit Resolution Adjustable Movement
Motorized Focus
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
EWDMX Wireless DMX Receiver
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary / Secondary Function
Software Upload via Optional External DMX Accessary


LAMP

Philips 300-Watt MSD PLATINUM 15R
13,500 Lumen, 8,000k, >75 CRI, 1500 Hour Average Life


PHOTOMETRICS

Max 106,400 LUX @15M 4,8°


EFFECTS

Frost Filter
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
8 Facet Rotating Prisms

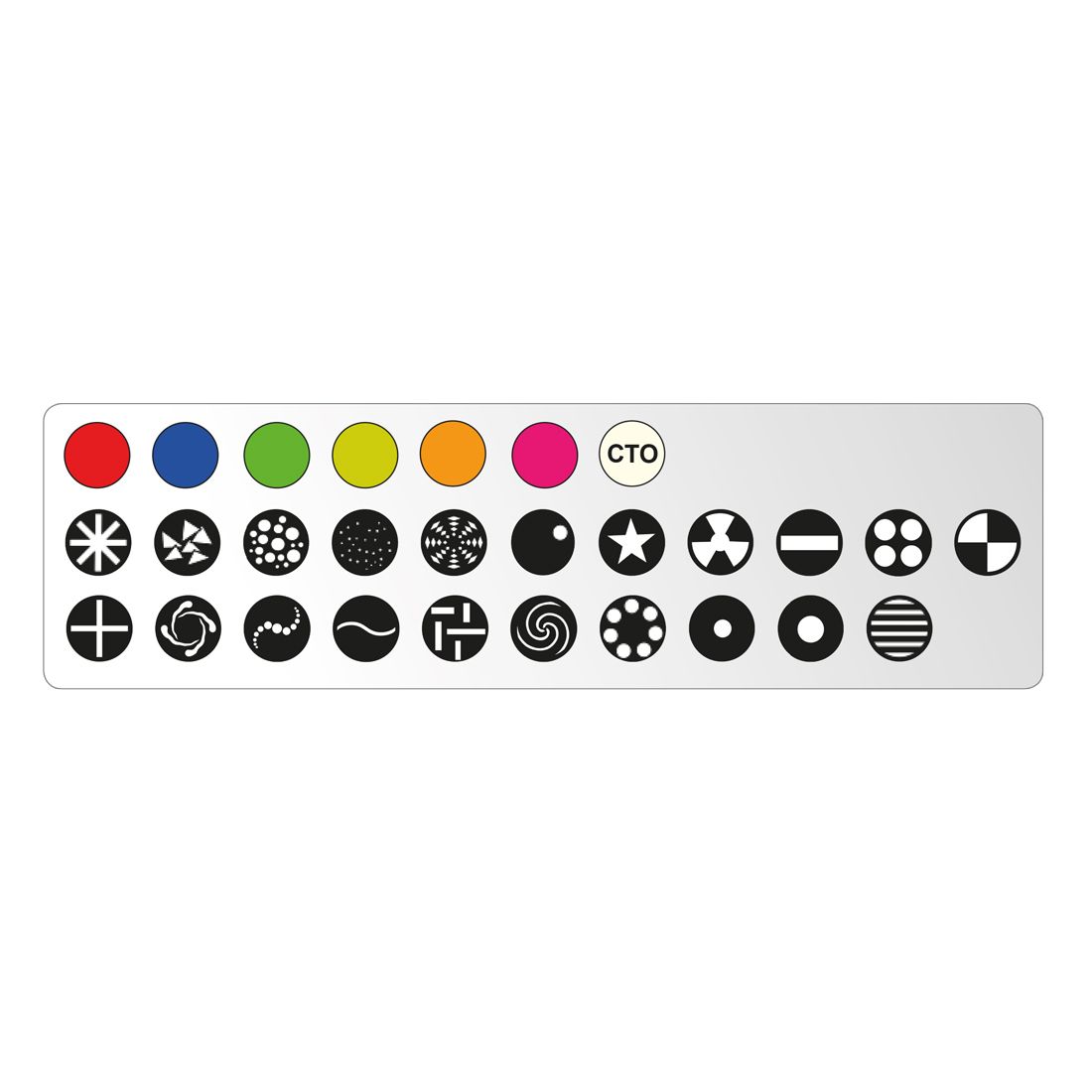

COLOR

8 Static Dichroic Colors Including + White (Open)


GOBOS

2 Gobo Wheels With 8 Interchangeable Glass Rotating / Indexing Gobos
Plus 13 Static Interchangable Gobos Plus Open
Size:  OD 14mm / ID 6mm



CONTROL / CONNECTIONS

3 DMX Channel Modes (14 / 16 / 22)
Locking 3/5pin DMX In/Out
Locking power connector In


SIZE / WEIGHT

Length: 350mm
Width: 380mm
Vertical Height: 570mm
Weight: 23kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
500W Max Power Consumption
-25°C to 45°C


Specifications and documentation subject to change without notice
