Code 1239000005

Pixel Touch PCB

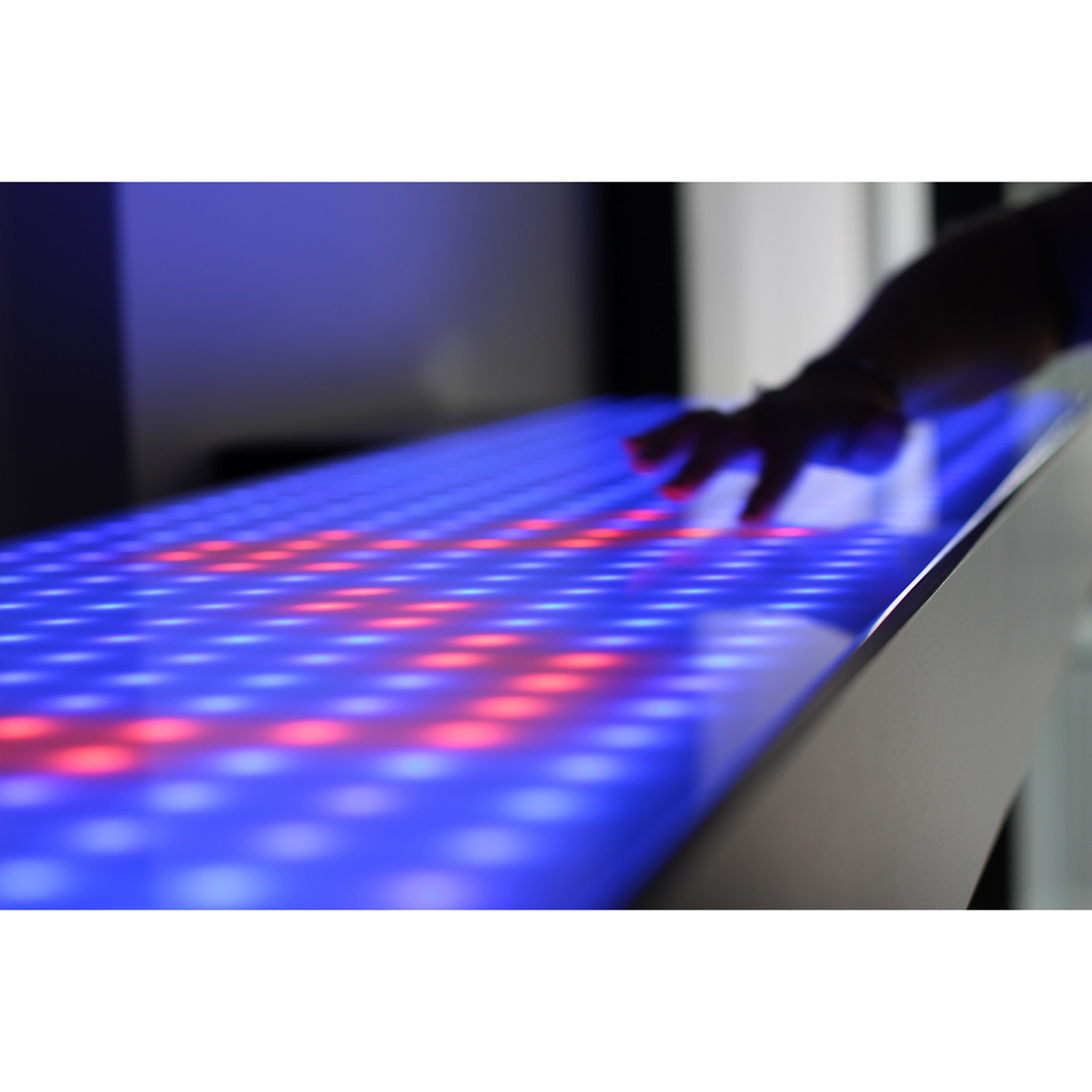

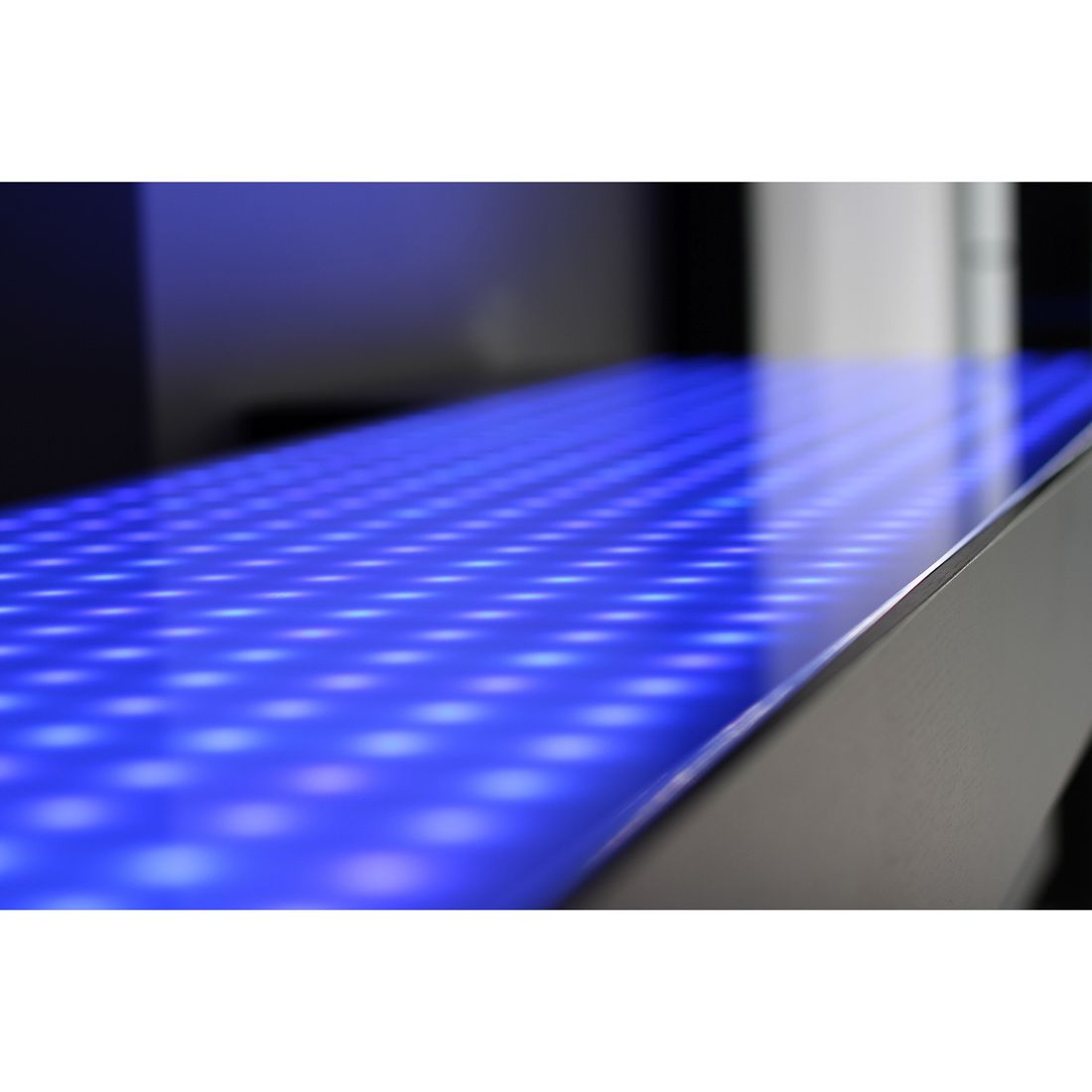

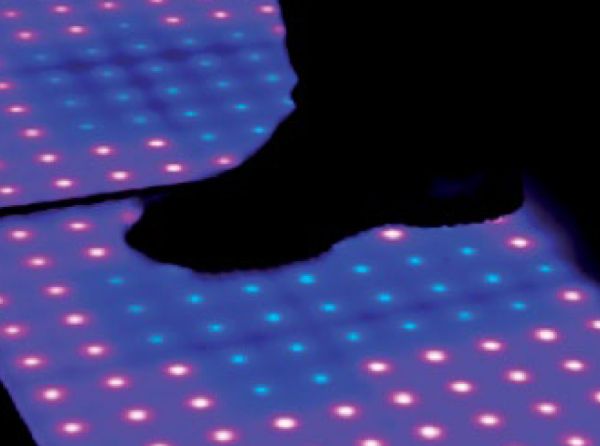

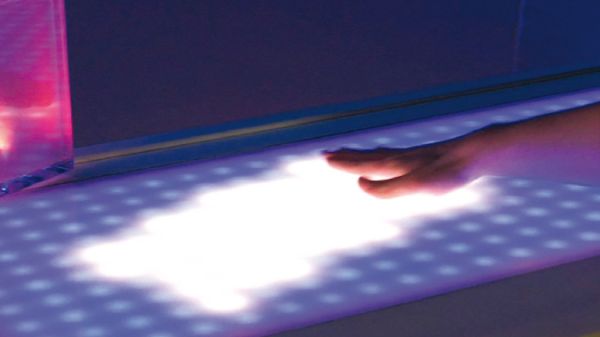

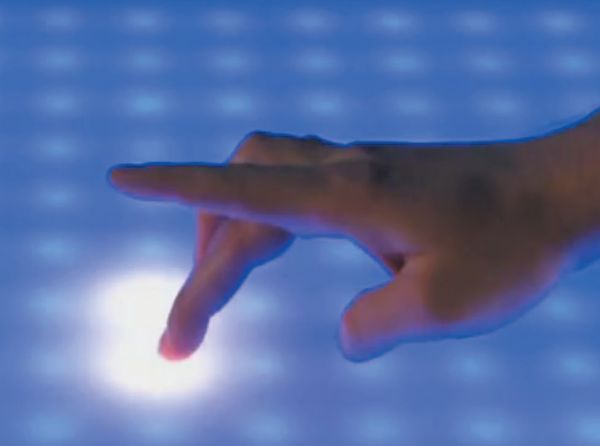

Pixel Touch PCB is a wonderful touch sensitive LED display screen integral with 25 three-in-one RGB LEDs, featuring auto DMX addressing and inductive touch control which can bring a interactive element to any display, countertop or wall.


Technical Data

FEATURES

Pixel Controlled
Touch Sensitive Using Inductive Sensors
25 SMD RGB LED's For Full Color Mixing
DMX512 / DMX1000 Controlable


SOURCE

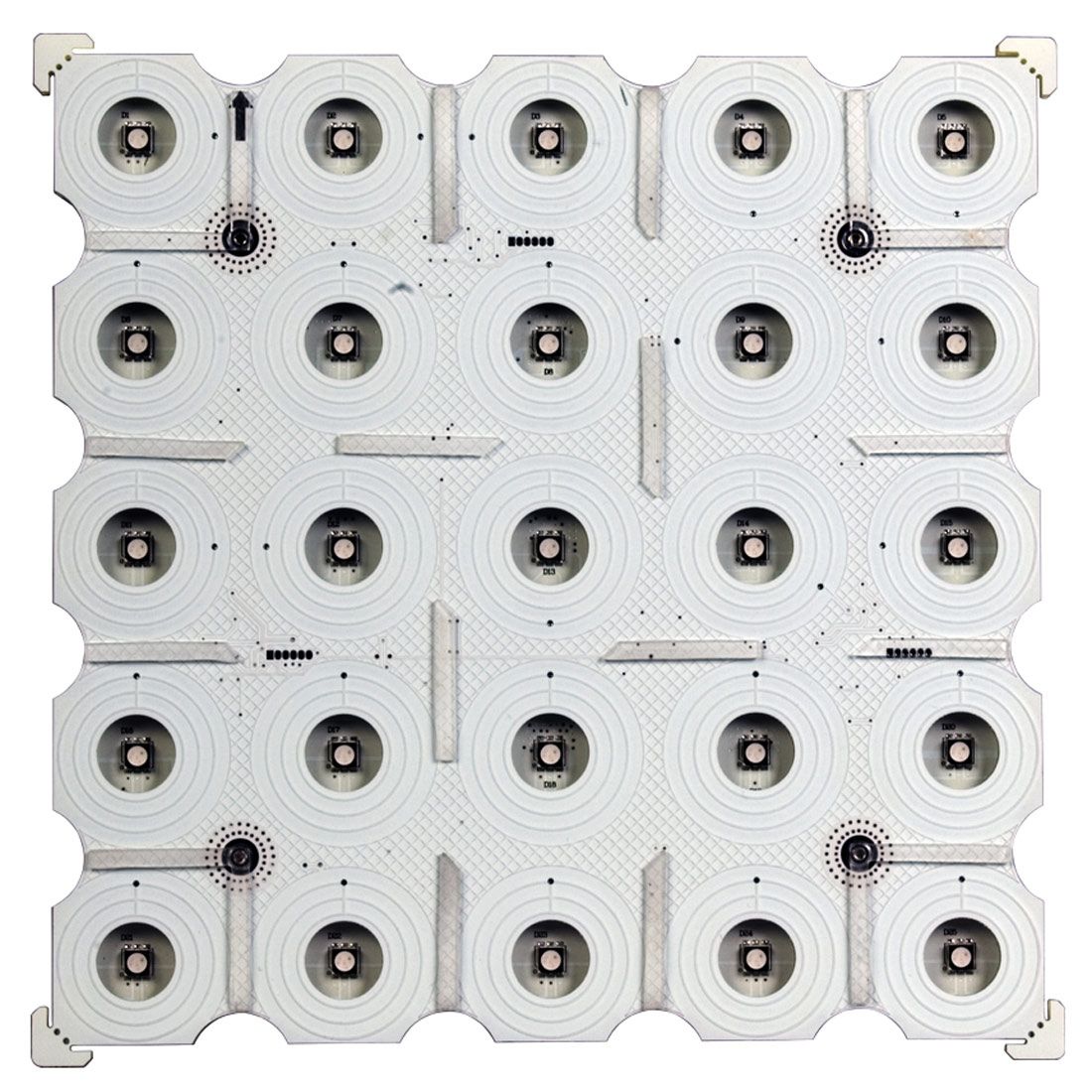

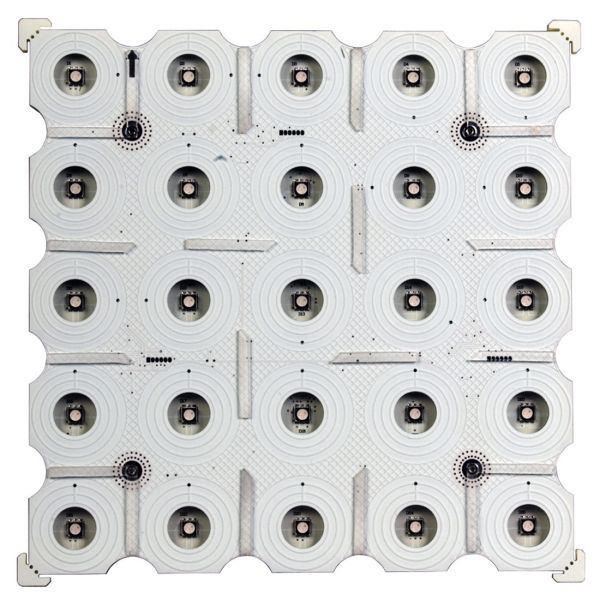

25 SMD 5050 RGB LED's
40mm Pixel Pitch
50,000 Hour Average Life


EFFECTS

Pixel Controlled
Touch Sensitive Using Inductive Sensors


COLOR

RGB Full Color Mixing


CONTROL / CONNECTIONS

Auto DMX Addressing
Direct DMX512 or DMX1000 Control
75 DMX Channels
Max 20mm Inductive Distance
2-wire DC Power-cable + 1 DMX Cable
Max in Chain: 6pcs using DMX512 / 11pcs using DMX1000
Including Mounting Tape + Link Cable 6-pin Terminal 90mm


SIZE / WEIGHT

Length: 7.6” (192mm)
Width: 7.6” (192mm)
Vertical Height: 0.9” (22mm)
Weight: 0.5 lbs. (0.225 kg)


ELECTRICAL / THERMAL

24 Vdc, 450mA
10,8W Max Power Consumption
14°F to 113°F (-10°C to 50°C)

Specifications and documentation subject to change without notice
