Pixel Bar 12

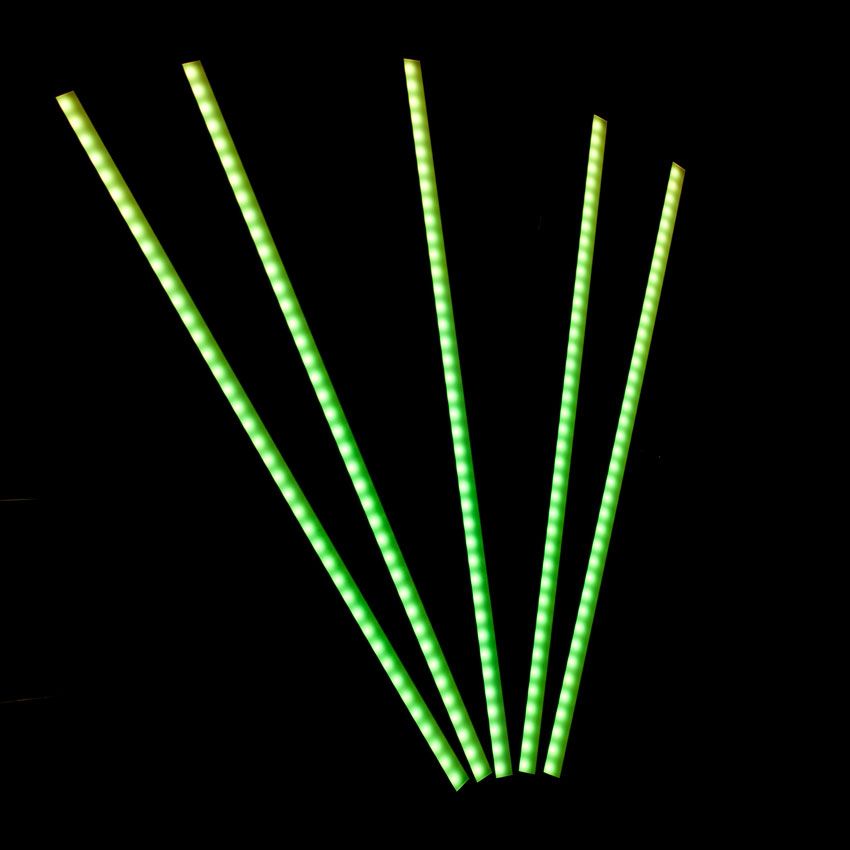

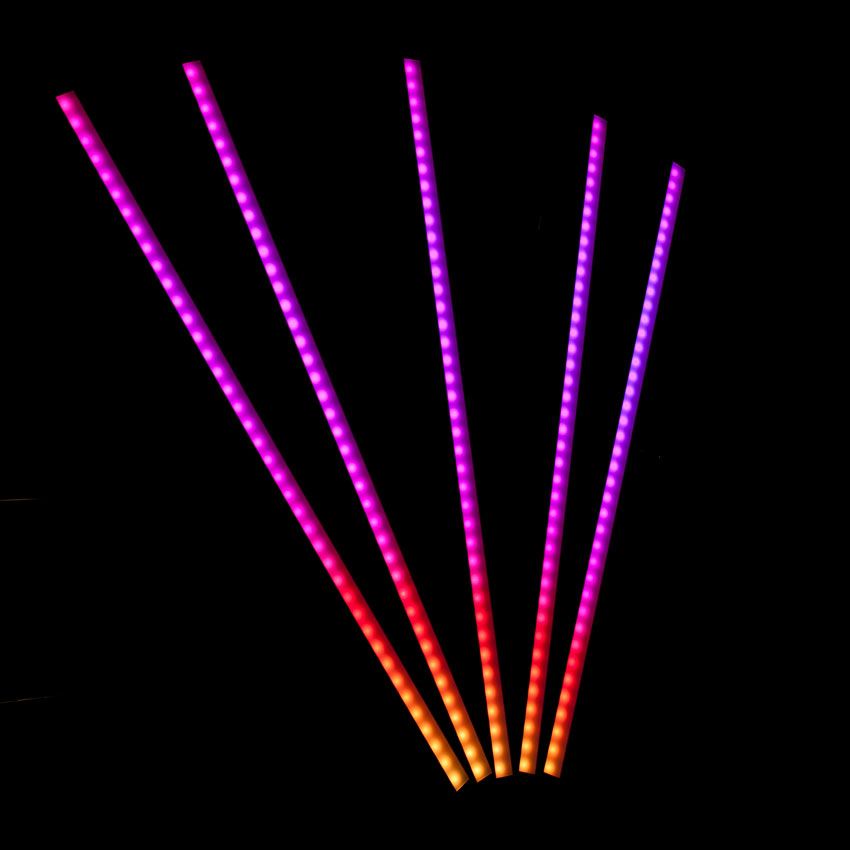

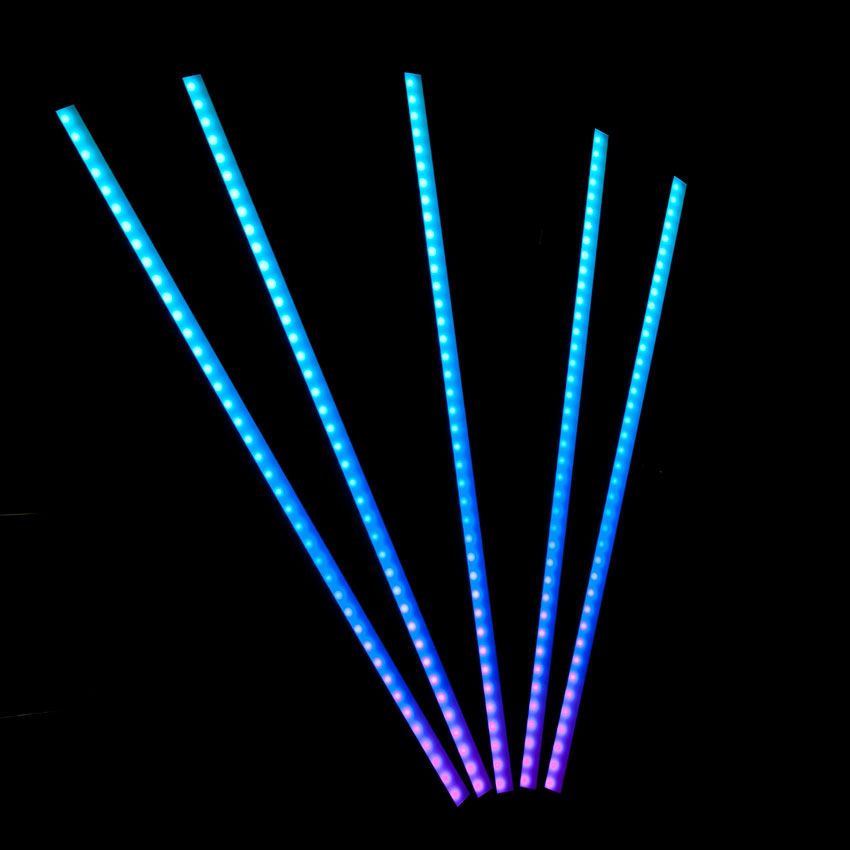

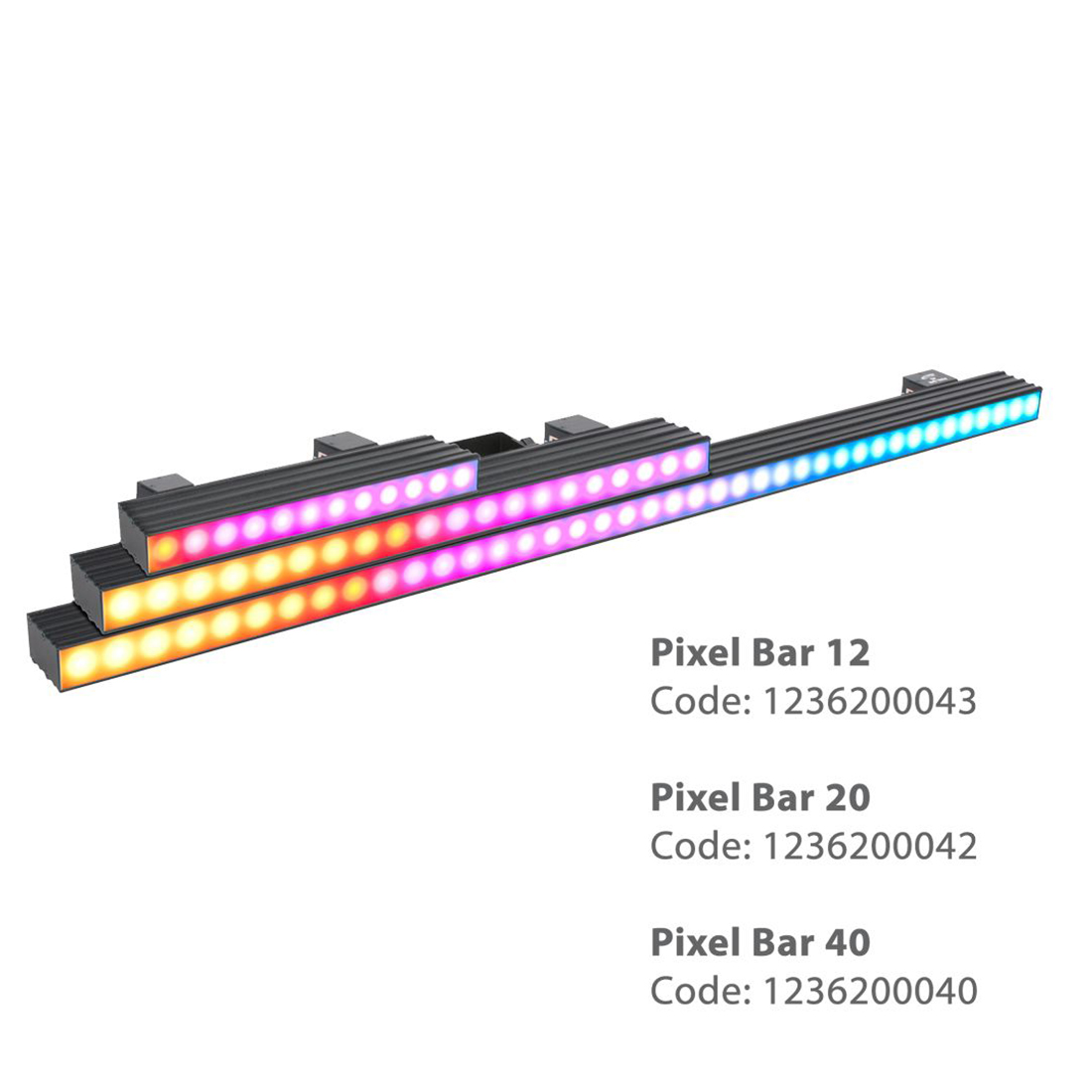

Pixel Bar is a series of pixel-controllable LED strip lights that uses RGB SMD LEDs to mix a nearly limitless variety of colors. Available in 40, 20 or 12 pixel models, they are useful as a pixel bar for displaying imagery or as a wash luminaire for floodlighting surfaces and stages. Capable of uniform washes of color from pastels to saturates, each pixel bar is bright and 0-100% dimmable. Set up of the units is simple and multiple units can easily be linked together for customizable designs.

Technical Data

FEATURES

3-in-1 RGB SMD LEDs
25mm Pixel Pitch
850 NITs / 2000Hz Refresh Rate
No Fans, Silent Operation
Extruded Aluminum Housing

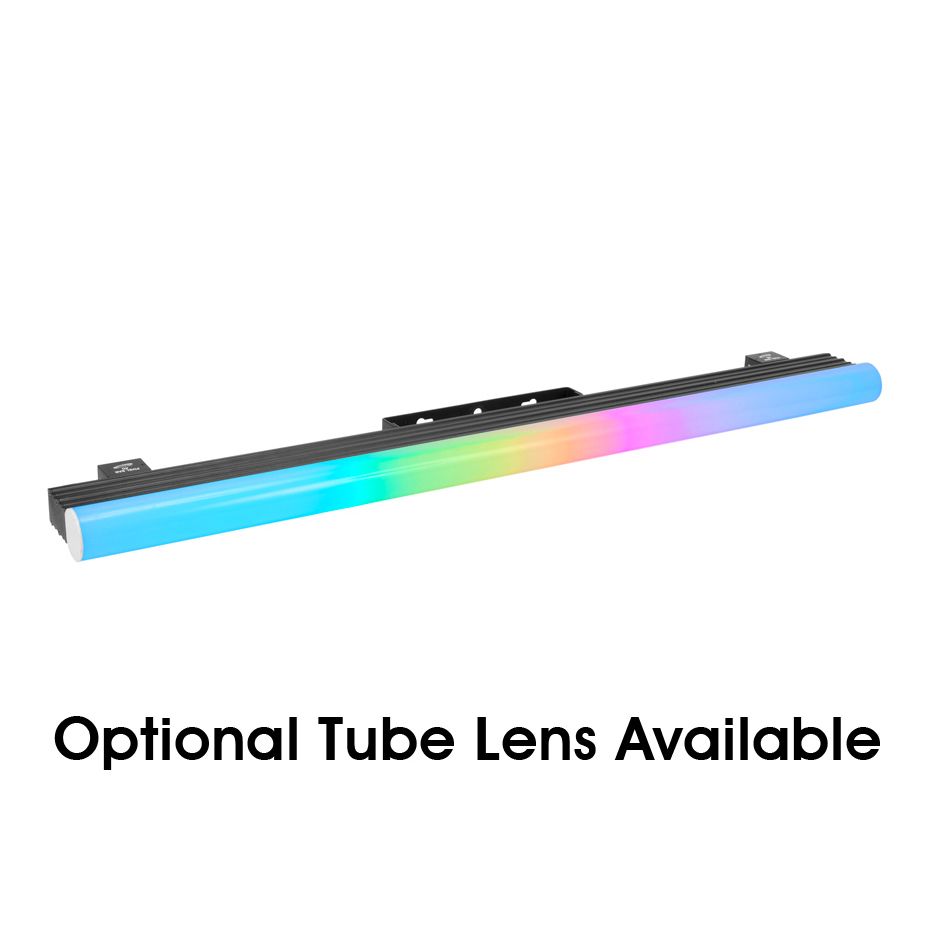

Optional Frost Tube Lens
Art-NET (DMX over Ethernet)

SOURCE

12x SMD LEDs

PHOTOMETRIC DATA

82 LUX 8 FC @ 1.6’ (0.5m)

COLOR

RGB Color Mixing

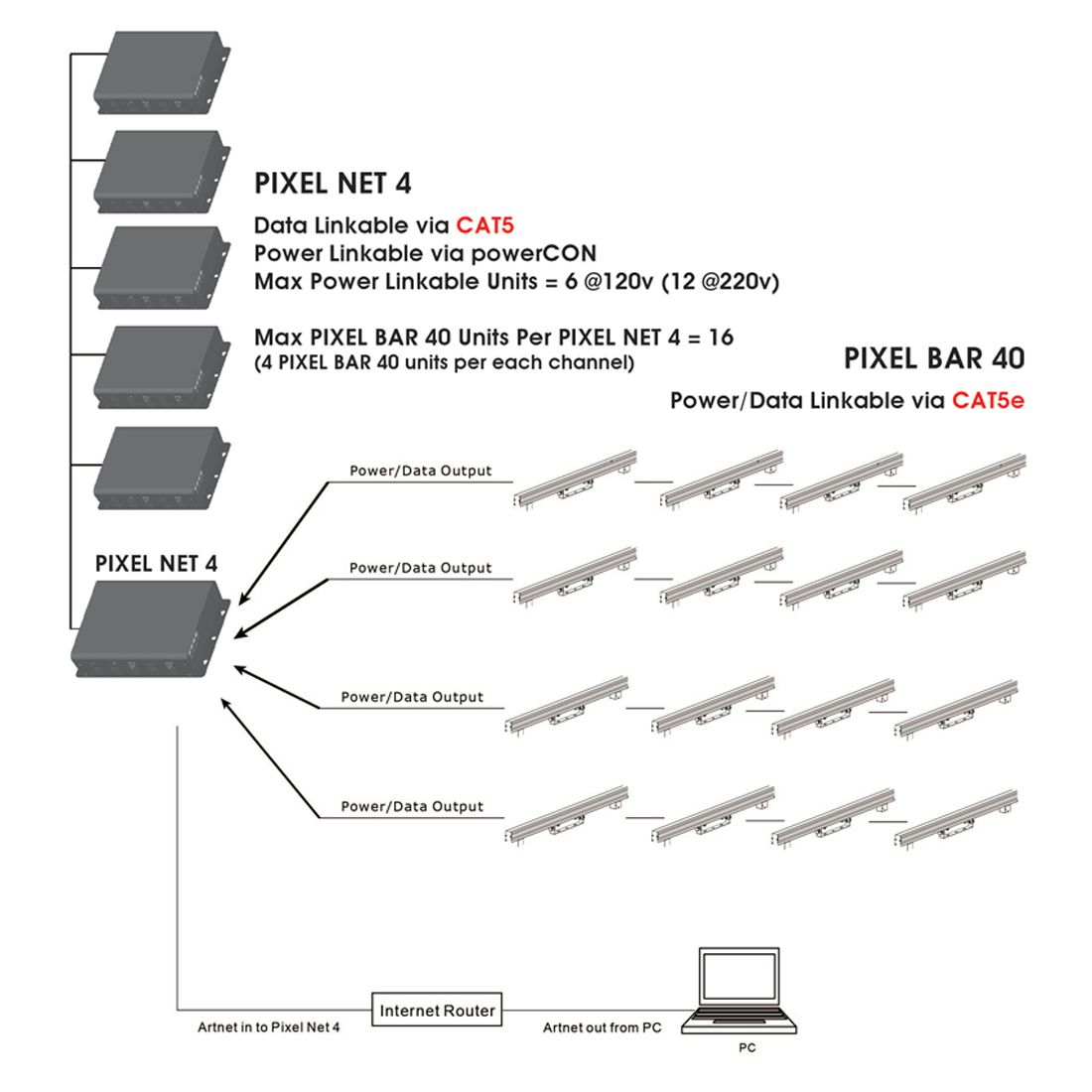

CONTROL / CONNECTIONS

36 DMX Channels

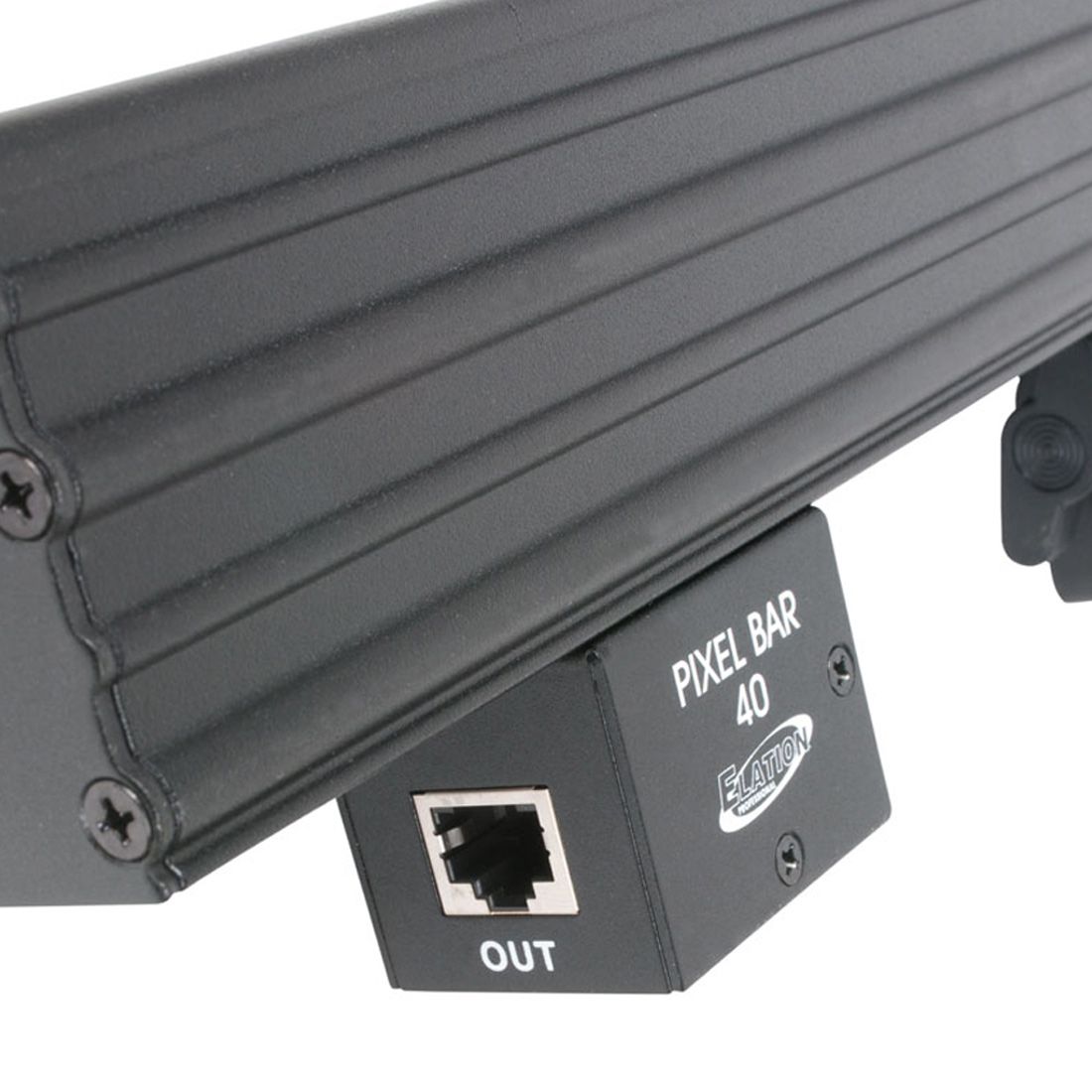

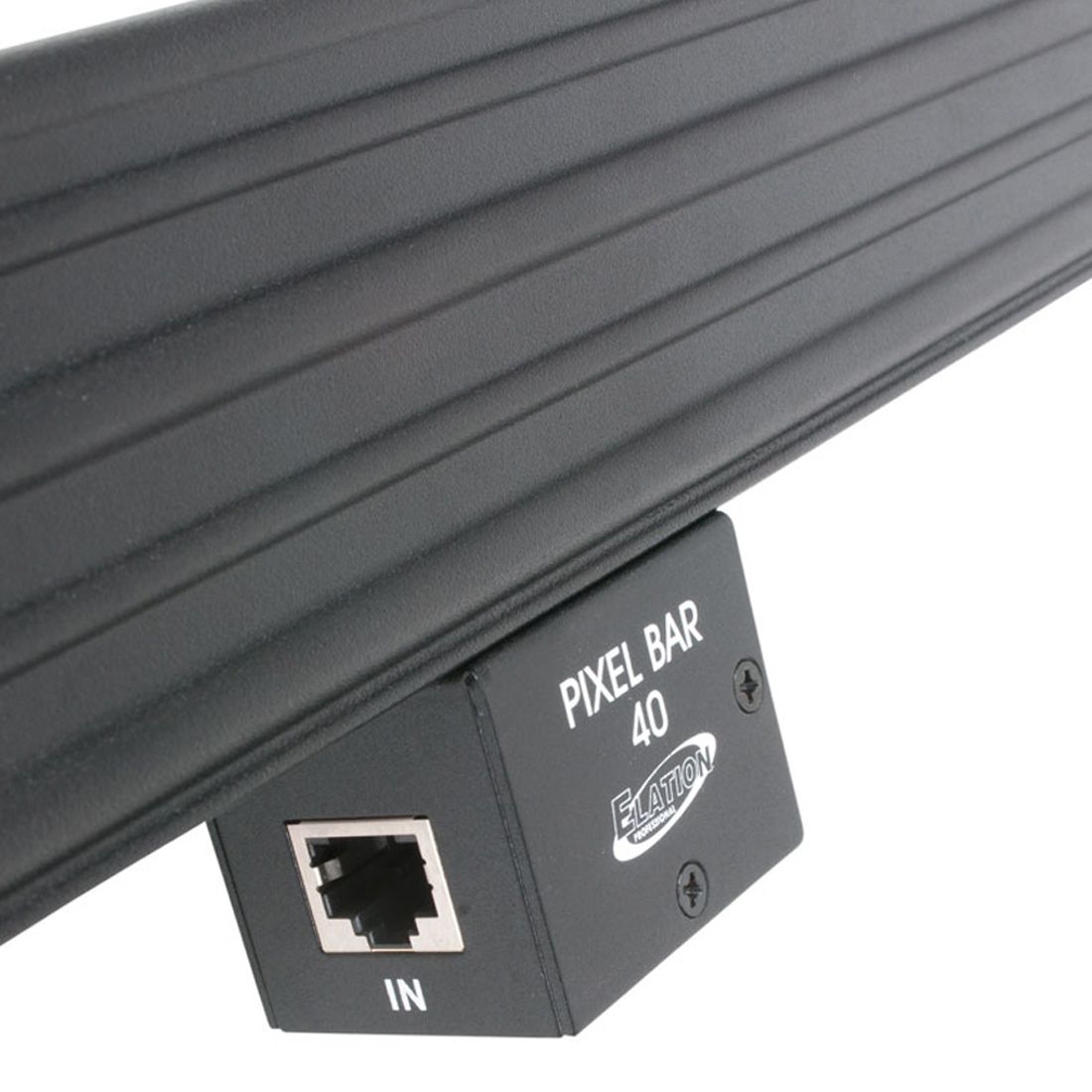

Locking RJ45 Ethernet Connector In/Out (Art-NET Support)

SIZE / WEIGHT

Length: 13.1” (333mm)
Width: 1.5” (38.2mm)
Vertical Height: 3.6” (92.6mm)
Weight: 2.5 lbs. (1.12 kg)

ELECTRICAL / THERMAL

DC-24V
4.8W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

OPTIONAL ACCESSORIES

1236200041 Pixel Net 4

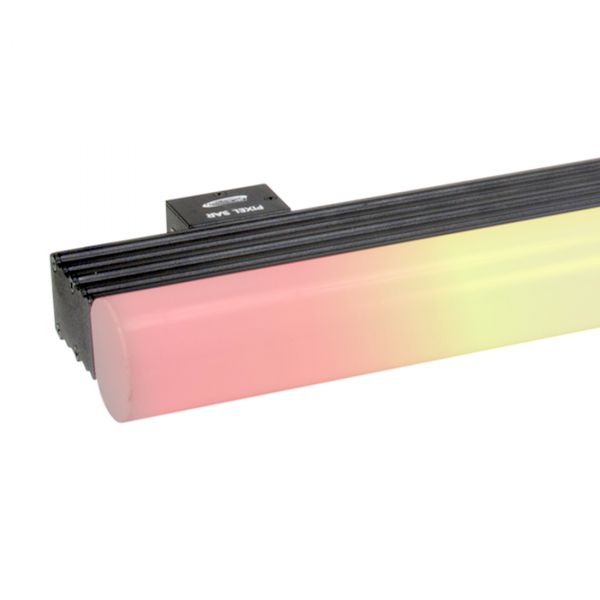

1236200056 Pixel Bar 12 Tube Lens





*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Specifications and documentation subject to change without notice
