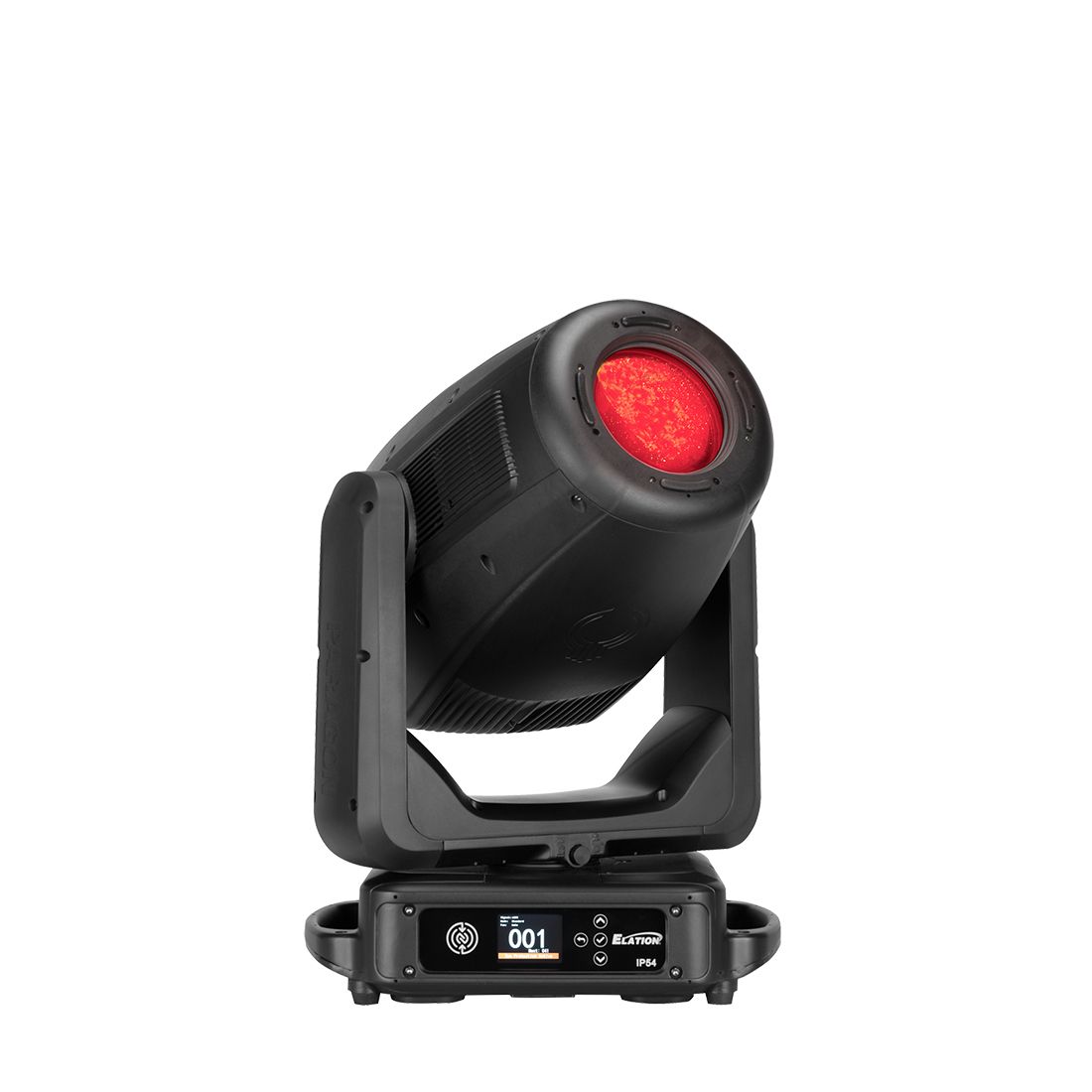

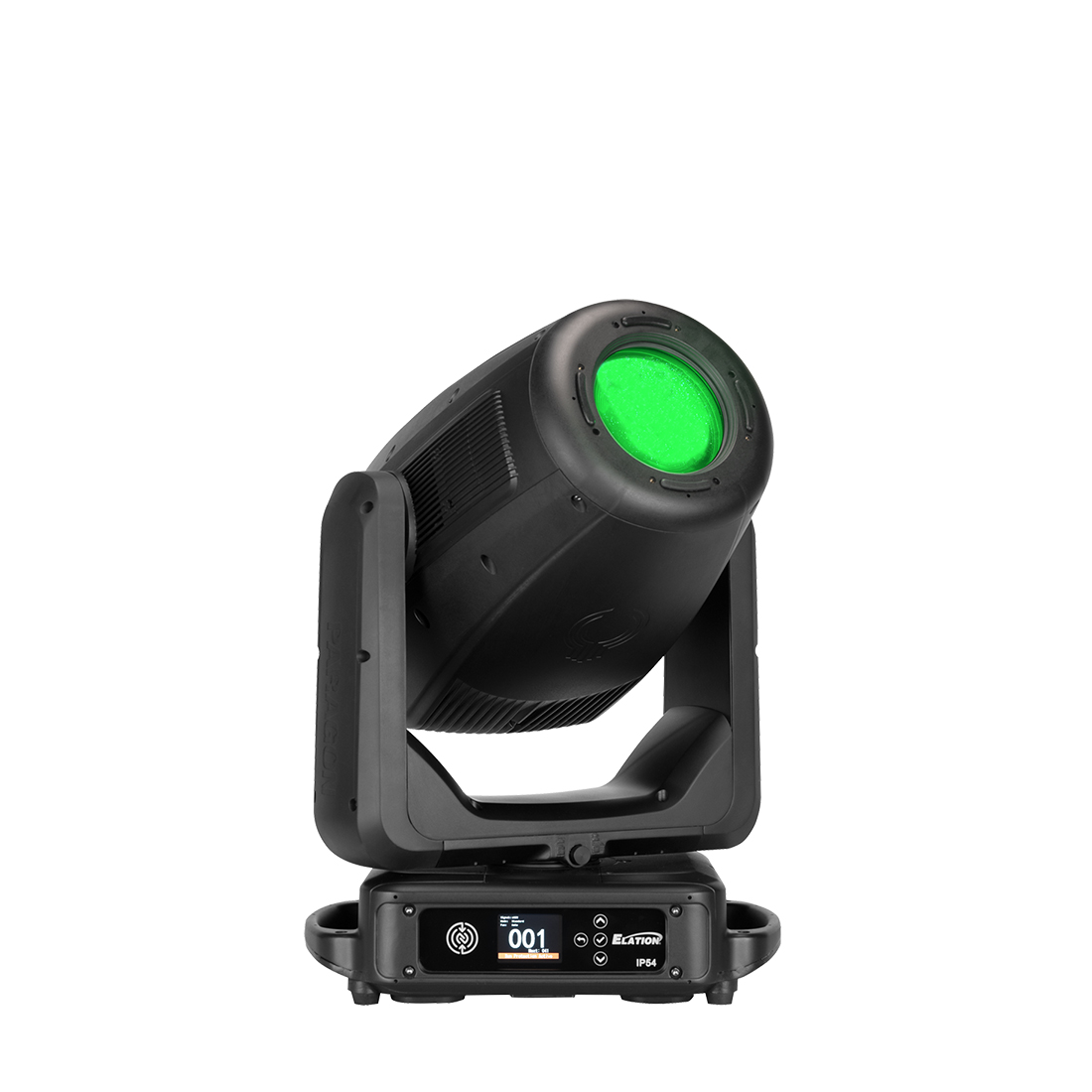

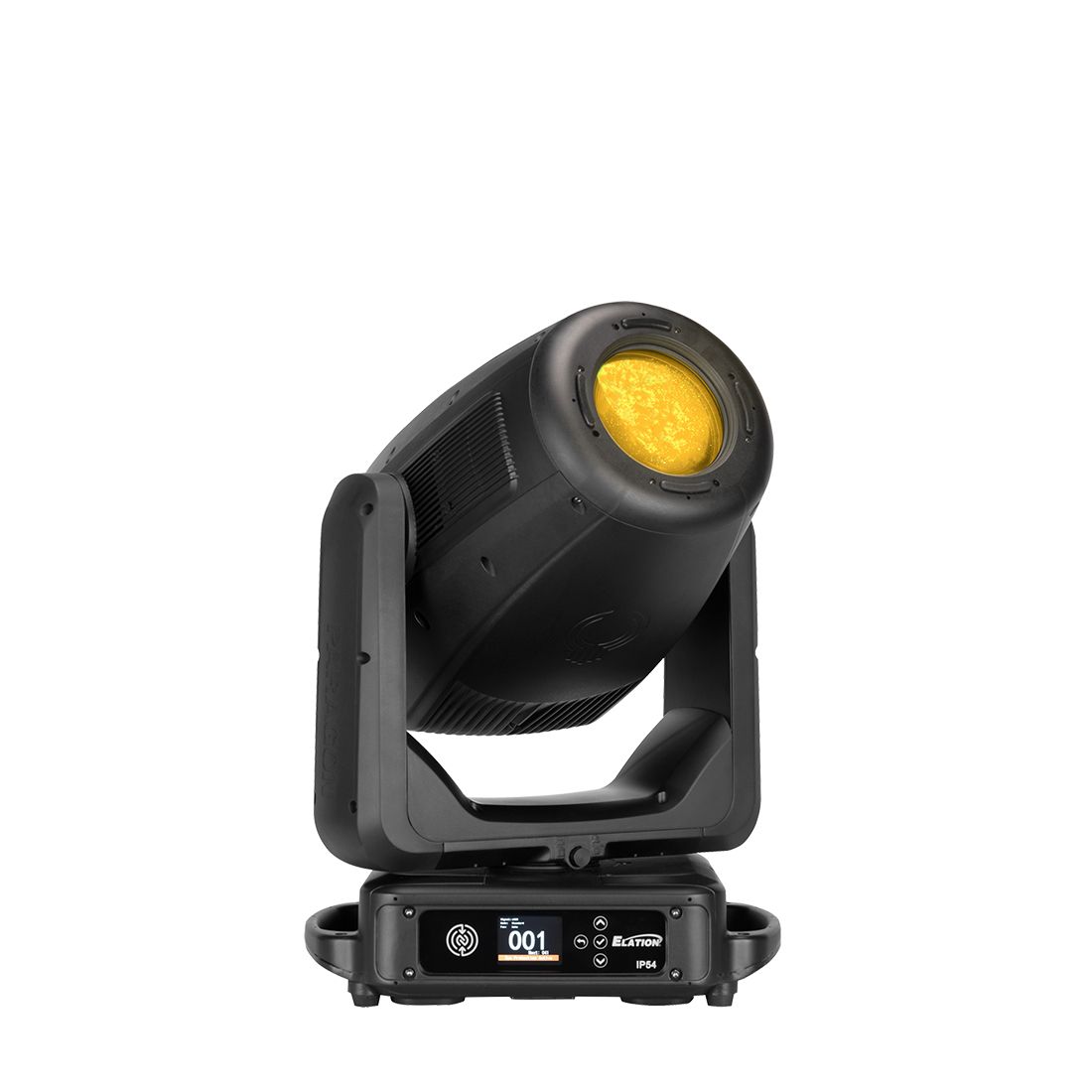

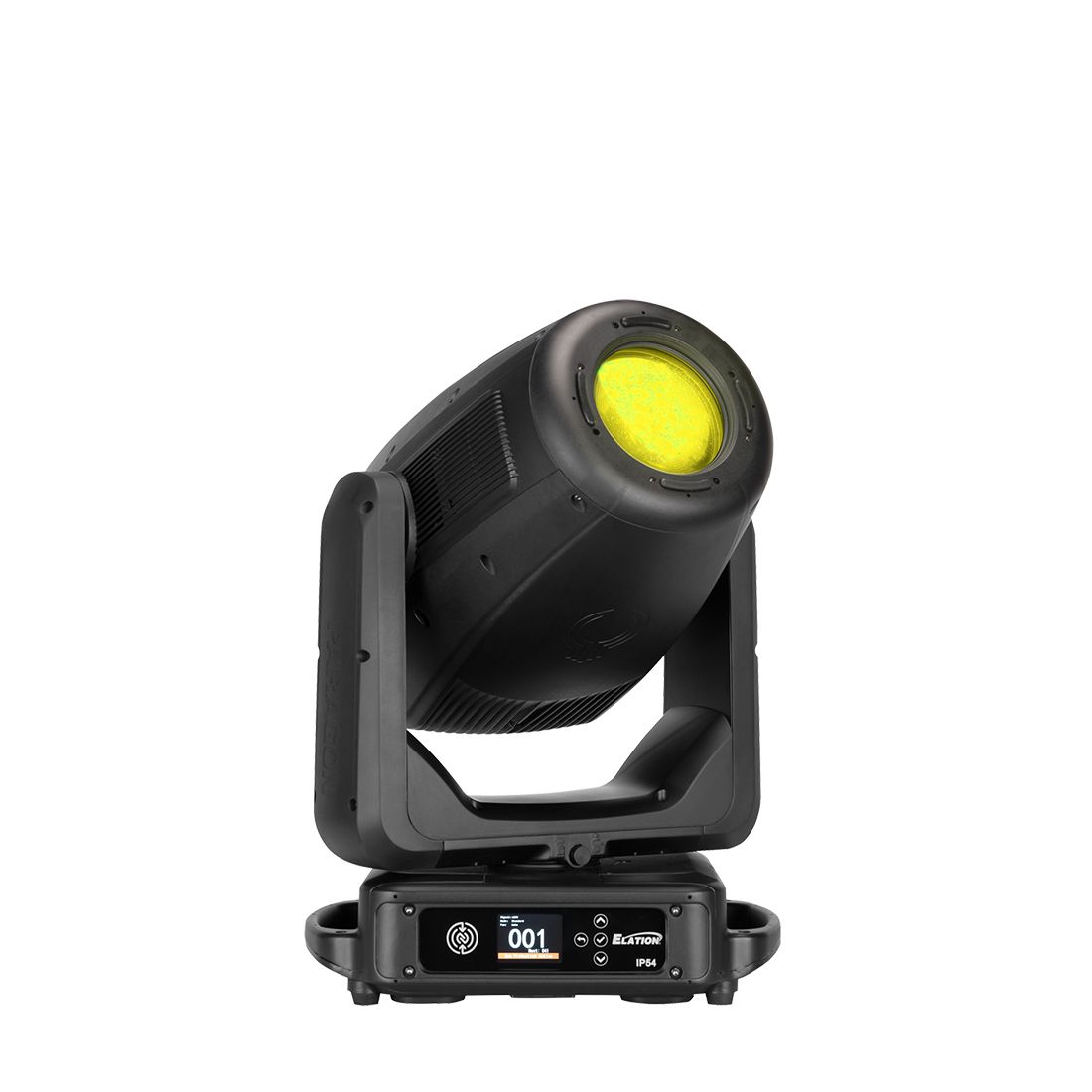

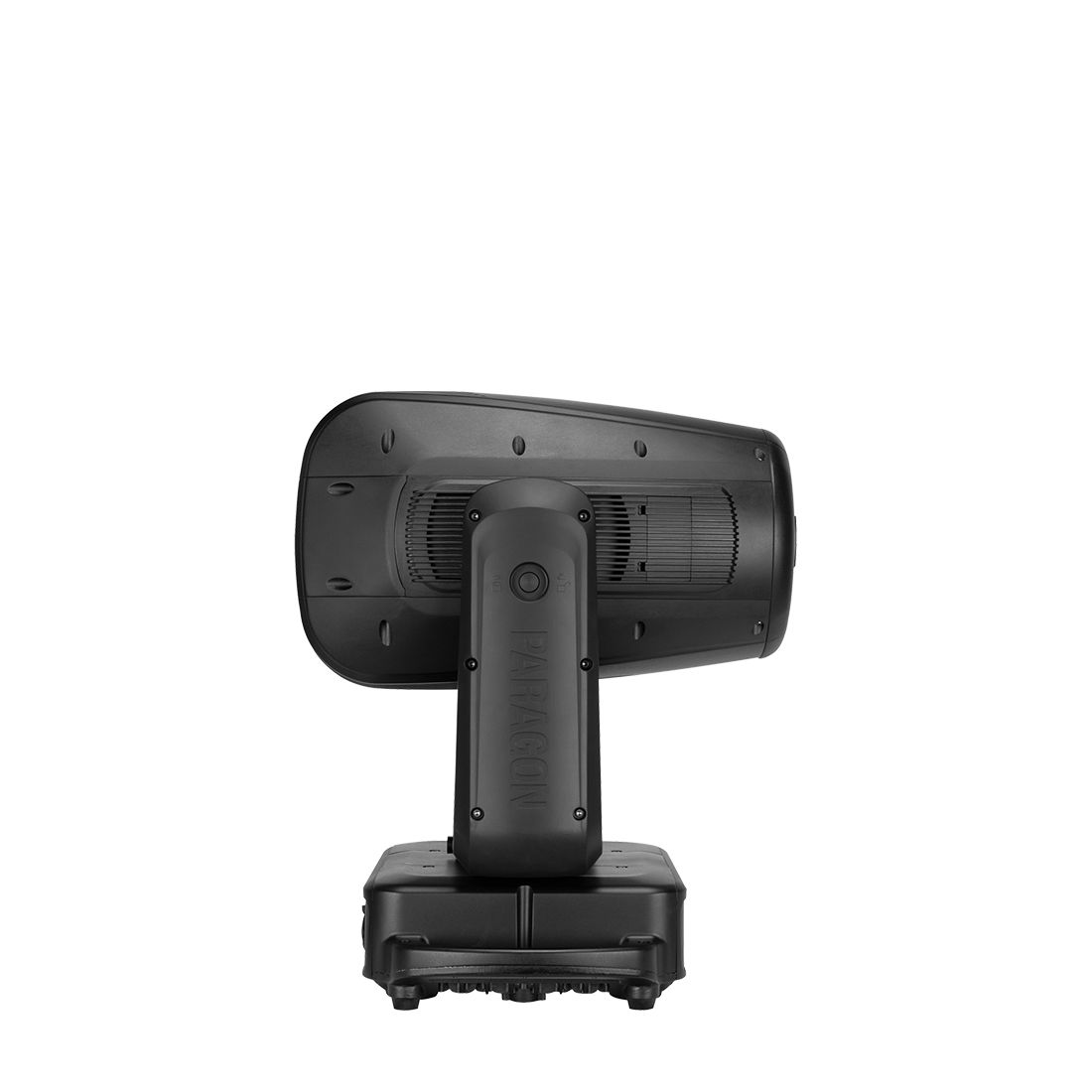

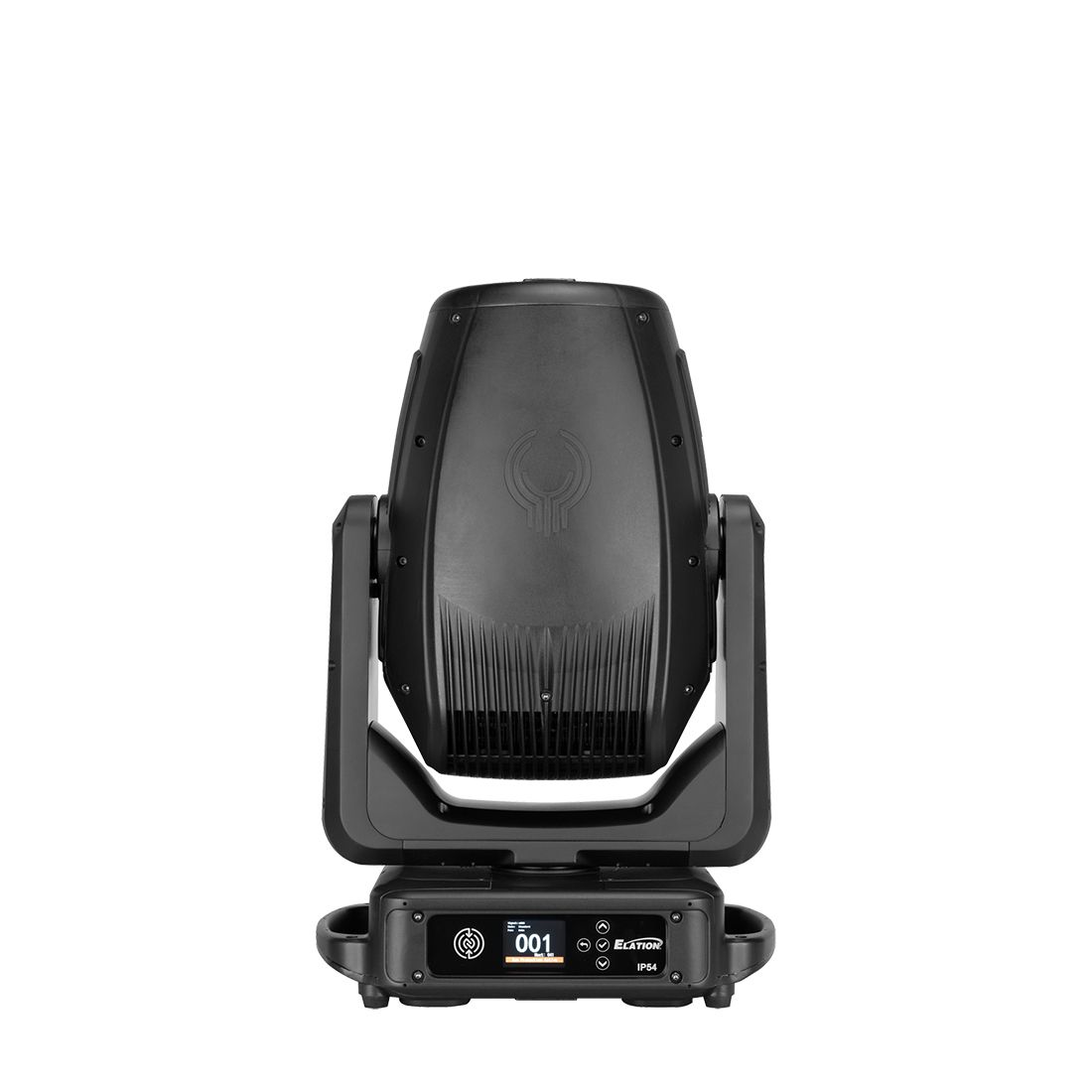

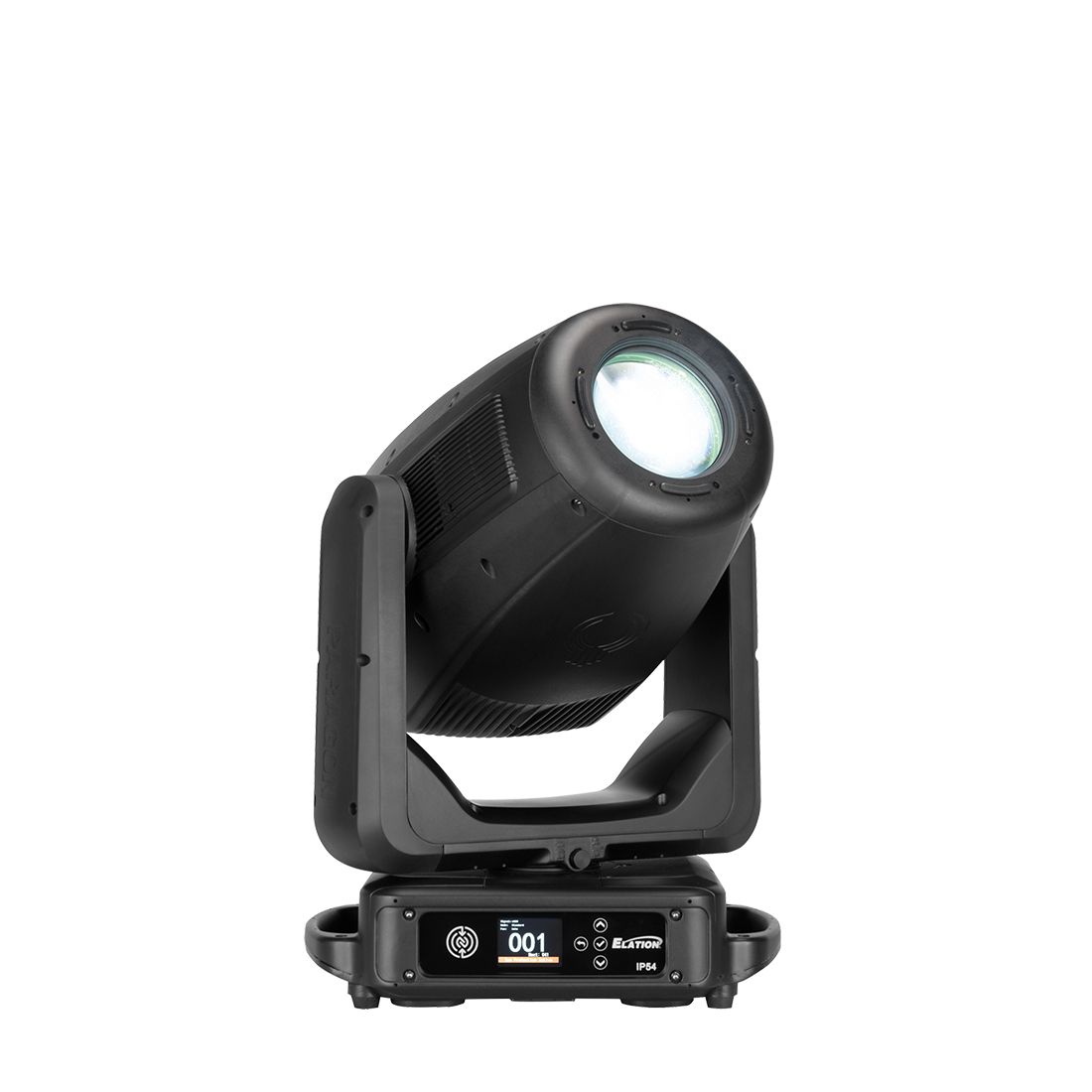

Paragon S

Highly compact, lightweight, and powerful, the PARAGON S™ heralds the future of what’s possible in lighting with outstanding projection and beam qualities. Utilizing IP54-rated construction, the Paragon S is ideal for any show or temporary outdoor events, even in the most adverse environments.

The PARAGON S™ is the ideal fixture for various applications requiring superior output, bright and powerful beams, quiet operation, precise gobos, colors, and framing cuts. The custom-designed variable CRI LED engine delivers up to 20500 lumens output (at CRI 80), providing exceptional output and true-to-life color accuracy control.

Utilizing variable CRI technology, the PARAGON S™ utilizes Elation’s TruTone, empowering designers to effortlessly balance light output and color accuracy to meet the specific demands of each scene or show. Its seamless adjustability from CRI 70 to CRI 93 ensures accurate and vivid color fidelity, with infinite control over the underlying white spectrum for enhanced mixed tones.

The PARAGON S™ offers a powerful FX package, including seven rotating glass gobos, nine fixed metal gobos, a fully interchangeable animation wheel, dual prisms, dual frost effects, and a high-speed iris. The animation wheel can be swapped for custom designs or an optional seven-gobo position disc for customization. Its 240-degree indexable framing system ensures precision with full-blackout shutter cuts, while its dynamic zoom range of 5° to 50° makes it a standout performer on any stage.

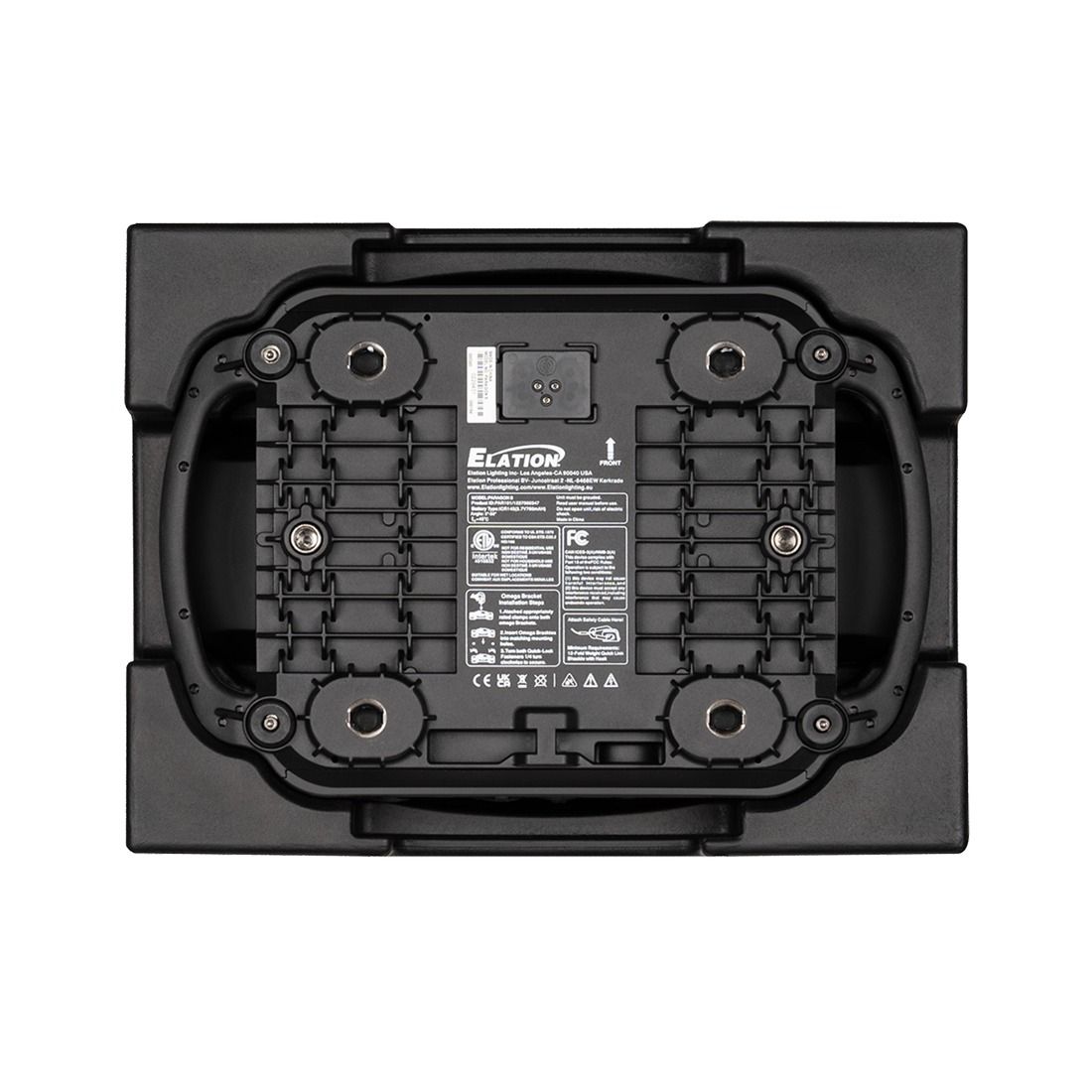

The PARAGON S™ ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert that easily fits into a custom flight case (not included), providing enhanced impact protection during transport.

Technical Data

FEATURES

IP54 rated for indoor and temporary outdoor use
All weather protection through innovative chassis, sealing and cooling construction
Impact resistant lightweight polycarbonate chassis
High Efficiency 6,500K Variable CRI White LED Engine
TruTone remote color fidelity adjustment up to CRI 93
Up to 20500 Total Lumen Fixture Output at CRI 80
Flat Field Engine for precise projection
Ultra-fast CMY Array and Variable Linear CTO
7-Position Color Wheel with UV-Filter, Quad Color
Complete FX System featuring Rotating and Fixed Gobo Wheels, Animation, Iris, Dual Prism, Dual Frost
Interchangeable Animation Disc (optional)
Indexable 240° Full Blackout Framing System
Wide Zoom Range from 5° to 50°
Interchangeable Fresnel Wash and PC Beam Lens (optional)

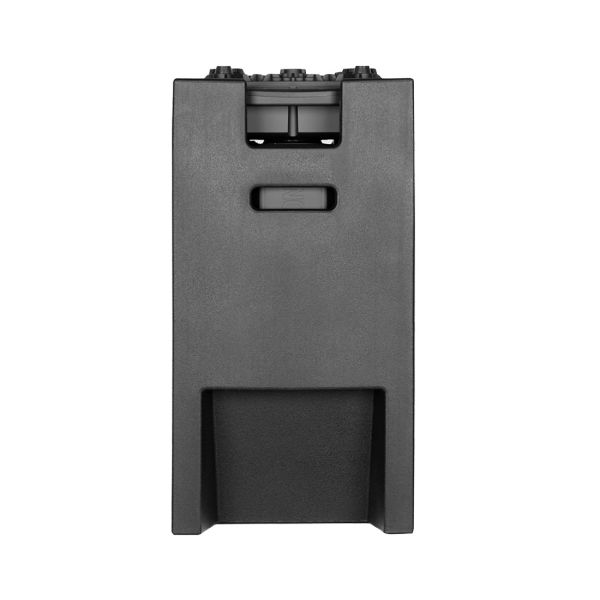

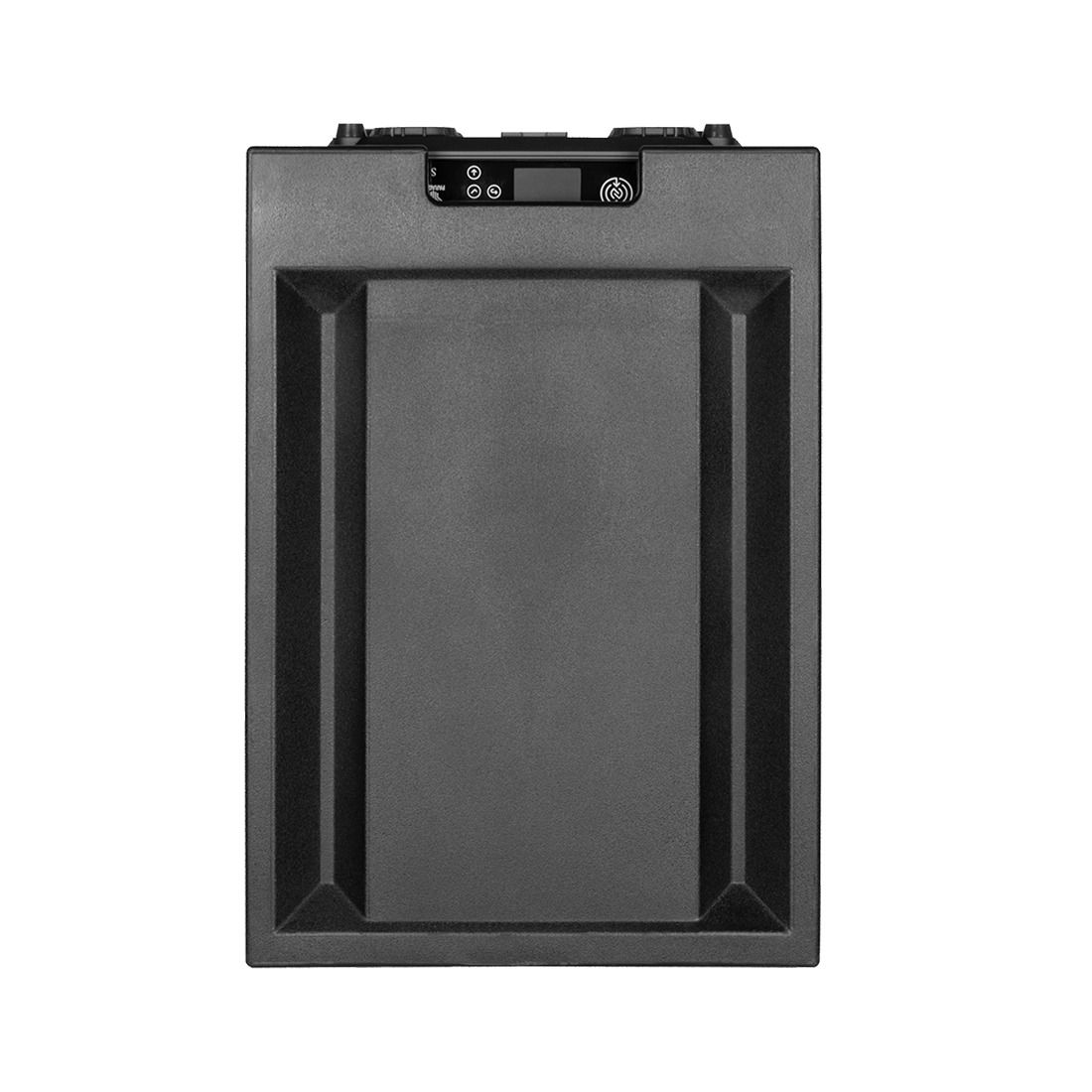

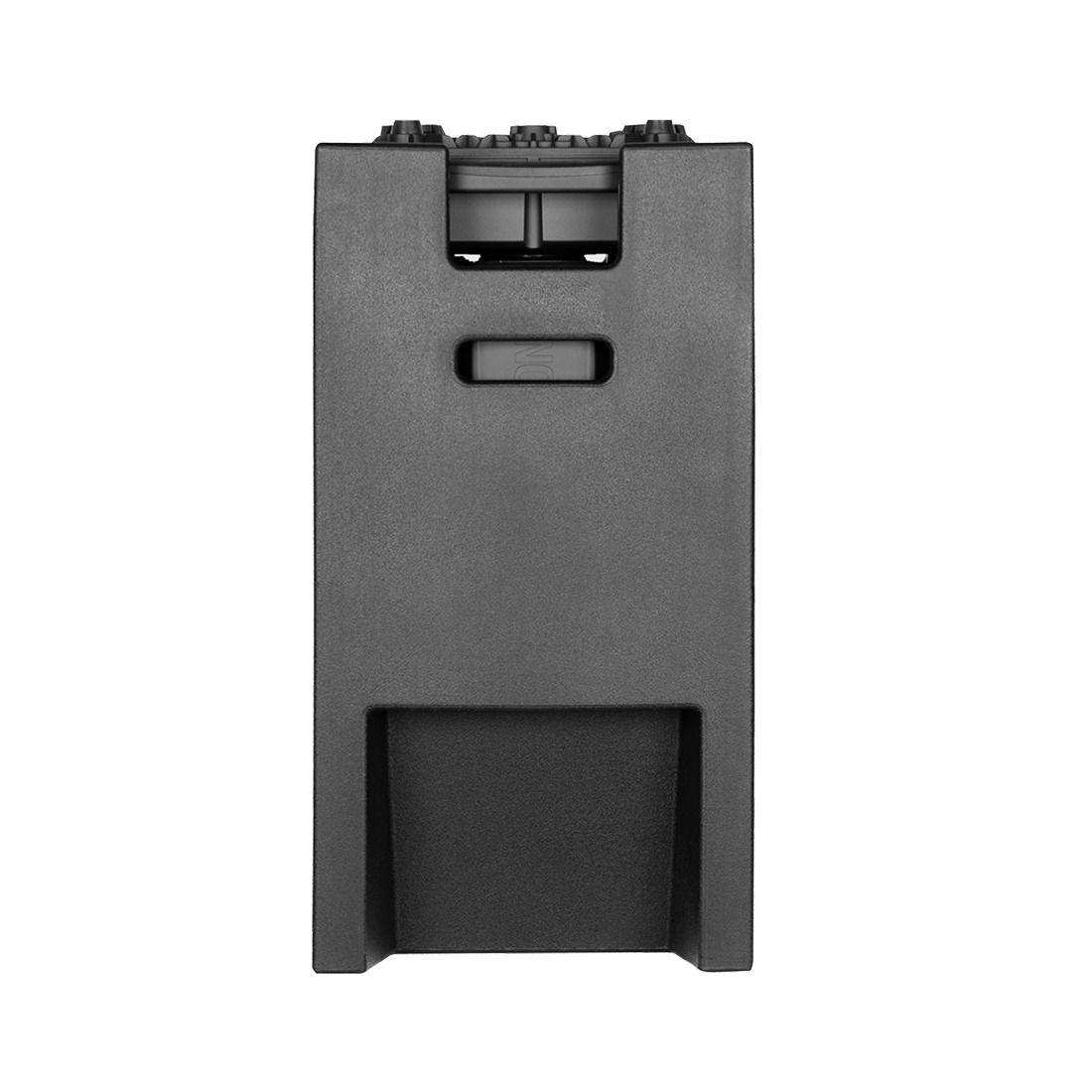

FIL (Foam In Lay) Polyurethane Foam Packaging Included


SOURCE

High Efficiency 550W 6,500K Variable CRI White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

20500 Total Lumen Fixture Output @ CRI 80
TruTone variable CRI up to CRI 93
Front Lens 120mm (4.7")

Profile Lens (standard)
Zoom Range 5° - 50°
Beam Angle 4.9° - 44.7°
Field Angle 5.2° - 47.8°
Cutoff Angle 5.3° - 48.6°

PC Lens (optional)
Zoom Range 6° - 45°
Beam Angle 4.2° - 40.6°
Field Angle 6.1° - 44.7°
Cutoff Angle 6.9° - 47.2°

Fresnel Lens (optional)
Zoom Range 8° - 50°
Beam Angle 4.8° - 39°
Field Angle 8.2° - 50.2°
Cutoff Angle 11.4° - 59.4°


EFFECTS

Motorized Zoom
4 Full Blackout Framing Blades, +/-40° Index
+/-120° Framing Module Index
Full 360° Bi-Directional Animation Wheel
4-Facet Round and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°
Tilt Angle: 260°


COLOR

CMY Color Mixing
Linear CTO Color Correction 6500K - 2600K
7 Dichroic Colors including UV Filter, Quad Color
TruTone CRI 73-93


GOBOS

7 Rotating / Indexing Interchangeable Glass Gobos
9 Fixed Metal Gobos


CONTROL / CONNECTIONS


4 DMX Channel Modes (41/64/41/64)
16-bit Pan, Tilt and Dimming Control
5 Fan modes for ultra quiet operation
DMX, RDM, Art-NET, sACN Protocol Support
(4) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

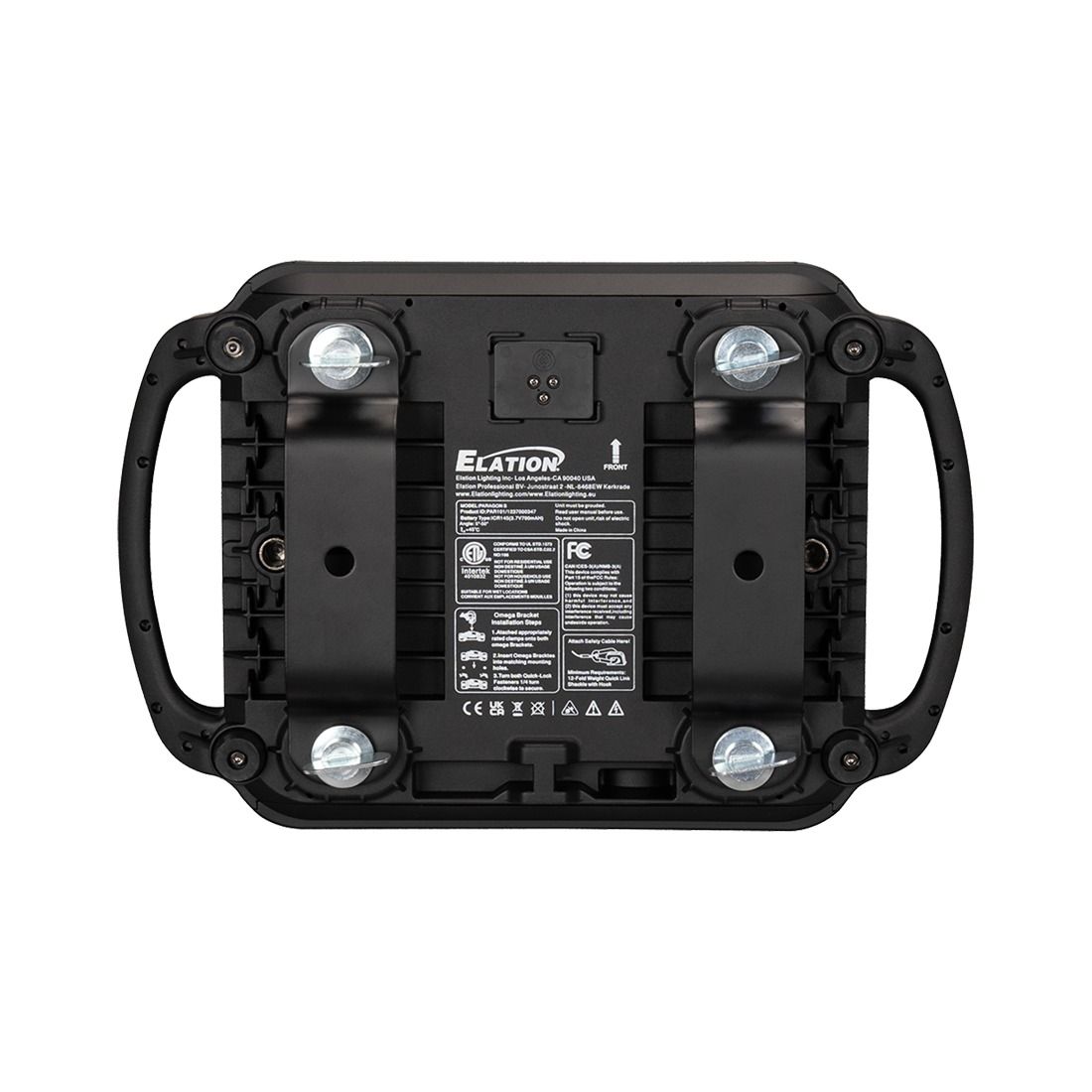

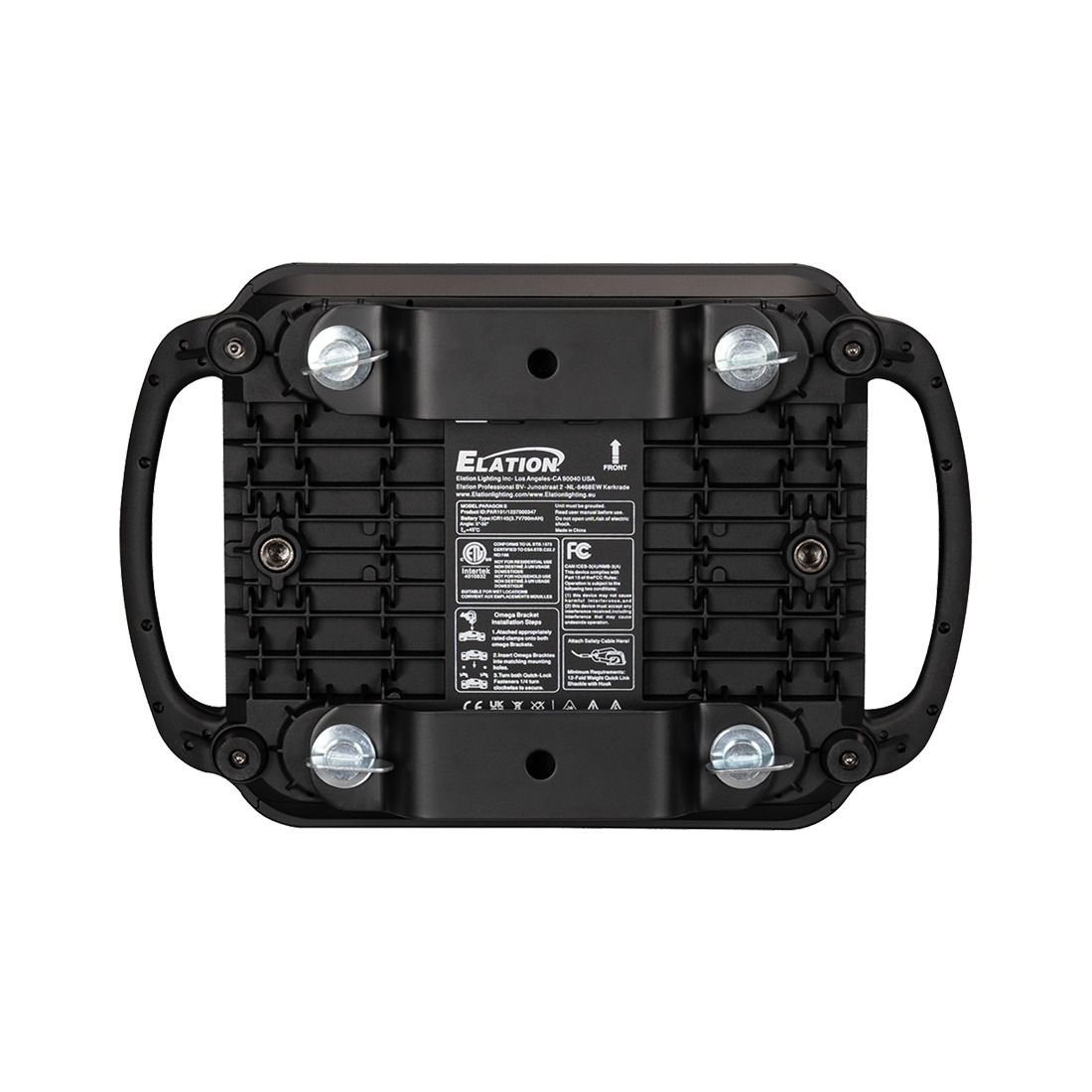

NFC on bottom and front of fixture base
Hibernation Mode (Power Save)

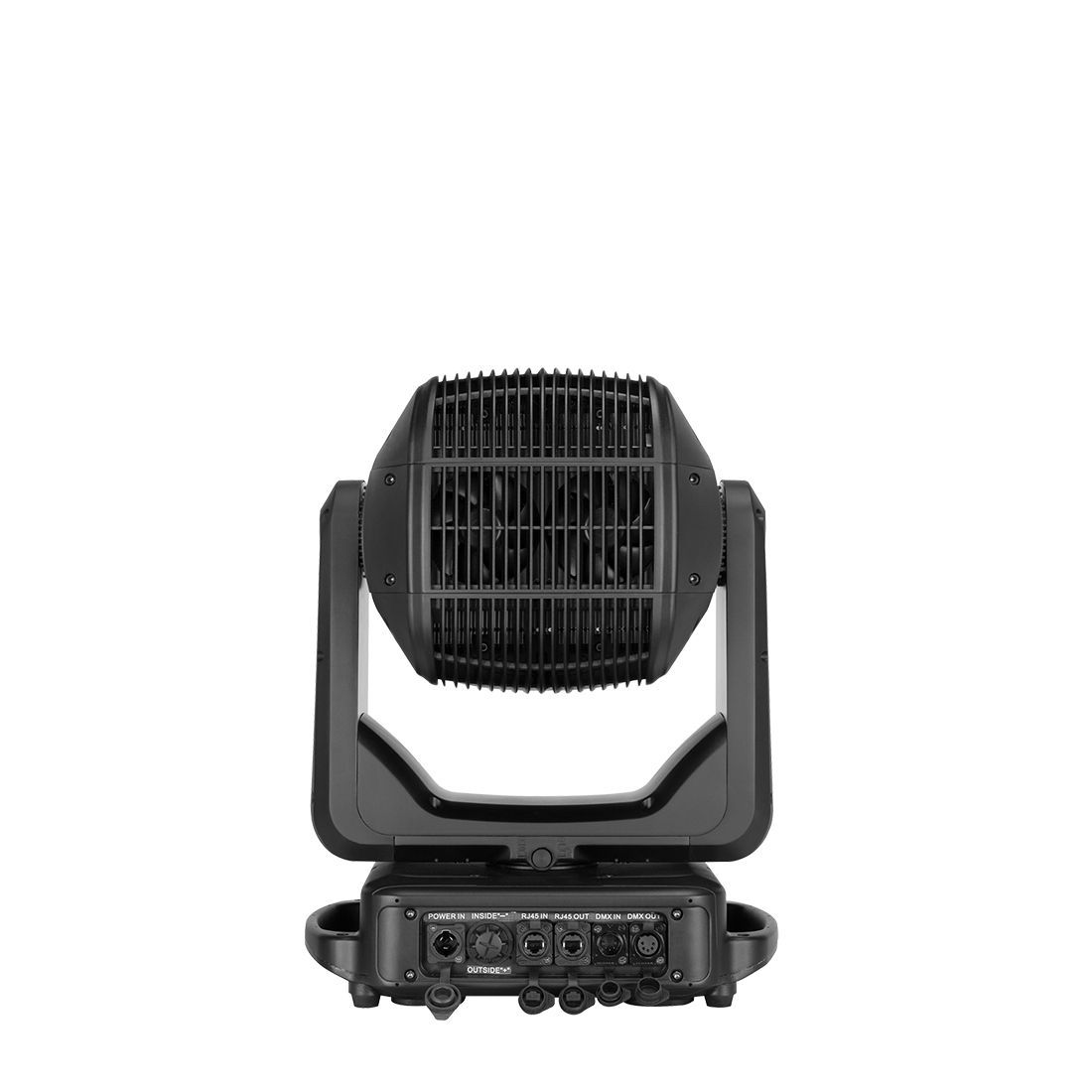

IP65 Locking 5pin XLR In/Out
IP65 Locking RJ45 Ethernet In/Out
IP65 Locking Power In


SIZE / WEIGHT


Length: 260 mm (10.2 in)
Width: 390 mm (15.4 in)
Height: 595 mm (23.4 in)
Center-to-Center: 526 mm (20.7 in)
Weight: 22.5 kg (49.6 lbs.)


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
Max Power Consumption 900W
-20°C to 45°C (-4°F to 113°F)


INCLUDED ITEMS

Omega Brackets (x2)
IP65 Rated Locking Power Cable
Foam Inlay


FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
C.T.O.
C.T.O.
Color Wheel
Green
Green
Red
Red
Blue
Blue
UV
UV
CTB
CTB
Purple
Purple
Quad Color
Quad Color
Gobo Wheel 1
Gobo 22

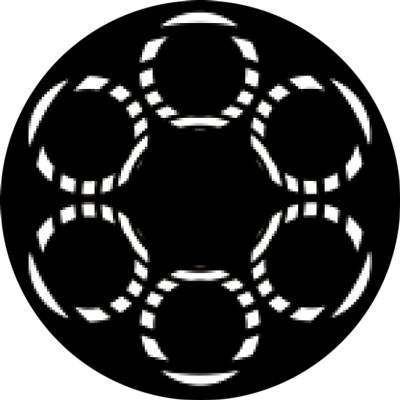

Gobo 174
Gobo 175

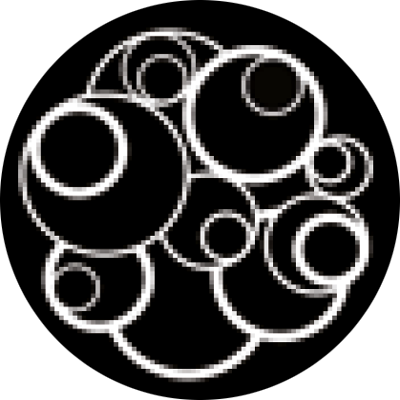

Gobo 176

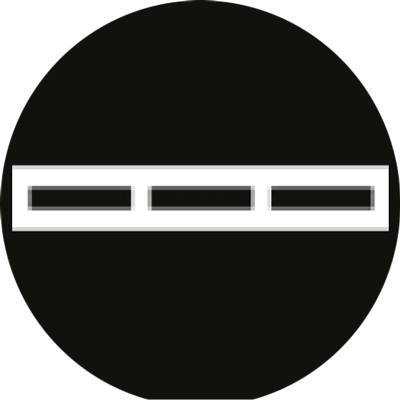

Gobo 177

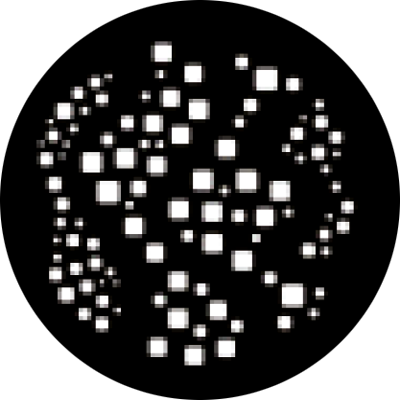

Gobo 178
Gobo 179
Gobo Wheel 2
Gobo 10
Gobo 28
Gobo 35
Gobo 57
Gobo 180

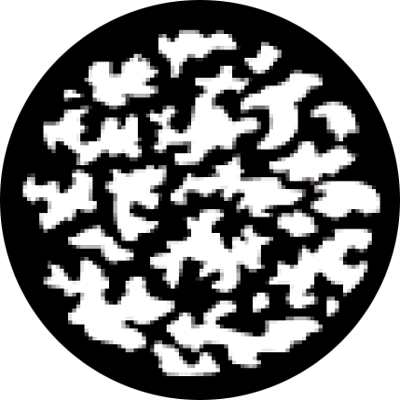

Gobo 181

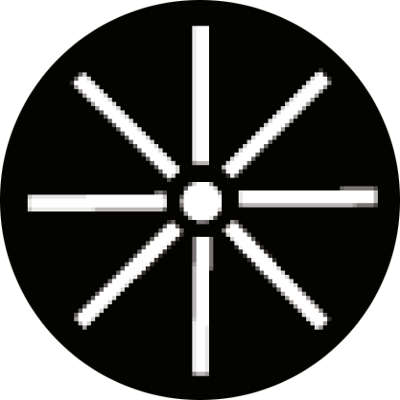

Gobo 182
Gobo 183

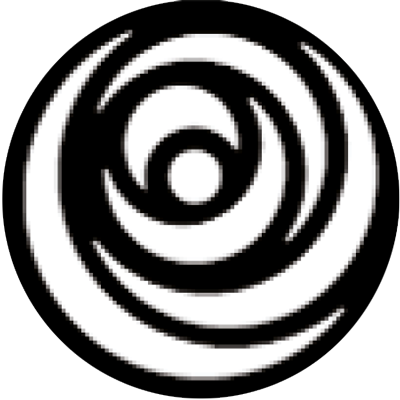

Gobo 184
Animation Wheel

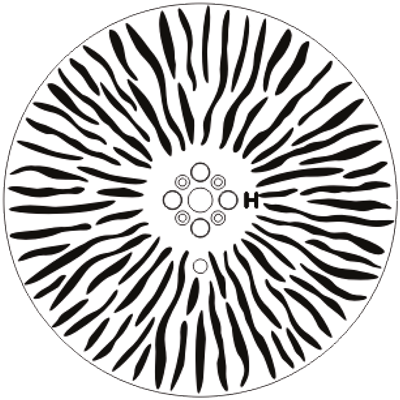

Animation Wheel 10
Prisms
Prism 2
Prism 3
Framing
Endless Rotation
