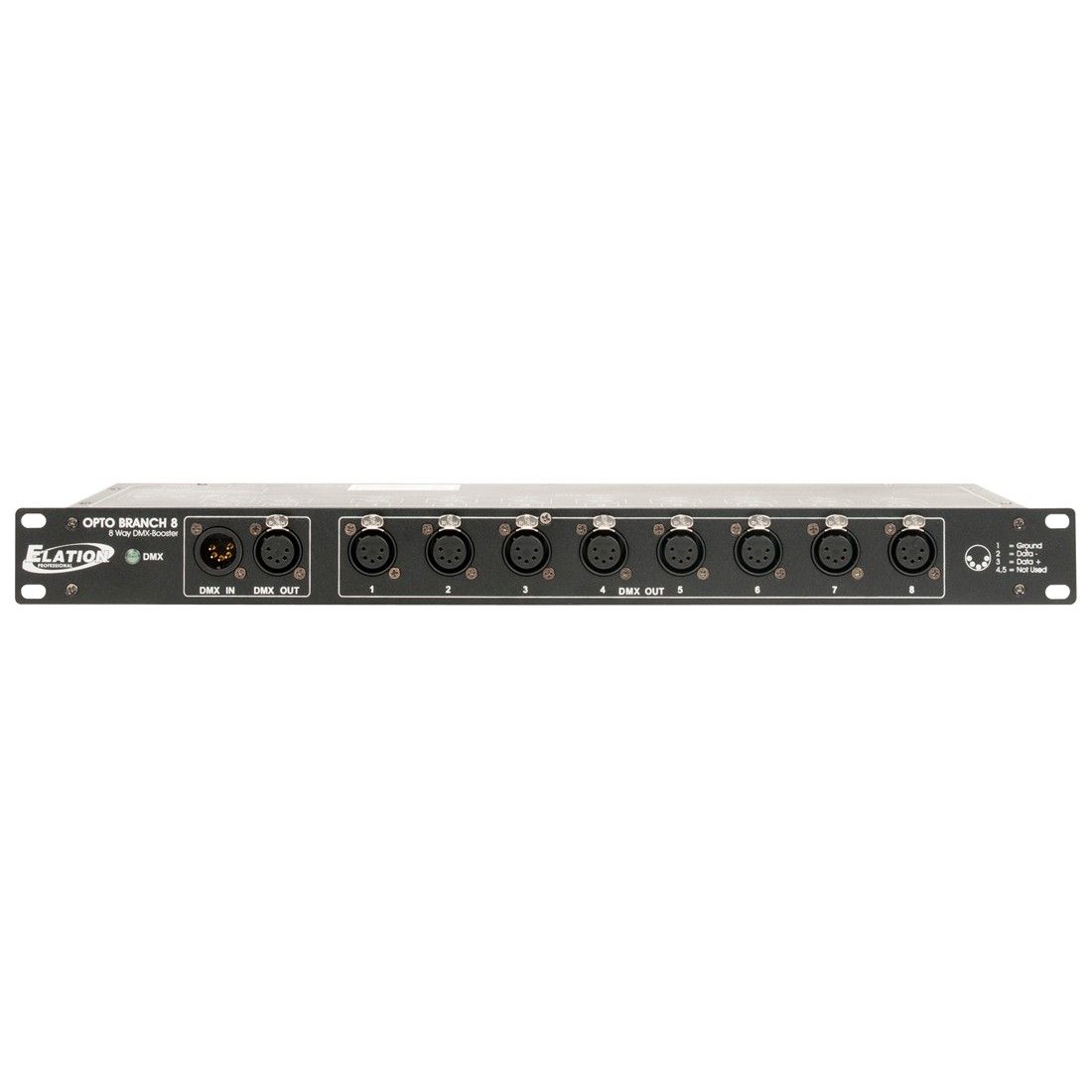

The OPTO BRANCH 8™ is a 19” single rack space, 8-way DMX distributor/booster with locking 5pin XLR DMX input and output jacks. This unit takes the incoming DMX signal and splits it to eight 8 separate outputs, each providing a total electrical isolation of up to 1000V between different branches in a daisy chain group. This greatly decreases problems with ground loops and efficiently buffers and magnifies the DMX signal, making it more accurate and reliable. All outputs include locking 5pin XLR DMX sockets, which are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal and the unit includes an auto switching power supply (100-240v 50/60Hz).

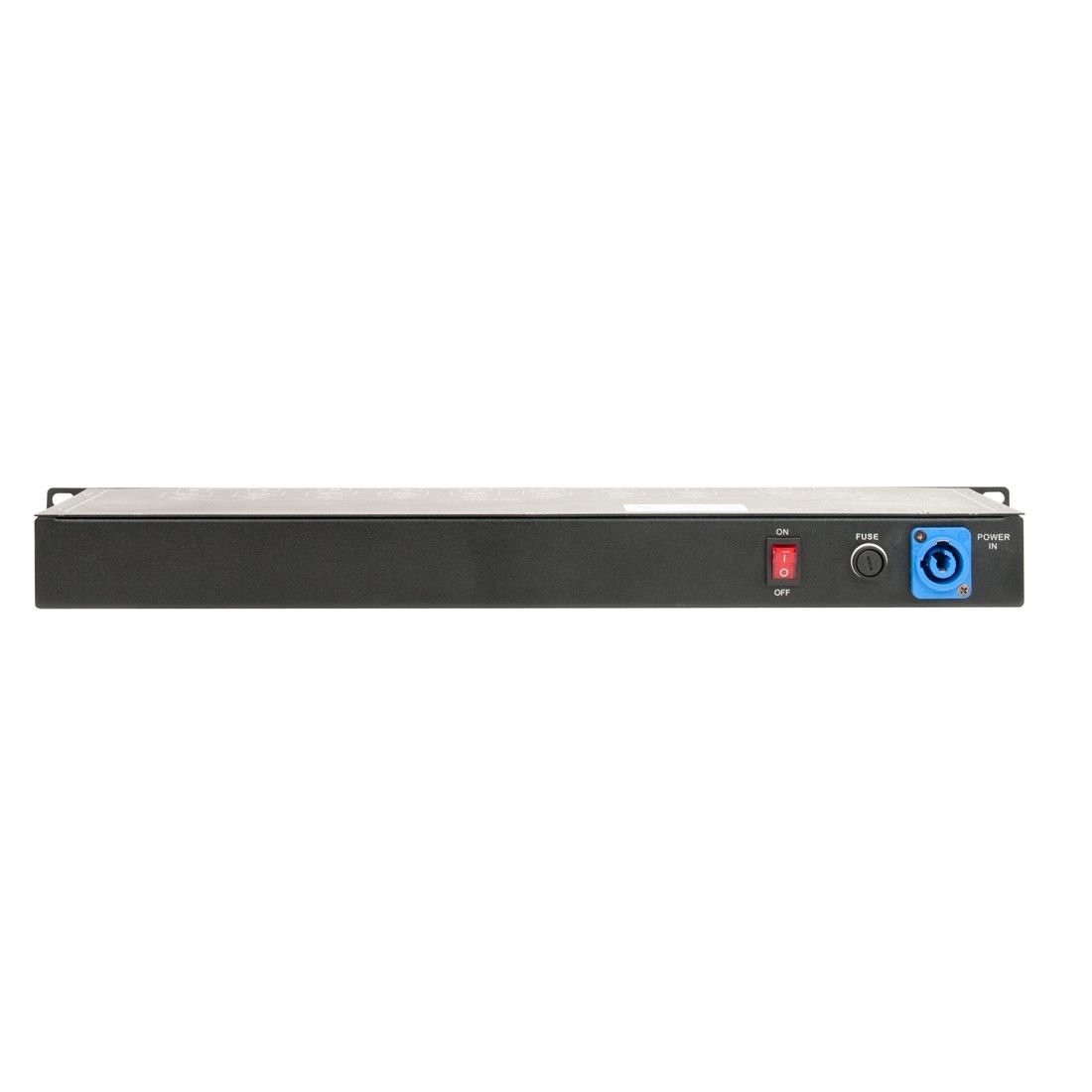

8-Way DMX Data Splitter / Fully DMX512 (1990) Compliant Buffers / Distributes DMX Data Reliably DMX Status LED Indicator 1 5pin Locking XLR DMX Connector Isolated Input 1 5pin Locking XLR DMX Connector Passive Loop Output 8 5pin Locking XLR DMX Connector Isolated Outputs Auto Switching Power Supply / Locking Power Connector Input
SIZE / WEIGHT
19” (482mm) x 5.7” (145mm) x 1.7” (44mm) 5.0 lbs. (2.3kg)
AC 100-240V 50/60Hz
Specifications and documentation subject to change without notice
