Opto Branch 8/3 - DMX Splitter

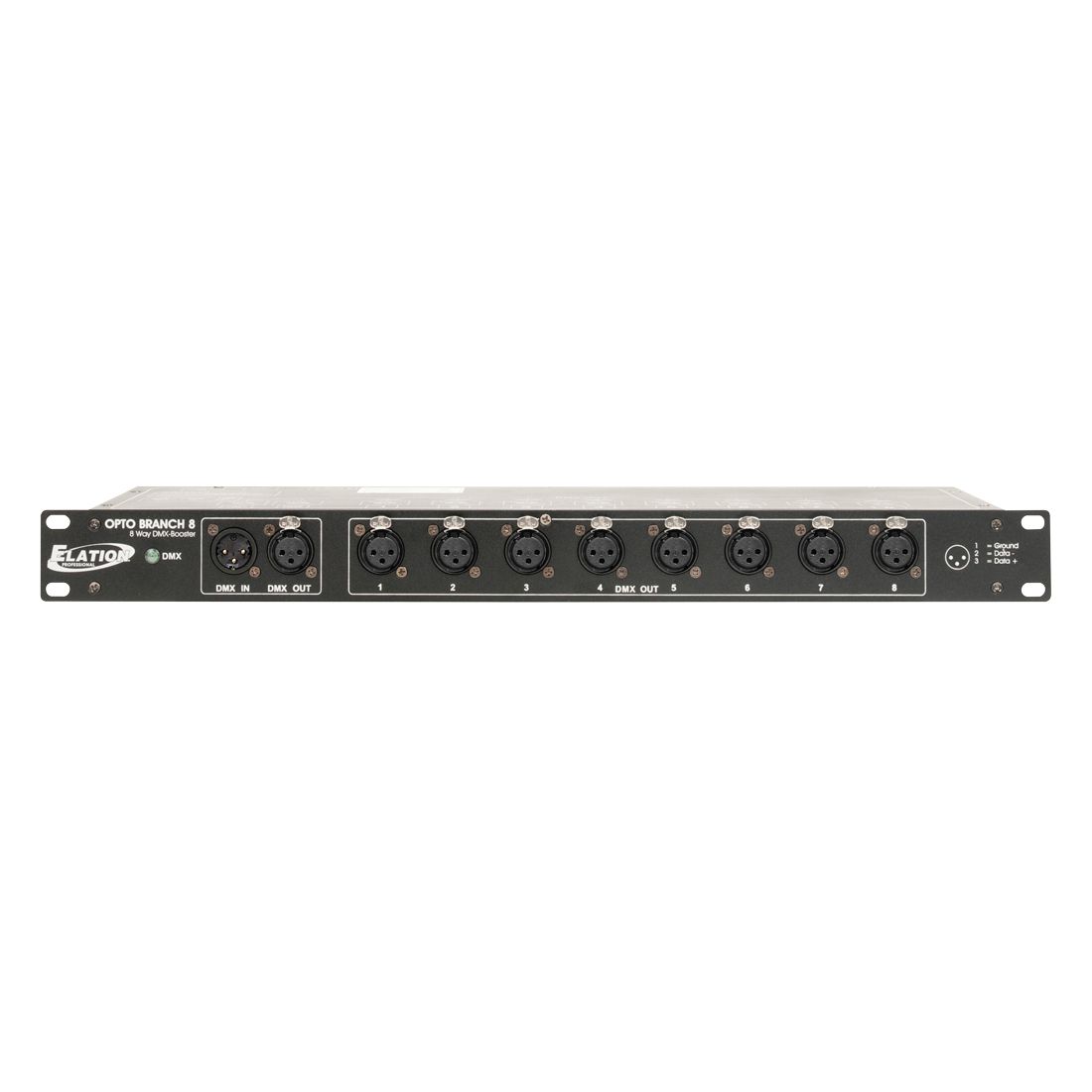

The OPTO BRANCH 8™ is a 19” single rack space, 8-way DMX distributor/booster with locking 3pin XLR DMX input and output jacks. This unit takes the incoming DMX signal and splits it to eight 8 separate outputs, each providing a total electrical isolation of up to 1000V between different branches in a daisy chain group. This greatly decreases problems with ground loops and efficiently buffers and magnifies the DMX signal, making it more accurate and reliable. All outputs include locking 3pin XLR DMX sockets, which are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal and the unit includes an auto switching power supply (100-240v 50/60Hz).

Technical Data

FEATURES

8-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
Buffers / Distributes DMX Data Reliably
DMX Status LED Indicator
1 3pin Locking XLR DMX Connector Isolated Input
1 3pin Locking XLR DMX Connector Passive Loop Output
8 3pin Locking XLR DMX Connector Isolated Outputs

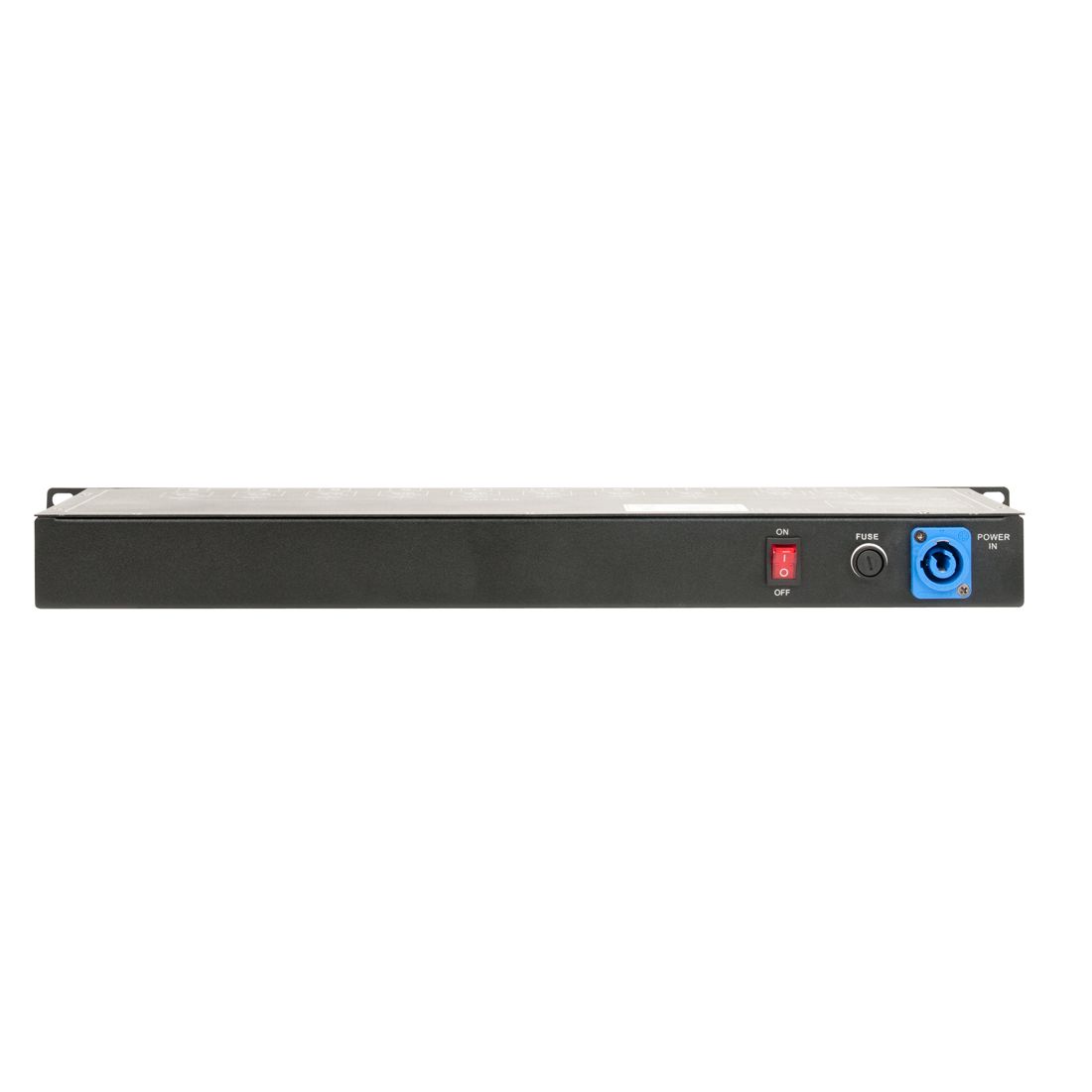

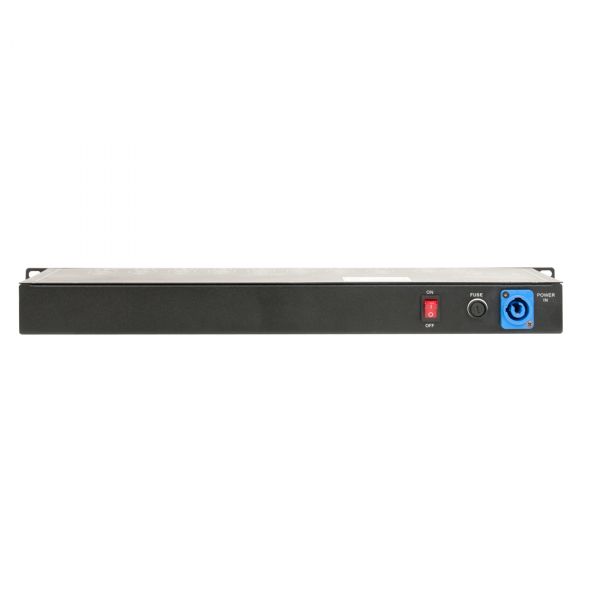

Auto Switching Power Supply / Locking Power Connector Input

SIZE / WEIGHT

19” (482mm) x 5.7” (145mm) x 1.7” (44mm)
5.0 lbs. (2.3kg)

ELECTRICAL

AC 100-240V 50/60Hz



Specifications and documentation subject to change without notice
