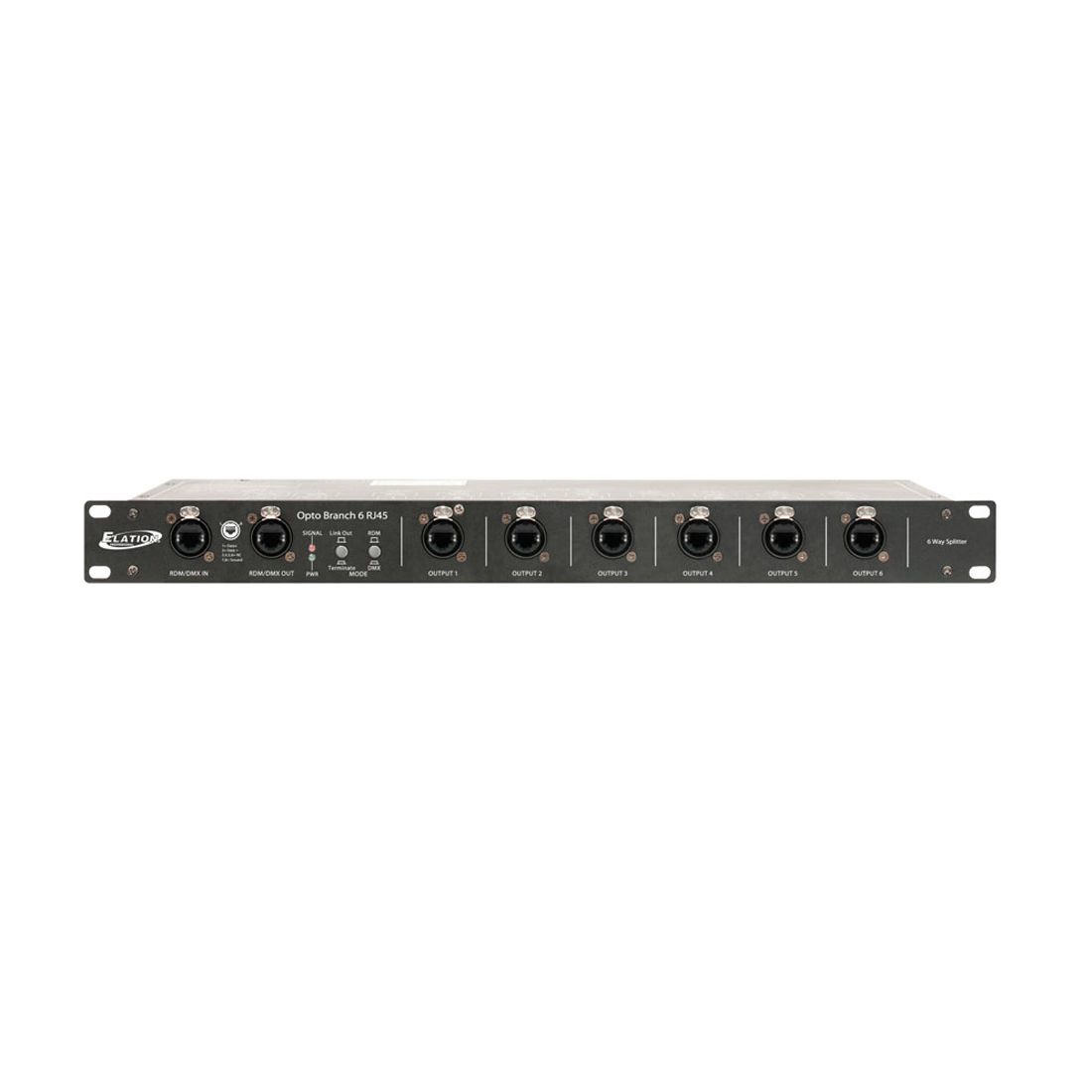

Opto Branch 6 RJ45 - DMX Splitter

The OPTO BRANCH 6 RJ45™ is a 19” rack mountable 6-way DMX/RDM data splitter / amplifier with locking RJ45 Ethernet master input and output, a link / terminate button for easy troubleshooting, 6 locking RJ45 Ethernet isolated outputs and an auto switching power supply (100-240v 50/60Hz).

Technical Data

FEATURES

Locking RJ45 Ethernet Master Input/Output
Link / Terminate Button for Easy Troubleshooting
6 Isolated Locking RJ45 Ethernet Outputs
Auto Switching Power Supply

SIZE / WEIGHT

19” (482mm) x 5.6” (141mm) x 1.7” (41mm)
5.0 lbs. (2.3kg)

ELECTRICAL

AC 100-240V - 50/60Hz

Specifications and documentation subject to change without notice
