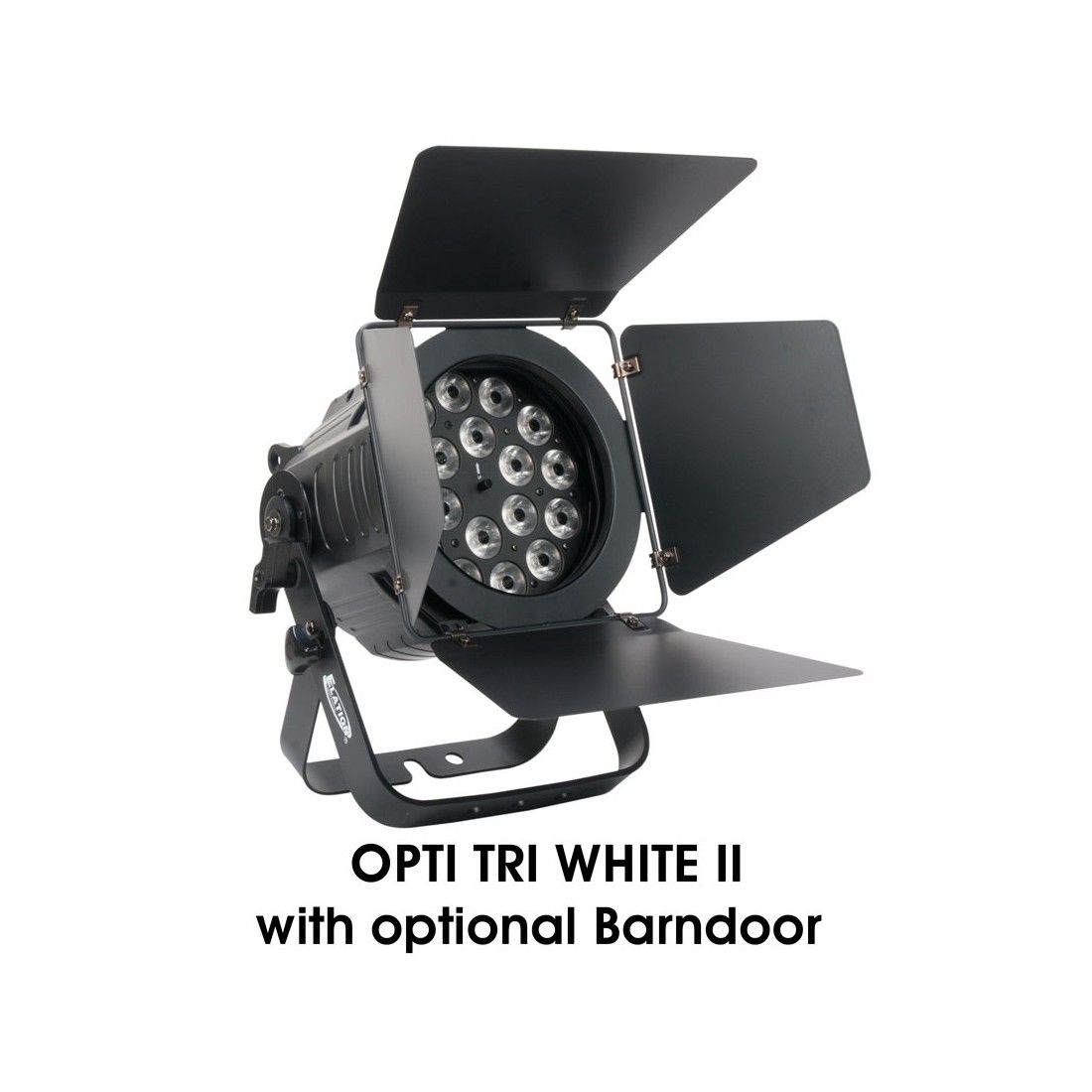

Opti Tri White II

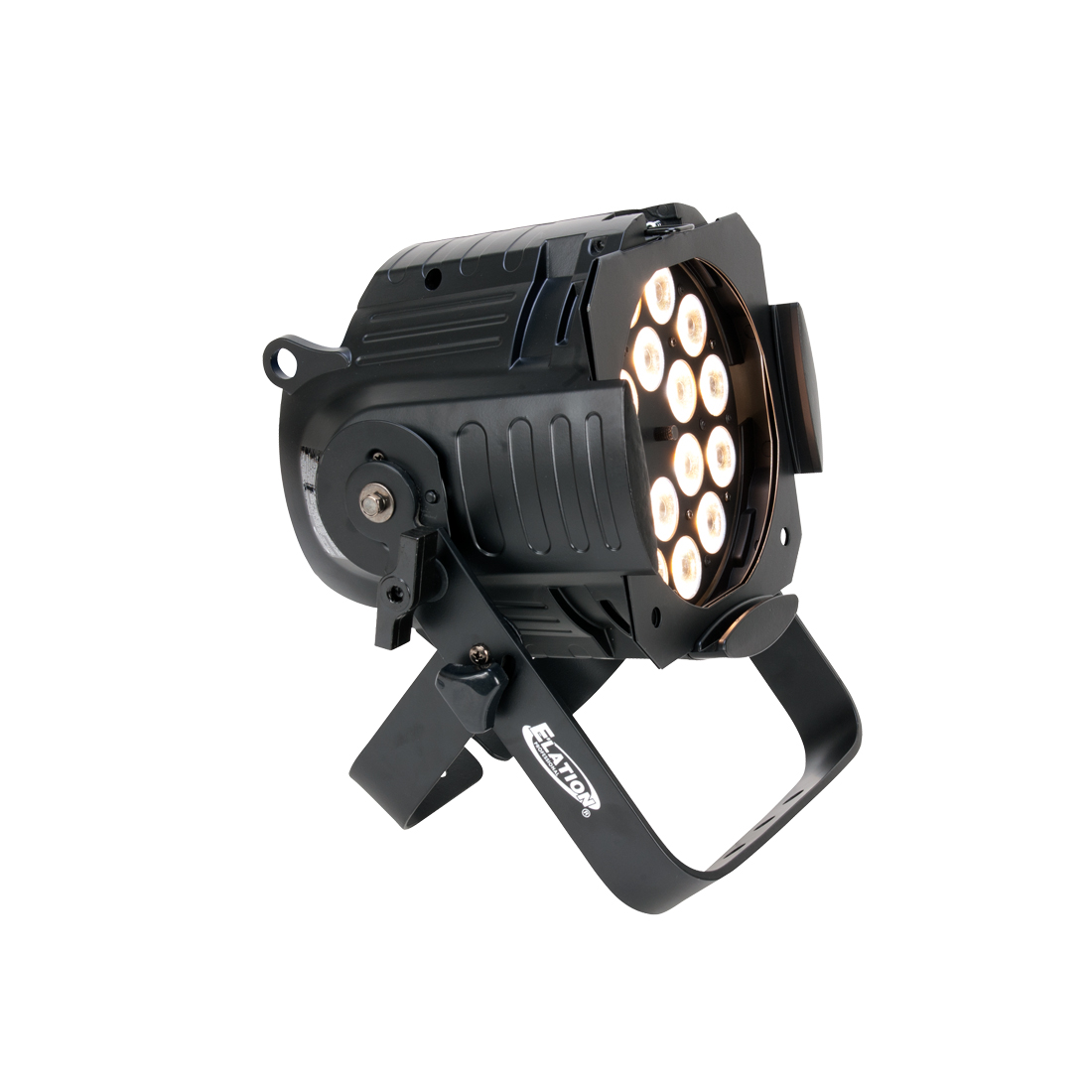

The new updated Opti Tri White II™ features (18) 5W 4-in-1 Multi-Chip Variable White (1 Cool, 2 Warm, and 1 Amber) LEDs, 100,000 average hour LED life, 20° standard beam lens, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and Film, 120W max power consumption and a multi-voltage universal auto switching power supply (110-250V).

Technical Data

FEATURES

High Output Tri-White LED Par
20° Standard Beam Lens
(1) Cool White, (2) Warm White and (1) Amber
(5) Variable Dimming Curve Modes
Flicker Free Operation for TV and Film
Including Gel Frame Holder


SOURCE

(18) 5W 4-in1 Multi-Chip Variable White LEDs
100,000 Hour Average LED Life


PHOTOMETRIC DATA

20,190 LUX (1,876 FC) @ 3.3’ (1m) (FULL ON)
5,681 LUX (528 FC) @ 6.6’ (2m) (FULL ON)
2,605 LUX (242 FC) @ 9.8’ (3m) (FULL ON)
1,583 LUX (147 FC) @ 13.1’ (4m) (FULL ON)
1009 LUX ( FC) @ 16.4’ (5m) (FULL ON)


EFFECTS

Strobe: 1-18fps
Electronic Dimming: 0% - 100%
(5) Variable Dimming Curve Modes

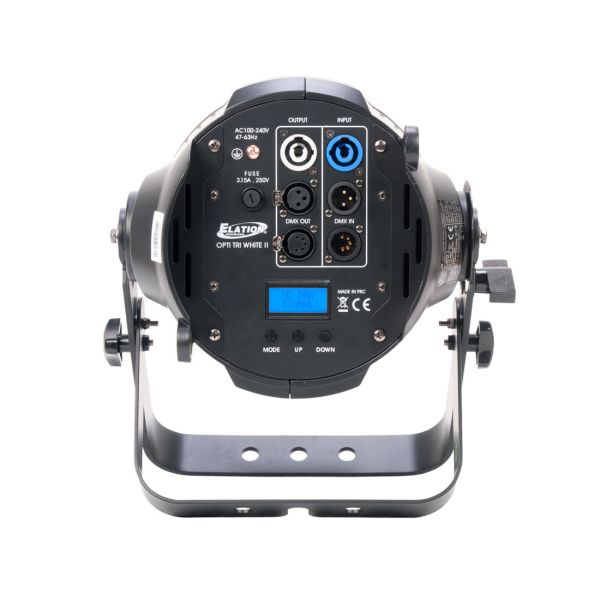

CONTROL / CONNECTIONS

(2) DMX Channel Modes (4 / 8)
(3) Button Control Panel LCD Menu Display
Locking 3/5pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 11.0” (278mm)
Width: 8.6” (221mm)
Vertical Height: 14.1” (358mm)
Weight: 10.5 lbs. (4.8 kg)


ELECTRICAL / THERMAL

AC 120-230V - 50/60Hz
200W Max Power Consumption
Multiple Unit Power Linking


Specifications and documentation subject to change without notice
