NX-K

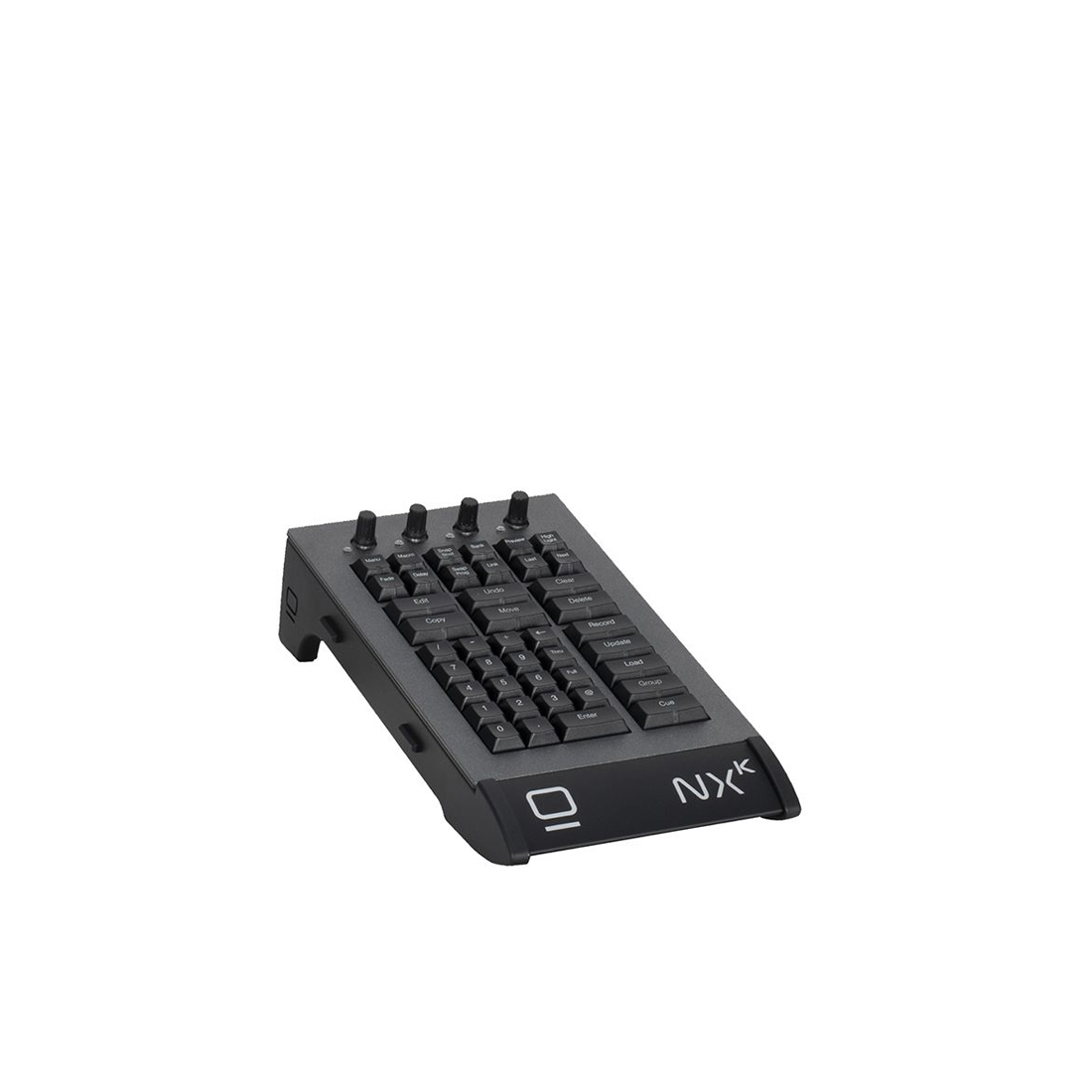

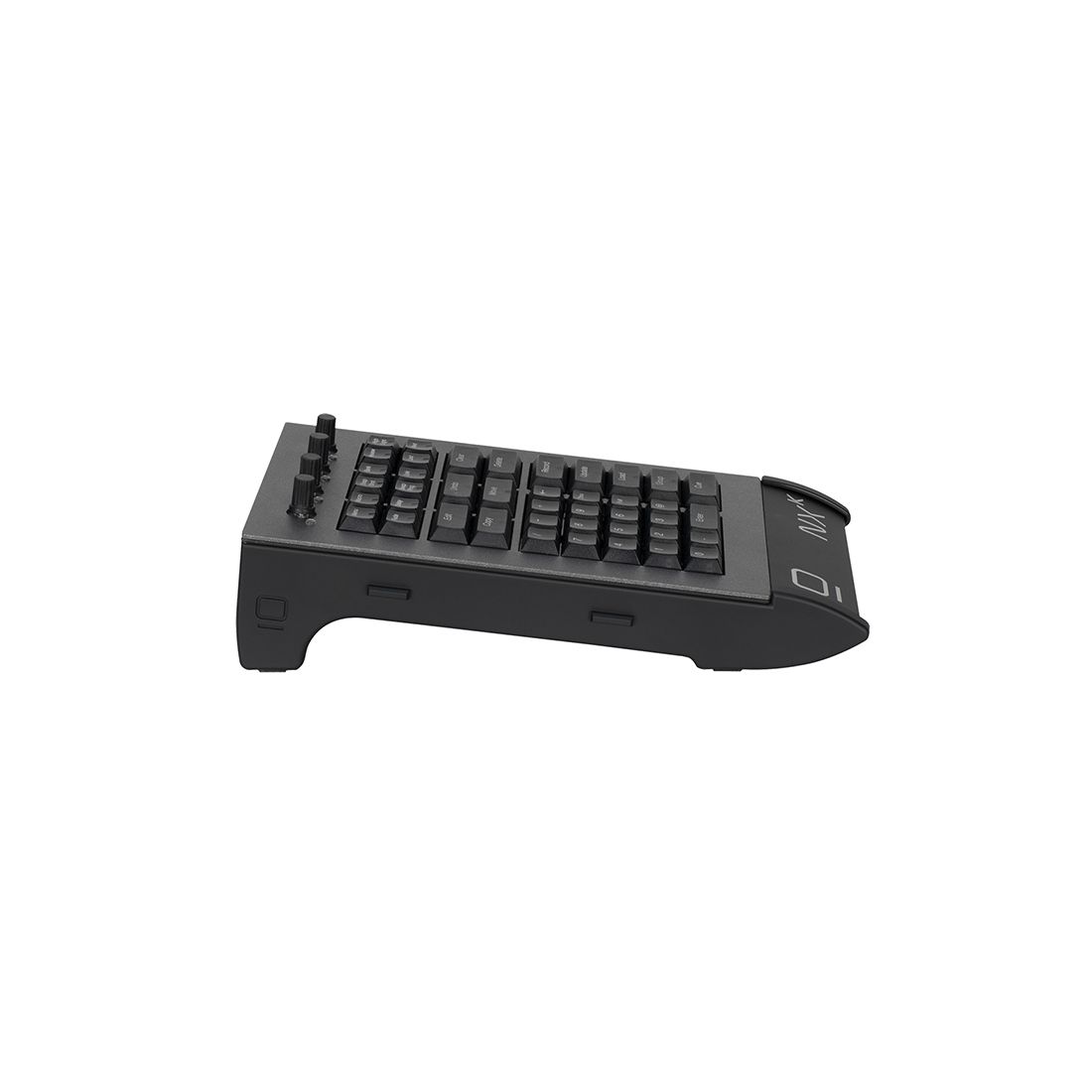

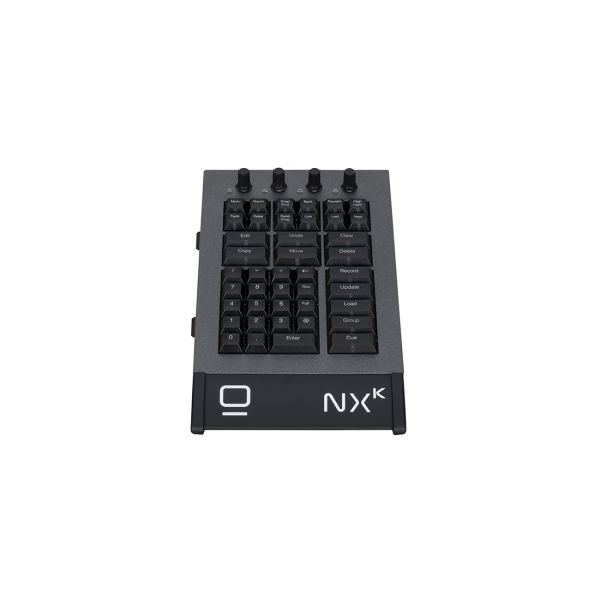

The NXK is a small USB powered control surface for ONYX. The ideal companion for the NX1 console and ONYX PC systems, it replicates the full keypad and command section of larger consoles. Four encoders complete the programming experience for fast and direct parameter access.

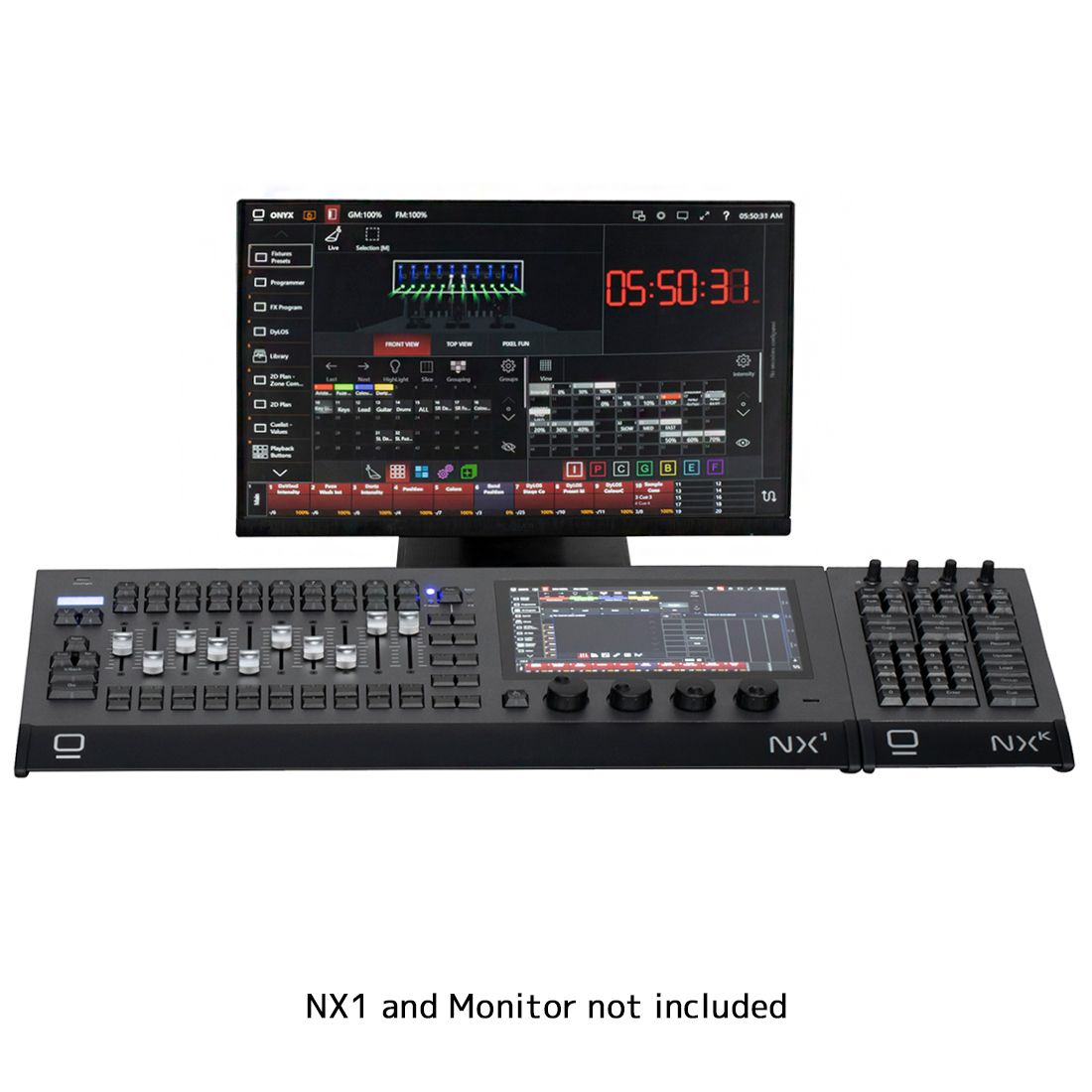

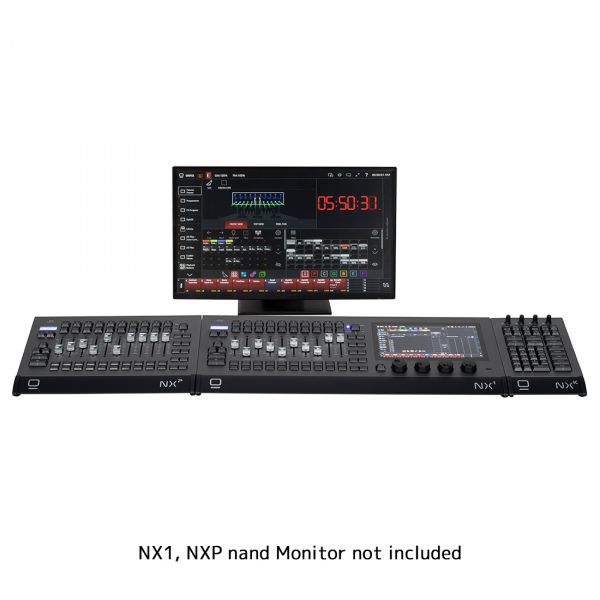

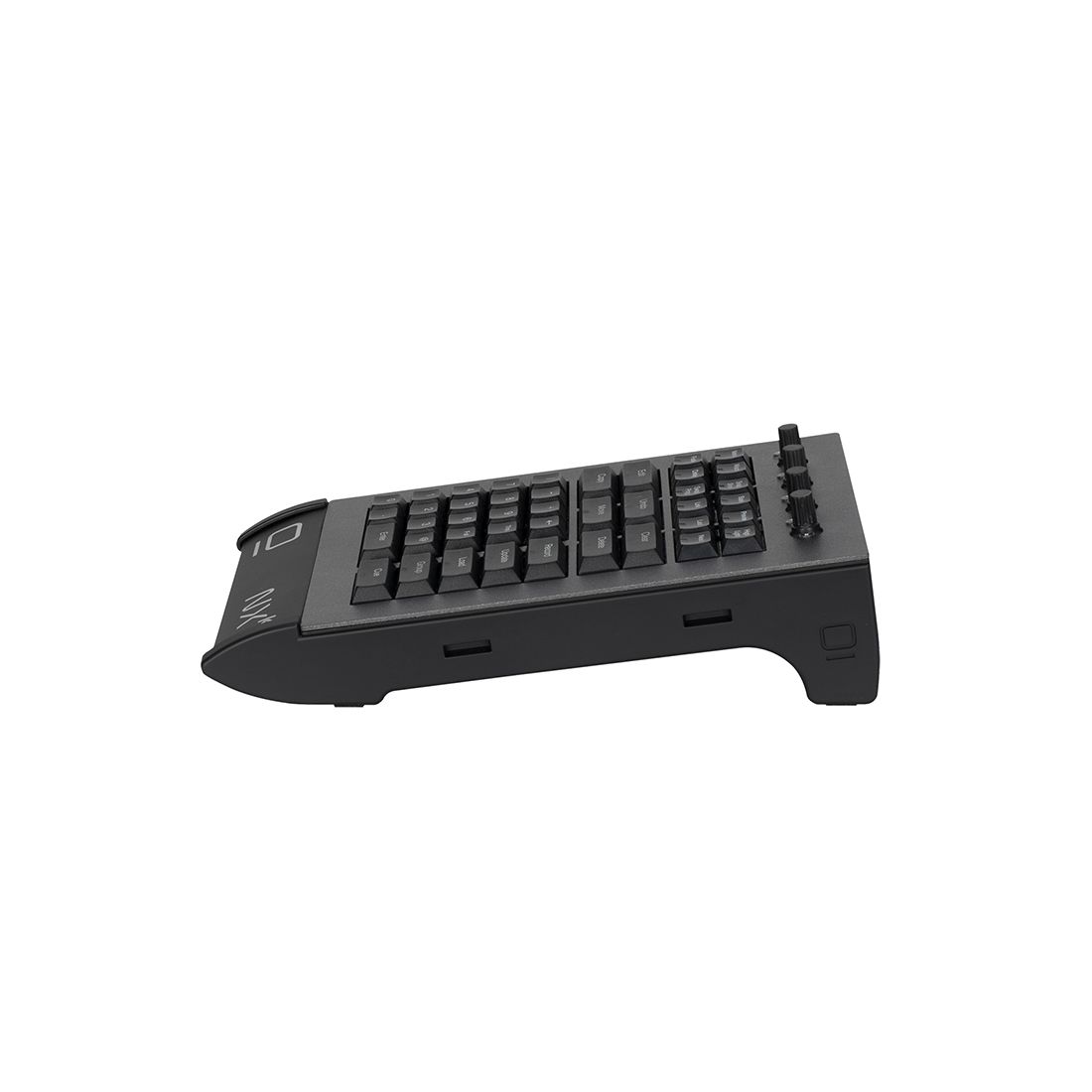

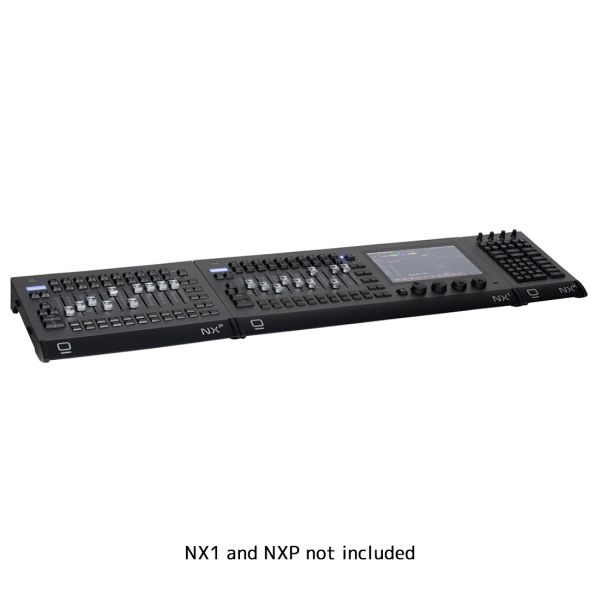

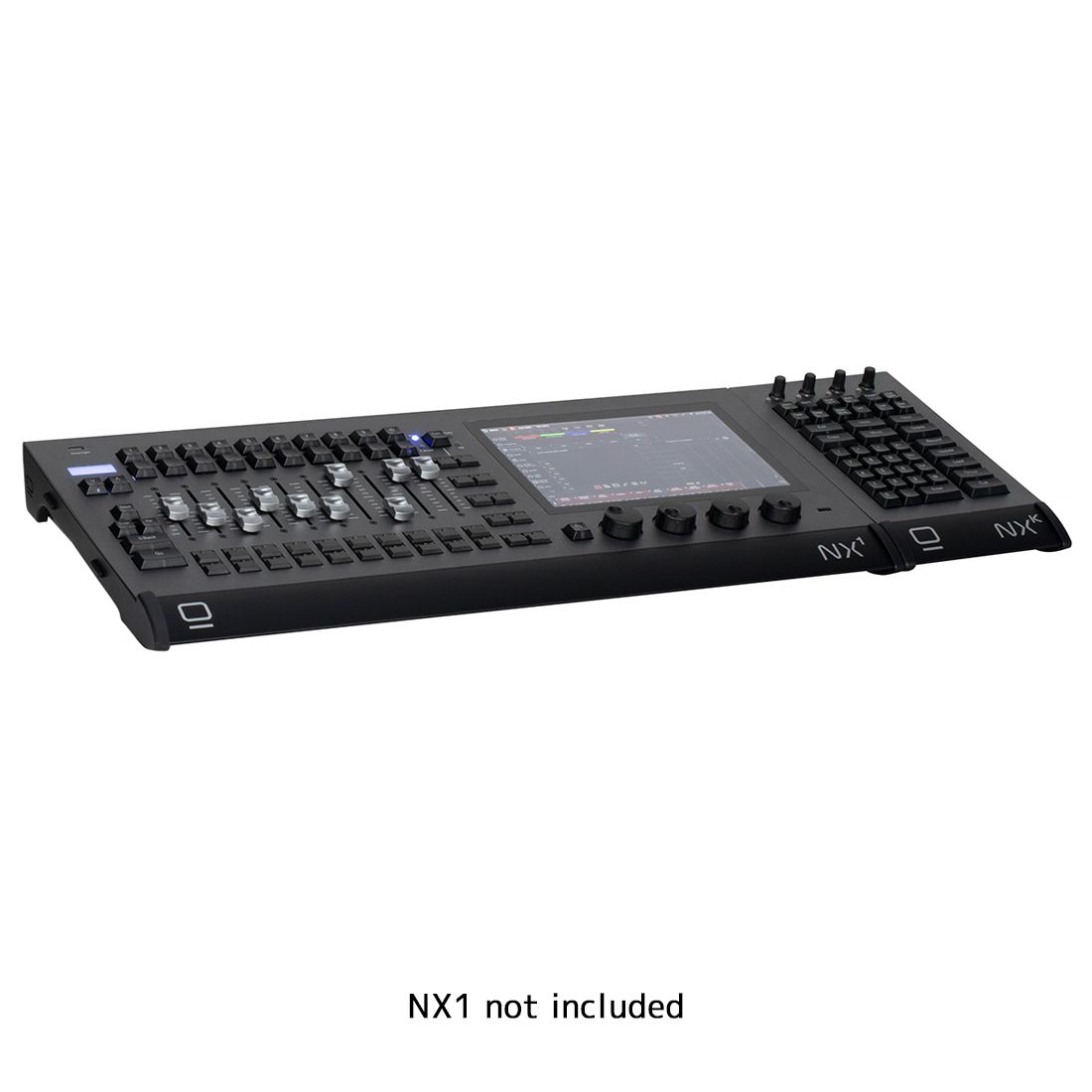

A simple magnetic alignment system allows attachment on either side of the NX1 console or NXP motorized fader wing. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

Technical Data

FEATURES

Portable and compact USB keypad
Full ONYX keypad and command section
4 Encoders with push and led feedback
ONYX Nova+ License (4 Universes + MIDI/OSC/ Timecode support)
USB powered

SPECIFICATIONS
SURFACE


ONYX numerical keypad
Command section
4x digital rotary encoders with push function and status LED for fixture parameter control

CONNECTIONS

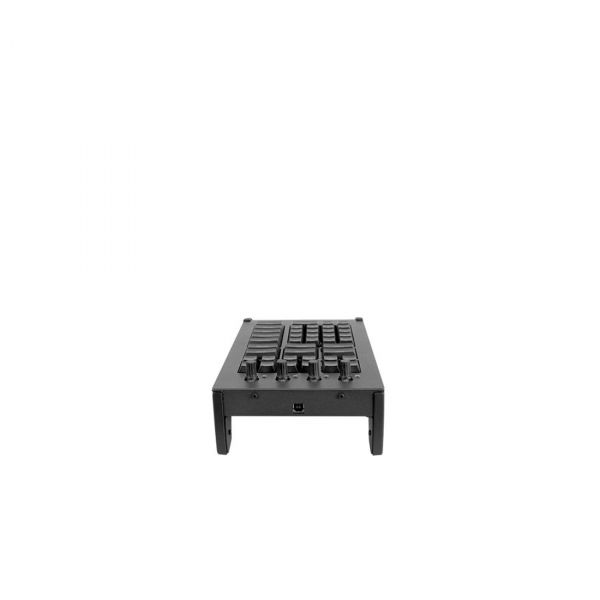

1x USB-B 2.0 input

PHYSICAL

Length: 298.5 mm (11.75 in.)
Width: 160 mm (6.3in.)
Height: 71 mm (2.8 in.)
Weight: 1.4 kg (3 lbs.)

ELECTRICAL

USB 5V

INCLUDED ITEMS

ONYX USB cable
USB 3.0 recovery drive



Specifications and documentation subject to change without notice.
