Code
1321000036
- Converts DMX into analog signals
- Converts MIDI Data to analog signals
- Works on +-10/+-12/+-15 Volt output
- Switchable polarity
- Display for setup and start address
- Back-up function
- 72ch automatic chaser integrated
Specifications
- Converts DMX-512 & MIDI signals to 72 Channel Analog- 3pin and 5pin XLR DMX in- and outputs
- LCD Display with corresponding scroll buttons control
- DMX start address and programming options
- Memory back-up with (EPROM)
- Speed Control
- Chase 2 - 72 channels
- Select Analog output from +(-)10V, +(-)12V and +(-)15V
- MIDI on/off signal

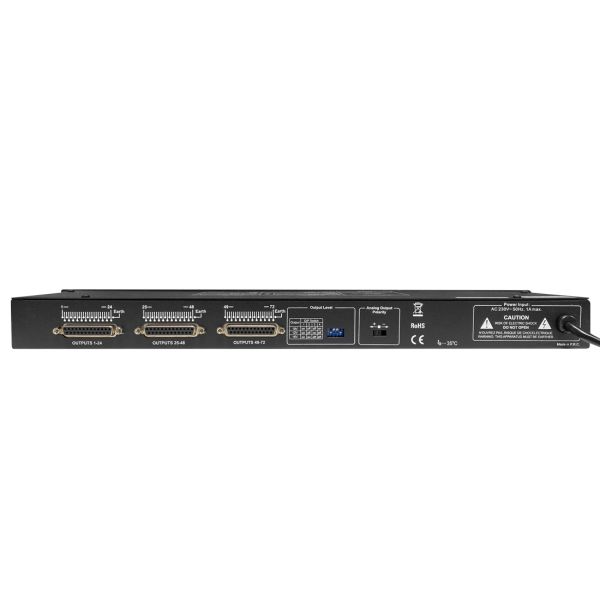

- 3 x 25 pin outputs on rear panel
- Fuse conveniently located on front panel
- 1 rack space
- Voltage: 120V / 220V
- Fuse: 0,5A 250V 5x20mm
- Dimensions: 483x127x44 mm
- Weight: 2.27 kg
Specifications and documentation subject to change without notice
