Magic 260 DMX controllerArchive

Code 1322000018

Technical Data

- 264 DMX channels
- 24 fixtures
- 16 channels per fixture
- Backup and update via USB
- Effects generator
- Large fixture profile library
- 1 scene & 1 show simultaneously

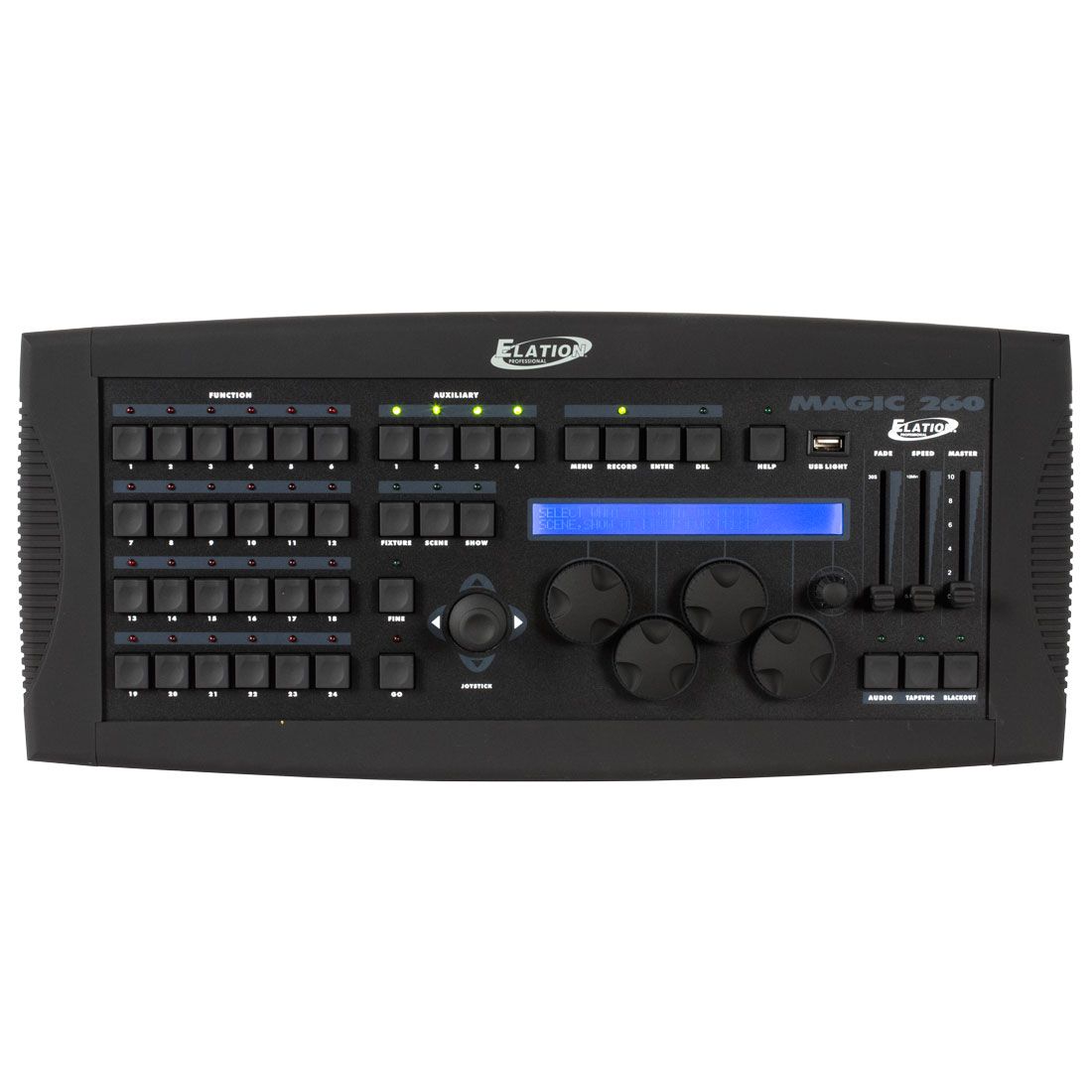

The Magic 260 is a 19-inch rack mount DMX controller from Elation Professional that`s perfect for lighting users with mid-level needs, such as neighborhood clubs, discos and professional DJs. With 260 DMX channels, the Magic 260 can control up to 48 DMX-compatible moving lights. It can store up to 24 x 48 scenes and 264 shows. It comes equipped with a large library of pre-installed profiles for Elation Professional and American DJ moving light fixtures plus other brand name lighting fixtures so users don`t have to spend time programming their own.

Specifications

- PAN/TILT Joystick
- 4 data wheels for moving light control and data entry
- 3 pin DMX Output
- 264 total moving light channels
- On/Off buttons for switch pack control
- Internal fixture library
- Control up to 24 fixtures (up to 16 channels each)
- 1152 programmable scene
- 264 programmable shows
- MIDI Input and Thru
- 24 multi function buttons
- USB input for optional work light or memory stick
- 80 character backlit LCD display for easy programming
- Audio input
- Internal microphone
- Go button for manual show triggering
- Master fader for moving light dimmer control
- Separate speed and fade faders
- Help button for recording scenes and shows
- Effects engine includes circle, figure 8 and pan & tilt movement with wave effect capability
- Pan/Tilt and Radius adjustment for built in effects engine

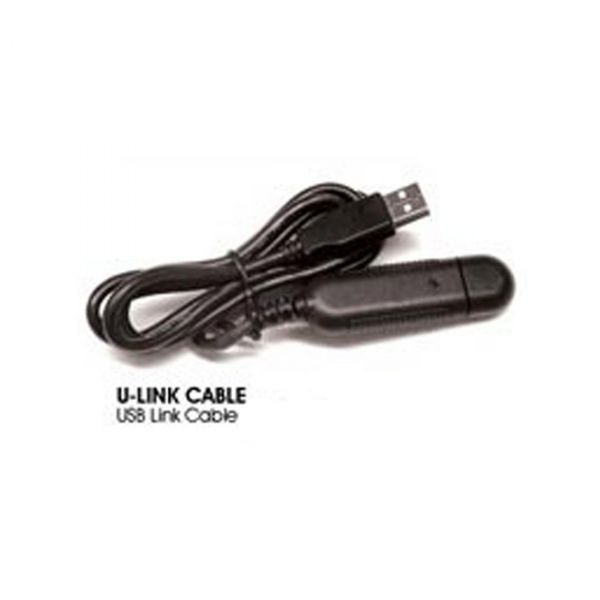

- U-Link cable included,
- Power: 9-12VDC, 500mA
- Dimension (LxWxH): 483x179x102mm
- Weight: 4.5 kg

Specifications and documentation subject to change without notice
