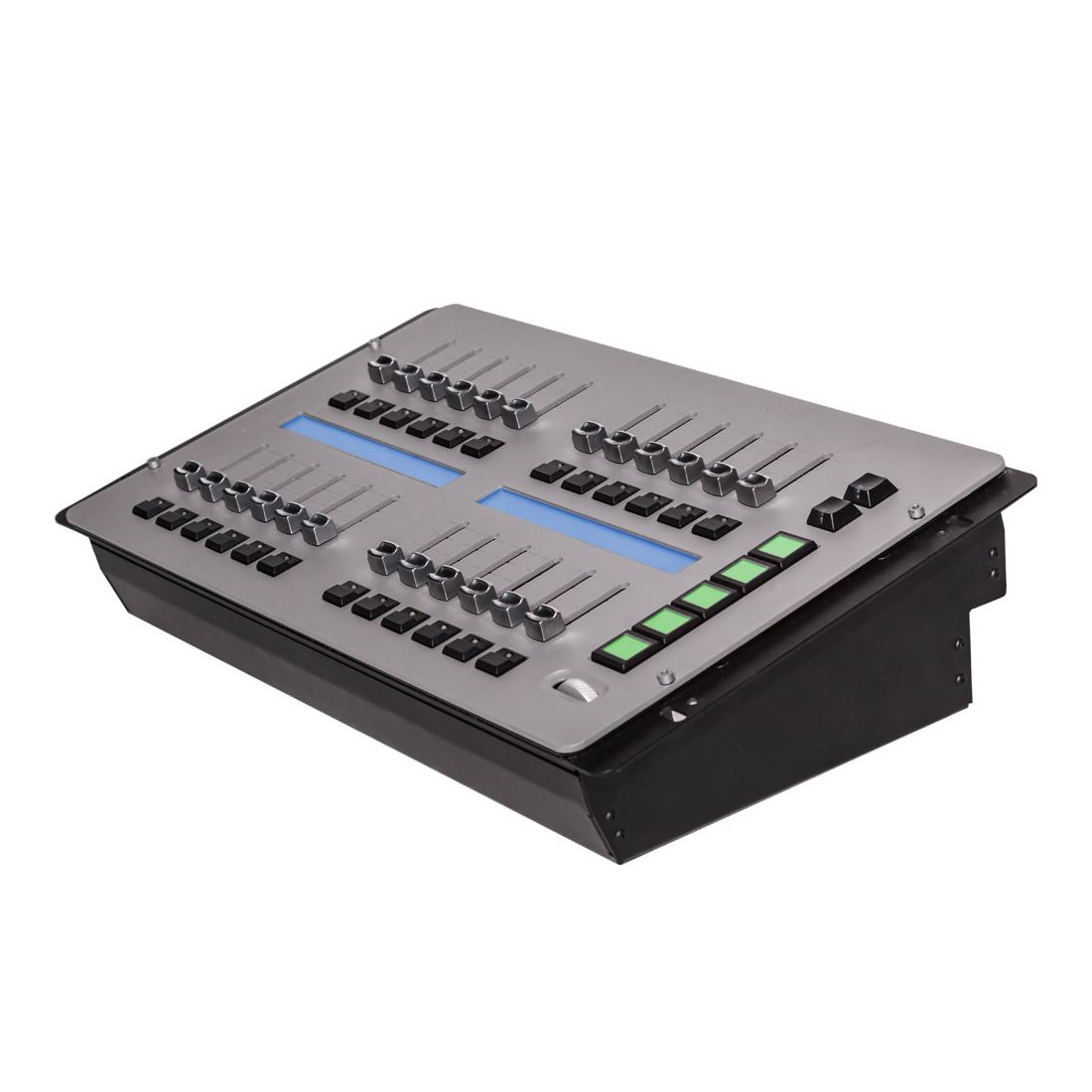

M-Series Submaster Module

The M-Series Submaster Module provides the user with an additional 24 handles of controls for cuelists, channels, submasters or inhibitives. Combined with any M-Series consoles or the M-PC, the Submaster Module makes it easy and relatively inexpensive to build a 24, 48 or even 96 fader desk - the perfect startup theater or busking console.

M-Series Licensing
M-PC Free - 4 Universes (Artnet, sACN)

Technical Data



FEATURES

24 x Faders with single-function button (every cuelist type supported)
2 x 40-Character display for labeling
5 x LCD Navigation buttons with scroll wheel
Direct access Up Down buttons for bank change
Tabletop and 19” rack mount format


PHYSICAL

Length: 275 mm (10.9 in.)
Width: 483 mm (19.1 in.)
Height: 128 mm (5.1 in.)
Weight: 4.6 kg (10.2 lbs.)


CONTROL/USER INTERFACE

24 x non-motorized faders with single function button (every cuelist type supported)
40-character display for labeling
5 x LCD navigation buttons with scroll wheel


CONNECTIONS

M-Series™ Module link
USB: Locking RJ45 Ethernet Connector sockets
USB input: USB device socket
USB devices: USB host socket
Desk lamp: 2.5 mm DC bayonet
AC power input: 3-pin IEC male socket
AC power throughput: 3-pin IEC female socket


ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 2 AT (slow blow)
Desk lamp output: 12 V
AC power output: Unswitched, unfused, max. 6 A


APPROVALS

EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1
CE


INCLUDED ITEMS

1.5 m power cable, 3-pin IEC
Locking RJ45 Ethernet Connector patch cable
USB cable


Specifications and documentation subject to change without notice
