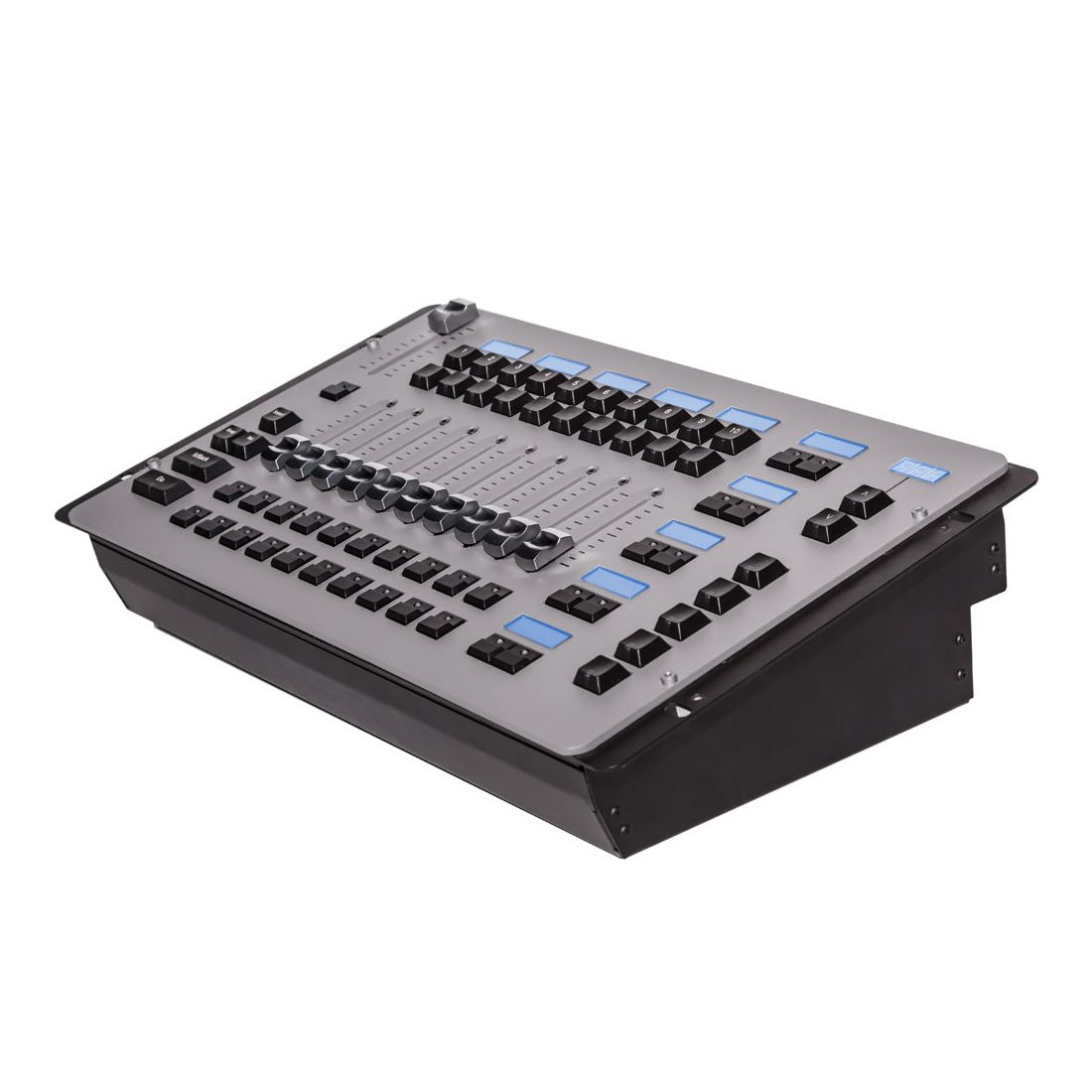

M-Series Playback II Module

The M-Series Playback ll Module extends the playback capabilities of any M-Series console by adding 10 motorized faders and 10 PlayPaired buttons. Cuelist information is displayed on 10 LCD displays, 5 Fast Keys for quick access to banks and other functionality, a Master Go section and a Grand Master fader with flash.

Multiple Playback Modules can be added to the M-Series console.

M-Series Licensing
M-PC Free - 4 Universes (Artnet, sACN)

Technical Data



FEATURES

10 x Motorized Playback Faders
10 x Pause/Back Buttons
10 x Go Buttons
10 x Flash Buttons
10 x PlayPaired Buttons
10 x LCD Displays
Three-Digit display for actual bank number
5 x Fast Keys for quick access to banks or other functions
Master Go section
Grand Master fader with flash button
Tabletop and 19” rack mount format


PHYSICAL

Length: 275 mm (10.9 in.)
Width: 483 mm (19.1 in.)
Height: 128 mm (5.1 in.)
Weight: 4.6 kg (10.2 lbs.)


CONTROL/USER INTERFACE

10 x motorized playback faders
10 x pause/back buttons
10 x go buttons
10 x flash buttons
10 x PlayPaired buttons
10 x LCD displays
Three-digit display for actual bank number
5 x Fast Keys for quick access to banks or other functions
Master Go section
Grand Master fader with flash button


CONNECTIONS

M-Series™ Module link USB: Locking RJ45 Ethernet Connector sockets
USB input: USB device socket
USB devices: USB host socket
Desk lamp: 2.5 mm DC bayonet
AC power input: 3-pin IEC male socket
AC power throughput: 3-pin IEC female socket


ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 2 AT (slow blow)
Desk lamp output: 12 V
AC power output: Unswitched, unfused, max. 6 A


APPROVALS

EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1
CE


INCLUDED ITEMS

1.5 m power cable, 3-pin IEC
Locking RJ45 Ethernet Connector patch cable
USB cable


Specifications and documentation subject to change without notice
