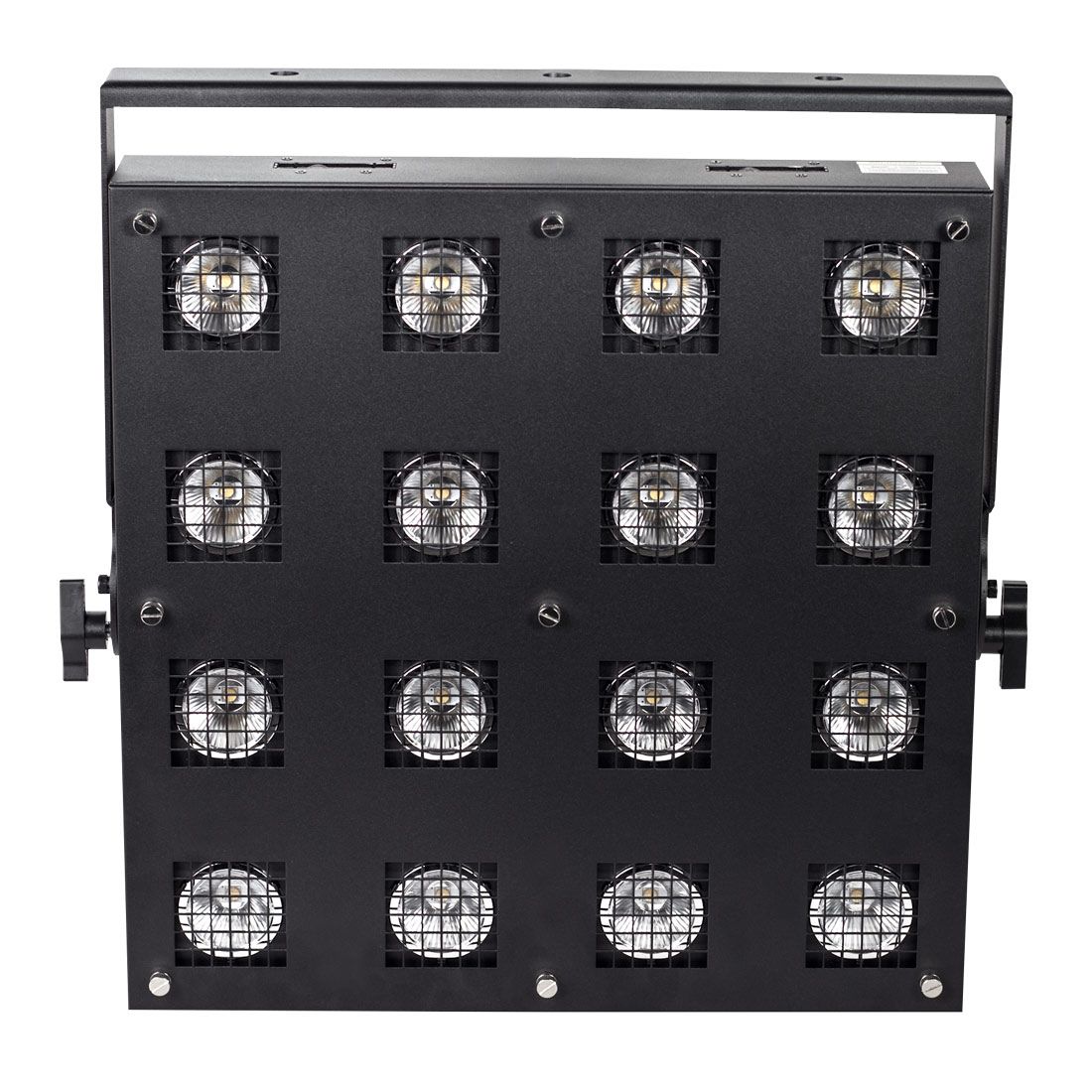

Lumina Matrix

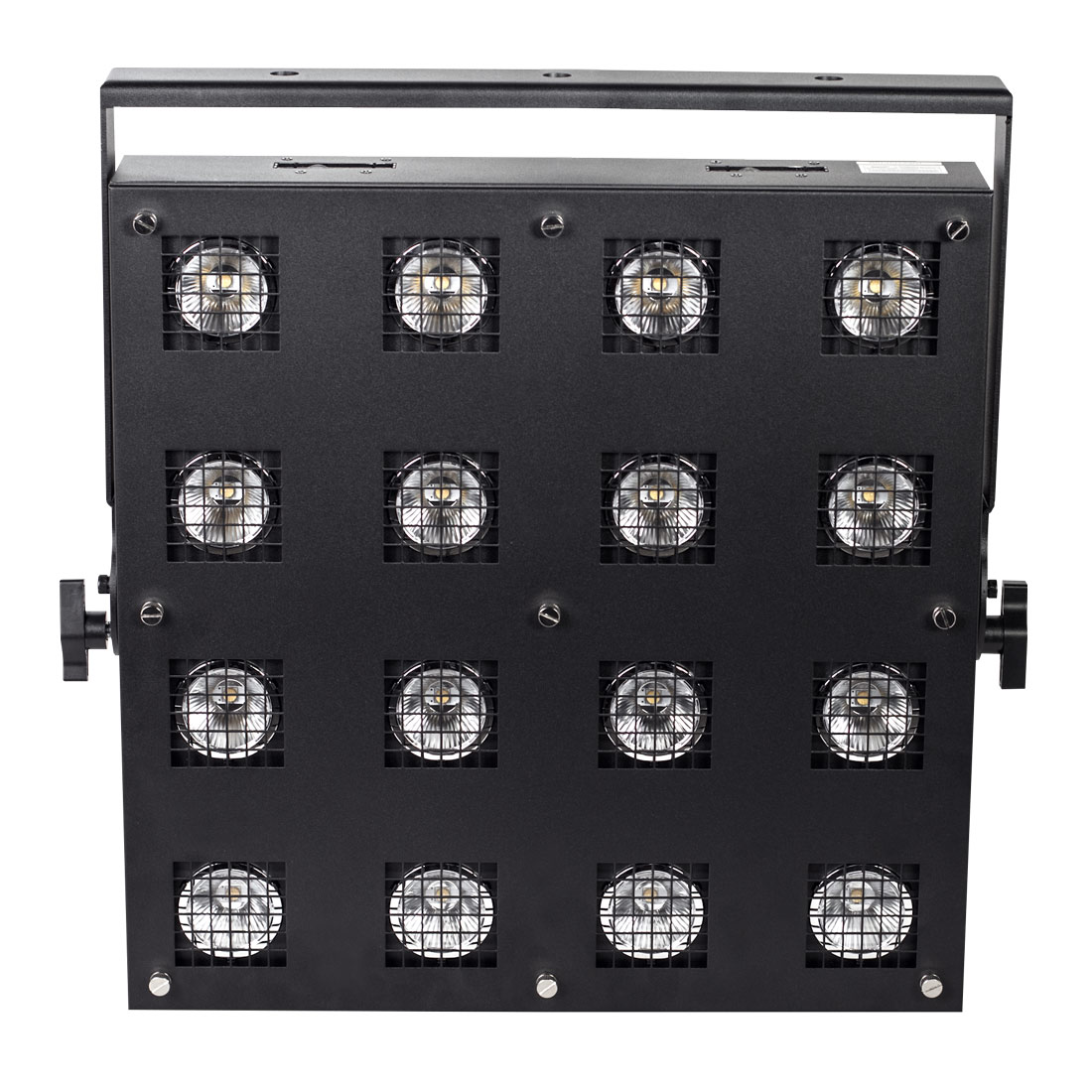

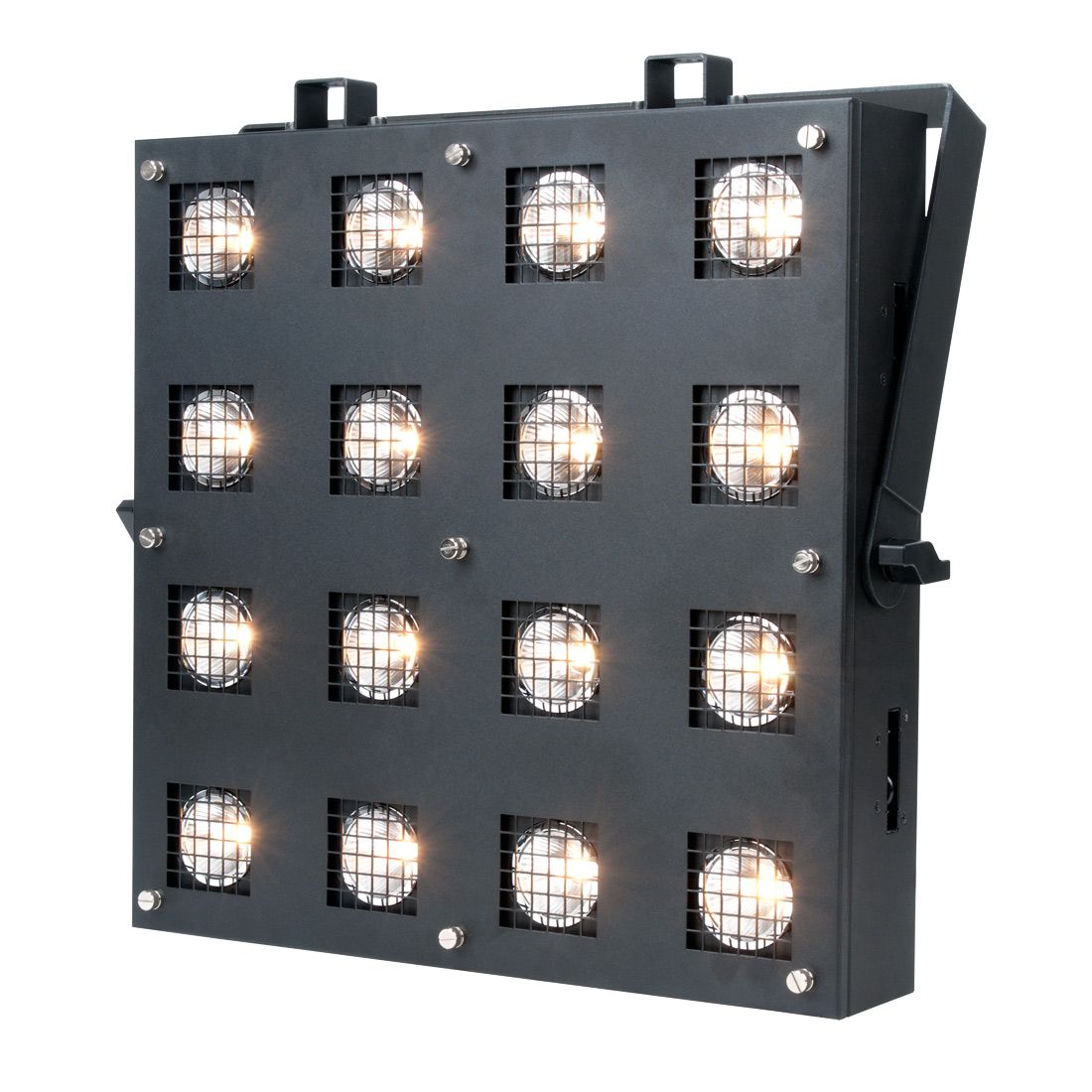

The new Lumina Matrix™ features (16) 7W Warm White (2,700K) <80 CRI LEDs packaged in perfectly aligned halogen looking reflectors, 15° beam producing a smooth wash or blinder effect, electronic 16bit dimming (0-100%), variable dimming curves, individual pixel control (1-16), chase macros with variable speed and fade control, flicker free operation for TV and FILM, side by side vertical and horizontal array rigging, multiple unit power linking, 150W max power consumption, remote device management protocol support, and a multi-voltage universal auto switching power supply (120-240v).

Technical Data

FEATURES

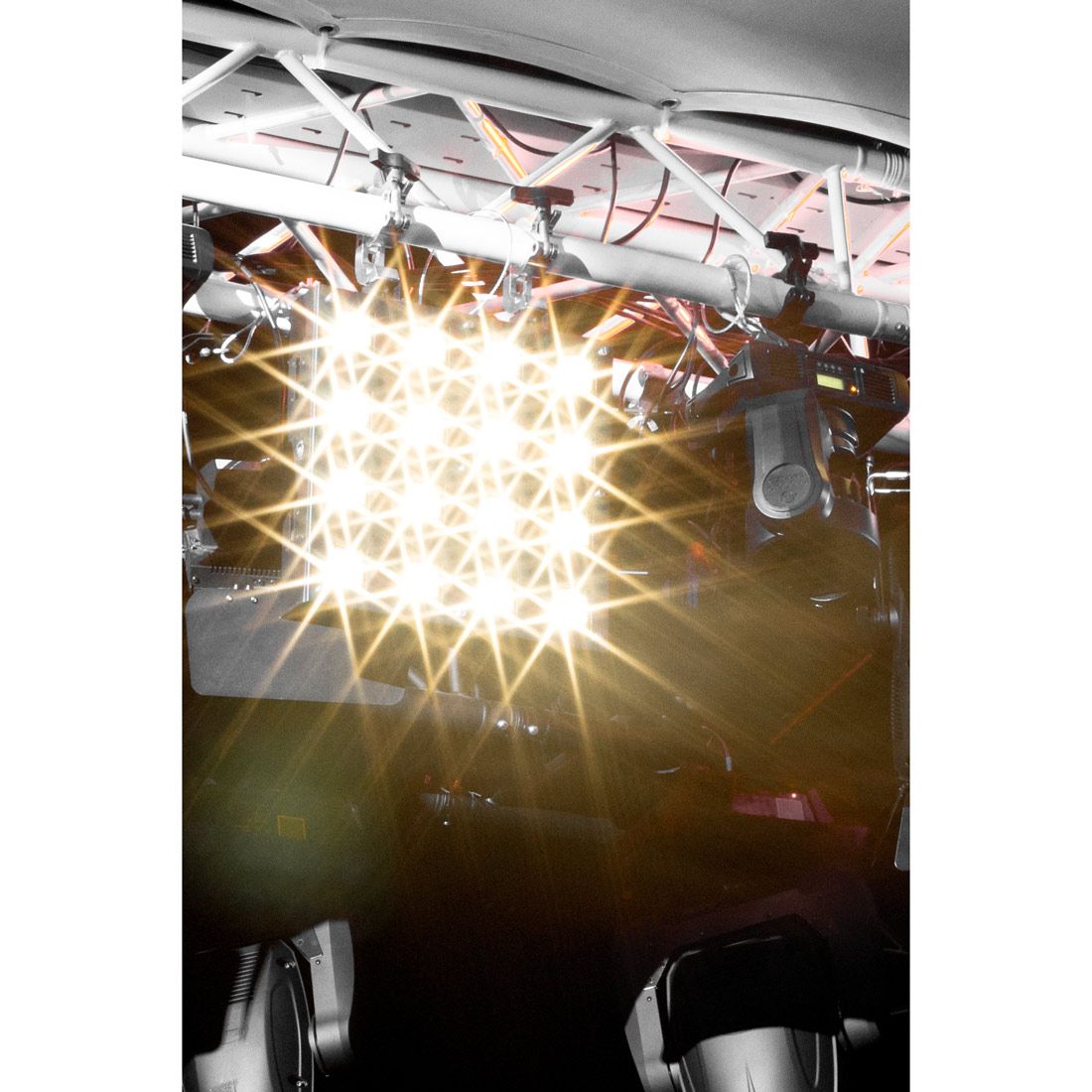

15° Beam Producing a Smooth Wash or Blinder Effect
Electronic 16bit Dimming (0-100%)
Variable Dimming Curves

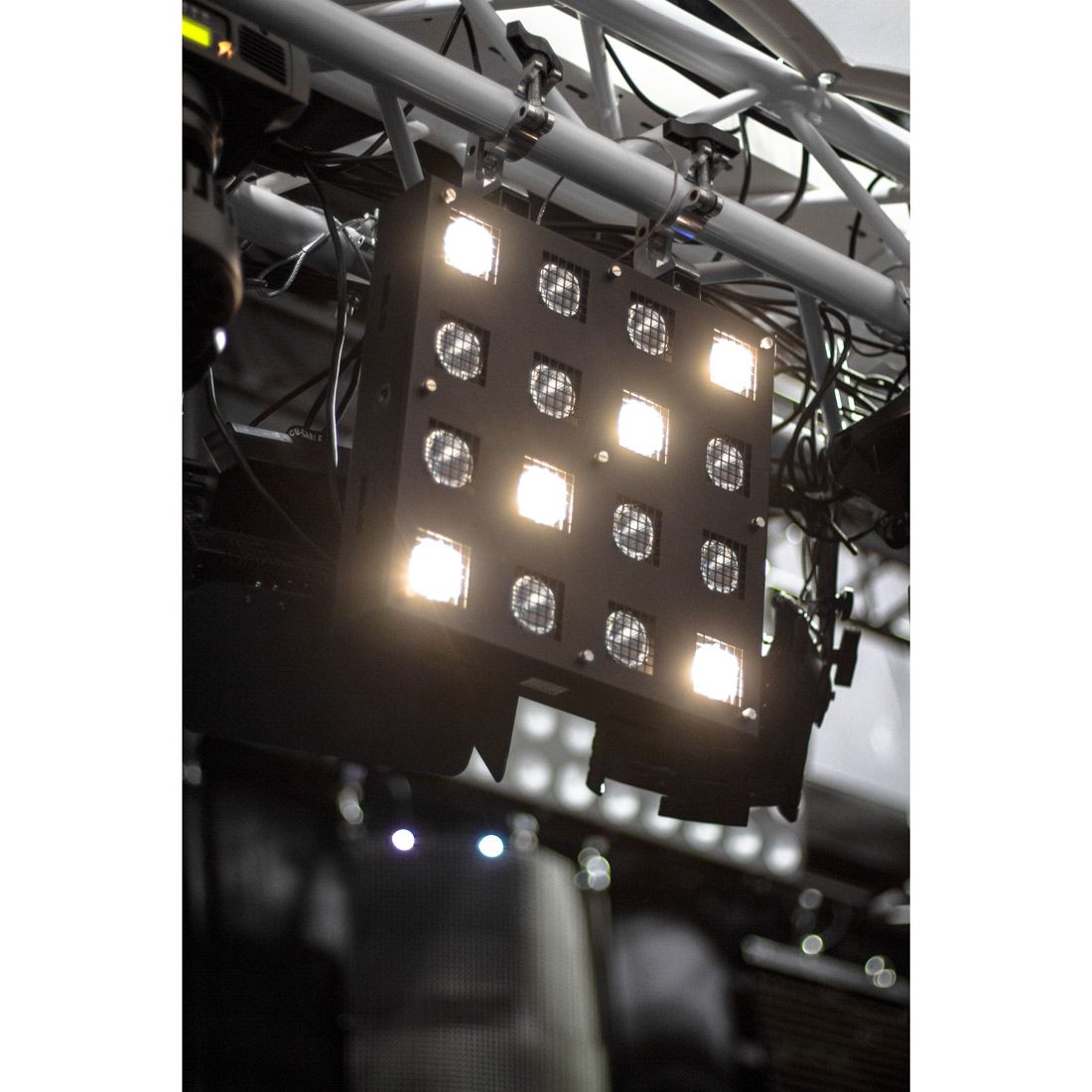

Individual Pixel Control (1-16)
Flicker Free Operation for TV and FILM

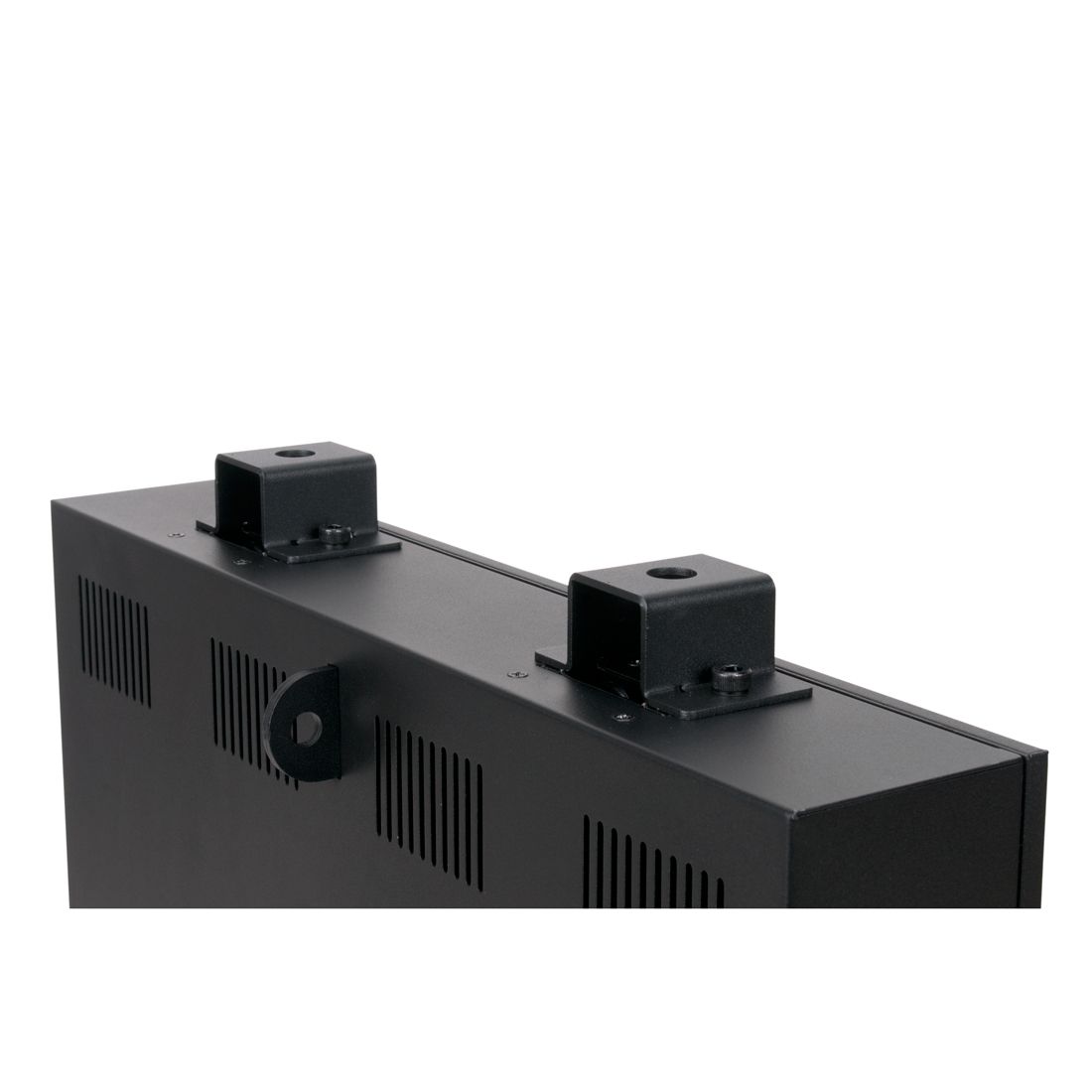

Side By Side Vertical and Horizontal Array Rigging
Multiple Unit Power Linking
RDM (Remote Device Management)


SOURCE

(16) 7W Warm White (2,700K) <80CRI LEDs


PHOTOMETRIC DATA

38,602 LUX (3,586 FC) @ 3.3’ (1m) (FULL ON)
9,651 LUX (897 FC) @ 6.6’ (2m) (FULL ON)
4,289 LUX (398 FC) @ 9.8’ (3m) (FULL ON)
2,413 LUX (224 FC) @ 13.1’ (4m) (FULL ON)
1,544 LUX (143 FC) @ 16.4’ (5m) (FULL ON)


EFFECTS

Electronic 16bit Dimming: 0% - 100%
Variable Dimming Curves (Stage, TV, Architectural, Theatre)
Chase Macros with Variable Speed and Fade Control

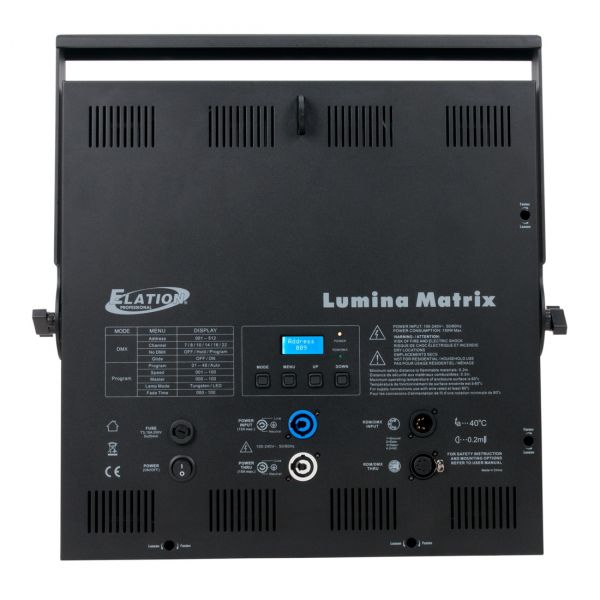

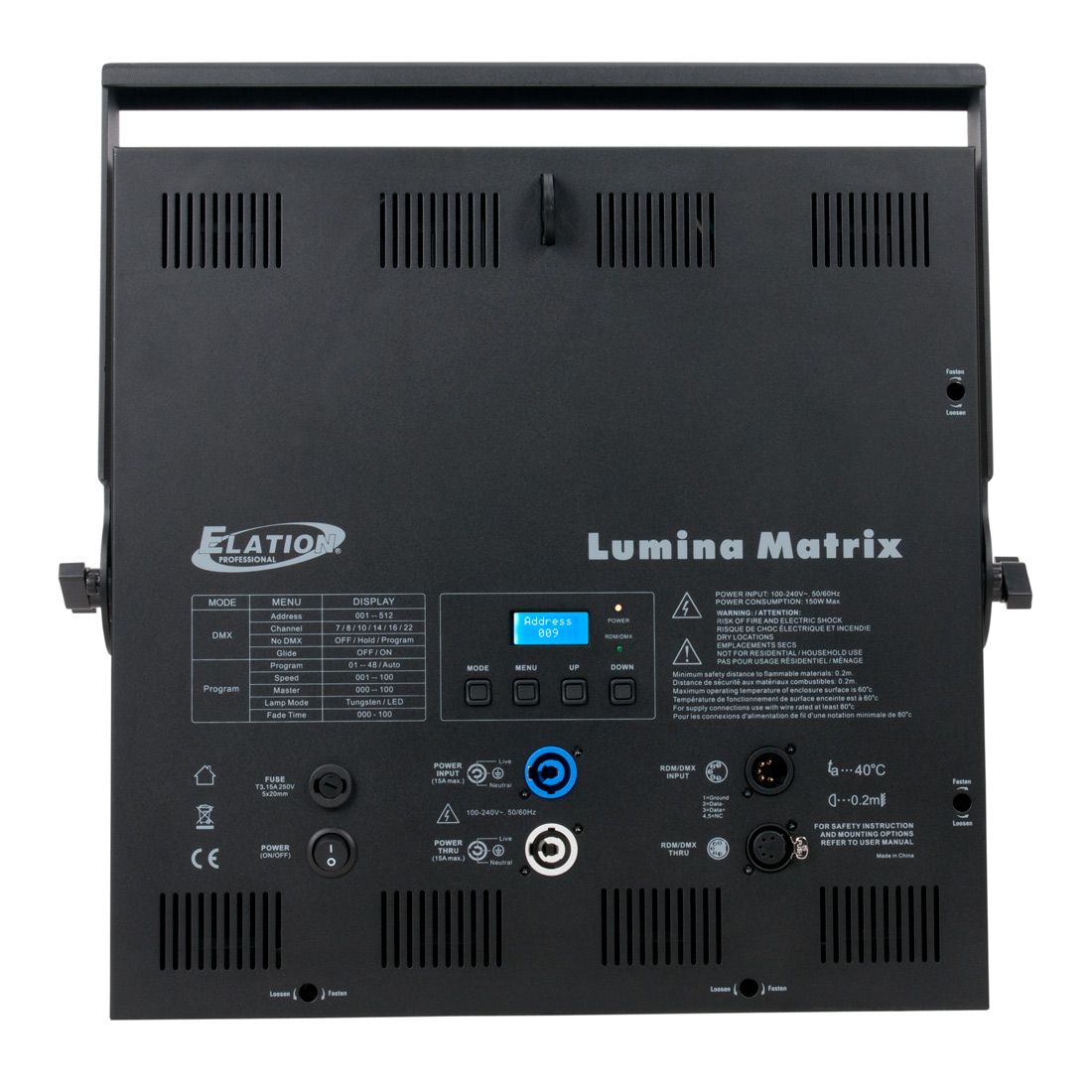

CONTROL / CONNECTIONS

(11) DMX Channel Modes
(8-Bit: 7 / 8 / 10 / 14 / 16 / 22) (16-Bit: 8 / 10 / 14 / 22 / 38)
RDM (Remote Device Management)
(4) Button Control Panel
LCD Menu Display
Locking 5pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 15.7” (400mm)
Width: 3.1” (78.5mm)
Vertical Height: 15.7” (400mm)
Weight: 21.1 lbs. (9.8 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
150W Max Power Consumption
Multiple Unit Power Linking:
MAX 12pcs (AC100-120V) or MAX 21pcs (220-240V)

Specifications and documentation subject to change without notice
