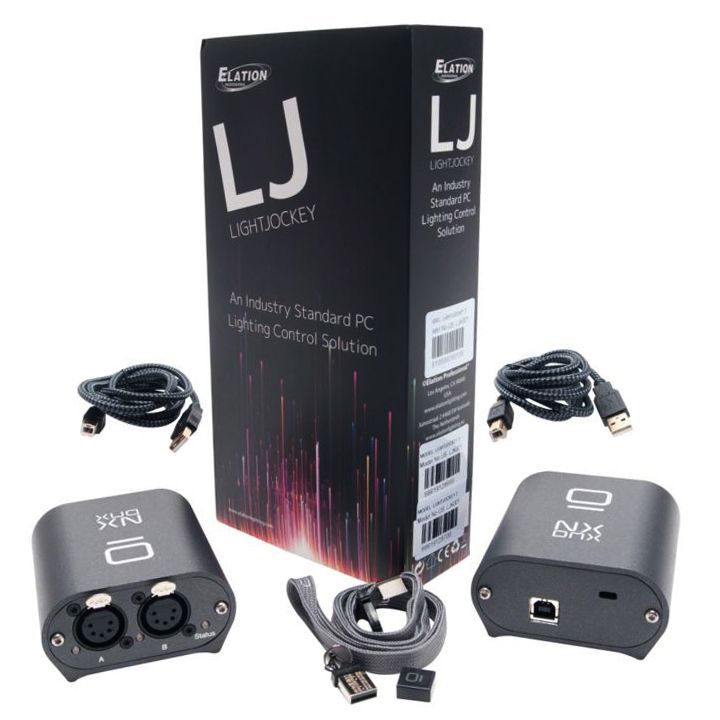

LightJockey is a flexible, easy-to-use Windows-based controller package that includes a USB Interface Box (laptop not included). One of the industry’s most popular PC-based controllers for well over a decade, LightJockey offers lighting designers greater flexibility, spontaneity and ease of use in a user-focused control package.

Technical Data


Control of up to 100 Fixtures, 2048 DMX Channels
Large Fixture Library and User-Configurable Editor

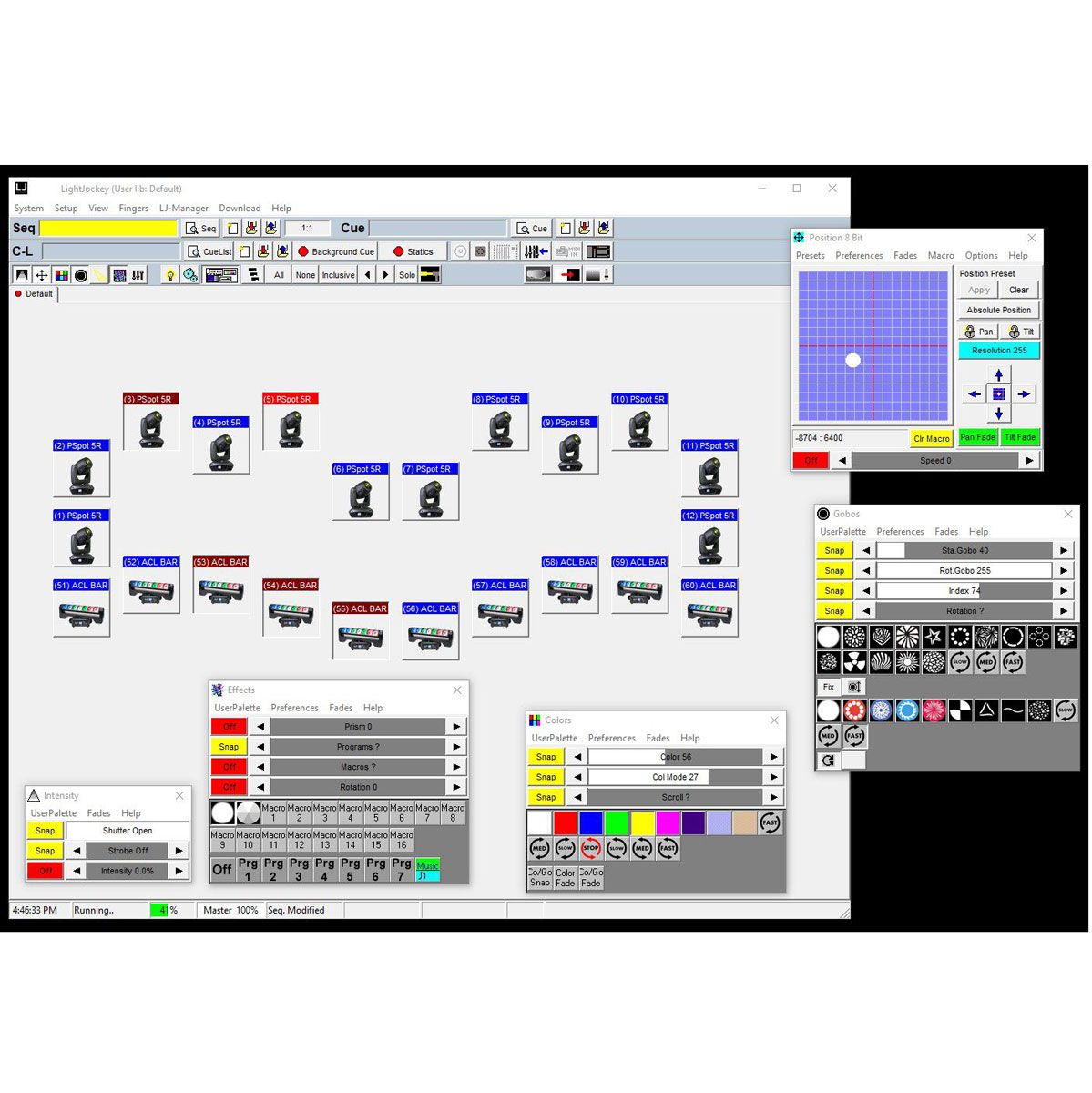

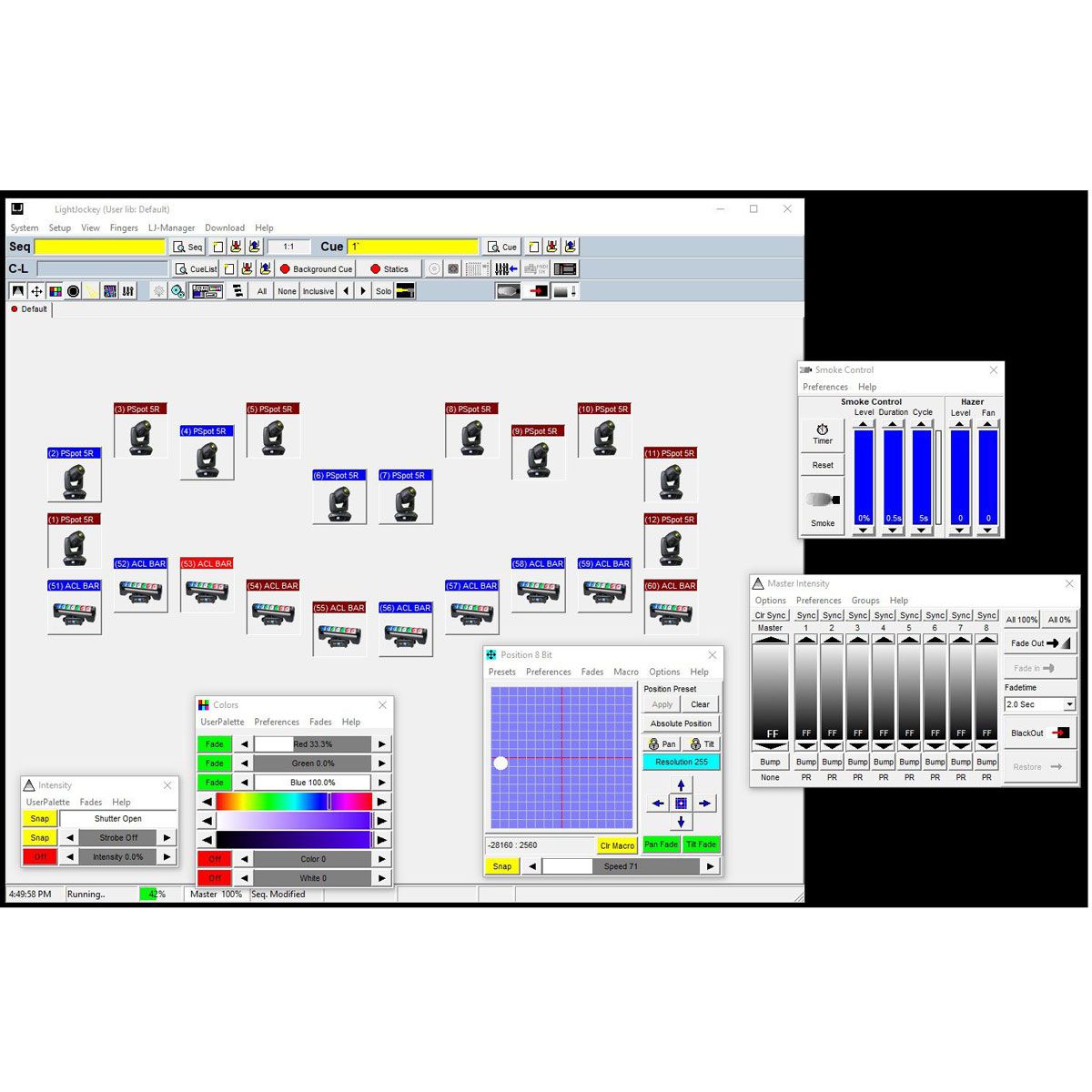

Graphical Representation of all Fixture Functions
LED-Trix Plug-In included for Programming Color-Mixing Fixtures
LightJockey Manager included for Scheduling Events
Windows 7 and higher Lighting Controller Software (PC not included)
Supports MP3, Audio CD, SMPTE and MIDI Timecode



Click here to download LIGHTJOCKEY Software

Click here to download LIGHTJOCKEY Fixture Profiles

Click here to request new LIGHTJOCKEY Fixture Profiles



NX DMX USB-DMX Interface
Length: 92 mm (3.6 in.)
Width: 82 mm (3.2 in.)
Height: 41 mm (1.6 in.)
Weight: 245 g (0.54 lbs.)
Ambient temperature: 0° – 50° C (32° – 122° F)
Protection rating: IP20



Trig sources: Manual, auto, audio input with FFT analyzer, DMX in, MIDI, Light Jockey Manager
Cue list time code synchronization (CLTCS) options
Internal timer, including 24-hour clock
Audio CD time code from CD-ROM drive
Digital Audio (MP3, WAV, etc.) time code using built-in media player
MIDI Time code, SMPTE with suitable SMPTE/MTC interface



Number of fixtures: Up to 100, or 680 RGB fixtures (32 ch. max)
Number of DMX Universes: 4
Fixture library: All (DMX) fixtures, user-definable profiles, generic DMX profiles
Control: Graphical control of all fixture parameters
Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles



Cue contains 12 sequences with global or individual fade time adjustment
Master intensity control + 8 configurable intensity groups
Manual override with direct access to all functions
Independent background cue with 5 parallel sequences
Blackout and fade out function
Go button for manual cue lists
Assignable keyboard hotkeys for faster access
Smoke control independent from programming
Follow spot function
Cue list for synchronization with timer, digital audio or Audio CD-ROM timecode
Audio analyzer for triggering sequences by audio
Function and DMX channel override via DMX IN (NX DMX output can be converted to input in software)



Intel Core i3 or better
Monitor resolution of 1024x768
USB 2.0 port for DMX interface hardware and License key
500 MB drive space available
Windows 7, 8, 10



1x Obsidian Key with LightJockey License
2x NX DMX USB-DMX Interface
2x USB cable


Specifications and documentation subject to change without notice
