LED Blinder 48Archive

Code 1226300004

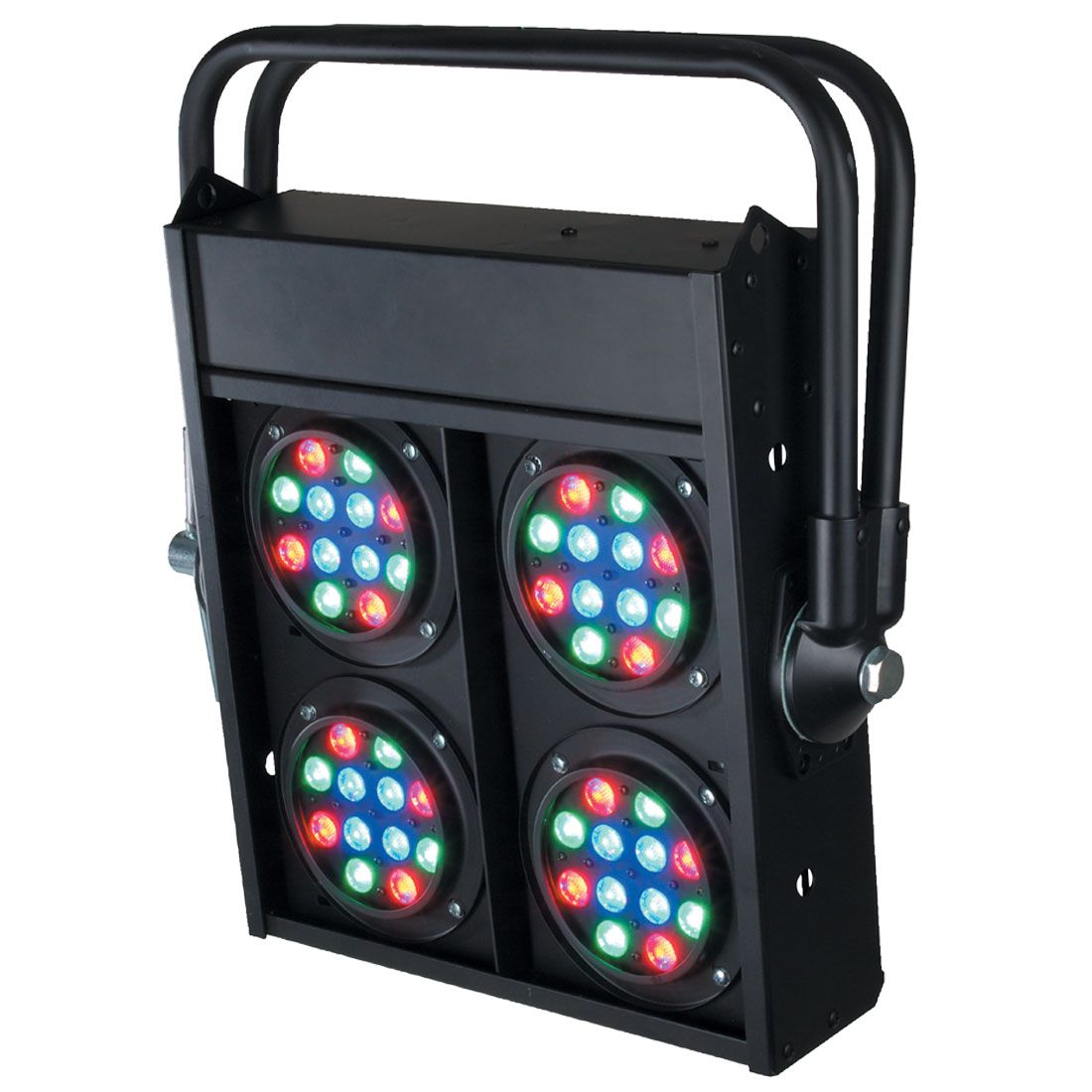

LED Blinder 48

Technical Data

- 48x 1W High-Power LEDs
- 25° beam angle
- Replaces all conventional blinders
- Only 60W total power draw
- Fully DMX controllable
- 7 or 12 DMX channels
- Stand-alone programs

Specifications

- LED Blinder with 48 High Power (4x12 RGB 1W) LEDs

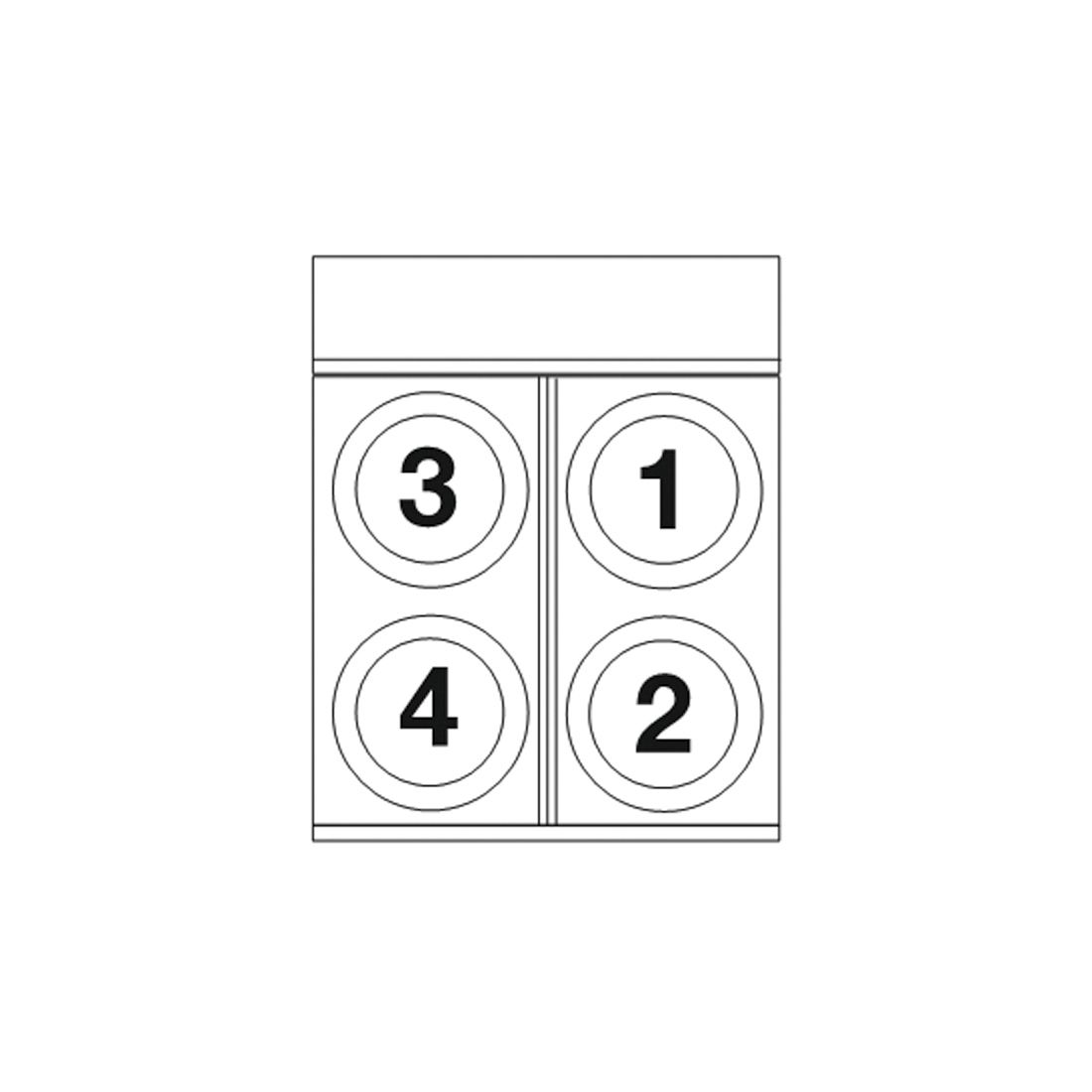

- single control of each LED panel
- 16 x red, 16 x green, 16 x blue LEDs
- Infinite Color Possibilities - additive RGB color mixing
- Built-in power and DMX-512 control
- 8 LCD Display menu for address and program select
- 24 Built-in programs
- LED lifetime > 50.000h
- 7 Channel or 12 Channel DMX Operation
- Stand alone functions: manual RGB control via control display, manual program select, auto mix, sound-to-light, operation via foot controller
- built-in microphone
- Locking Power connector In-/Output (1 meter cable included)
- 6,5mm Jack connector for foot controller
- 4ooHz refresh rate (suitable for TV-Productions)
- Locking DMX 3/5pin In-/Output
- Beam angle: 25°
- operation temperature: 0°C-40°C
- cooling: conventional effective cooling
- Housing: sturdy aluminium, lightweight
- Power Supply: 230V/50Hz (multi voltage supply 110V/60Hz)
- Power draw: 1A/230V (2A/110V)
- Dimensions(LxWxH): 369x250x369mm
- weight: 10,5kg

Specifications and documentation subject to change without notice
