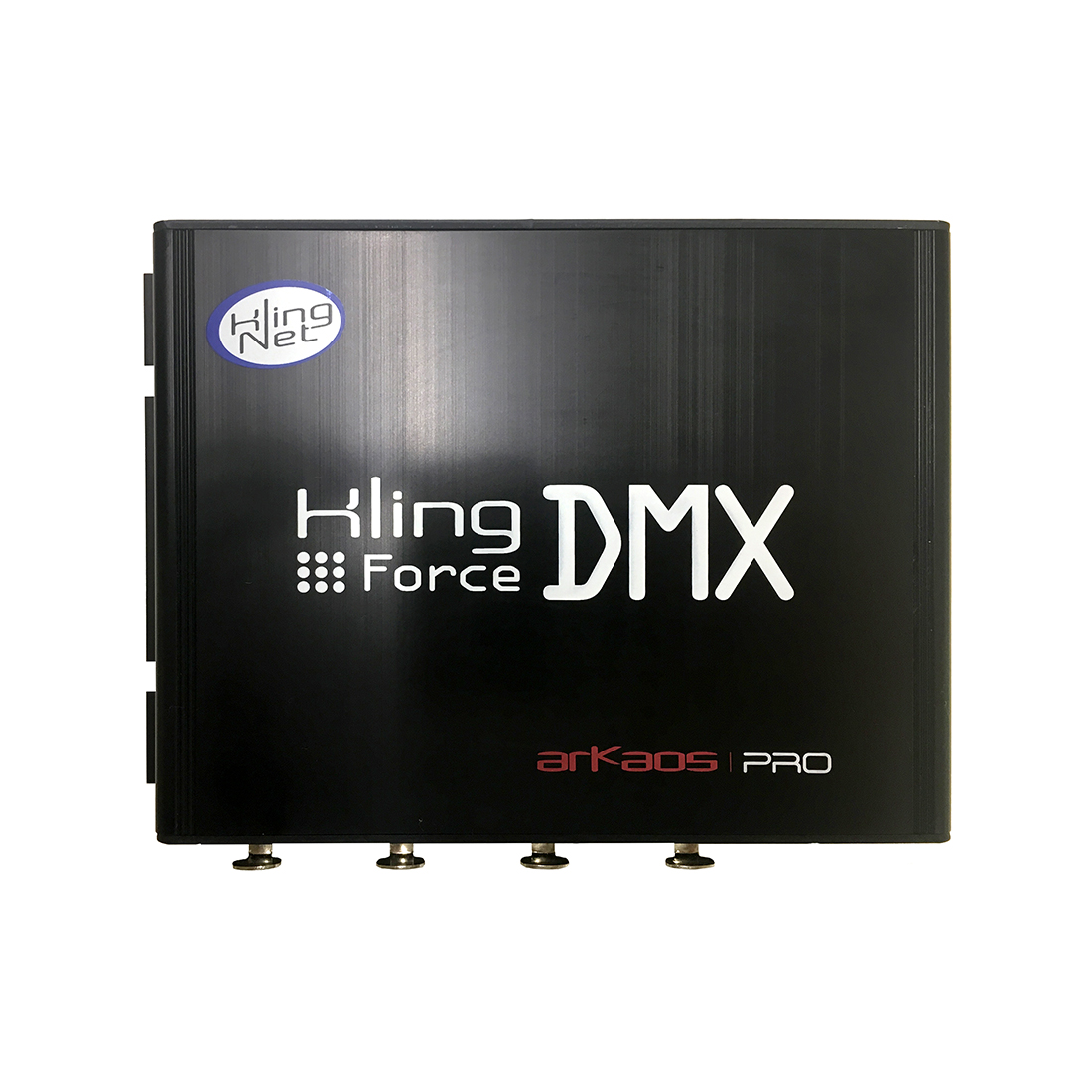

Kling Force DMX

Kling-Force is the new hardware platform built by ArKaos, around the combination of a powerful processor and a hardware network switch. It creates a robust and efficient Kling-Net network. This platform is daisy chainable to distribute video over Ethernet via plug and play and no complex setup is required. ArKaos introduces this new platform with two different interfaces: Kling-Force DMX and Kling-Force LED. Kling-Force DMX is an interface designed to drive traditional DMX Fixtures. Kling-Force DMX makes it easy and affordable to drive them from an ArKaos software acting as a media server. The Kling-Force DMX has 4 universes output. You can assign as many fixtures as will fit within each DMX universes. This is done in the mapper where the user can pick any DMX fixtures and assign them a DMX address. Once this is done the fixtures become available as a device in the Kling-Net mapper.

Technical Data

FEATURES

Drives up to 680 (4x512 DMX Channels) RGB LEDs
170 Pixels per DMX output
No Buttons or Display
Configuration Through KlingNET Mapper
Works with LEDMaster, MediaMaster Express and MediaMaster PRO


CONTROL/CONNECTIONS

4 Universes Output

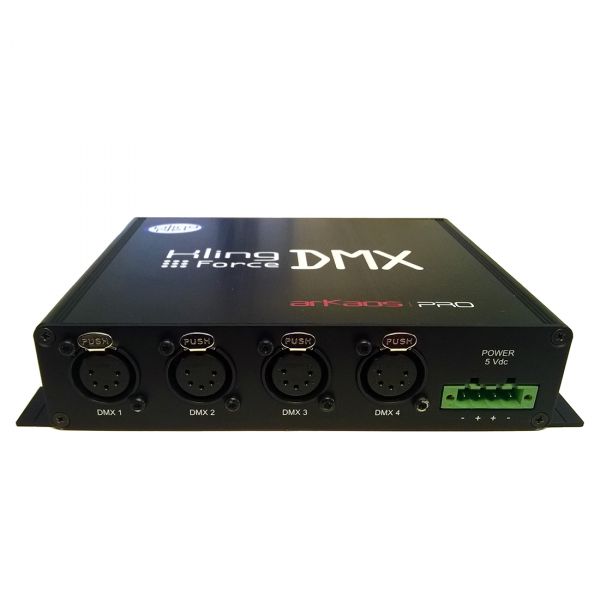

4 5pin DMX Out
2 RJ45 Network Ports
No Power Supply Provided (Requires 5V)


SIZE/WEIGHT

Length: 7.48” (190 mm)
Width: 5.12” (130 mm)
Vertical Height: 1.54” (39 mm)
Weight: 1.05 lbs. (0.48 kg)


Specifications and documentation subject to change without notice
