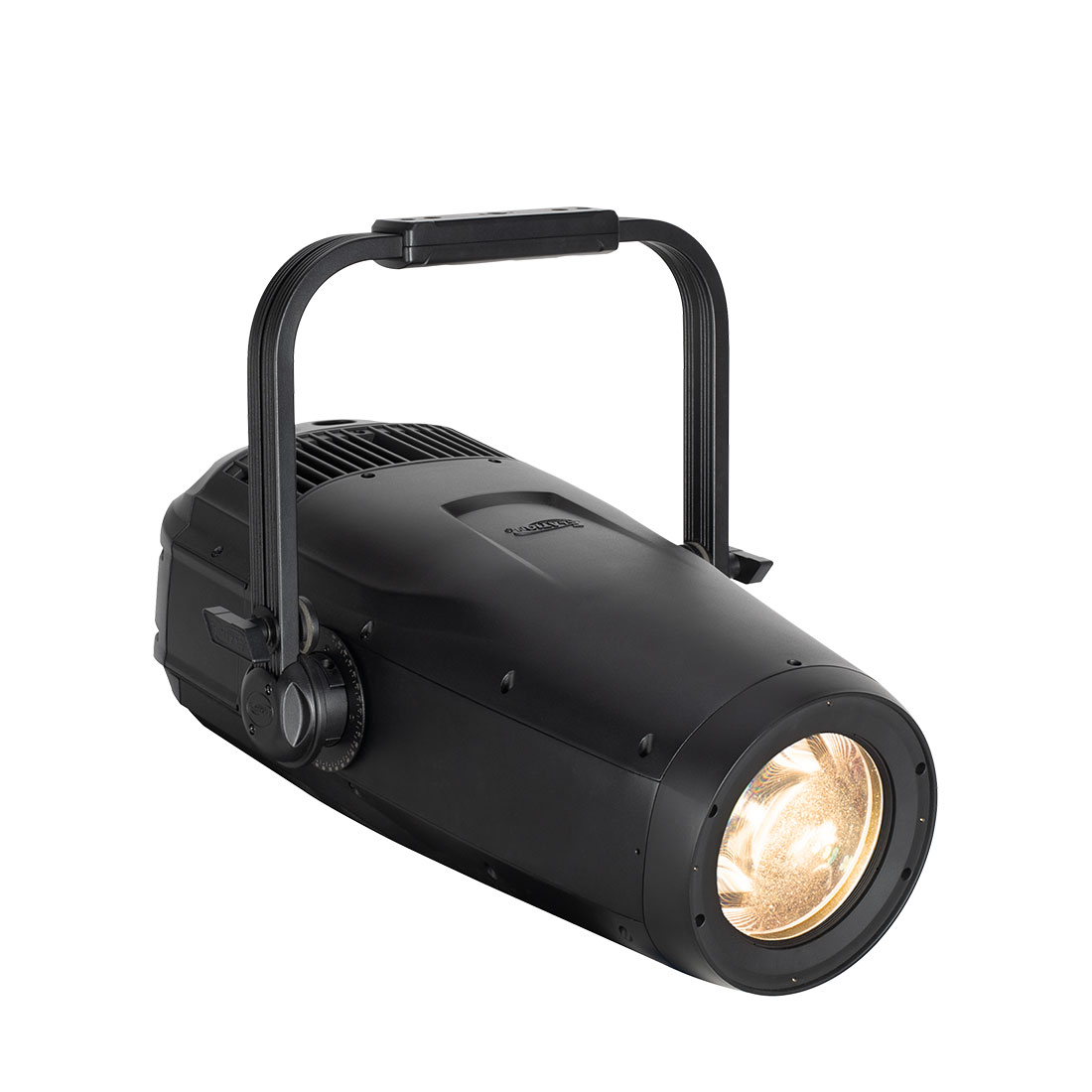

KL SPOT IP

The KL SPOT IP™ is an IP65 static LED spot fixture designed for a wide array of precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provide the designer with immediate access to the impressive LED color array.

The KL SPOT IP is designed for any application where fully automated static ellipsoidal fixture with outstanding and impactful color range and a flexible zoom range is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.

A rotating gobo wheel, fixed gobo wheel, animation wheel, frost and dual prism round out its comprehensive feature set in a compact IP65 rated fixture.

The optional framing module enhances the fixtures capabilities further with full blackout framing shutters, framing indexing and a motorized iris.

Technical Data

FEATURES

Static full featured automated IP65 spot fixture
Extended color RGBMA LED Engine, 92 CRI
Rotating and Fixed Gobos plus Animation Wheel
Dual Prisms and Frost
Wide Zoom Range from 7° to 50°
Optional Motorized Framing/Iris Module

SOURCE

305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

10,600 Total Lumen Output
CRI 92
Zoom Range 7° - 50°

EFFECTS

Motorized Zoom
Variable Frost Filter
4 Facet Round, 4 Facet Linear Prism
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
Optional Framing/Iris Module

COLOR

RGBMA Color Array
CMY and RGB Emulation Modes
Virtual Color Correction 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

GOBOS

1x 6 Rotating / Indexing Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel

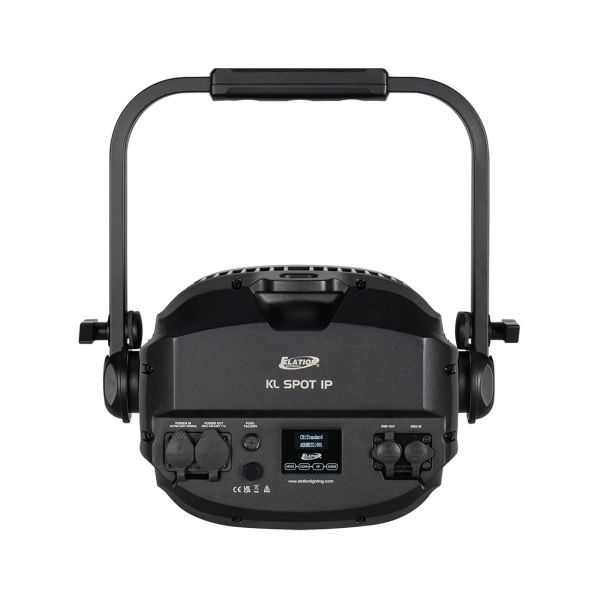

CONTROL / CONNECTIONS

6 DMX Channel Modes (24/32) RGB or CMY (22/28)
6 DMX Channel Modes (Framing) (34/50) RGB or CMY (32/46)
16-bit Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
IP65 5pin DMX In/Out
IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length (Fixture Body): 242.0mm (9.5")
Length (Yoke 90°): 442.5mm (17.4")
Width: 445.5mm (17.5”)
Height: 559.2mm (23.6")
Height (Yoke 0°): 662.9mm (26.1”)
Weight: 23.2kg (51.1 lbs)
Weight (with Framing Module) 25kg (55.1lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
448W Max Power Consumption
Power Thru Capacity: 11A (2 units @115V, 5 units @240V)
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1406.7

INCLUDED ITEMS

IP65 Locking Power Cable

OPTIONAL ITEMS

Motorized Framing and Iris Module

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

COLORS AND GOBOS

Gobo Wheel 1
Gobo 18
Gobo 21
Gobo 22
Gobo 66
Gobo 126
Gobo 127
Gobo Wheel 2
Gobo 23
Gobo 24
Gobo 25
Gobo 34
Gobo 80
Gobo 128
Gobo 129
Animation Wheel
Animation Wheel 5
