IPC415

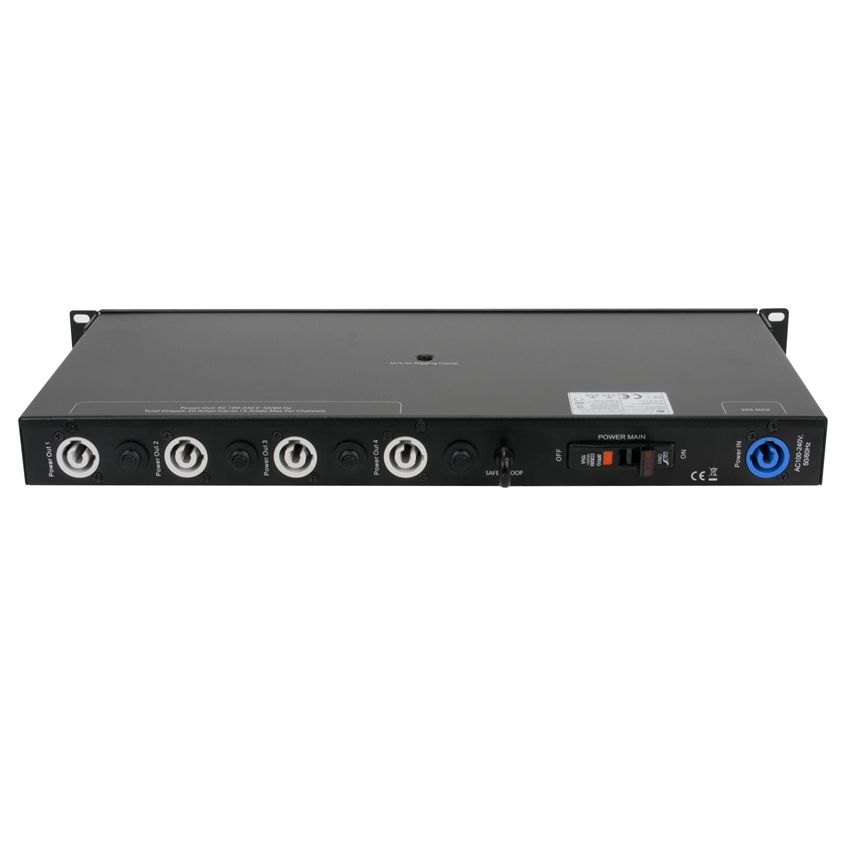

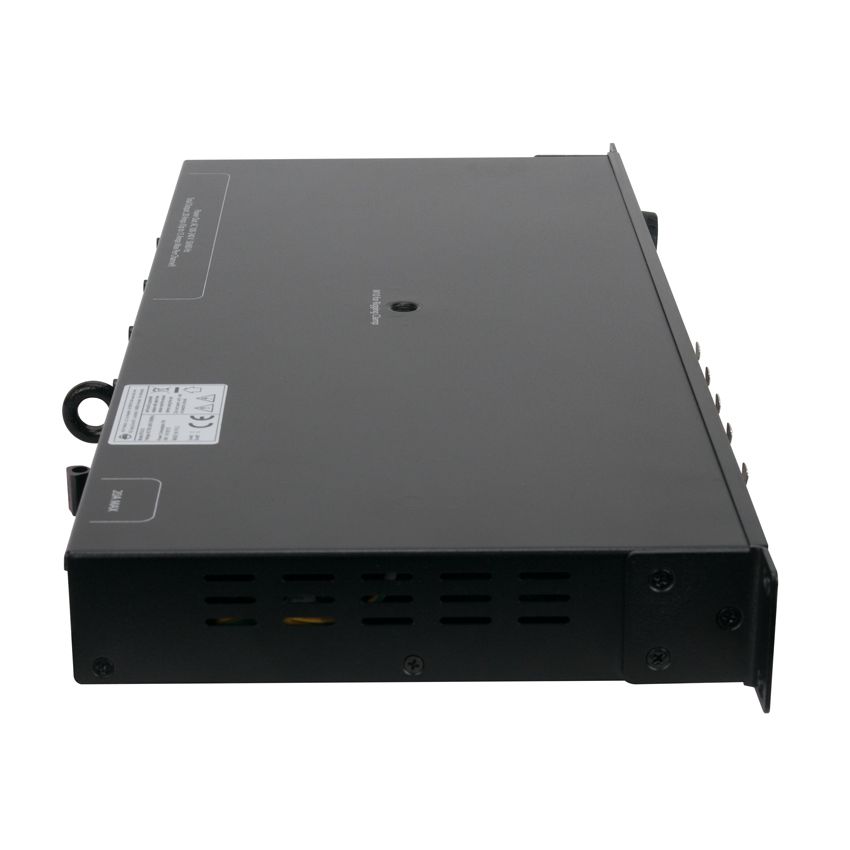

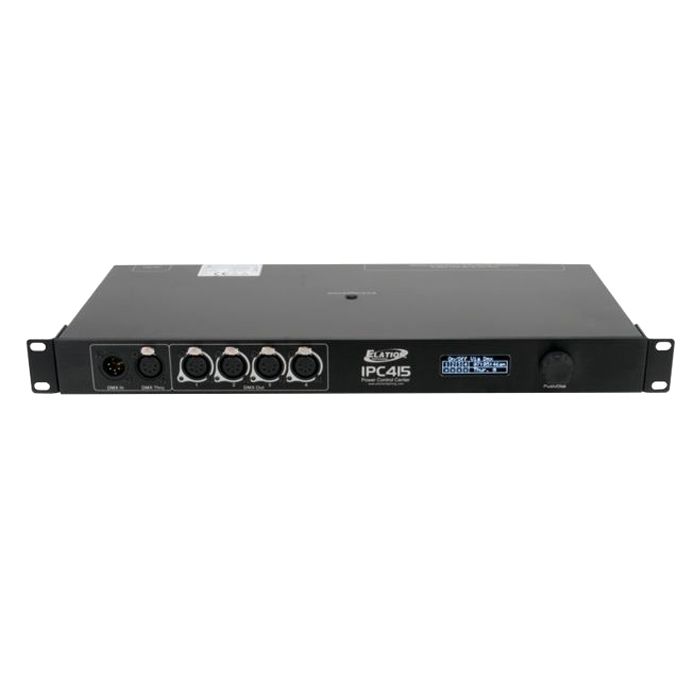

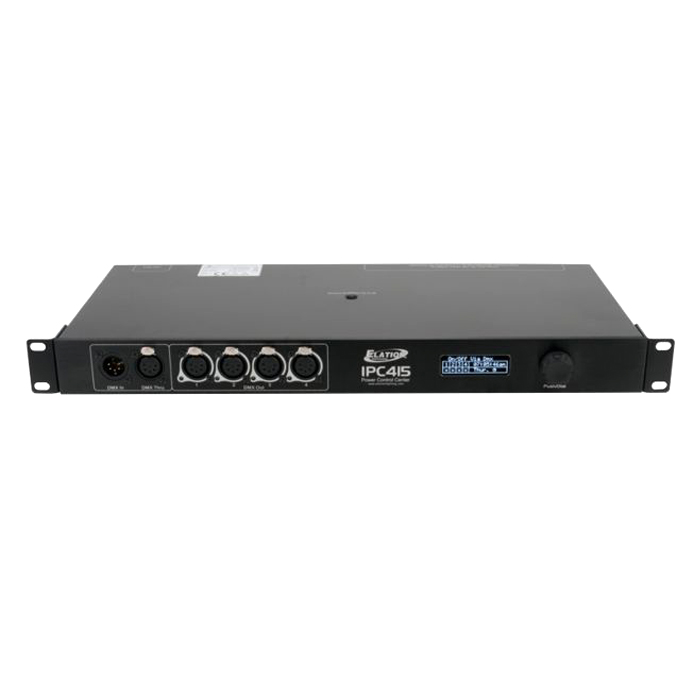

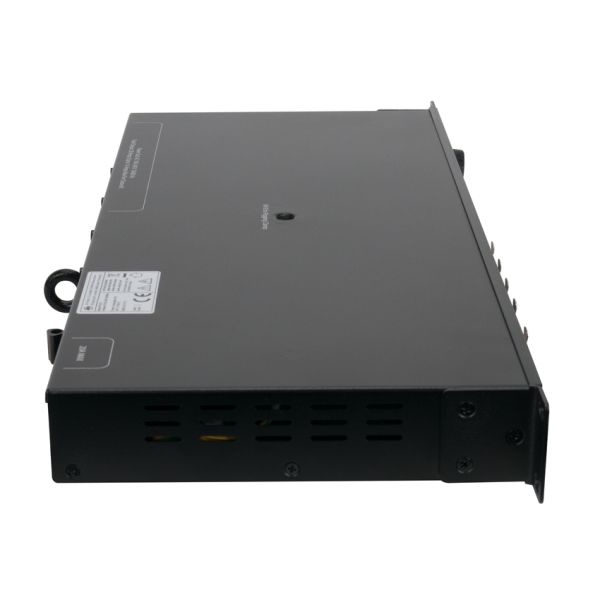

The IPC415™ is a 19” rack mountable intelligent DMX power control center, featuring 4 locking power outputs (15A each), 4 5pin XLR DMX outputs, 1 5pin XLR DMX input and 1 5pin XLR DMX through and a multi-voltage universal auto switching power supply (100-240v 50/60Hz). Power to the power outputs can be scheduled to automatically switch On/Off via an internal scheduler when DMX signal is lost or when a specific cue is triggered from a DMX console. The IPC415™ can be mounted with the 19” rackmounts or truss mounted using a clamp (not included) attached to the M10 rigging point in the center of the unit.

Technical Data

FEATURES

2 DMX Control Modes (1 / 4)
Internal On/Off Scheduler
Locking 5pin XLR DMX Input
Locking 5pin XLR DMX Output (Thru-put)
4 locking 5pin XLR DMX Outputs
4 locking power 15 amp Outputs
Main 20 amp Power Switch
Locking power Input
19-Inch Rack Mount Ears (included)
M10 Rigging Center Point for Truss Mounting (clamp not included)

CONTROL / CONNECTIONS

(2) DMX Channel Modes (1 /4)
Push Button / Encoder Wheel
Internal On/Off Scheduler
OLED Control Menu Display
Locking 5pin XLR DMX Input
Locking 5pin XLR DMX Output (Thru-put)
4 locking 5pin XLR DMX Outputs
4 locking power 15 amp Outputs
Main 20 amp Power Switch
Locking power Input

SIZE / WEIGHT

Length: 19.0” (482mm)
Width: 9.1” (232mm)
Vertical Height: 1.7” (44mm)
Weight: 6.6 lbs. (3.0kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
7W Max Power Consumption (No Devices Connected)
35°F (2°C) to 113°F (45°C)

INCLUDED ITEMS

Rack Ears (fits standard 19-inch single rack space)

Specifications and documentation subject to change without notice
