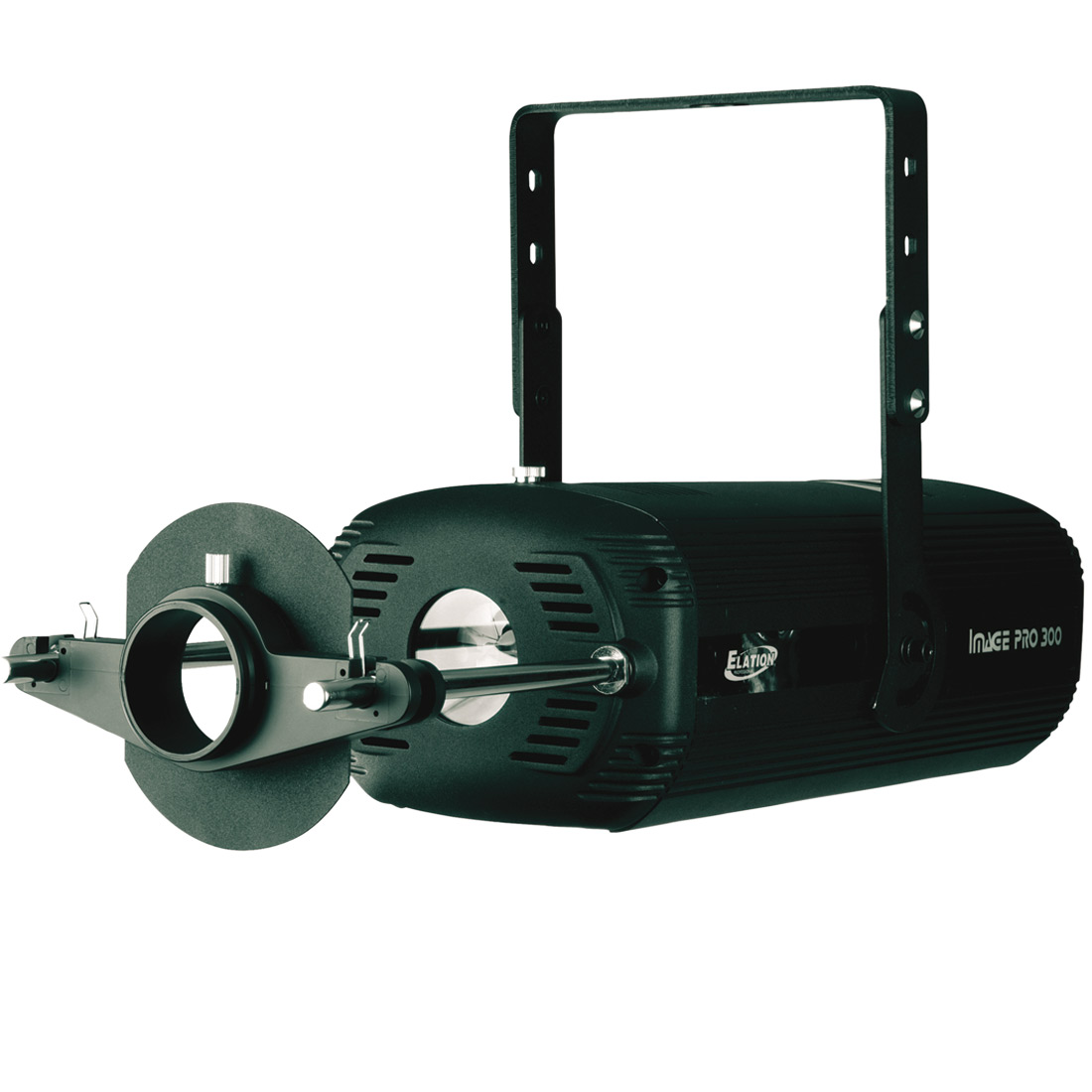

Image PRO 300 IIArchive

Code 1231000003

Technical Data

- Ultra bright HTI 300 discharge lamp
- 32° projection angle
- 1:2,4 projection lens
- Anti reflex coated lenses
- Double condenser optics
- Gobo holder built-in
- Huge accessory range

Specifications

- High output gobo projector
- Excellent optics
- Extruded aluminum body
- Multi-position steel hanging bracket
- 2 x 24V AC self-powered guides for accessories
- Forced air ventilation with axial fan
- Lamp: OS 300W HTI 300W /DEL SFc10-4 - standard (not incl.)

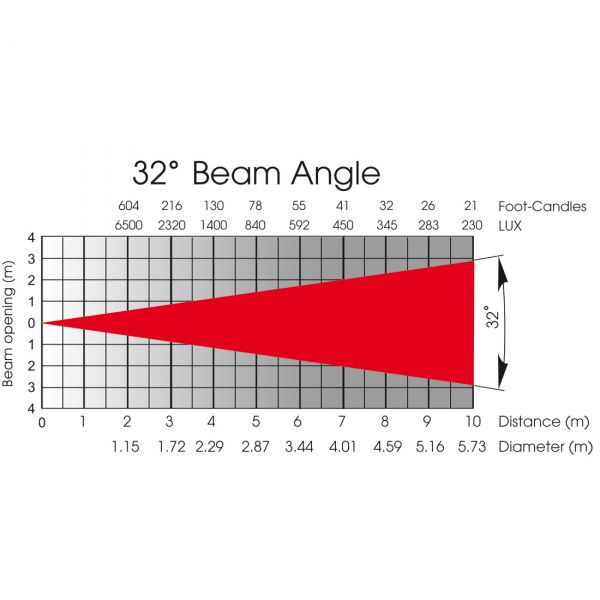

- 32 degree beam angle
- Anti-reflective coated lenses
- Twin lens condenser and spherical mirror
- Dimensions: 610 x 165 x 127mm
- Weight: 10.6 kg (Assembled without accessories)
- Power Supply: 230V 50hz
- Power Consumption: 2 AMPS

Accessories (Included)

- Slide Cooling Fan
- 1:2.4/100mm projection lens
- Image-IPI: Static metal gobo holder + 5 metal gobos
- Outside diameter: 51.8mm. Viewing image: 35.5mm

Specifications and documentation subject to change without notice
