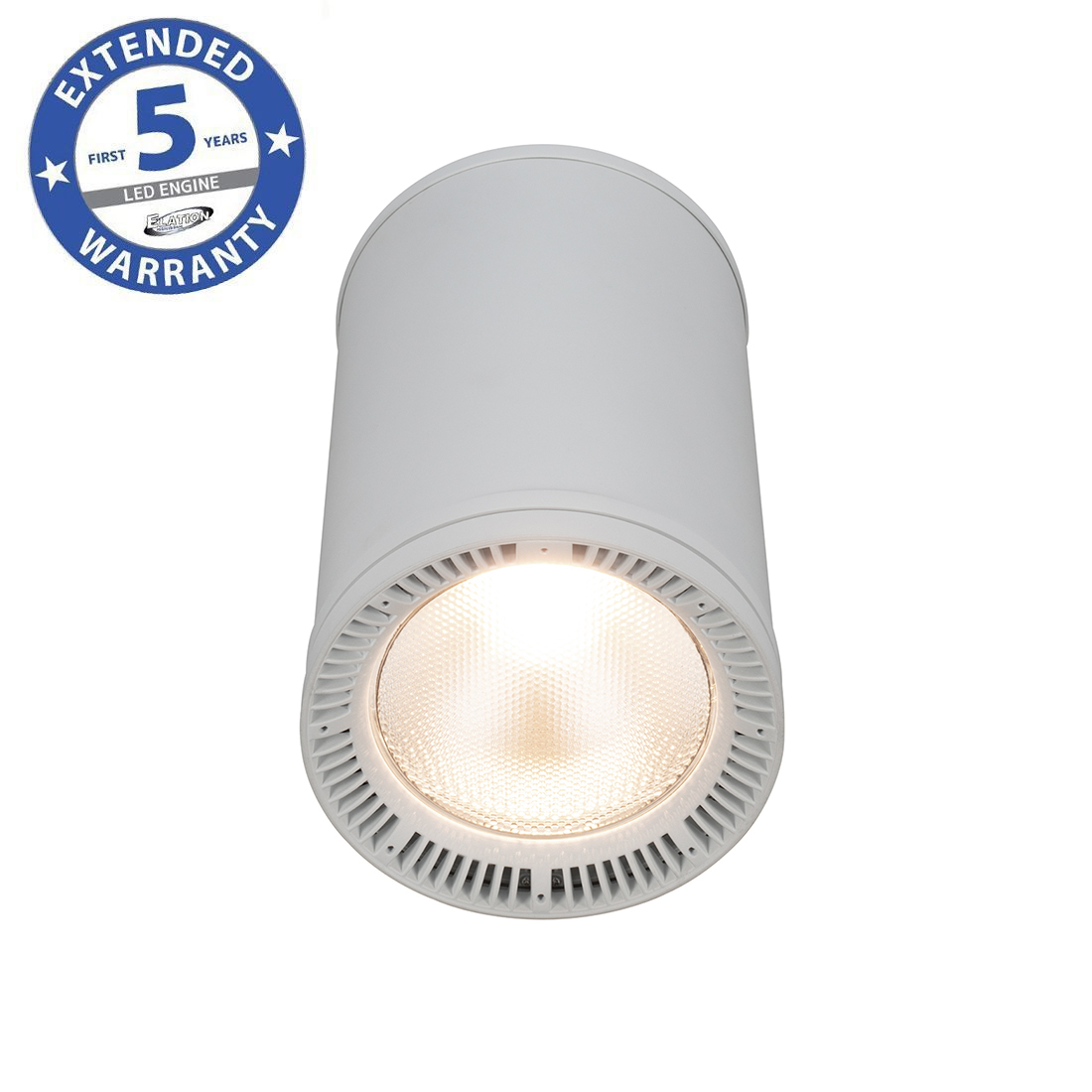

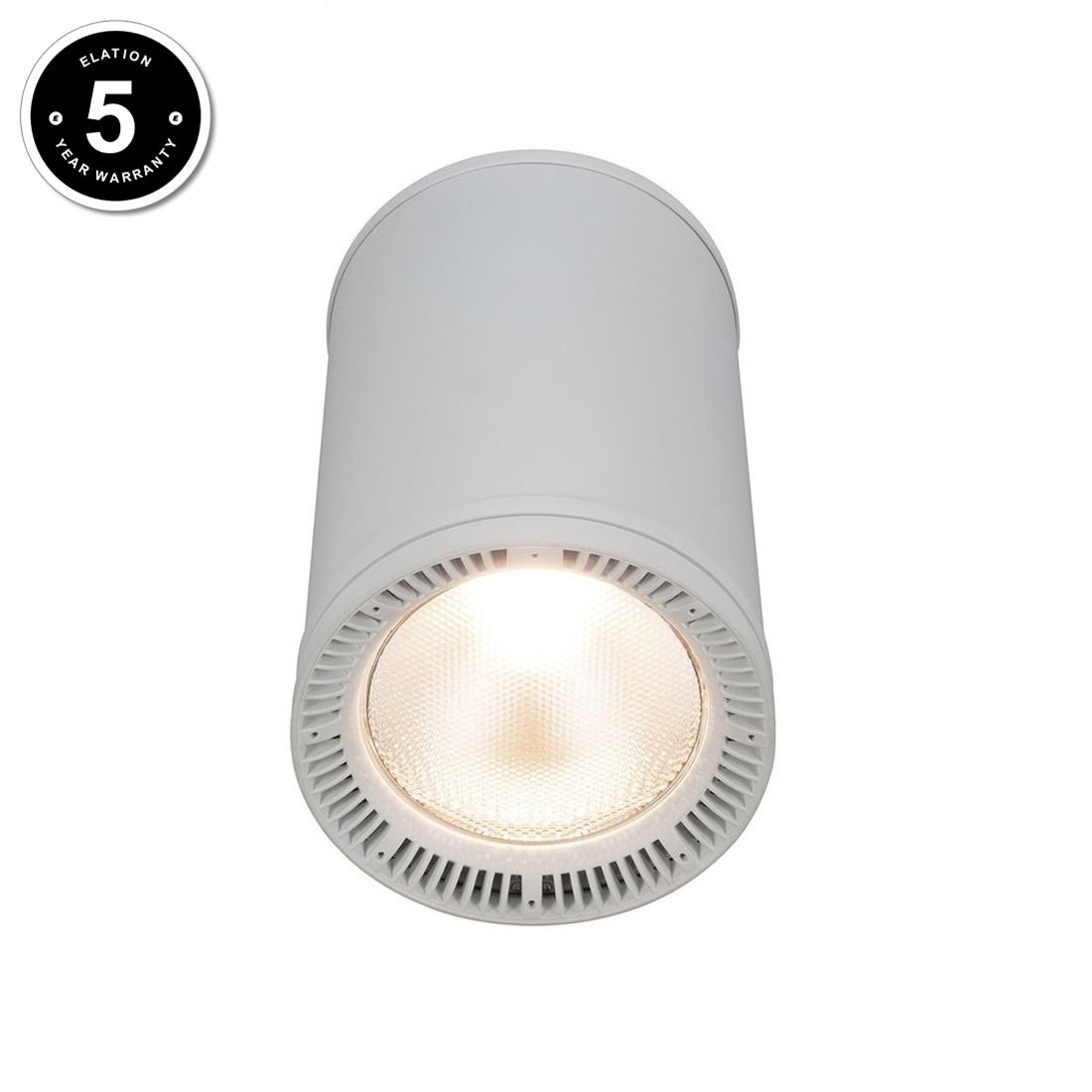

Fuze Pendant WH

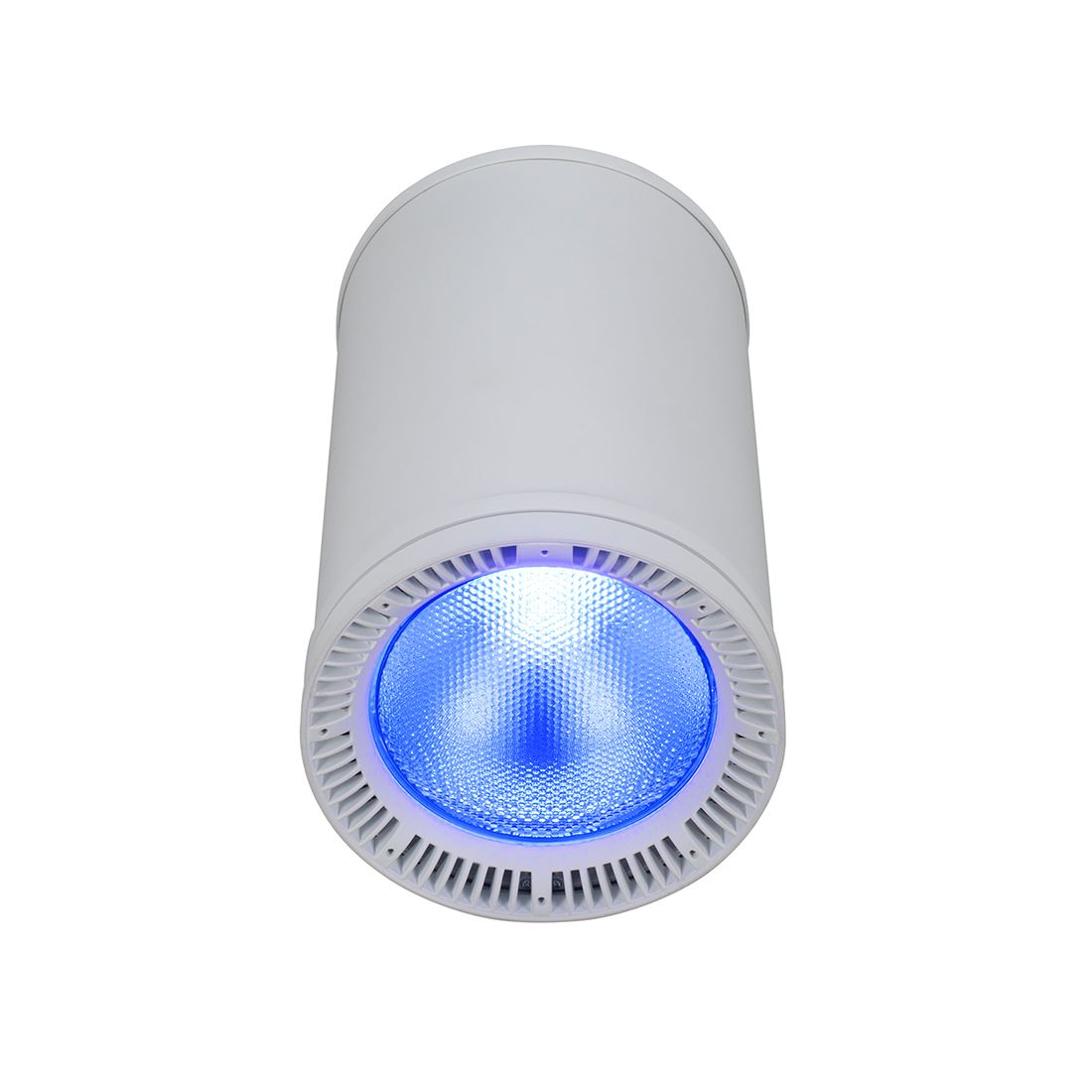

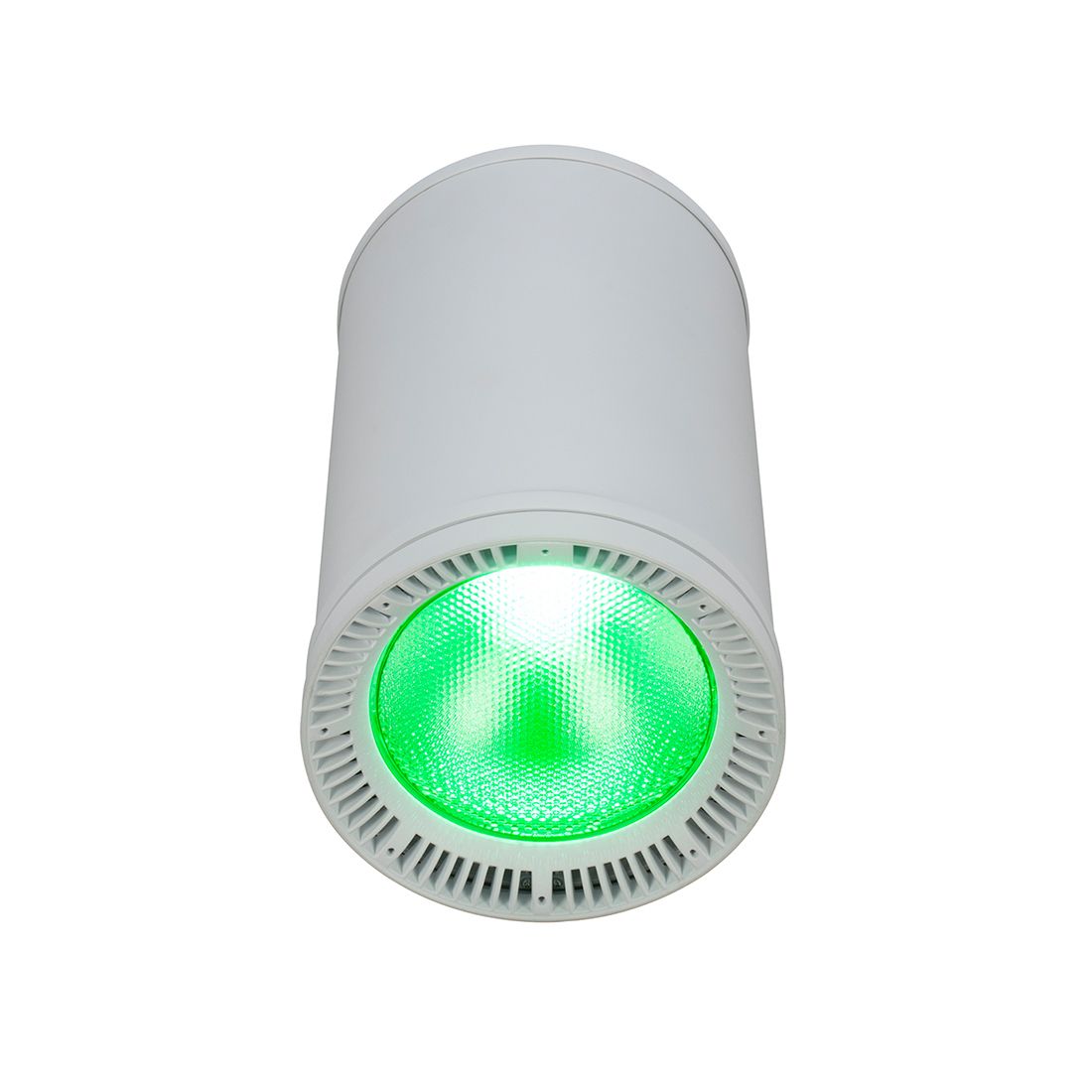

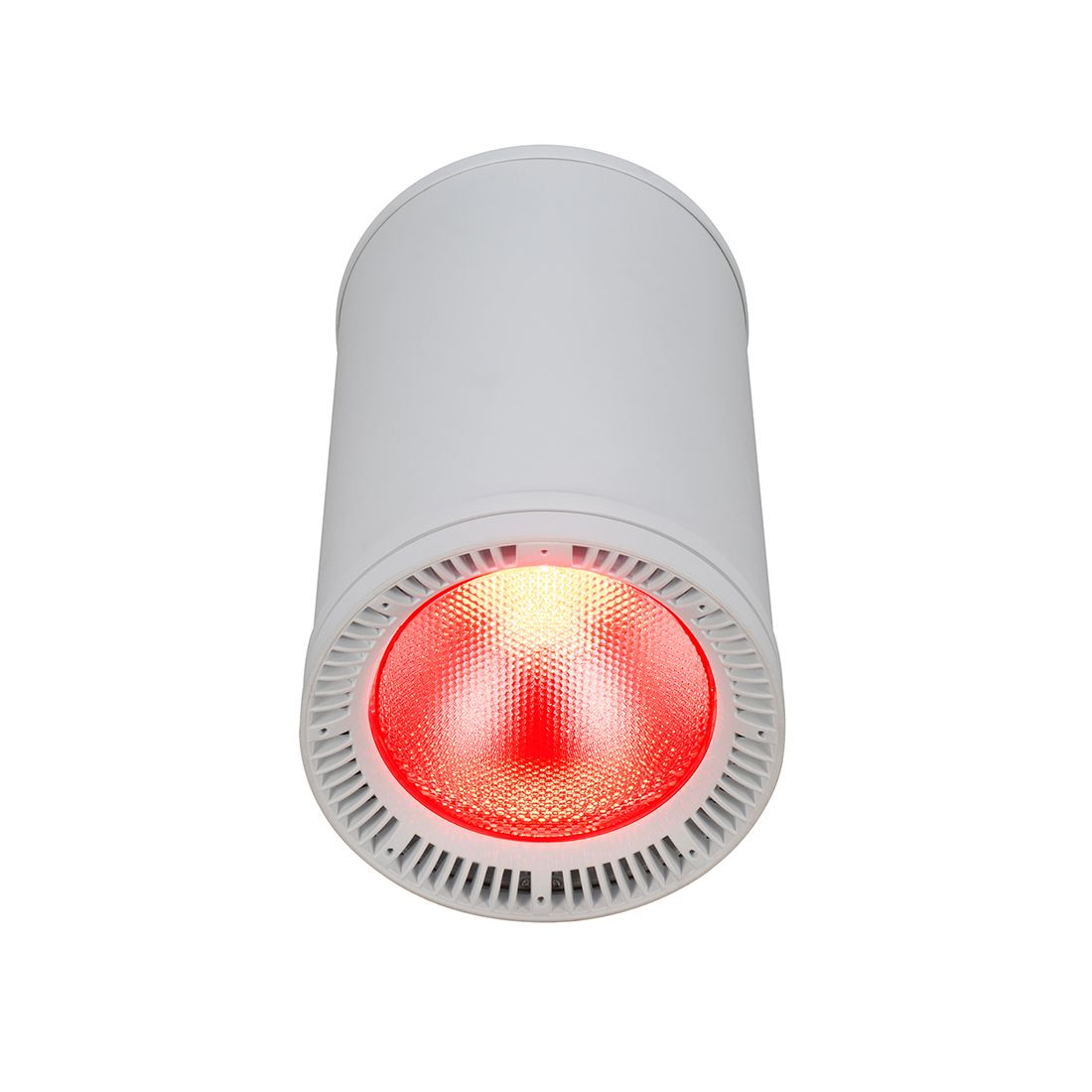

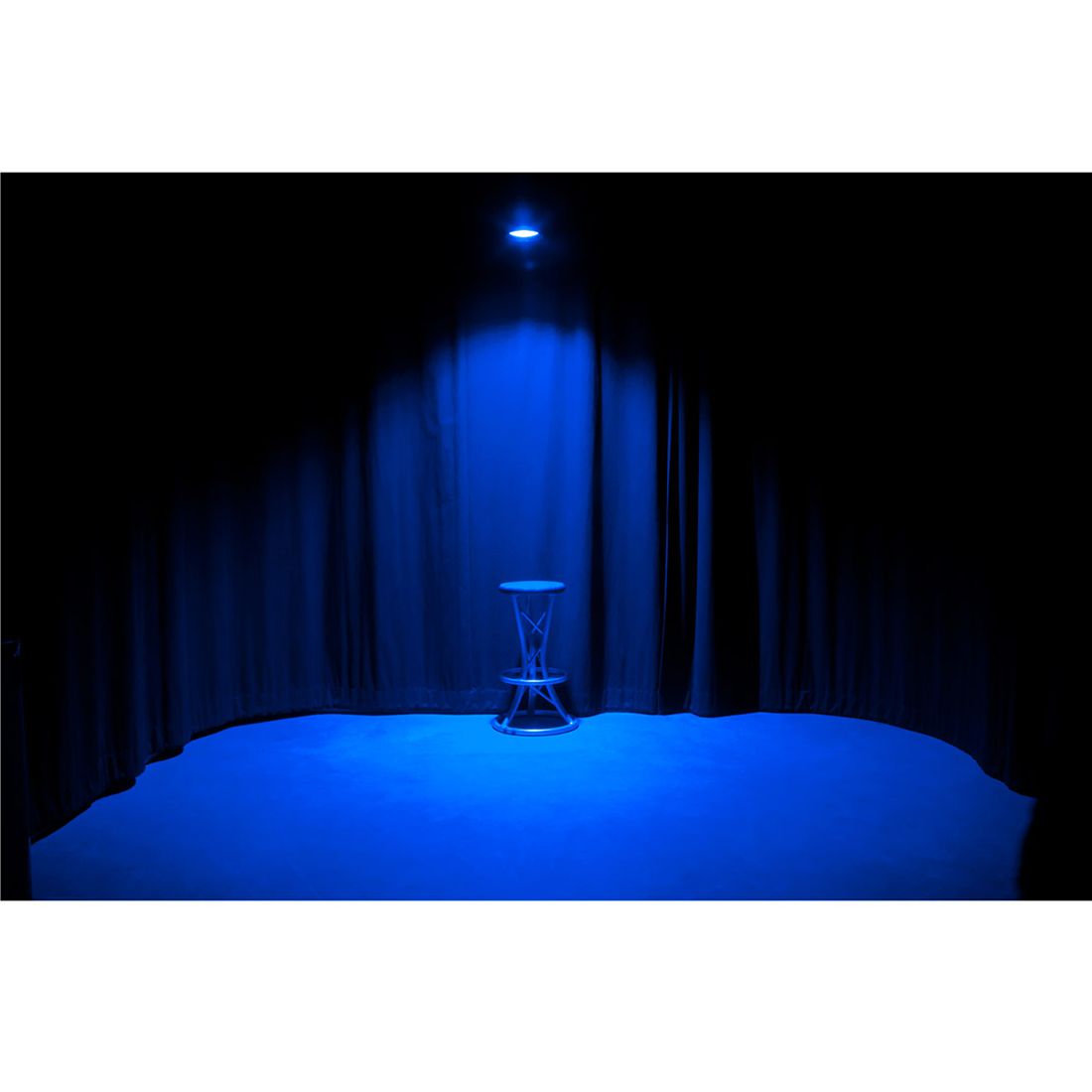

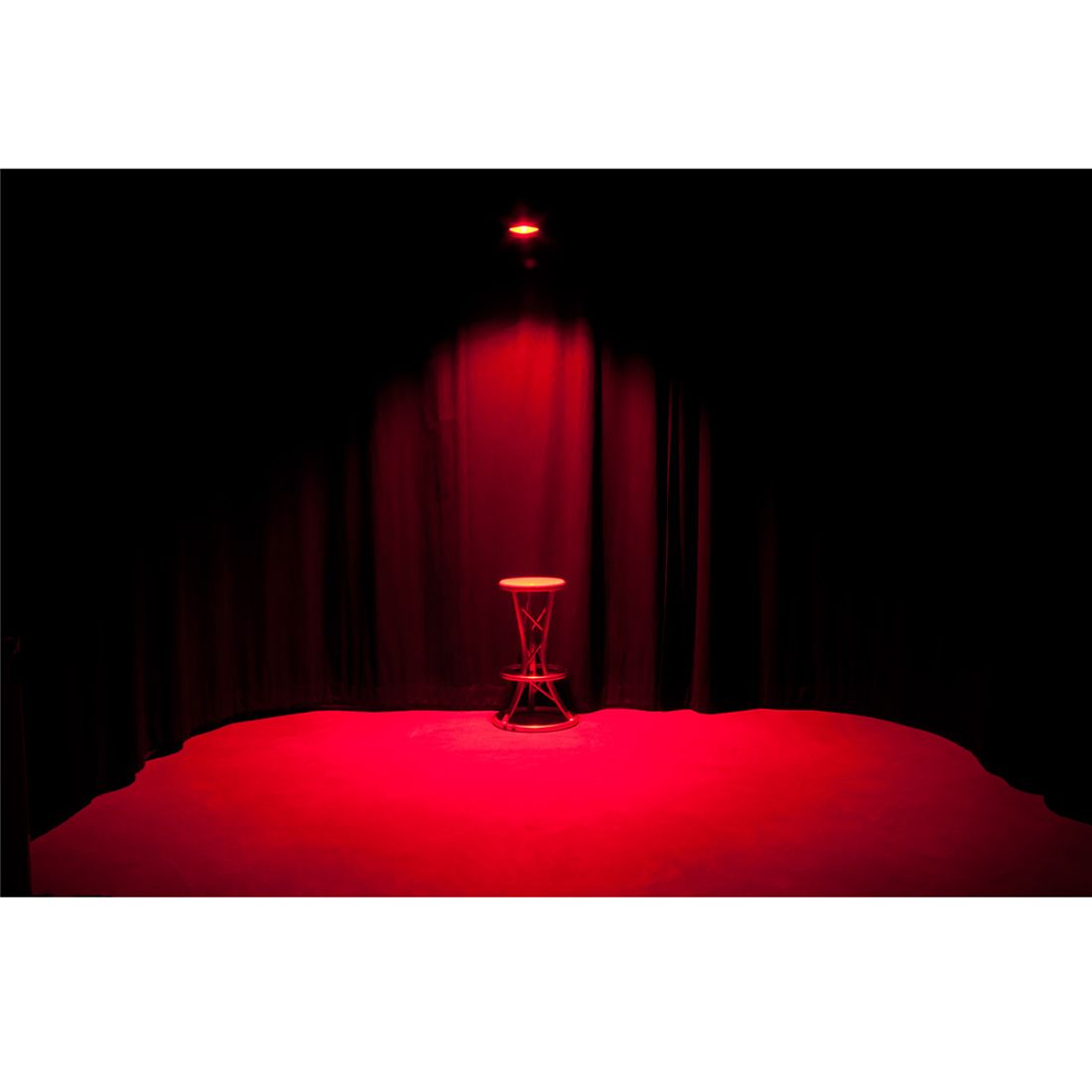

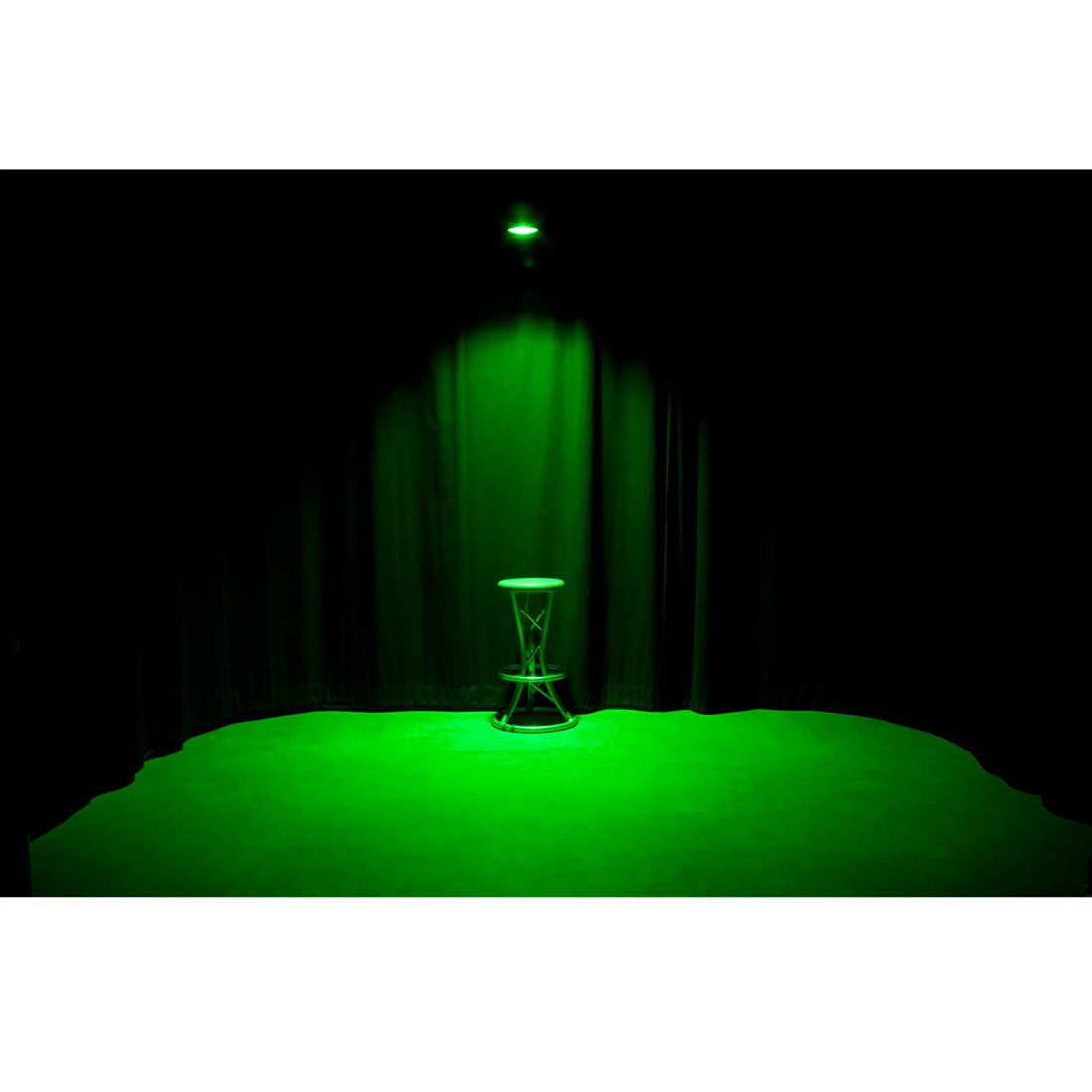

The FUZE PENDANT WH™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 11,000 lumens, the FUZE PENDANT WH is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.
A variety of lens choices (45° included, 25°, 40°, 50 or 100° optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.

Technical Data

FEATURES

Full Spectrum 230W 5-in-1 LED Array
2400 - 8500K Color Temperature
CRI 90 @ 3,200K
11,000 Total Lumen Fixture Output
45° Lens Included
Optional 25, 40, 50 and 100 Degree Lenses Available
Compact Fanless Design
DMX, RDM, 0-10V and E-FLY Wireless Support
48V Emergency Battery Input
Bare Wire Block Terminal Connections (connectors included)

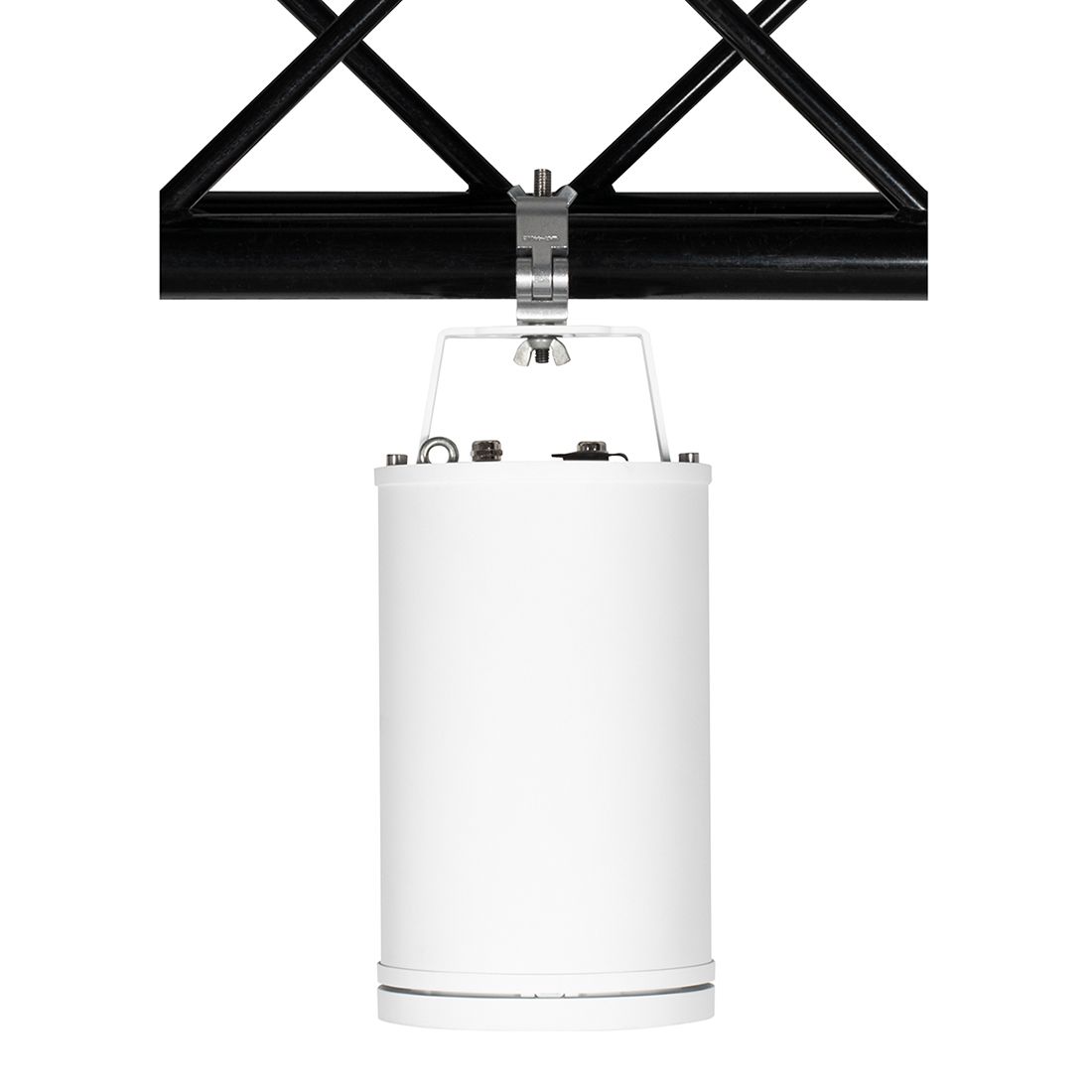

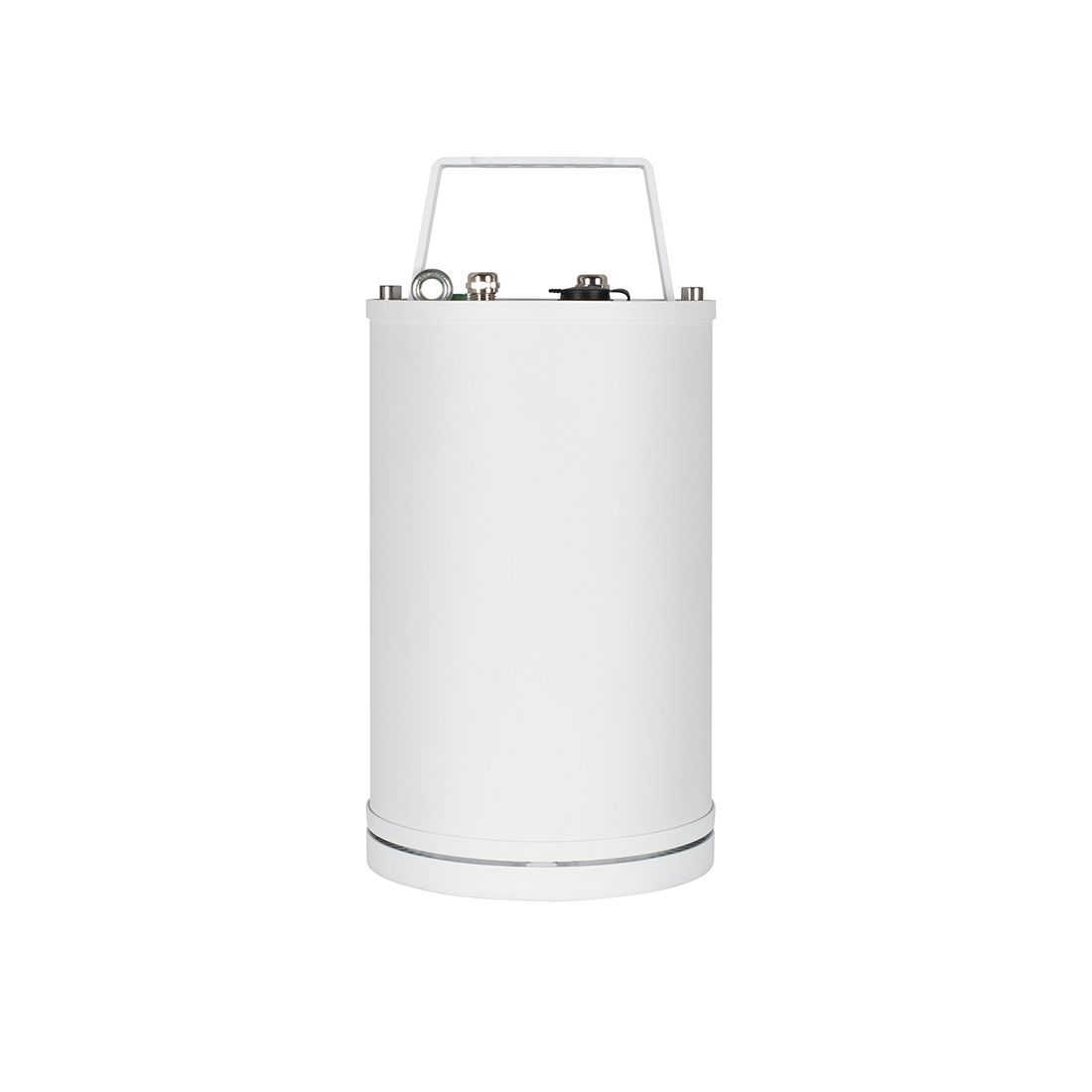

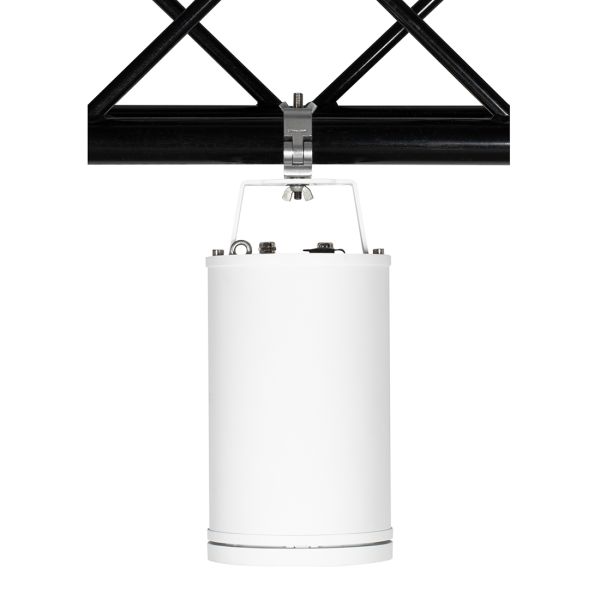

Pendant Bracket (included)


SPECIFICATIONS

SOURCE

230W 5-in-1 RGBWL (Red, Green, Blue, White, Lime) LED Array
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

11,000 Total Lumen Fixture Output
CRI 90 @ 3,200K
45° Lens Included

EFFECTS

Color Temperature Control 2400K - 8500K
Virtual Color Swatch Book
Dimmer, Dimmer Color, RGBWL, RGBWL 16-Bit, Standard, Extended, HSI & HSI Extended Control Options
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX and Menu adjustable LED Refresh Rate Frequency

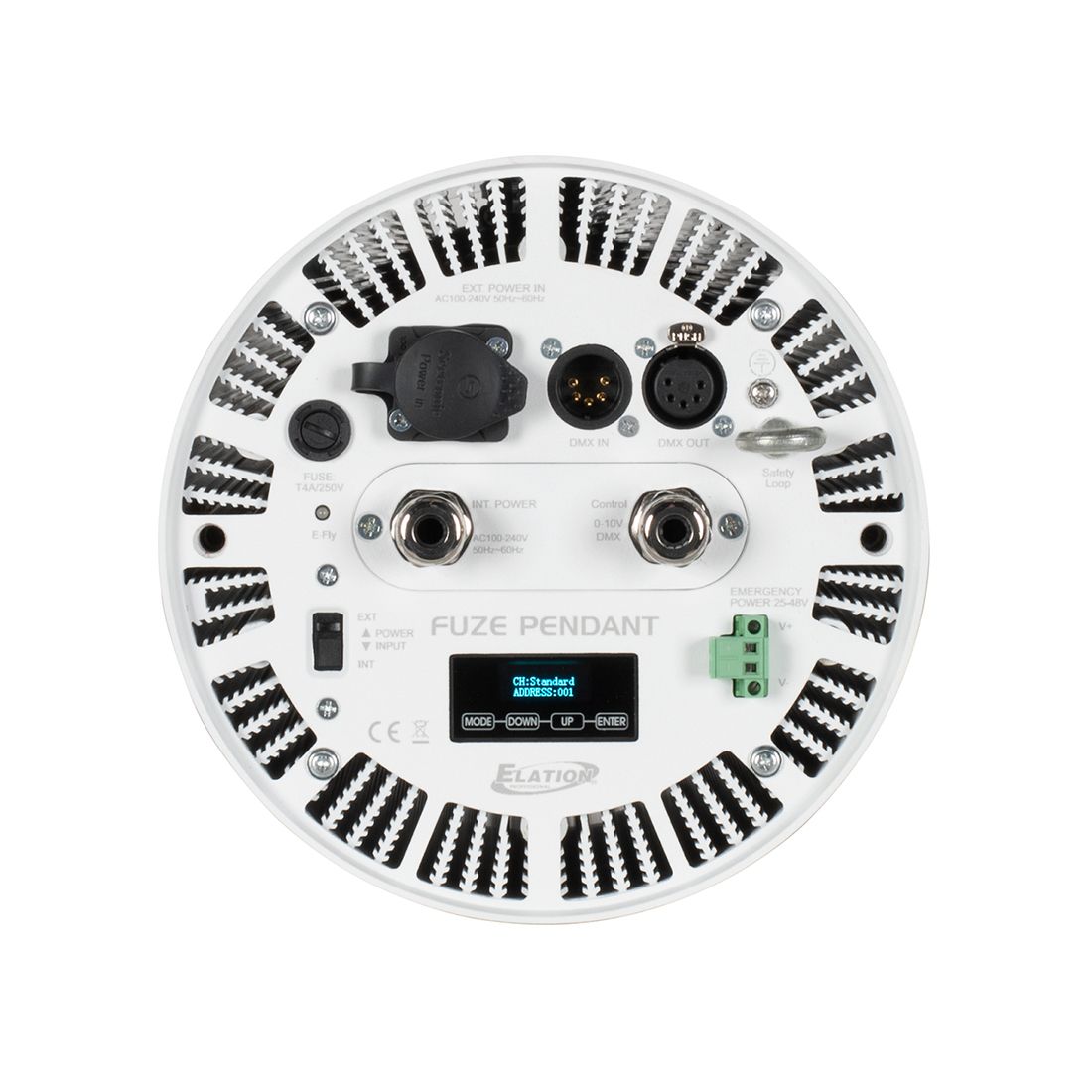

CONTROL / CONNECTIONS

8 DMX Channel Modes
Standalone and Primary, Secondary Modes
RDM (Remote Device Management)
0-10V Dimming (Current-Sink)
E-FLY™ Internal Extended Range Wireless DMX Transceiver
4 Button Control Panel and OLED Menu Display
Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In

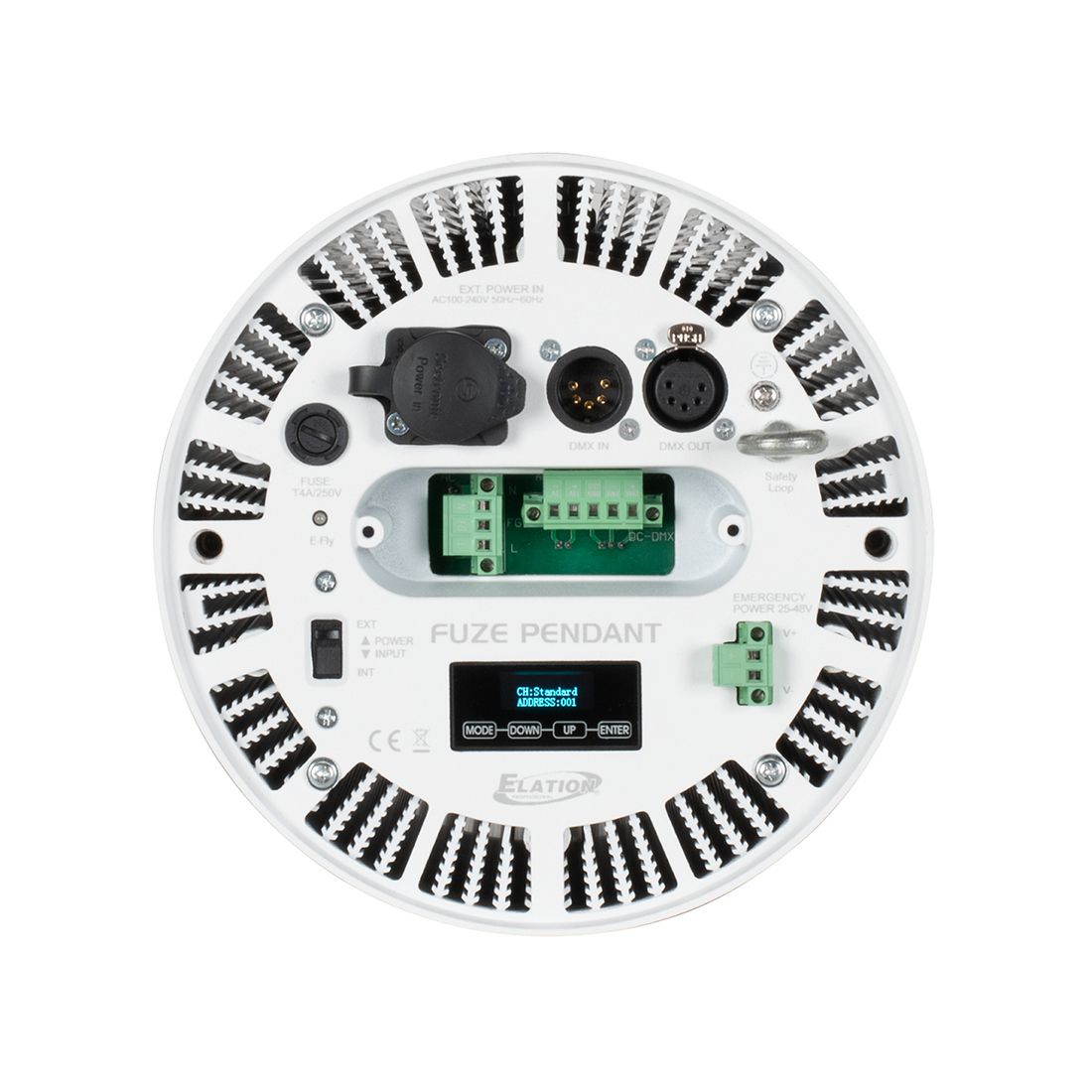

3pin Wire Terminal Block (12-24 AWG (4.0 - 0.25 mm2)
5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm2)
2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm2)

SIZE / WEIGHT

Length: 318mm (12.5")
Diameter: 197mm (7.8")
Weight: 7.2 kg (15.8lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
Max Power Consumption 230W
-10°C to 45°C (14°F to 113°F)

OPTIONAL ACCESSORIES

1237000229 - 25°   Lens
1237000243 - 40°   Lens
1237000228 - 50°   Lens
1237000269 - 100° Lens


FIRMWARE UPDATES

Current Firmware can be found here (login required)

Specifications and documentation subject to change without notice
