FLEX Y WP Flexstrip LED Lite yellow, 6mArchive

Code 1226300009

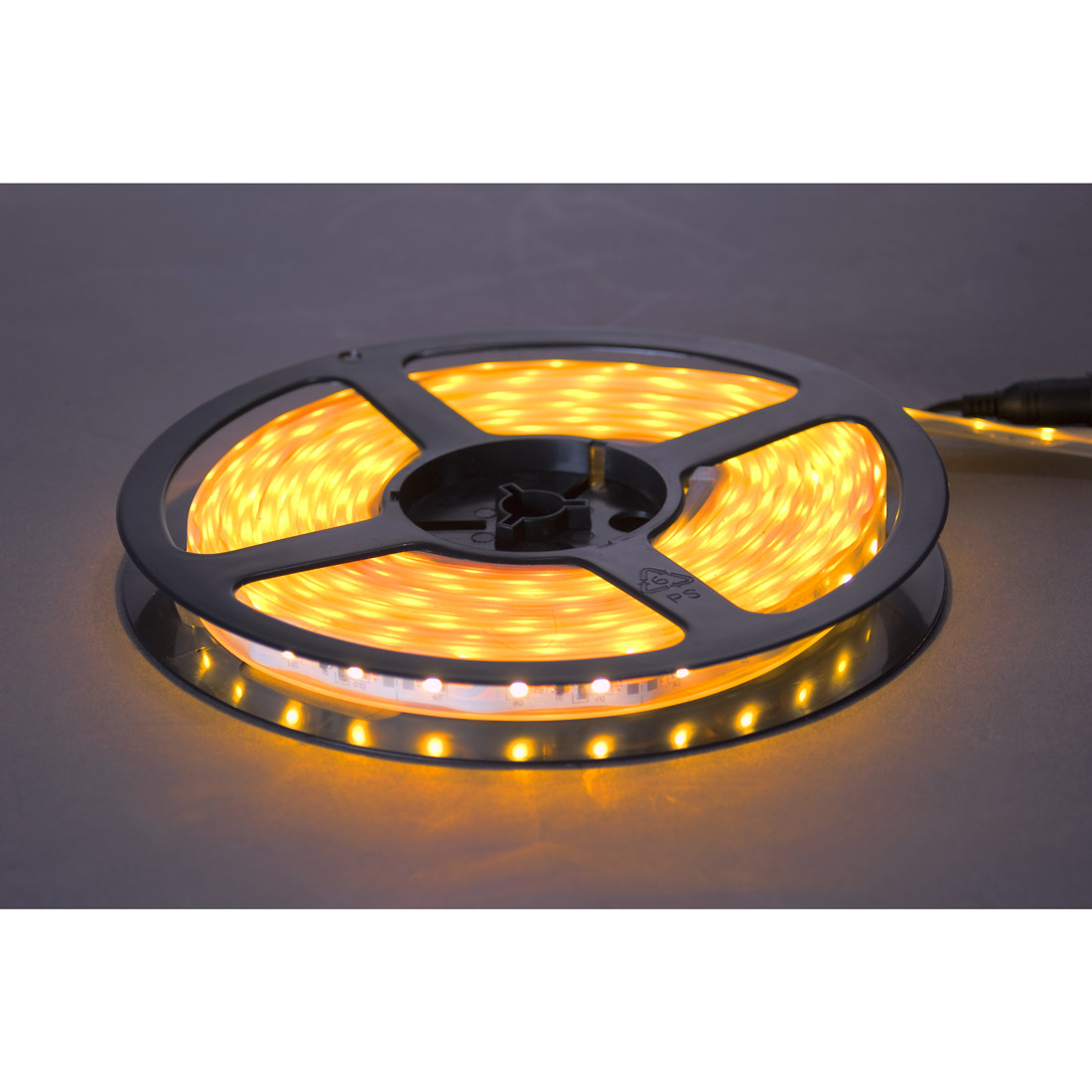

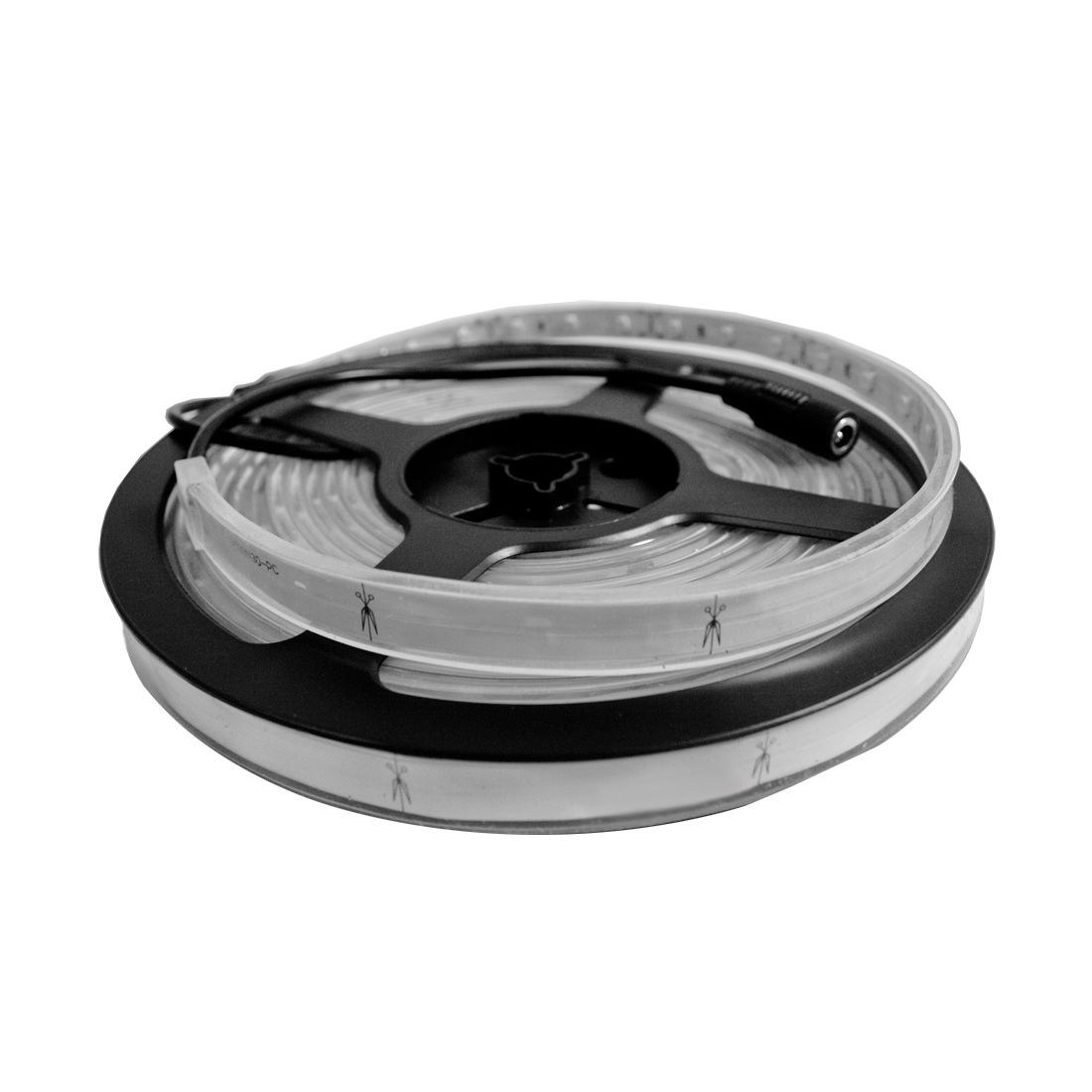

FLEX Y WP Flexstrip LED Lite yellow, 6m

Technical Data

- 360 High Quality SMD LEDs on 6m
- 16,6mm LED pitch
- 120° light dispersion
- Flexible and dividable
- Can be twisted, bended, rolled, etc.
- Extreme wide temperature range
- Waterproof, IP65

Extreme bright and flexible LED Tape, 6m long with 360 yellow/amber SMD-LEDs


- 6m roll, 11,5mm wide
- 16,6mm space between the LEDs
- dividable each 50mm = 3 LEDs
- bright and saturated color
- Voltage: 12 V
- Beam angle: 120°
- Operating Temperature -30°C to 80°C
- Rated power: 5W/meter
- Total power consumption 6m: 29W
- Avg. Rated Life - 30,000hrs
- LED Spacing - 16.6mm (.65")
- Dimensions - 11.5mm (.45") W x 1,5mm (.005") D
- to use the LED Tape, an optional DC power supply, e.g. Flex PSU4A, is needed.

Package contains:

- 1x 6m roll FLEX LED Tape
- 1x Connector to the power supply which needs to be soldered to the FLEX Tap

Specifications and documentation subject to change without notice
