- Ultrabright RGB Pixel Technology
- 37.5 mm Pixel Pitch
- 2000 nits Luminosity
- 256 Pixel Per Tile
- Very Light Weight
- Flexible Mounting System
- IP 65 Waterproof

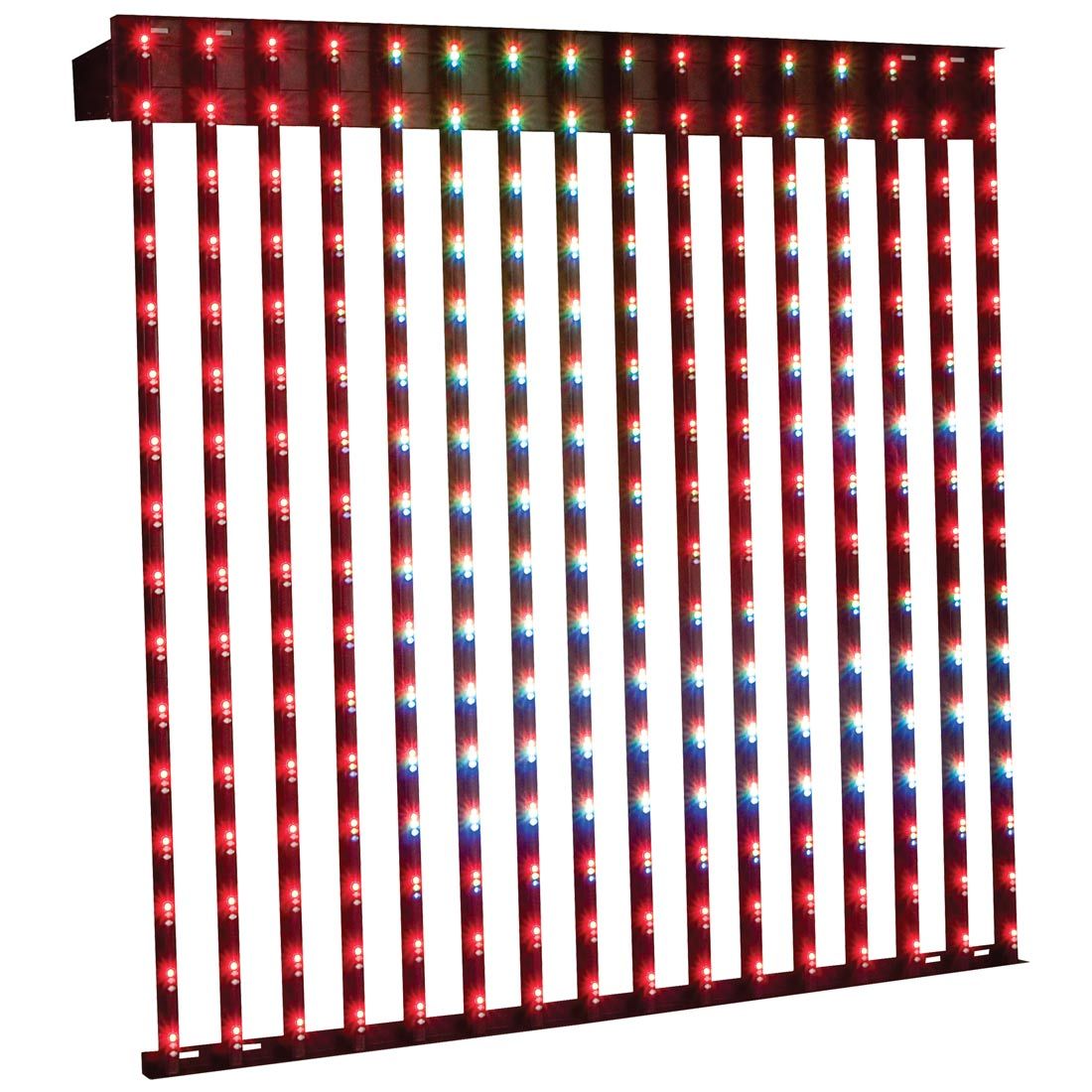

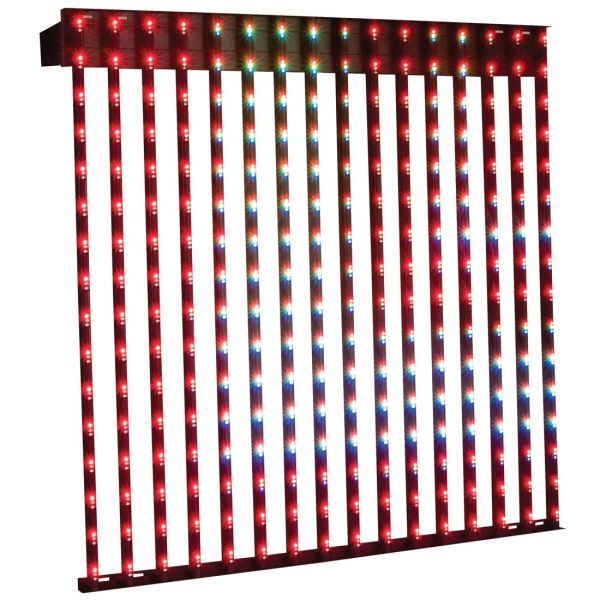

Ideal for both Outdoor and Indoor video display, the EVLED Strip Video Screen is a light weight, plug and play Video Mesh Tile module system using RGB LED`s capable of outputting up to 16.7 million colors. It is easy to handle, super-thin, semitransparent design makes it ideal for small or large applications. Integrated rigging fly support hardware and easy of set up make this system ideal for a variety of portable or permanent applications. Aluminum-alloy construction makes it rugged and durable. The product comes available in 37.5mm 18.75mm pitch resolution. Connect up to 1,000 Tiles from one Ethernet based input signal from our EVELED VSC processor and software makes set up and control easy. Road cases and rigging hardware are optional.

Specifications

- Light Weight Low Resolution Transparent LED Video Screen
- Pixel Pitch: 37.5 mm (1.5"")
- Transparency: 55%
- Curtain Composition: Al-alloy frame, electronics onboard w/ rubber gasket for weatherproof IP 65 rating
- Tile Size: 600 X 600 X 75 mm/tile (2 x 2)
- Tile Weight: 4.5 kg/tile
- Tile Area: 0.36m2/tile
- Luminosity: 2000 nits
- Color Temperature: 6,500K
- Visual Angle 110 / 50° (50% brightness)
- Visual Range: 160 / 120°
- Pixel Configuration: 1R 1G 1B (DIP)
- Tile Rsolution: 16 x 16 pixels/tile
- Pixel Resolution: 711 pixels/m2
- LED Quantity: 2133 LEDs/m2
- Color Number: 14 Trillion
- Processing Depth: 14 bits
- Contrast Ration: 2,000:1
- Life Span: 100,000 hours - LED: 50,000-70,000 hour - floor body
- Frame Rate : 60Hz
- Data Refresh Rate: 800Hz
- Display Mode: Synchronous with video source
- LED Failure Rate: 1/10,000
- MTBF: > 10,000 hours
- Drive Mode: Static, Constant Current Drive
- Power Supply: AC 100-240V, 50Hz or 60 Hz
- Working Voltage: DC 5V
- Power Consumption: 250 w/m2(max): 150 w/m2(average)
- Ingress Protection: Front: IP65, Back: IP65
- Ambient Temperature: -20 to +50 Celsius Degree
- Relative Humidity: 10% to 99%
