  • EVLED IMAGE VSC 2.0
Code 1239100075

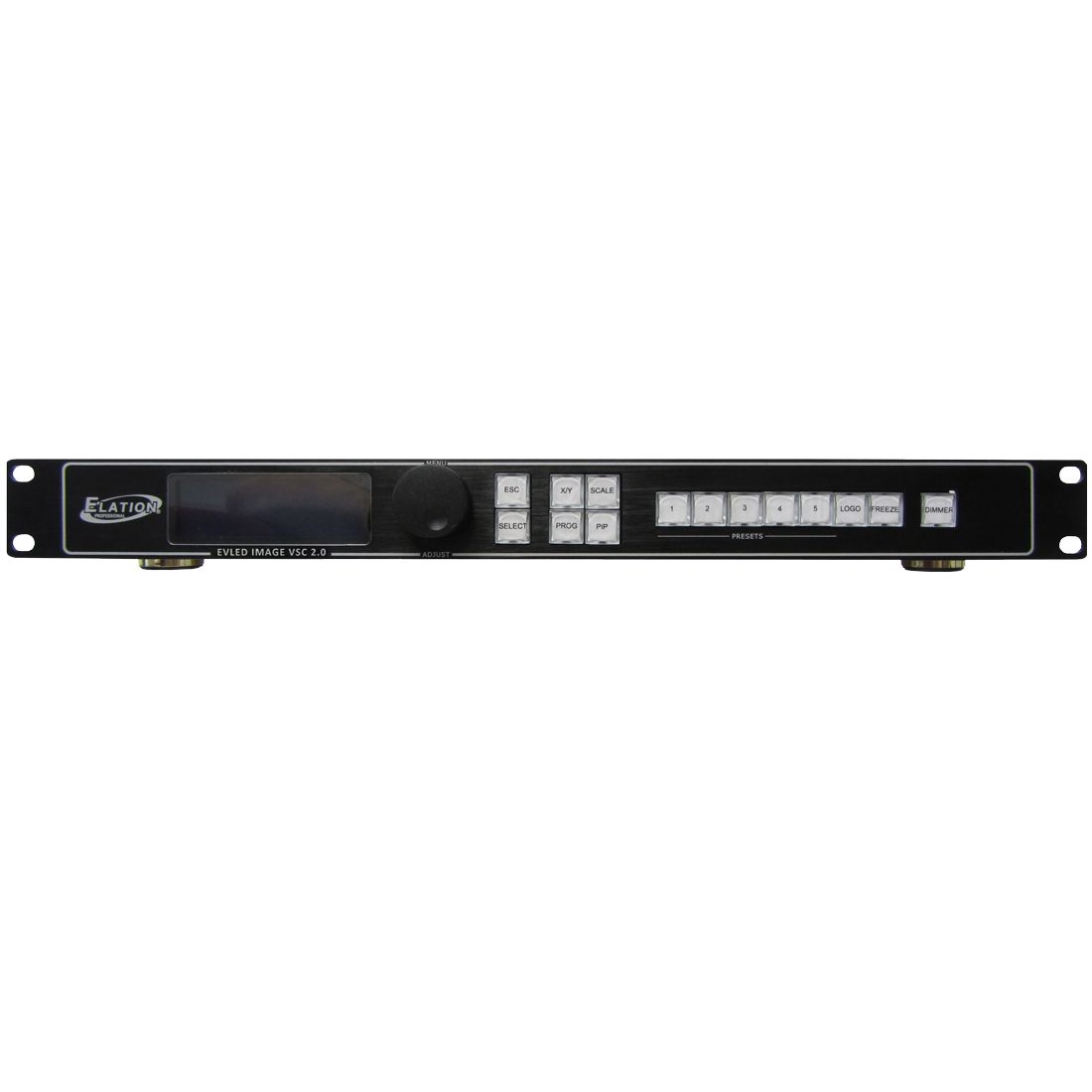

EVLED IMAGE VSC 2.0

The EVLED IMAGE VSC 2.0 is a combined video image processor and scaler with the latest high performance image processing technology.

The EVLED IMAGE VSC allows direct connection of HDMI and SDI Signal sources. After scaling and Processing the content can be streamed to all Connected EVLED Series LED Walls.

Technical Data

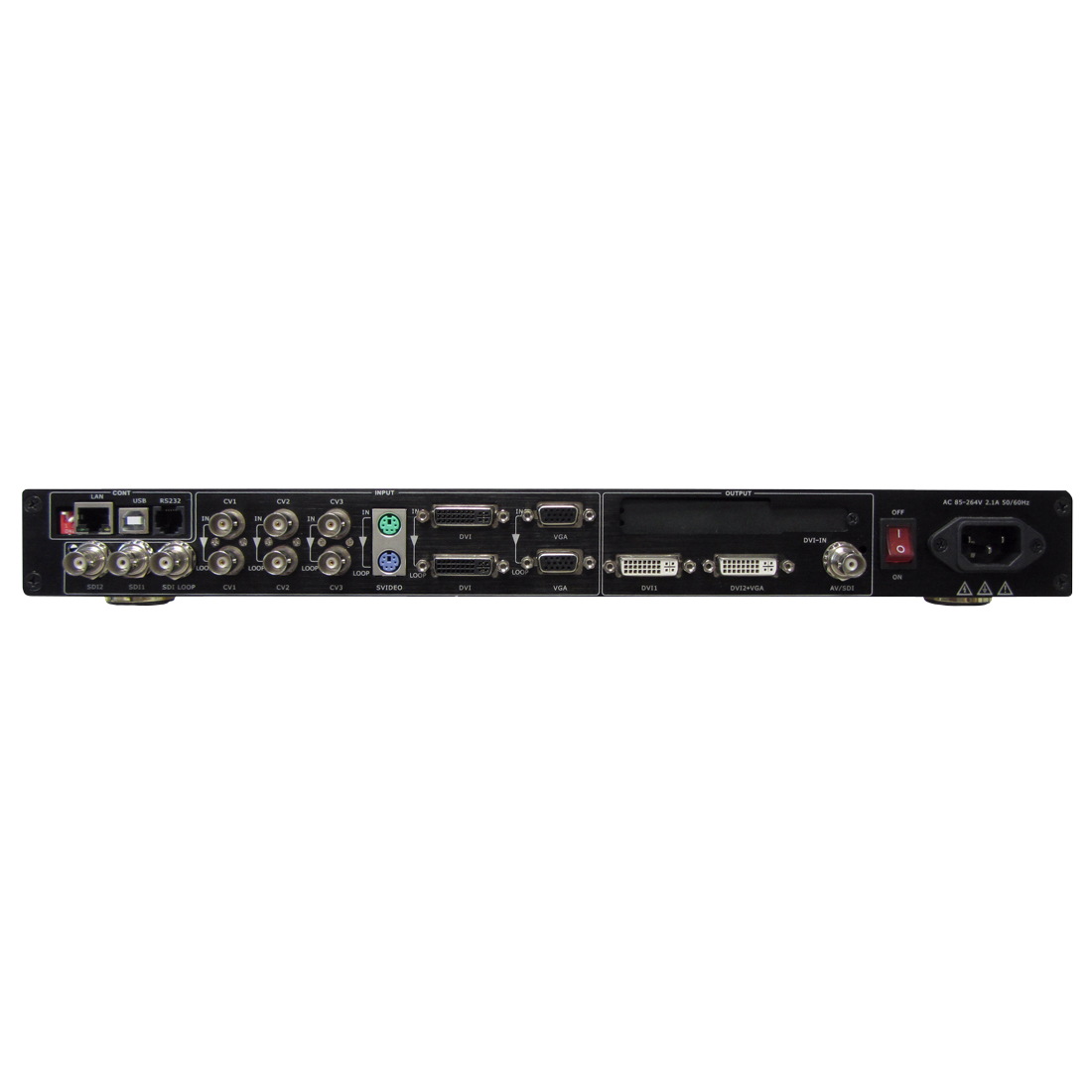

- Input: 3 x Composite, 1 x SVideo, 1 x VGA and 1 x DVI
(Compatible with HDMI 1.3 standard), 2 X SDI / Output:
2X DVI and SDI or EPV network streaming protocol
- Supports PIP, POP, PBP, Logo, Freeze, Dimm as well as
user-defined pixel-based scale and dualchannel operation/
supports audio/video synchronization
- Supports output resolution of maximum 1920x1080p /
supports keyboard operation, serial and TCP/IP remote
control Extras
- Communication: RS232 TCP/IP USB / Power supply 100-
240V AC, 50/60Hz (Multi-voltage)


Specifications and documentation subject to change without notice
