Code 1239100275

EVHD3

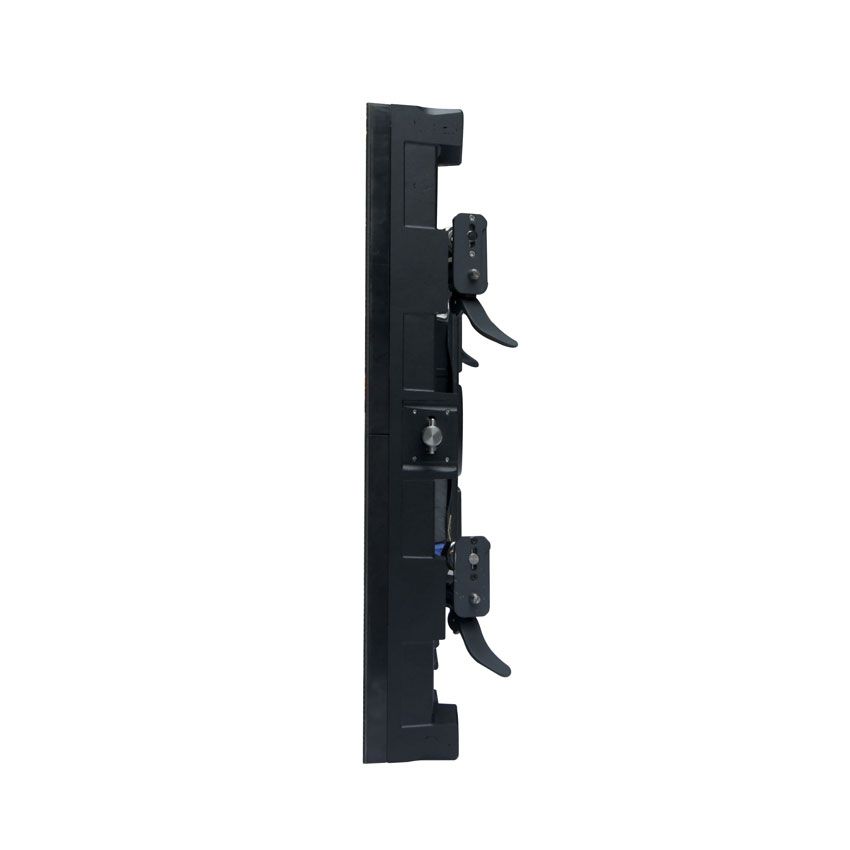

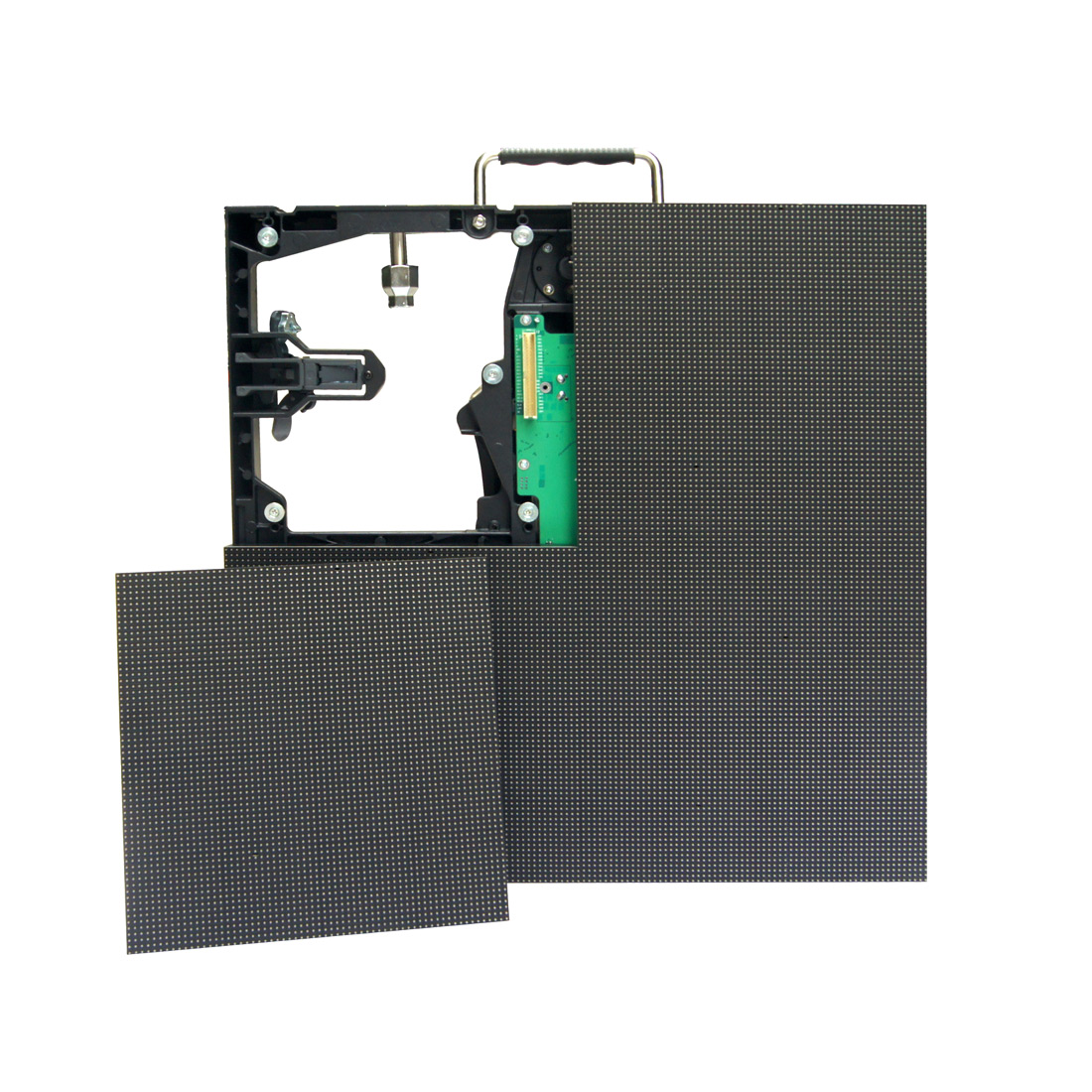

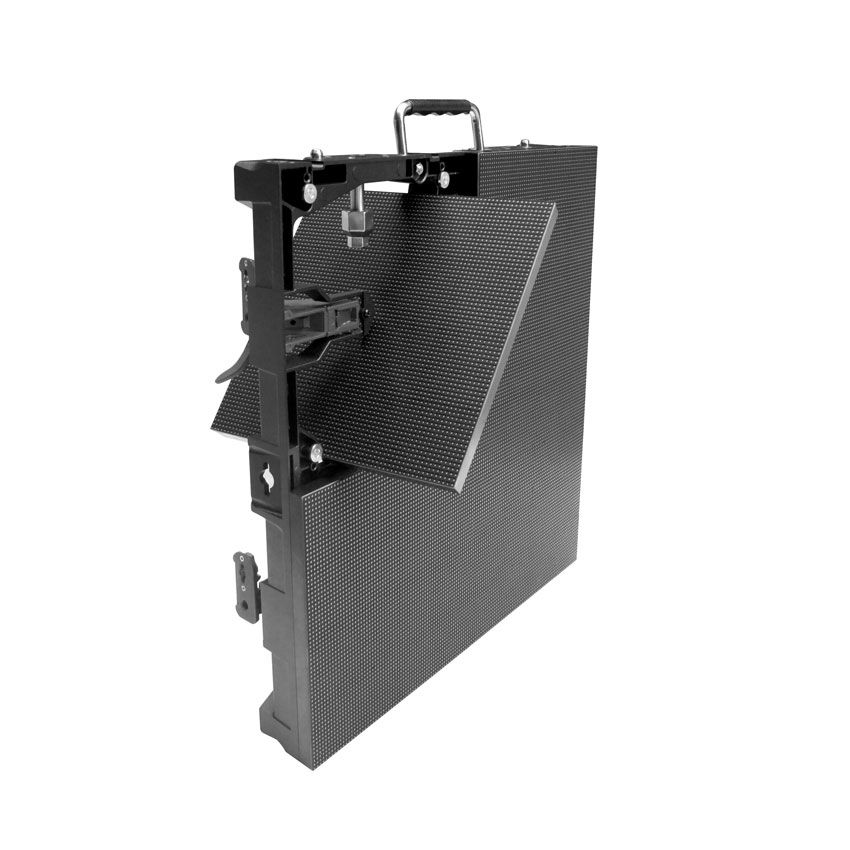

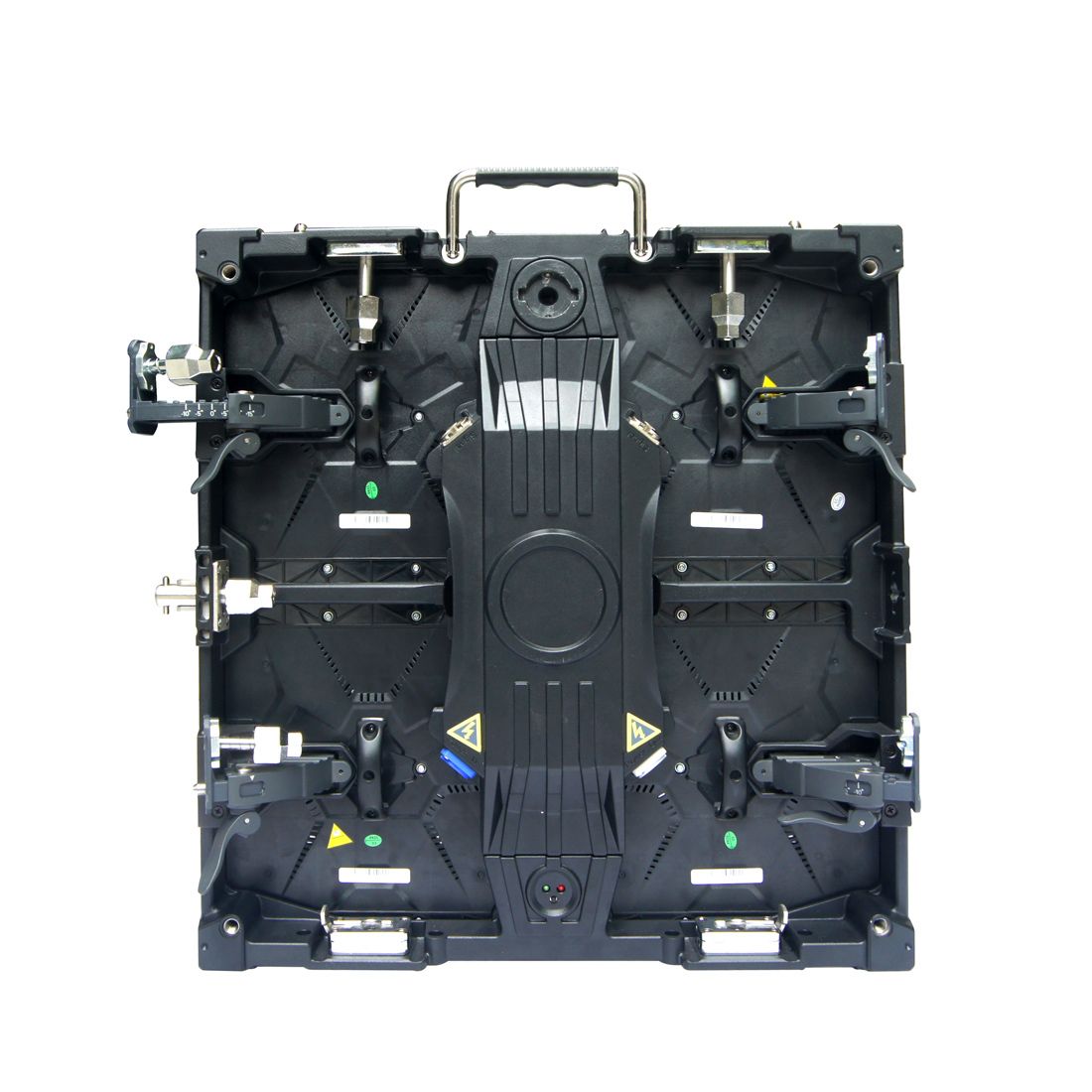

The EVHD3™ is a 3.9mm pixel pitch black face LED display. It’s light weight durable die-cast aluminum alloy frame and modular front maintenance design, allows for easy installation and service. Features include a seamless bezel-free design, no fan metal cooling structure, pixel by pixel calibration for optimized color rendering, uniformity and brightness, an ultra-wide viewing angle, and lockable curve adjustments for smooth convex or concave designs providing easy solutions for creative high-resolution video designs. The EVHD3™ is ideal for any broadcast installations.

Technical Data

FEATURES

Pixel Pitch: 3.9mm
Physical Density: 65,536 (dots/m2)
Protection Level: IP20
Scan Way: 1/16
Horizontal and Vertical View angle: H:140° | V:120°
Brightness: After Calibration 1200cd/m2
Gray Scale: 14bit
Refresh Rate: Variable up to 3840Hz


SOURCE

LED Configuration: 1R1G1B
LED Type: SMD Chip
Life Span: ≥50,000 Hours


RESOLUTION

Module Resolution: 64x64
Cabinet Resolution: 128x128


SIZE/WEIGHT

Module Size: 250x250mm
Cabinet Size: 500x500mm
Cabinet Weight: 18.7 lbs. (8.5 kg)


ELECTRICAL/THERMAL

Drive Mode: Constant Current Drive
Input Voltage: AC110V-220V, 50/60Hz
Cabinet Max Power Consumption: 135W
Cabinet Average Max Power Consumption: 50W
Environment: Indoors | -20° - 40° C | 10-90% RH
Cabinet Material: Die Cast Aluminum Alloy


OPTIONAL ACCESSORIES

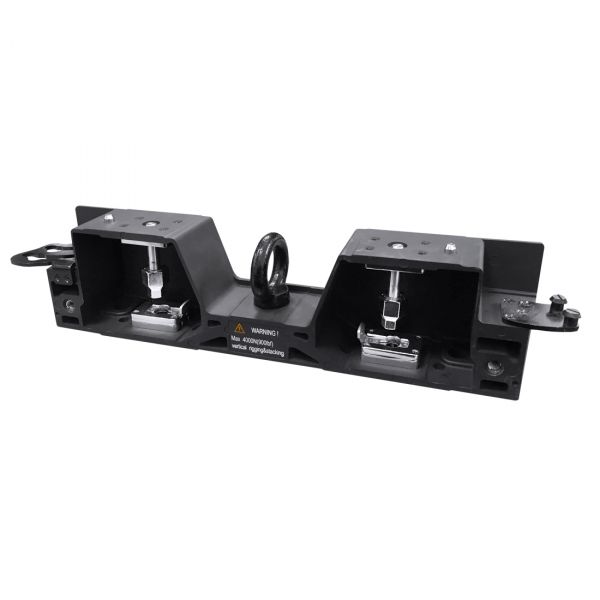

EVHD Series Single Panel Rigging Bar

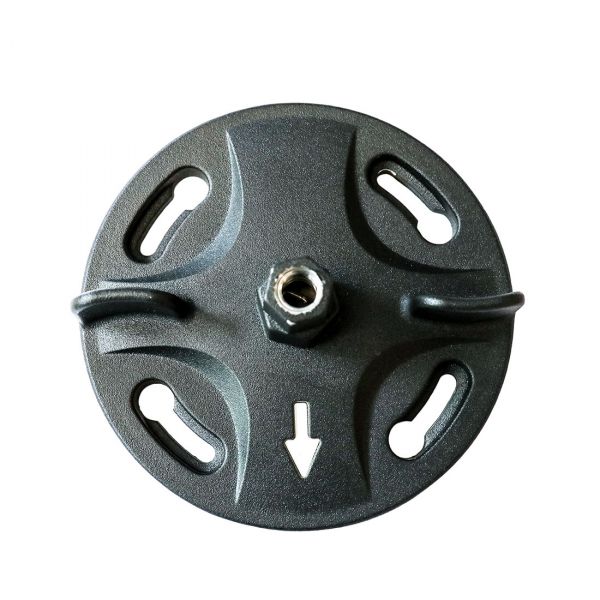

EVHD Series Rear Support Bracket
25 ft. (7.62m) locking power connector Cable
2 ft. (0.6m) locking power connector Link Cable
100 ft. (30m) CAT6 Ethernet Cable
2 ft. (0.6m) CAT6 Ethernet Cable
3 ft. (0.9m) CAT6 Ethernet Cable

Specifications and documentation subject to change without notice
