Code 1239100076

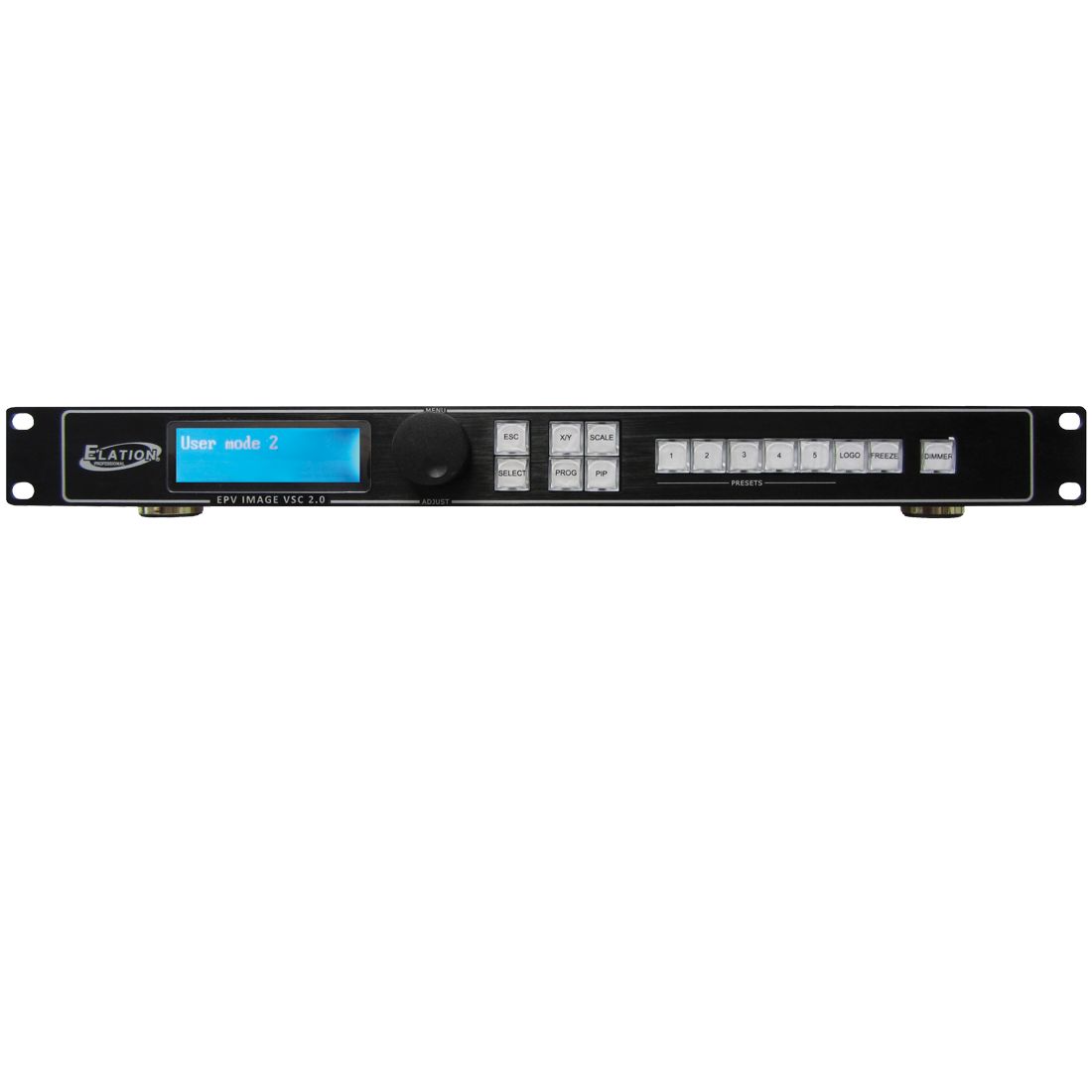

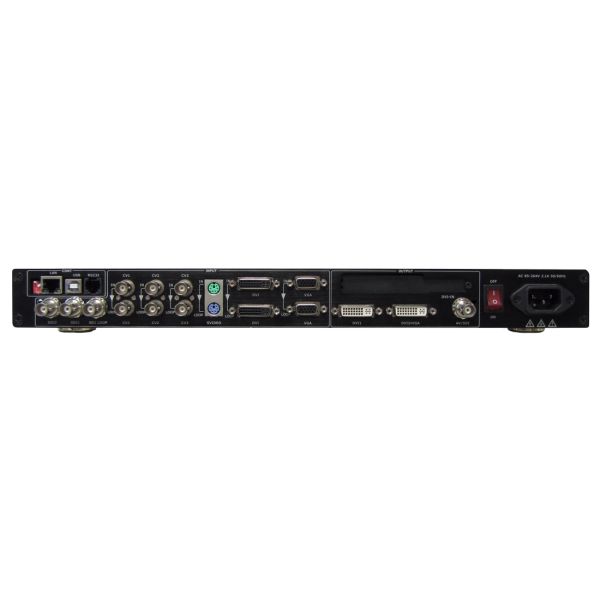

EPV IMAGE VSC 2.0

The EPV IMAGE VSC 2.0 is a multiple input /output video processor that includes the latest high performance image processing technology. It accepts a wide variety of video signals, including RGB computer DVI, VGA video, HDTV HDMI video, S-composite video, composite video and 3G SDI video. It combines truly seamless, fade in / fade out, glitch-free switching with advanced scaling technologies to meet the requirement of high quality, high resolution video presentations. It supports user defined image size and coordinates, dual image processing, multiple splicing modes and several user configurations.





Technical Data

Input:

3 x Composite
1 x SVideo
1 x VGA
1 x DVI (Compatible with HDMI 1.3 standard)
2 x SDI

Output:

1 x DVI
1x SDI
2x EPVNSP network streaming protocol

Data Connectors:

1x RS232
1x RJ45
1x USB
Functions:
PIP
POP
PBP
Custom logo
Picture freeze
Dim/Intensity

Features:


User-defined pixel-base scaling
Dual Channel operation
Audio/video synchronization

Connections:

Input resolution of maximum 2048*1152, depending on video interface
Output resolution of maximum 655.360 pixel in any format
Supports direct keyboard, serial RS232 or TCP/IP remote control configuration
Power supply 100-240V AC, 50/60Hz (Multi-voltage)

Specifications and documentation subject to change without notice
