EPT9IP

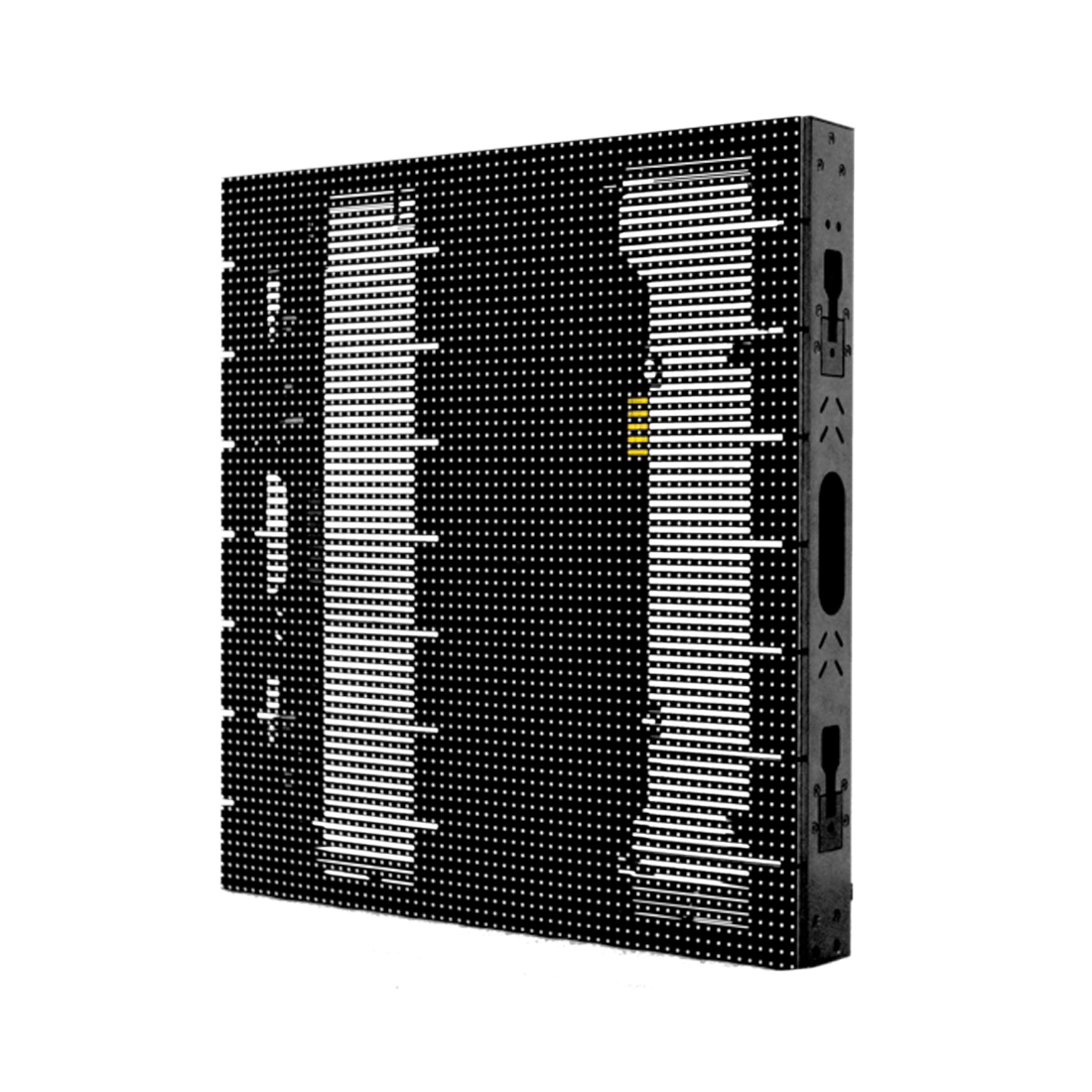

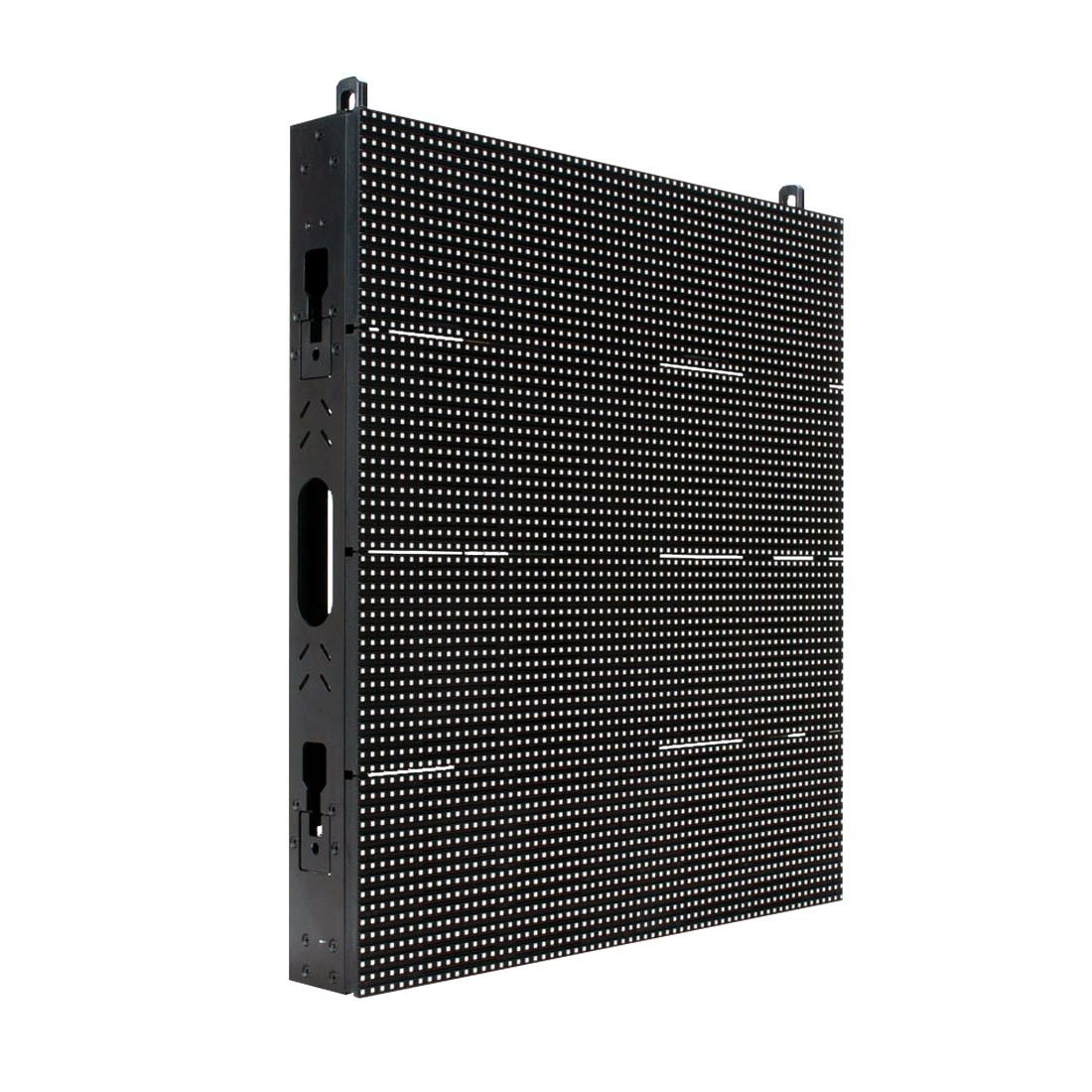

The EPT9IP™ is a new 9mm pixel pitch modular outdoor-rated Pro Touring LED display. It’s light weight durable die-cast aluminum frame, patented rapid NTR-LoK™ (No Tool Required Lock) compression pins, and (5) fixed curve rigging options (-15°, -7.5°, 0°, 7.5°, 15°), allows for easy installation of captivating and seamless curved shaped designs including full circle, convex, and concave displays. The EPT9IP™ uses the latest dot correction technology which provides full color uniformity and brightness. The EPT9IP™ is ideal for outdoor Pro Touring portable installations.

Technical Data

FEATURES

Pixel Pitch: 9mm

Physical Density: 12,346(dots/m2)

Protection Level: IP65

Patented Rapid NTR-LoK™ Compression Pins

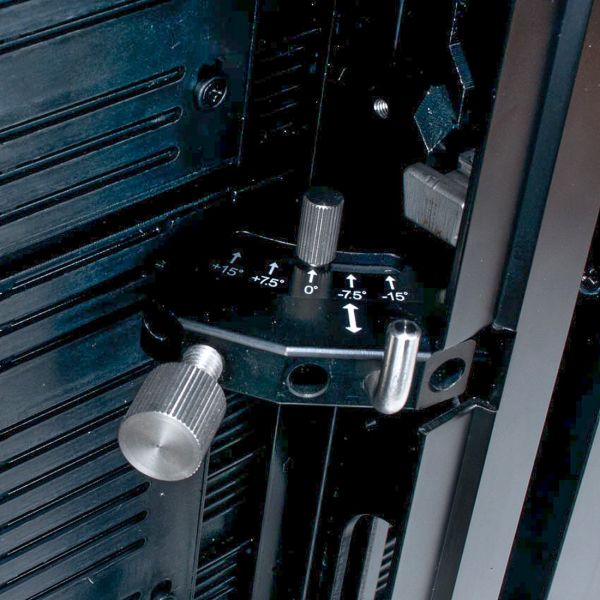

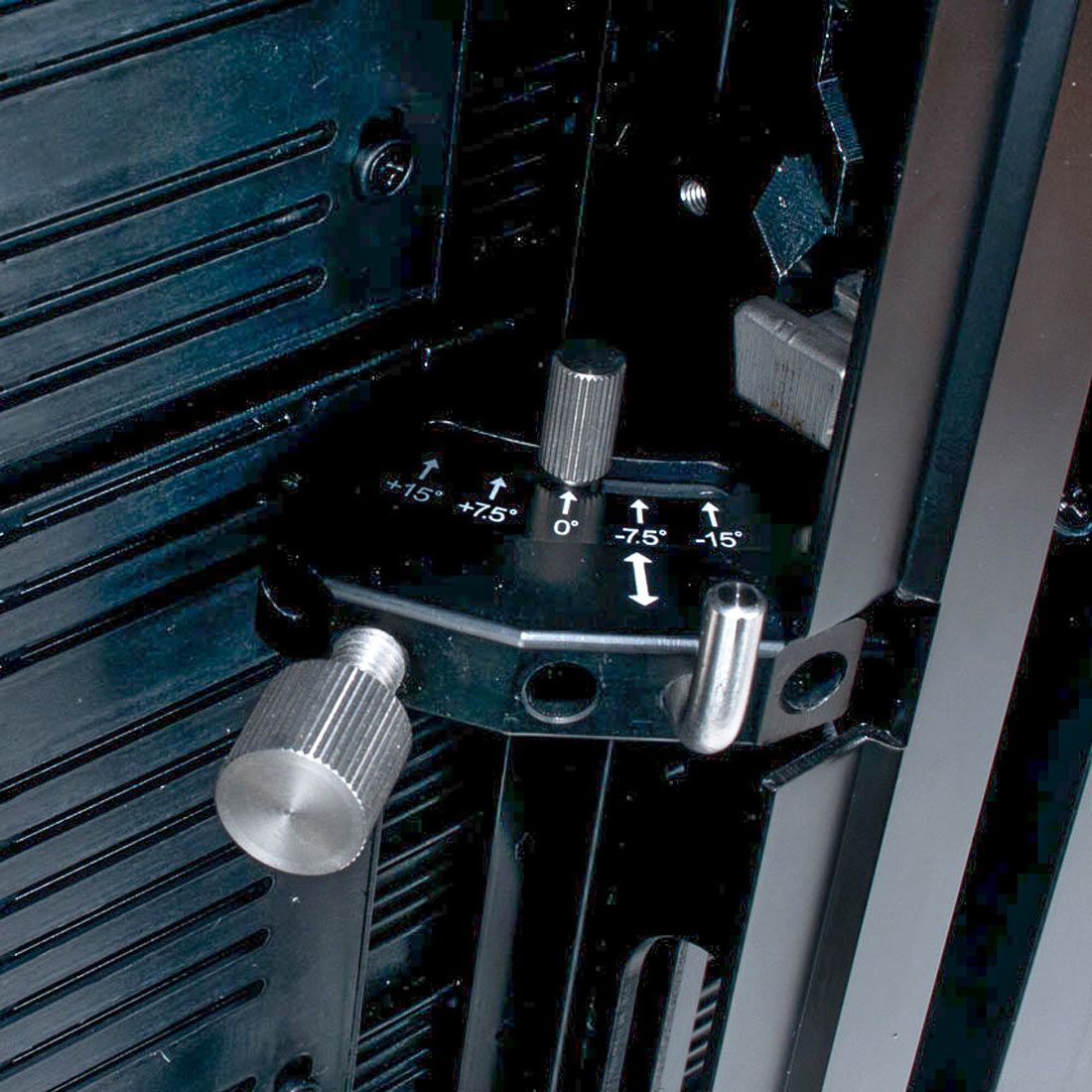

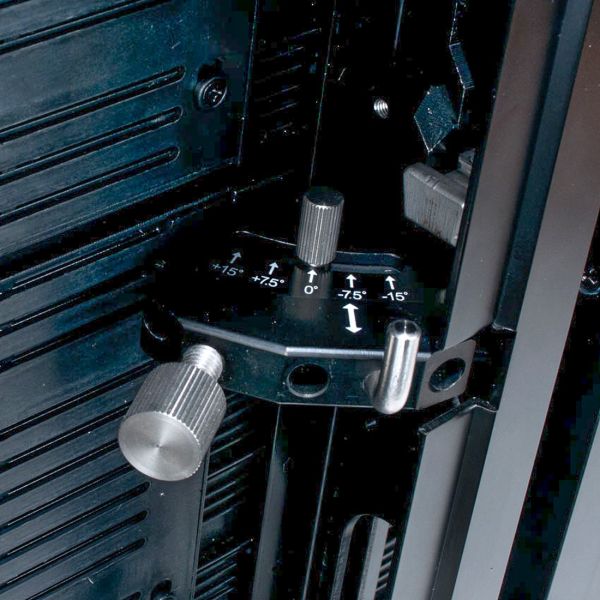

Fixed Curve Rigging Options (-15°, -7.5°, 0°, 7.5°, 15°)

Full Circle, Convex, and Concave Display Designs

Dot Correction Technology

Easy To Remove/Replace Power Supply Module

Transparent Ratio: 15% Dual Mode Shifter Built-In

Scanning Mode: 1/4

Horizontal and Vertical View angle: 140°

Brightness: 5,000cd/m2

Gray Scale: 16bit

Refresh rate: 2,000Hz

SOURCE

LED Configuration: 1R1G1B

LED Type: SMD3535

Life Span: 100,000 Hour

RESOLUTION

Module: 32x32

Cabinet: 64x64

SIZE / WEIGHT

Module: 288x288mm

Cabinet: 576x576x118mm

Cabinet Weight: 23 lbs. (10.5kg)

ELECTRICAL / THERMAL

AC 110-220V, 50/60Hz

200W Max Power Consumption

70W Average Power Consumption

Specifications and documentation subject to change without notice
