EPT6IP

EPT6IPArchive

Code 1239100265

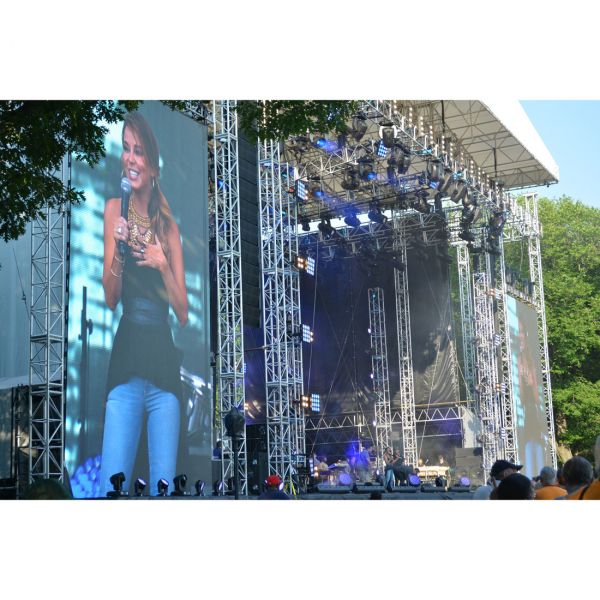

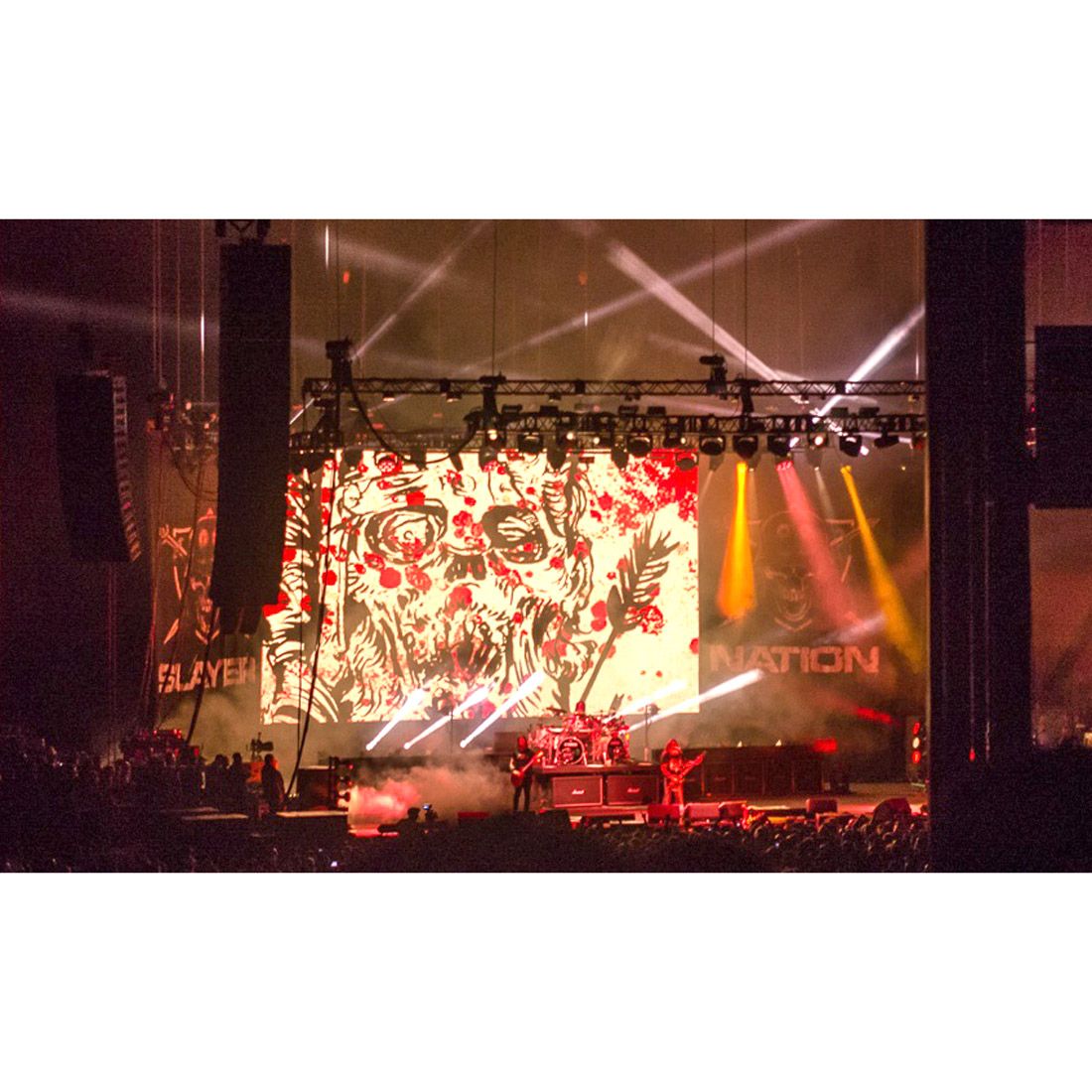

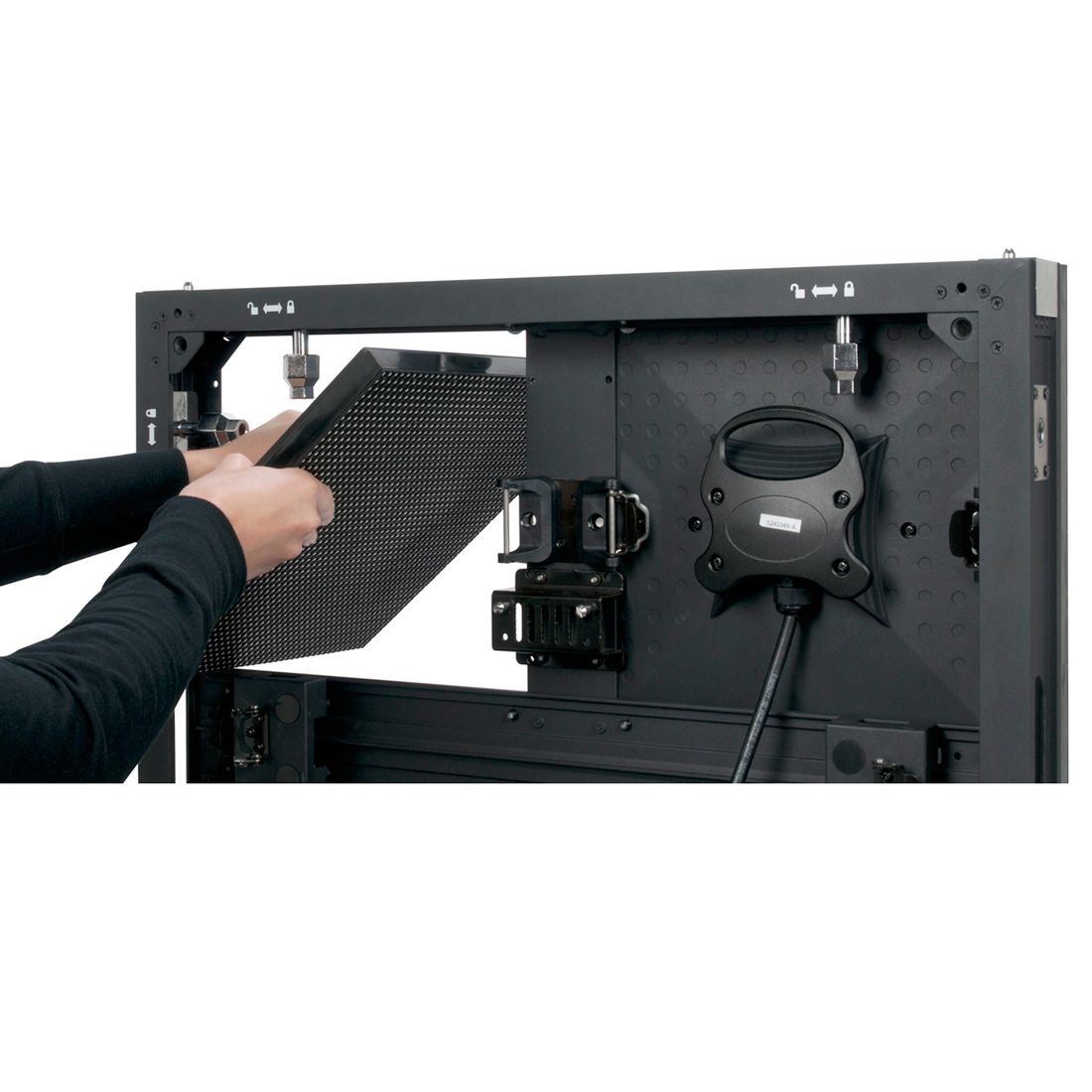

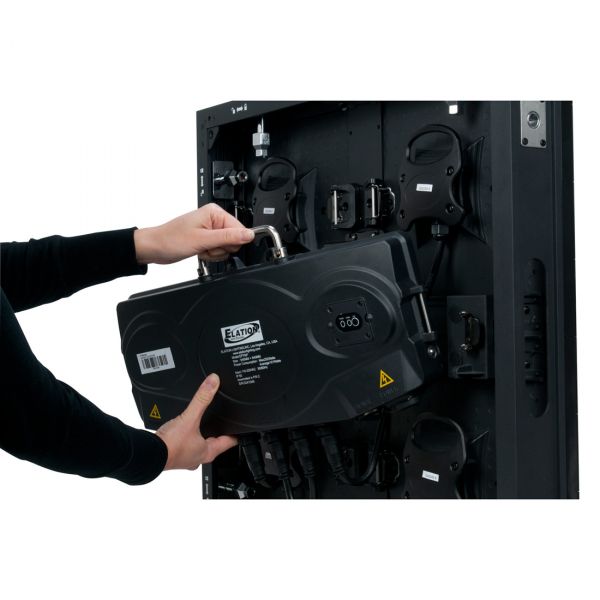

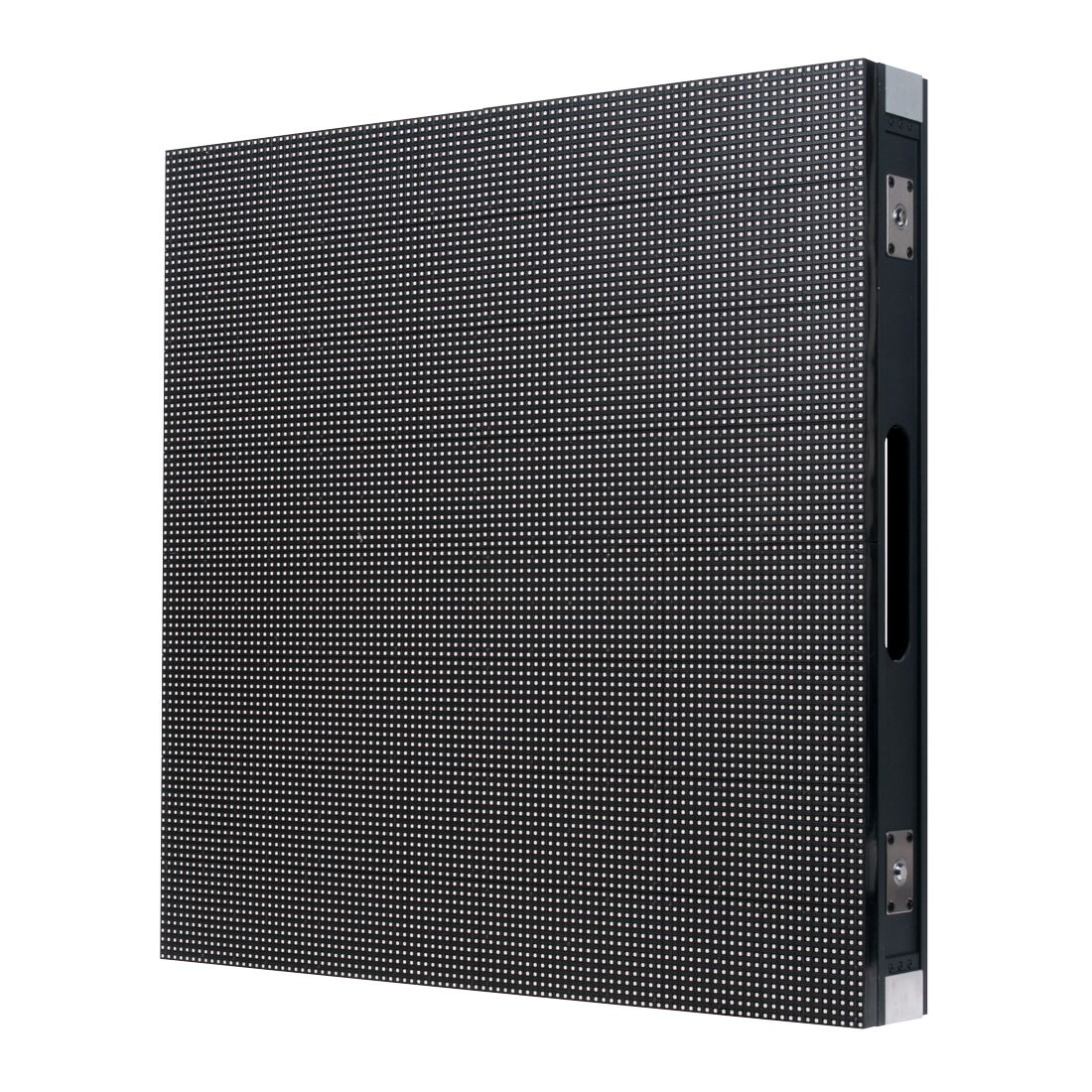

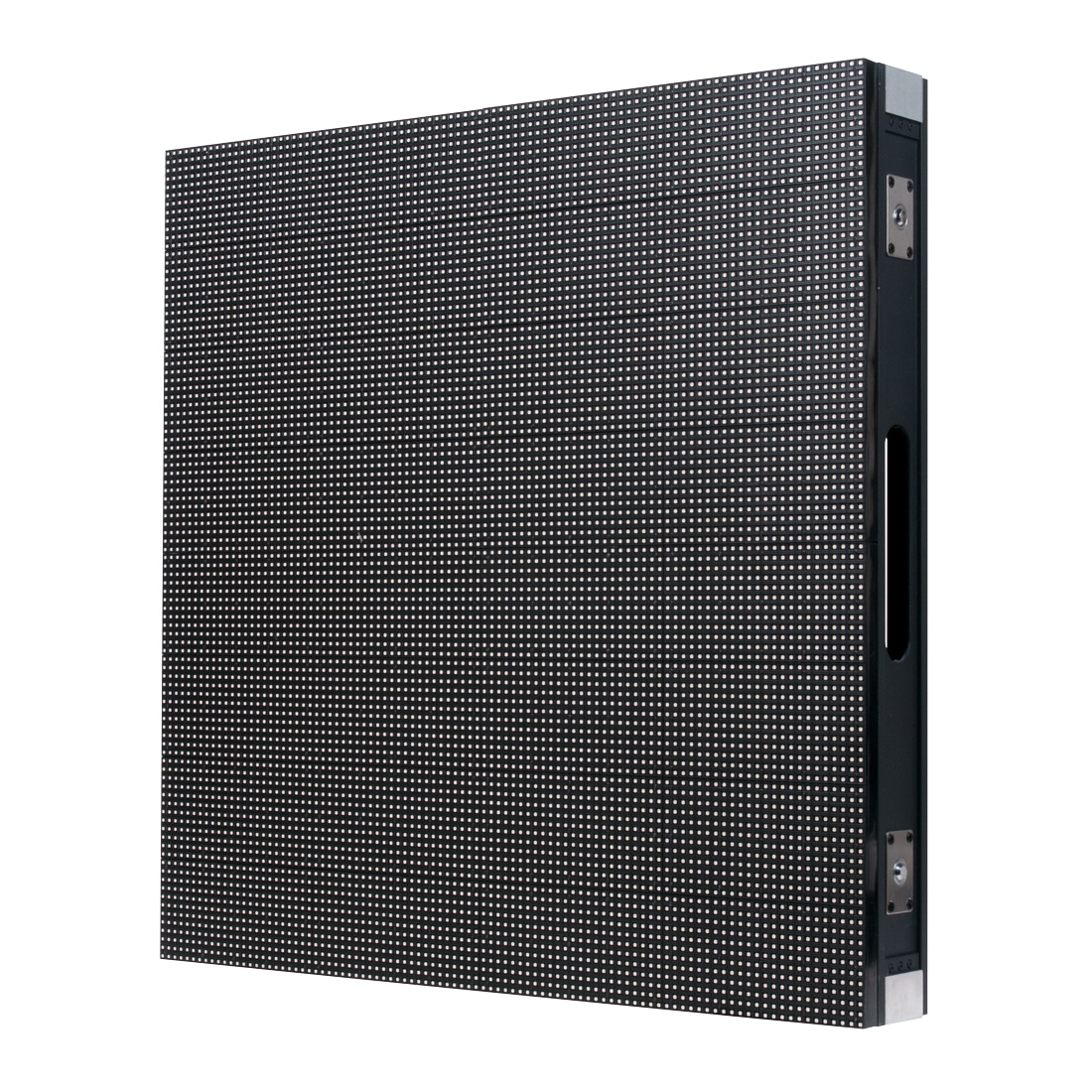

The new EPT6IP™ is a 6mm pixel pitch modular IP65-rated Pro Touring LED display. Its light weight durable die-cast aluminum frame and (4) piece modular design, allows for easy installation and service. The EPT6IP™ uses the latest dot correction technology which provides full color uniformity and brightness. The EPT6IP™ is ideal for outdoor Pro Touring portable installations.

Code 1239100265

EPT6IP

The new EPT6IP™ is a 6mm pixel pitch modular IP65-rated Pro Touring LED display. Its light weight durable die-cast aluminum frame and (4) piece modular design, allows for easy installation and service. The EPT6IP™ uses the latest dot correction technology which provides full color uniformity and brightness. The EPT6IP™ is ideal for outdoor Pro Touring portable installations.

Technical Data

FEATURES

Pixel Pitch: 6.67mm

Physical Density: 22,500(dots/m2)

Protection Level: IP65

Drive Model: MBI5151

Scanning Mode: 1/6

Horizontal and Vertical View angle: 120°

Brightness: 5000cd/m2

Gray Scale: 14bit

Refresh rate: 1920Hz

SOURCE

LED Configuration: 1R1G1B

LED Type: SMD2828

Life Span: 100,000 Hour

RESOLUTION

Module: 48x48

Cabinet: 96x96

SIZE / WEIGHT

Module: 320x320mm

Cabinet: 640x640mm

Cabinet Weight: 38.6 lbs. (17.5 kg)

ELECTRICAL / THERMAL

AC 110-220V, 50/60Hz

252W Max Power Consumption

101W Average Power Consumption

Specifications and documentation subject to change without notice

Downloads

Specification Sheet

EPT6IP Specification Sheet
