EMOTION

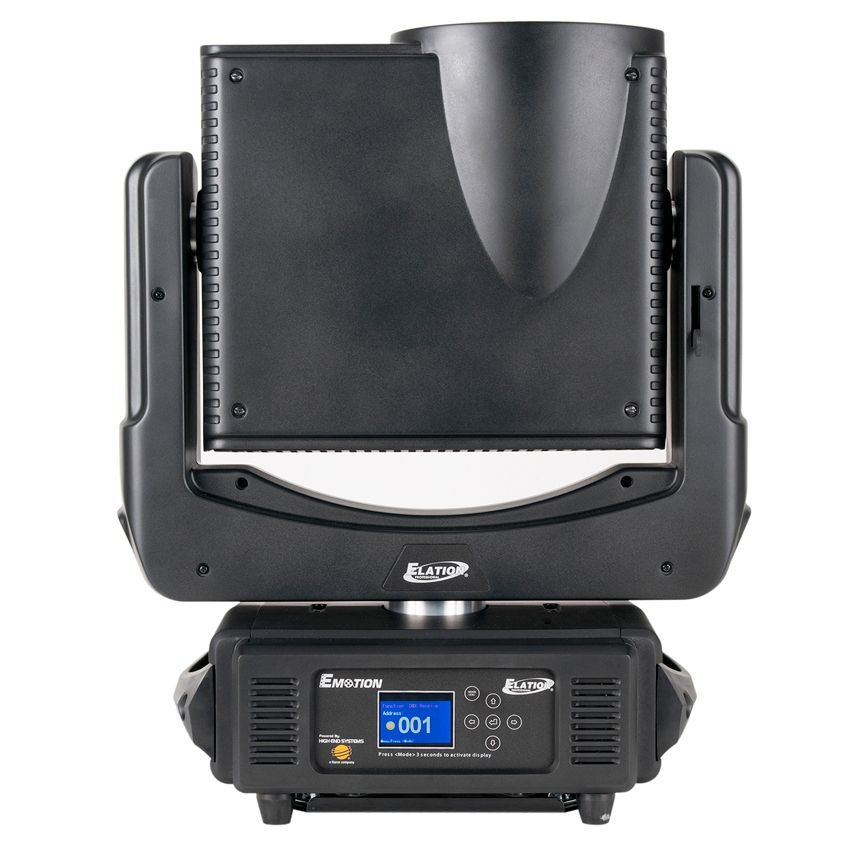

The eMotion™ is a compact high output lightweight plug-and-play digital projector moving head lighting fixture. It features the OSRAM 240W UHP >80CRI 6,700K lamp producing 4,000 ANSI lumens and native 1024 x 768 support. Key features include an internal 64GB solid-state hard drive media server with royalty-free digital gobo and video images, live background effects and allows custom content to be easily uploaded remotely via the PC based CMA application. Integrated Collage Generator™ allows for seamless projection arrays (2-16 fixtures) and variable edge blending. CMY and RGB color mixing, digital and optical zoom, motorized focus, mechanical shutter, dimmer, 540° pan and 240° tilt control via DMX / Art-NET (DMX over Ethernet), (2) USB 3.0 ports, locking RJ45 ethernet inputs for graphics server and Art-NET, locking 5pin DMX and locking power connector in/out, 350W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Compact High Output Digital Projector Moving Head
Internal 64GB Solid-State Hard Drive Media Server
Elation Gobo Catalog Included (Royalty free)
255 Video Images Included (Royalty free)
40 Live / Background Effects and Color Control
Easy Custom Content Upload via CMA Application
Digital and Optical Zoom / Motorized Focus
CMY + RGB Color Mixing / Mechanical Shutter / Dimmer
Collage Generator™
Variable Edge Blending
Art-NET (DMX over Ethernet) Support
Pan/Tilt Lock

PHOTOMETRIC DATA

Osram 240W UHP Lamp - 3,000 Average Hour Lamp Life* (6,000 Hours ECO Mode)
4,000 ANSI Lumens / Native 1024 x 768 (XGA) DLP / DMD

PROJECTOR SPECIFICATIONS

Osram UHP 240W Lamp
4,000 ANSI Lumens, >80CRI 6,700K
3,000 Hour Average Lamp Life* (6,000 Hours ECO Mode)
Aspect Ratio: 4:3 Native (16:9 Compatible)
Resolution: XGA 1074 x 768
Image Size 30” to 307” (76.2cm to 780cm)
Projection Distance: 3.9’ (1.2m) - 32.8’ (10m)
Contrast Ratio: 15,000:1
Display Technology: DLP DMD Chip
1 Billion Colors (10bit)

EFFECTS

Digital and Optical Zoom
Motorized Focus
CMY / RGB Color Mixing
Mechanical Shutter / Dimmer
Elation Gobo Catalog (Royalty free)
255 Video Images (Royalty free)
40 Live / Background Effects and Color Control
28 Transition Effects between Layers

COLLAGE GENERATOR™ Software

(included)
This effect enables multiple Elation eMotion™ fixtures to create an array of seamless projections using from 2-16 fixtures. The effect can create vertical, horizontal and central panoramic configurations controlled from a DMX console. Stock, custom and custom HD Collage Generator™ content can all be displayed in Collage Mode.

VARIABLE EDGE BLENDING

On-the-Fly adjustment of blend overlap between multiple projectors when used in conjunction with any of the Collage Generator™ Modes. Using this mode gives more flexibility for sizing a collage to a given screen or projection surface, as well as smoother blending if wider blend regions are used.

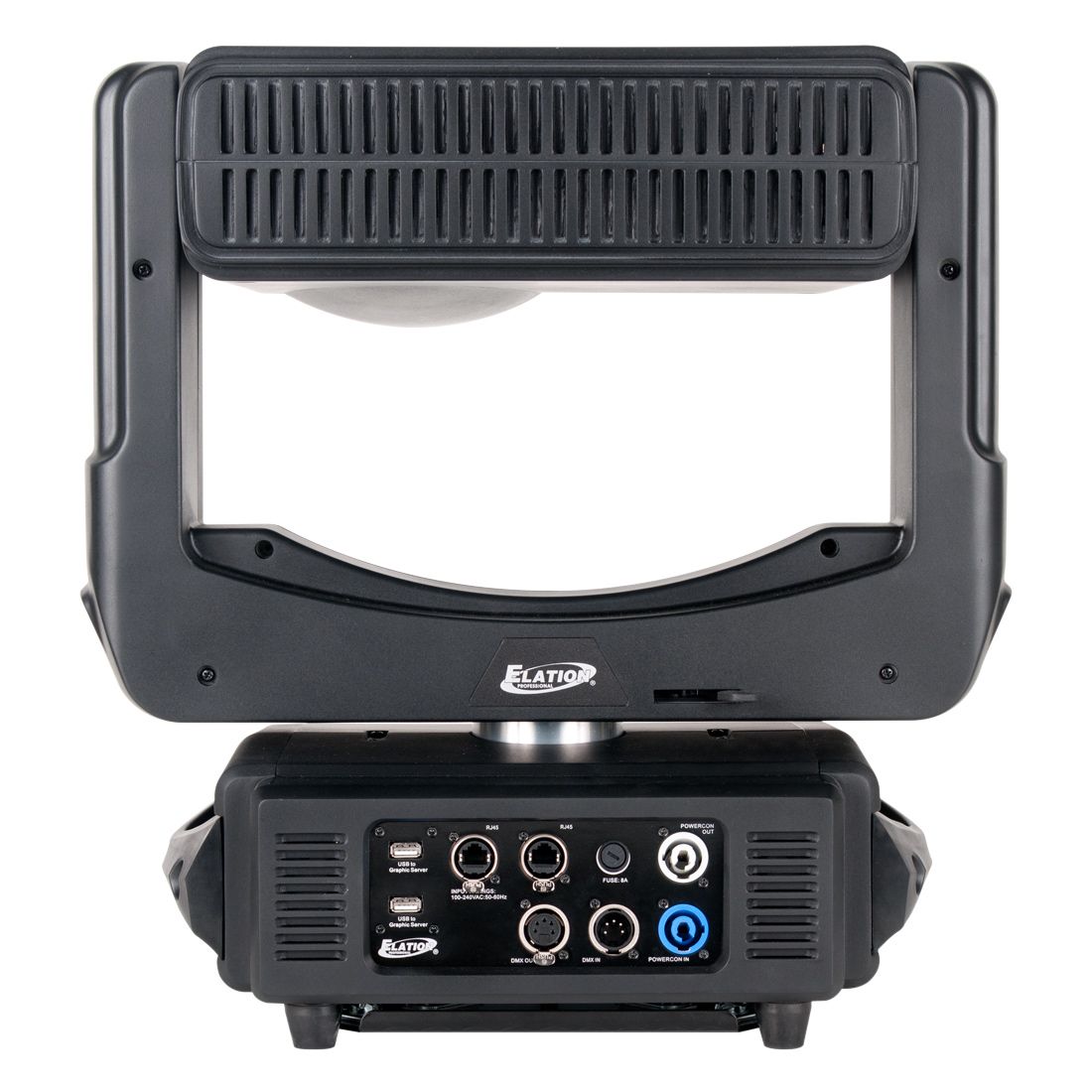

CONTROL / CONNECTIONS

(2) DMX Channel Modes (32 / 54)
Dual Layer Media Content Control
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
(2) USB 3.0 Ports - Graphic Server Inputs
Locking 5pin DMX In/Out
(2) locking RJ45 ethernet Ports - Graphic Server / Art-NET (DMX over Ethernet) Inputs
Locking power connector In/Out

SIZE / WEIGHT

Length: 18.9” (480mm)
Width: 15.0” (382mm)
Vertical Height: 22.4” (569mm)
Weight: 44.0 lbs. (20 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
350W Max Power Consumption
40° - 95°F (5° - 35°C)

OPTIONAL ACCESSORIES

1521000256 Dual Roadcase for 2 Emotion

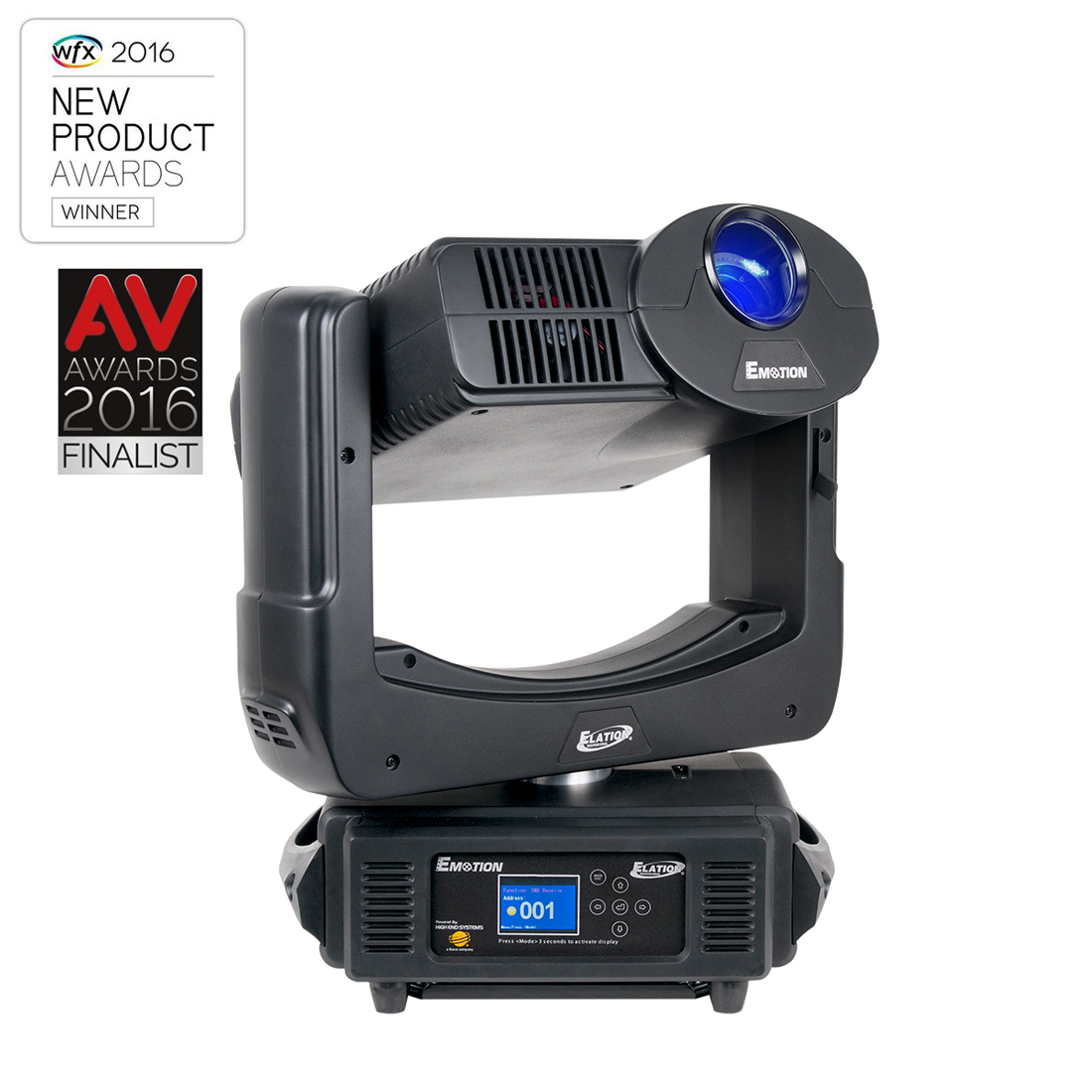

AWARDS

WFX 2016 New Product Award
AV Awards 2016
Cue 2016 Innovation Award Video




*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Specifications and documentation subject to change without notice
