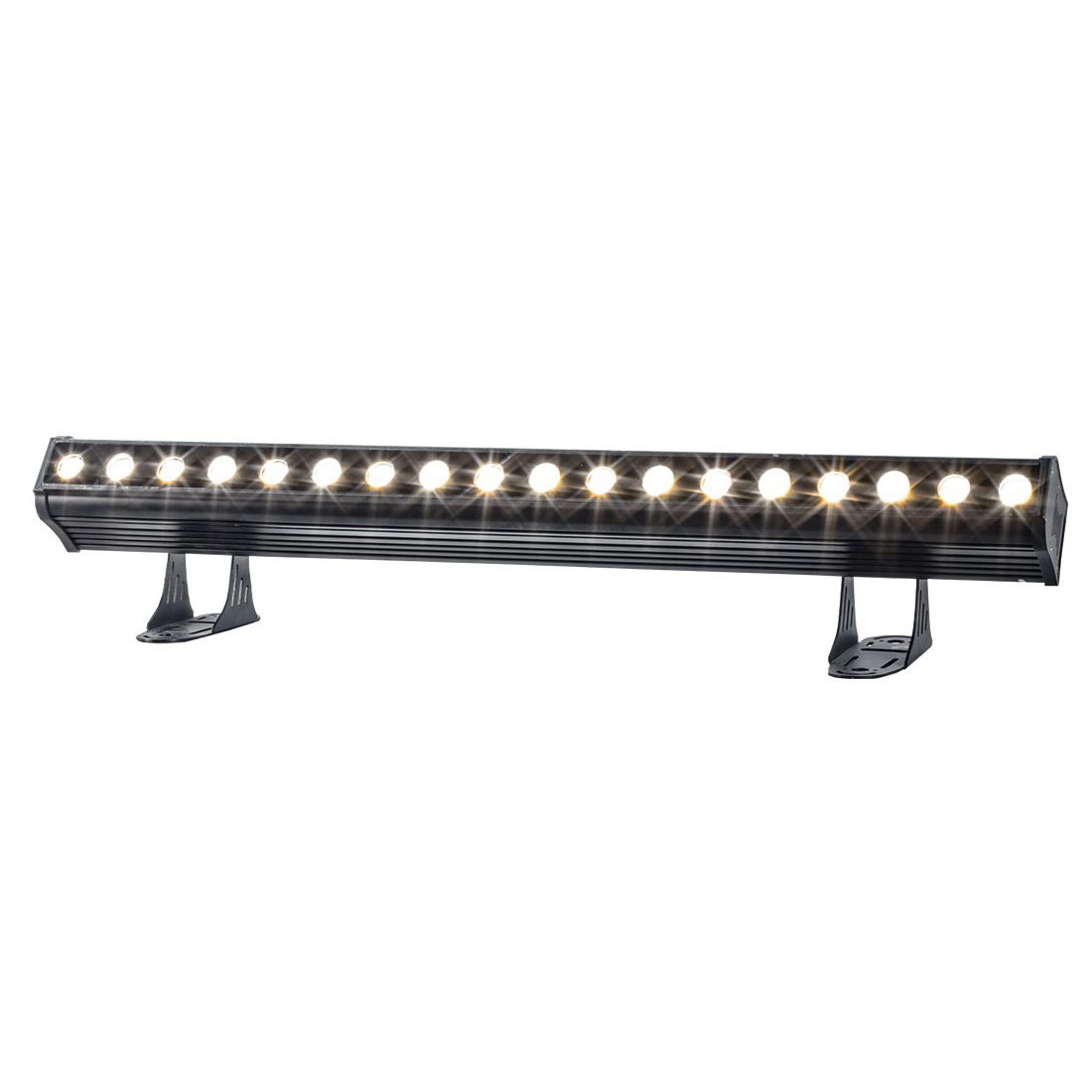

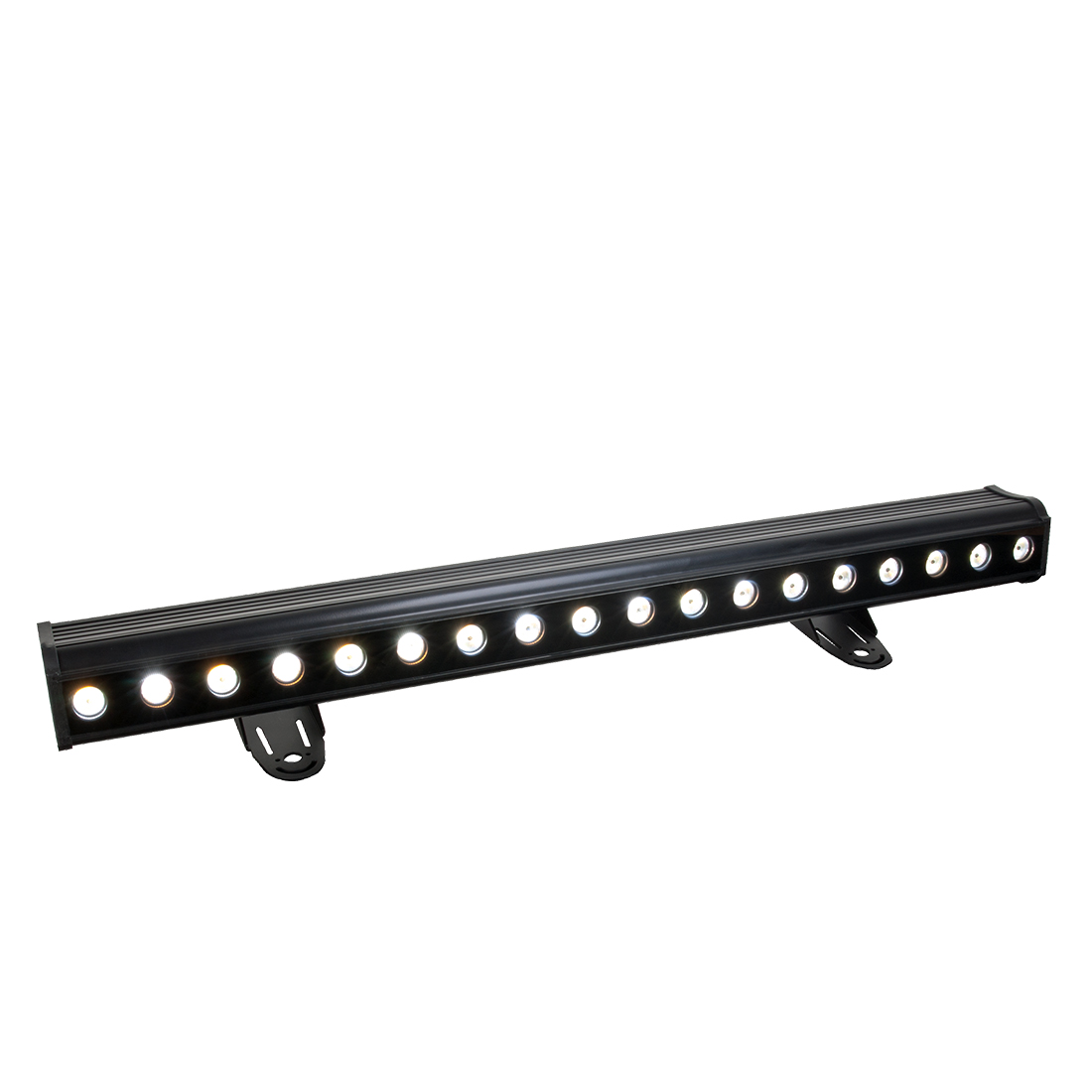

ELED TW Strip

More Power, More Punch, More Pixels... Designers and lighting professionals can dial up a spectrum of rich, perfectly blended white tones for illuminating the largest stages, buildings, facades, landscapes and other entertainment or architectural elements where extreme output and/or direct view pixel blinder effects are desired with the Eled TW Strips from Elation Professional.

Technical Data

FEATURES

20° Beam and 50° Field Angles
Single Pixel Control
Cool White, Warm White and Amber TRI LEDs
Flicker Free Operation for TV and FILM
Perfect Variable White CT Control (2,400K-6,000K)
Multiple Unit Power Linking


SOURCE

(18) 5W TRI White LEDs
50,000 Hour Average Life


PHOTOMETRIC DATA

2,189 LUX @ 1M


EFFECTS

Electronic Strobe 1-18FPS
Electronic Dimming: 0% - 100%


CONTROL / CONNECTIONS

(8) DMX Channel Modes (1/2/3/4/6/7/27/54)
(4) Button Control Panel
Color LCD Menu Display
Locking 3/5pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 1019mm
Width: 210mm
Vertical Height: 226mm
Weight: 9,5kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
130W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice
