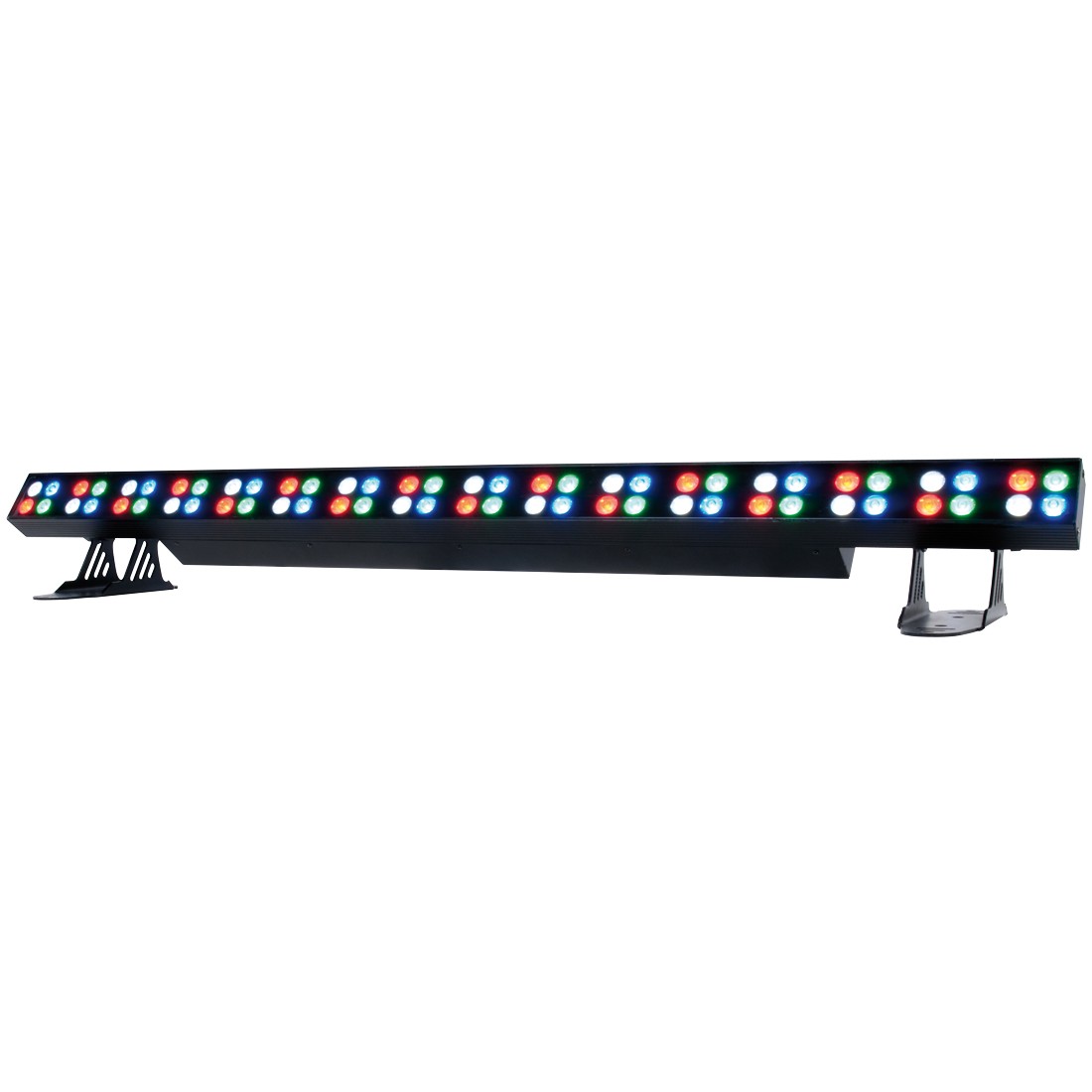

ELED Strip RGBW

Technical Data

- 64x 1W Luxeon LEDs
- 40 degree beam angle
- 4-zone individual LED control
- White LEDs for creating pastel colors
- Optimized color matching and mix
- Light weight and compact
- No fans / convection cooled

Specifications

- 64 x 1 W LED; each 16x Red, Green, Blue, White
- 50,000 hrs. life, variable RGBW
- Brighter white and better pastel color range

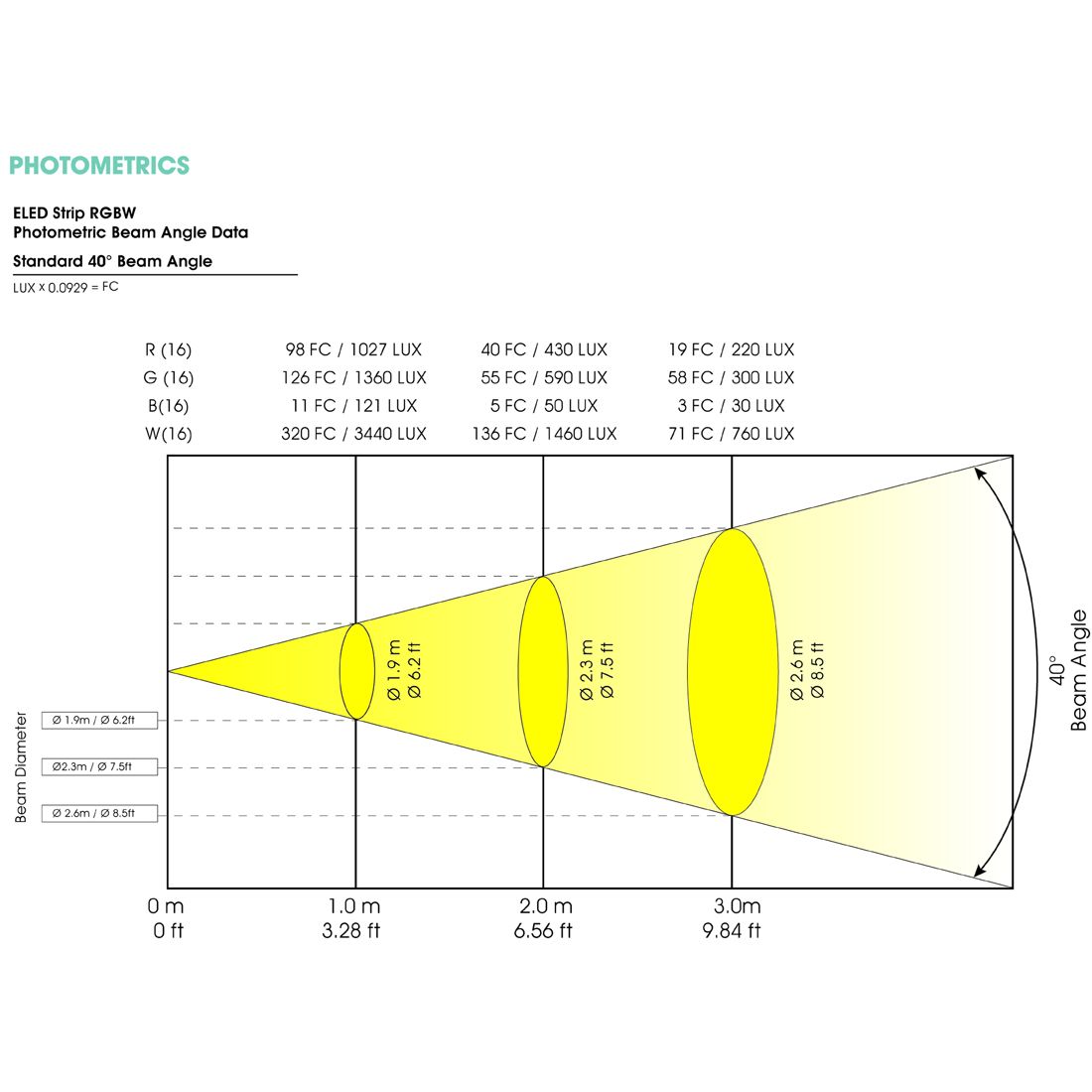

- Standard 40° beam angle
- Low profile design and light weight @ 4,74 kg
- Convection cooled
- Multi-voltage internal power supply

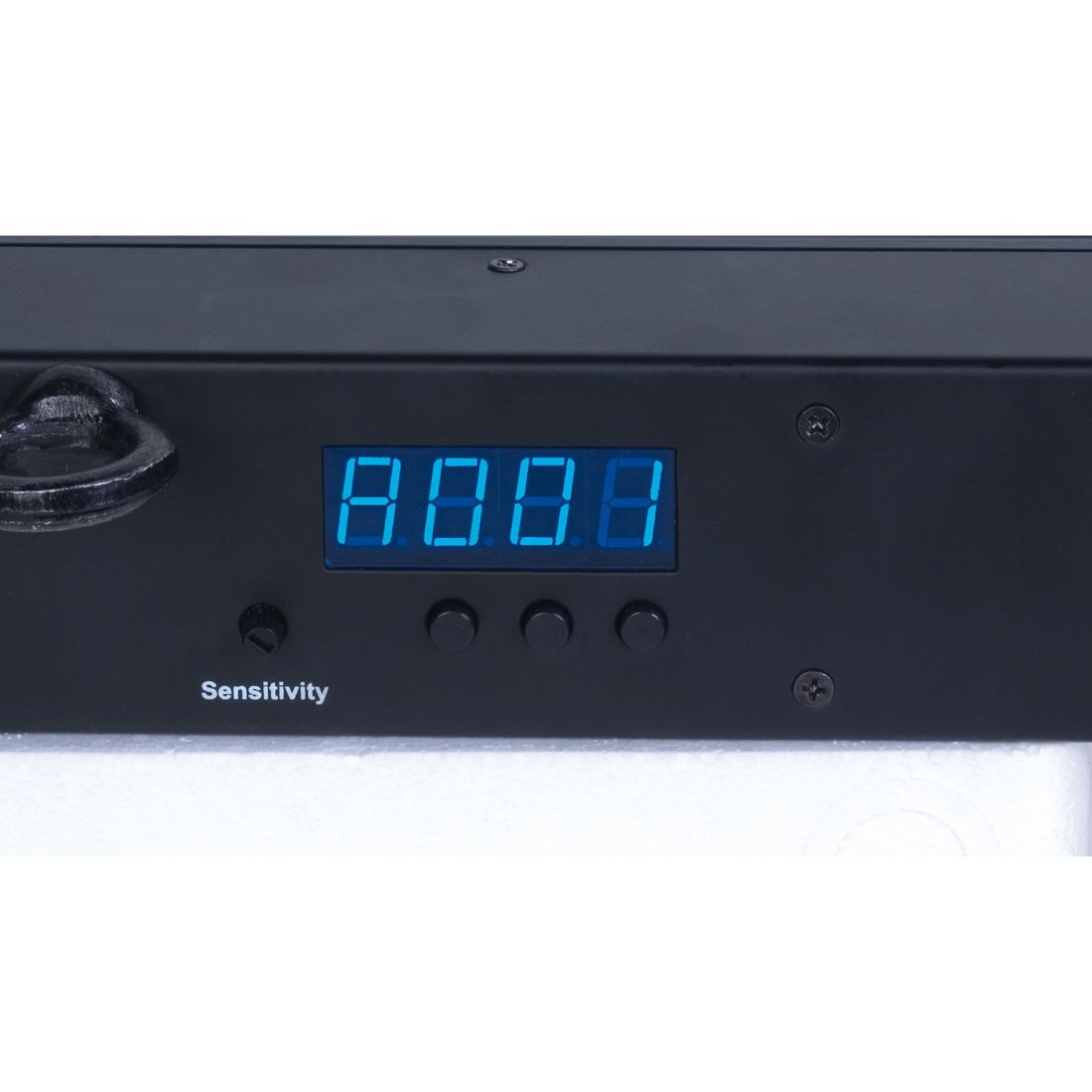

- LCD Control Display
- Link Power & Data
- Locking Power IEC input
- 4 Zone RGBW control
- Primary / Secondary Operation
- DMX Channels: 4, 7, 8, 11, 16, 19 CH operation modes
- Control: USITT DMX-512, 3 pin or 5 pin XLR
- Dimmer: 0 - 100% electronic dimming
- Strobe: Strobe effect (1-18 flashes per second)
- Power Supply is Multi-voltage
- Internal power supply 90~240V AC, 50/60Hz / linkable
- Power Consumption: 75W

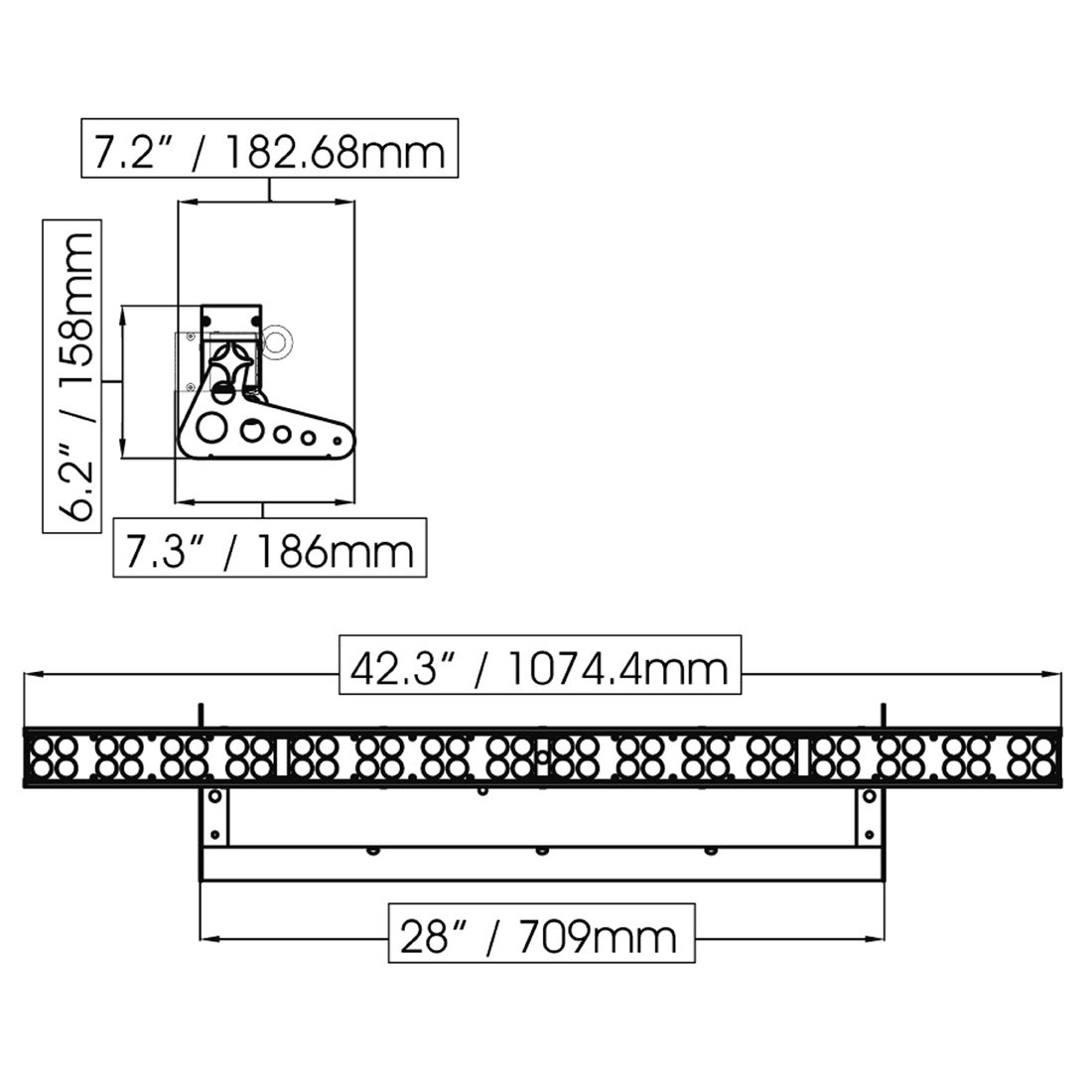

- Dimensions (LxWxH): 1074,4x182,68x158mm
- Weight: 4.74 kg

Specifications and documentation subject to change without notice
