ELED Strip 100 RGBArchive

Code 1236200004

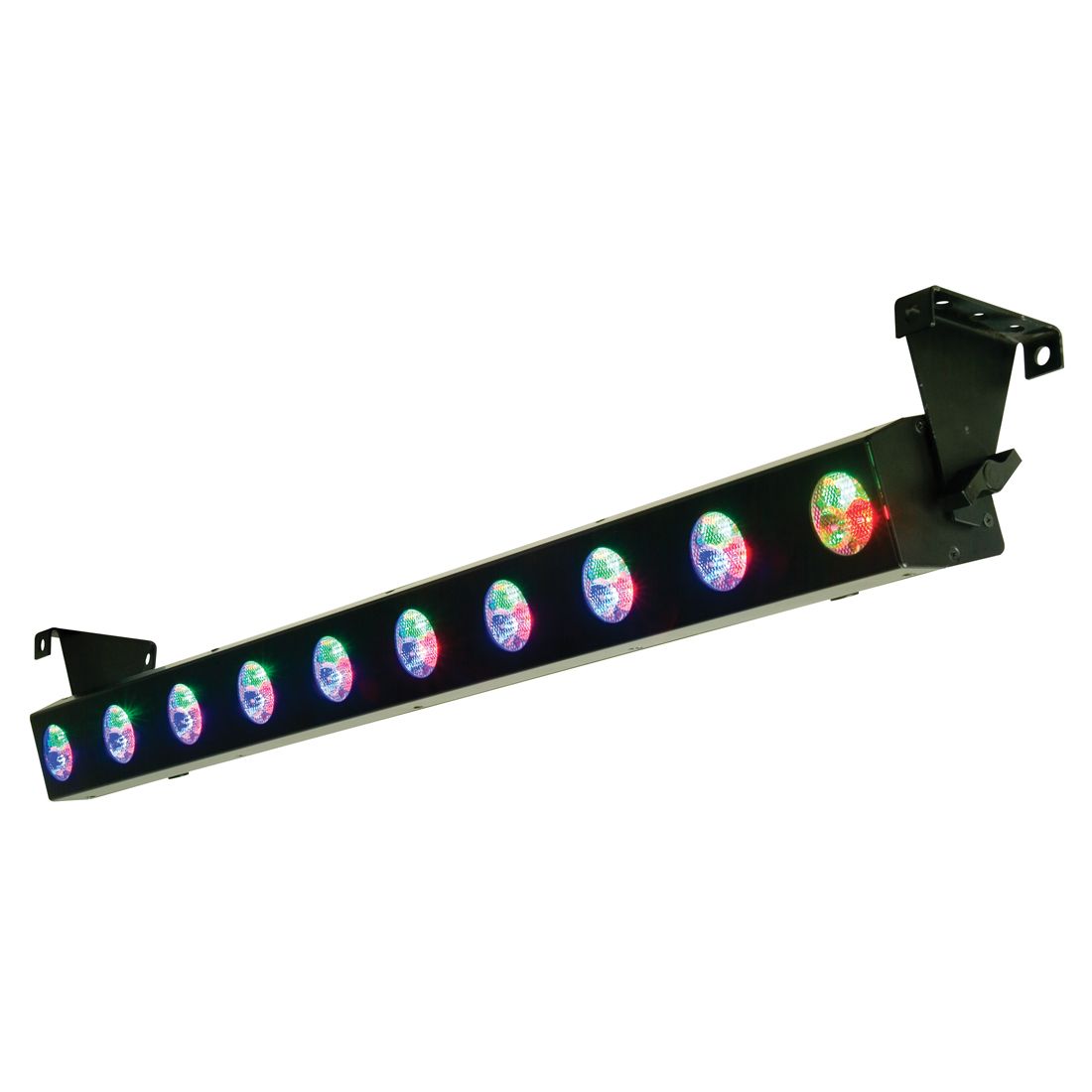

ELED Strip 100 RGB

Technical Data

- 30x 1W high-power LEDs
- Single LED pixel control
- 25 degree beam angle
- Specialized wash lens system
- 12 pre-installed programs
- 6 different DMX modes
- DMX and power daisychain

Specifications

- 30 x 1 Watt LEDs - (10 Red, 10 Green, 10 Blue)

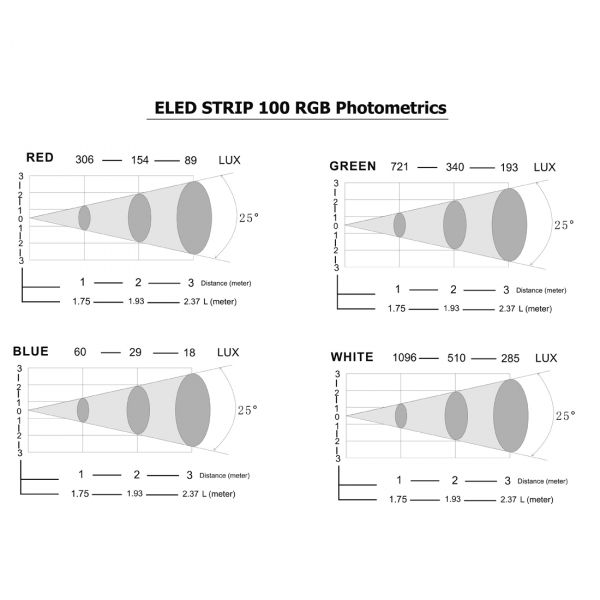

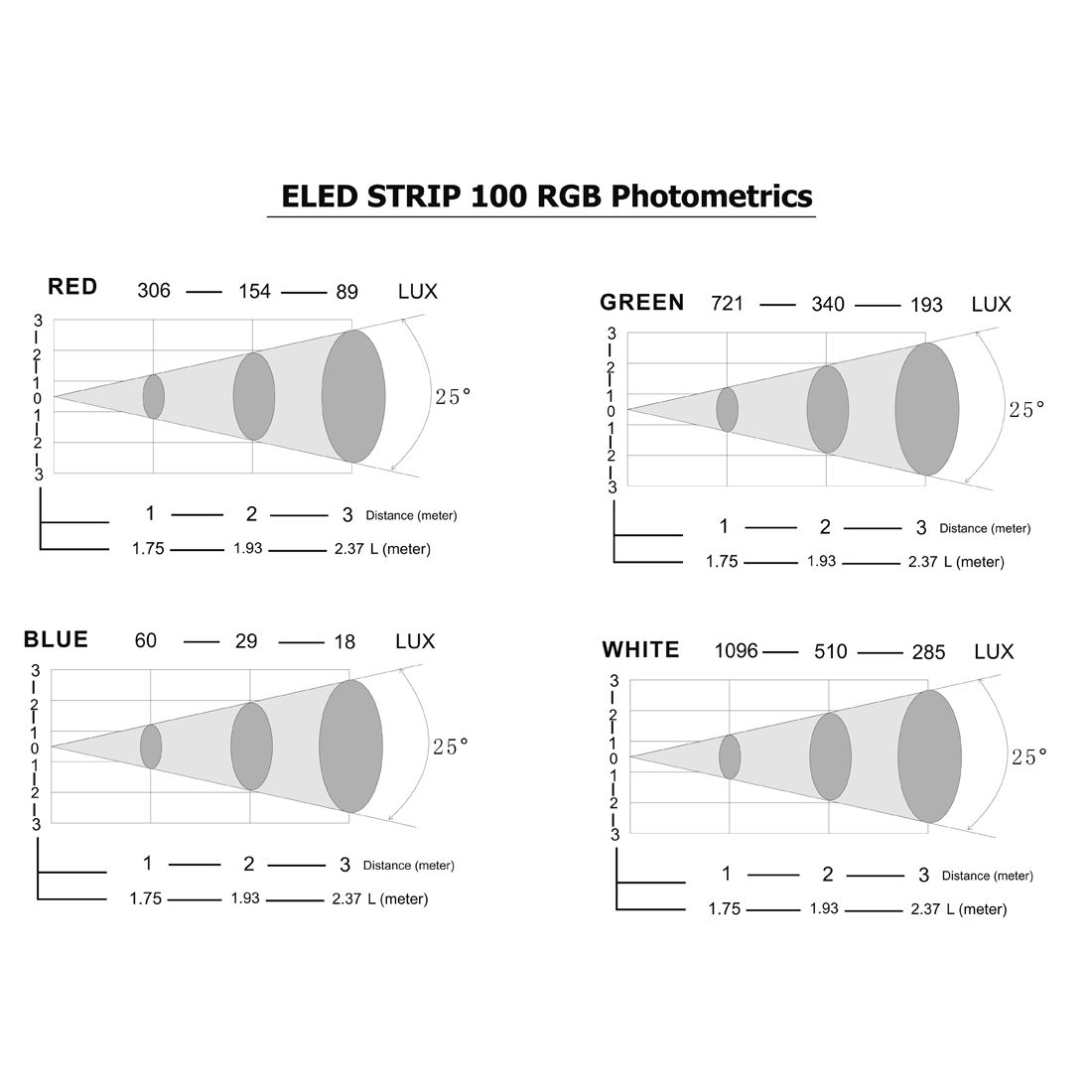

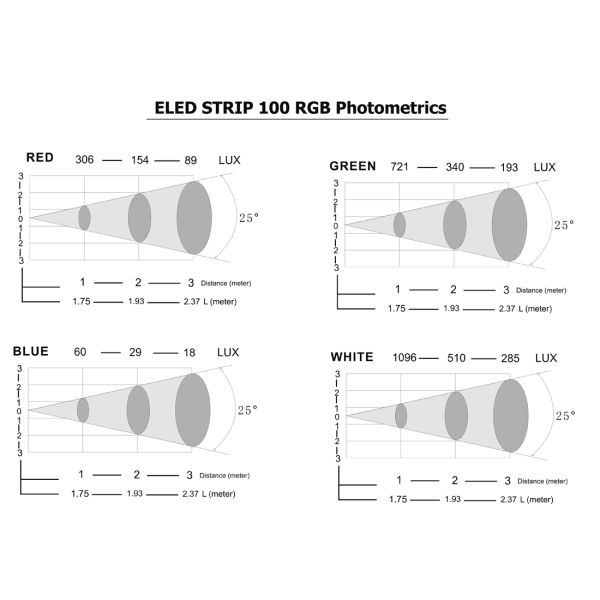

- 1118 LUX @ 1M / 410 LUX @ 2M
- Seamless RGB color mixing + pixel control
- Infinite Color possibilities
- 25-degree beam angle
- Long Life L.E.D. (rated at 50,000 Hours)
- Low power consumption
- Low heat emissions
- Flicker free operation for television and film (520Hz)
- Daisy-chain power from one unit to another (up to 20 fixtures)
- USITT-DMX 512
- 6 DMX modes; 3, 5, 2x 6, 15 & 30 channel modes

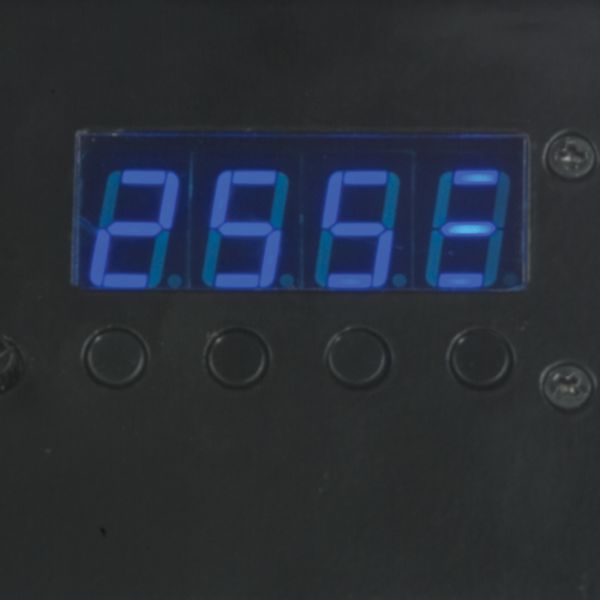

- LCD display with 3-button DMX control
- 3-pin and 5-pin XLR in/out
- Built-in microphone (for use with music mode)
- 4 control modes: DMX; Preset; RGB; Sound active
- 12 pre-installed programs (Macros)
- Strobe in any color (slow to fast strobe speeds)
- 0-100% Dimming
- Built-in Electronic Switching Power Supply (90-260V, 50/60Hz)
- Power Consumption: 75W

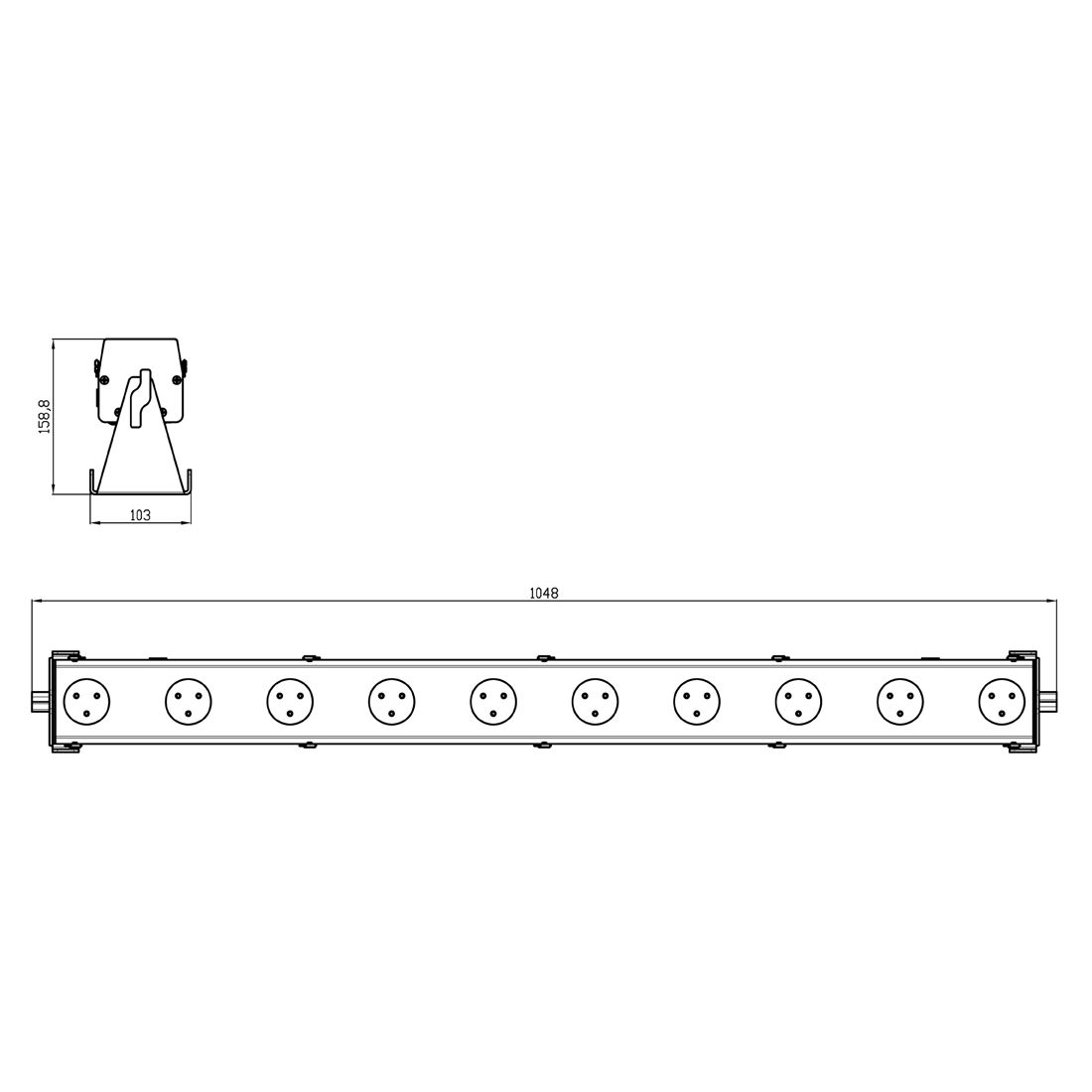

- Dimensions (LxWxH): 1050x104x158mm
- Weight: 5.4 kg

Specifications and documentation subject to change without notice
