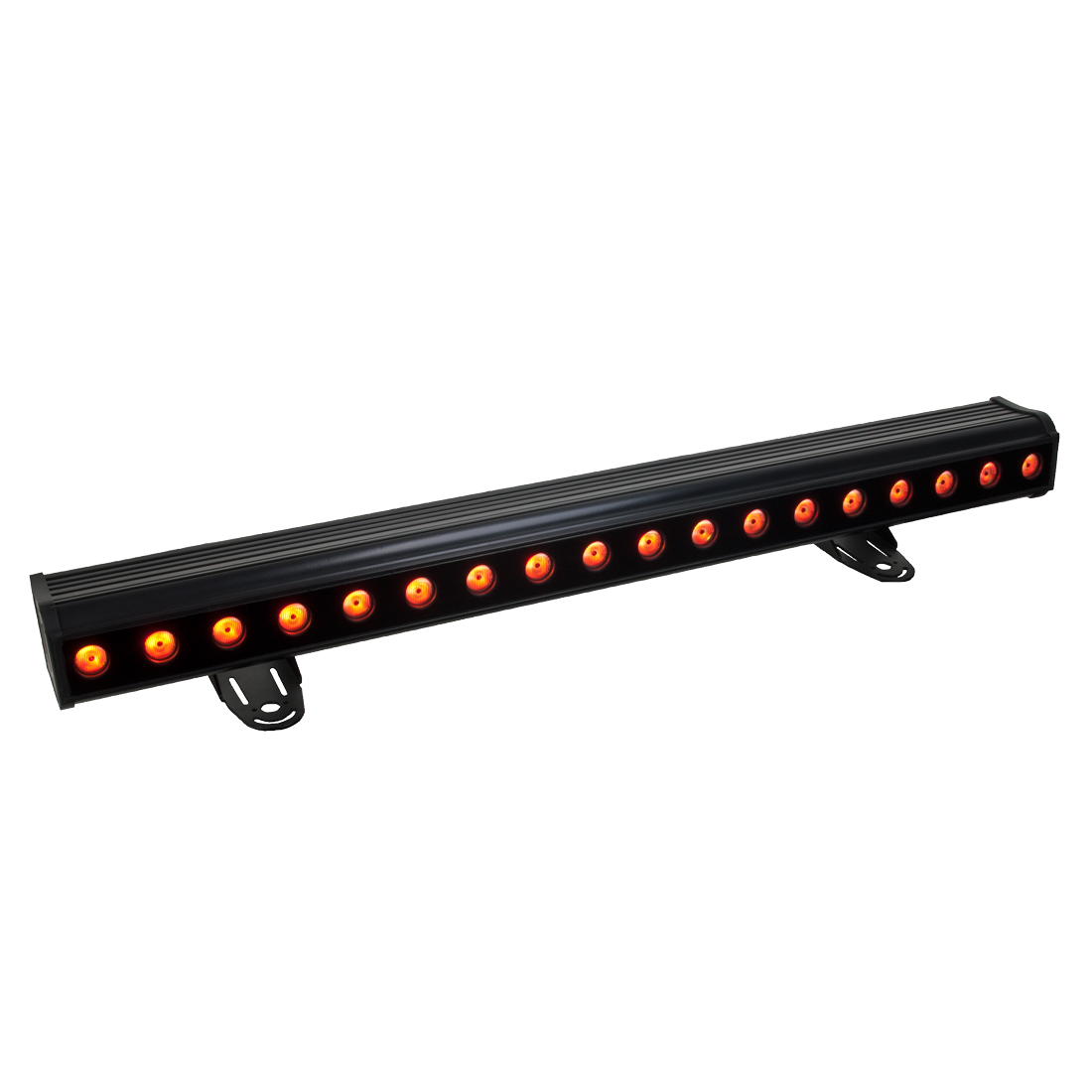

ELED QA Strip

More Power, More Punch, More Pixels... Designers and lighting professionals can dial up a spectrum of rich, perfectly blended colors for illuminating the largest stages, buildings, facades, landscapes and other entertainment or architectural elements where extreme output and/or direct view pixel blinder effects are desired with the Eled QA Strips from Elation Professional.

Technical Data

FEATURES

20° Beam and 50° Field Angles
Single Pixel Control
Long Life Quad Color RGBA LEDs
Flicker Free Operation for TV and FILM
Multiple Unit Power Linking


SOURCE

(18) 5W Quad Color RGBA LEDs
50,000 Hour Average Life


PHOTOMETRIC DATA

Pending


EFFECTS

Electronic Strobe 1-18FPS
Electronic Dimming: 0% - 100%


CONTROL / CONNECTIONS

(9) DMX Channel Modes (1/2/4/5/7/8/36/54/72)
(4) Button Control Panel
Color LCD Menu Display
Locking 3/5pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 1019mm
Width: 210mm
Vertical Height: 226mm
Weight: 9,5kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
150W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice
